Model X771 L3 Service Manual

1. Technical Specifications :

Please fill below information in Remarks, Below given remarks are for reference only

Particular

Remarks

Key Matrix For Flashing

Chipset

SC6531E

Android Version

Frequency

GSM:850/900/1800/1900

Network Mode

Dual SIM:GSM

ROM

32Mb

RAM

32Mb

Internal SD Card memory

Expandable Memory

32 GB

Factory mode code

*#629#

2. CAUTIONS

I. Flashing & Servicing must be undertaken by qualified personnel only.

II. Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn.

III. Use only approved Tools & components as specified in the parts list.

Model X771 L3 Service Manual

IV. Ensure all components, modules, screws, and insulators are correctly re-fitted after servicing and

alignment

V. Ensure all cables and wires are repositioned correctly if Handset disassembled

VI. Electrostatic discharge can easily damage the sensitive components of electronic products. Therefore,

Service Centre must adhere the precautions which mentioned above.

Basic Structure of the Mobile Phone

PCBA Diagrams of A81 Mainboard

J400 earphone connector

Failure caused by damage:

Earphone failure, FM failure

J100 antenna bonding pad

Failure caused by damage:

Weak BT signal

J800/J802 SIM1/SIM2 card

socket

Failure caused by damage:

Failure to identify GSM/

U600 charge IC

Failure caused by damage:

Failure to No indication during

charging

ANT1/ANT2 GSM PAD

Failure caused by

damage: GSM failure

U0101 GSM PA chip Failure caused

by damage:RF failure

U300 communication processor

Failure caused by damage:

Power-on failure

SPK speaker

Failure caused by

damage: No sound from

speaker

CAM pad

Failure caused by

damage:CAM failure

J602 Bat connector

Failure caused by

damage:

Power-on failure

LCD LCD pad

Failure caused by damage:

Display backlight failure

D700/D701/D702/D703/D704/D705

Keypad backlight

Failure caused by damage:

Keypad backlight failure

LED pad Failure caused

by damage: LED torch

failure

USB Connector Failure

caused by damage: No

port, no charging

Model X771 L3 Service Manual

3. L3 Level trouble shooting

Please add trouble shooting/ Repairing steps against below given symptoms

Images must paste against every suggested troubleshooting hint

1) Doesn’t Power On

GOLD_MIC,MIC pad

Failure caused by

damage:

No sound when voice is

transmitted via local MIC;

no sound during

playback

Model X771 L3 Service Manual

Solution

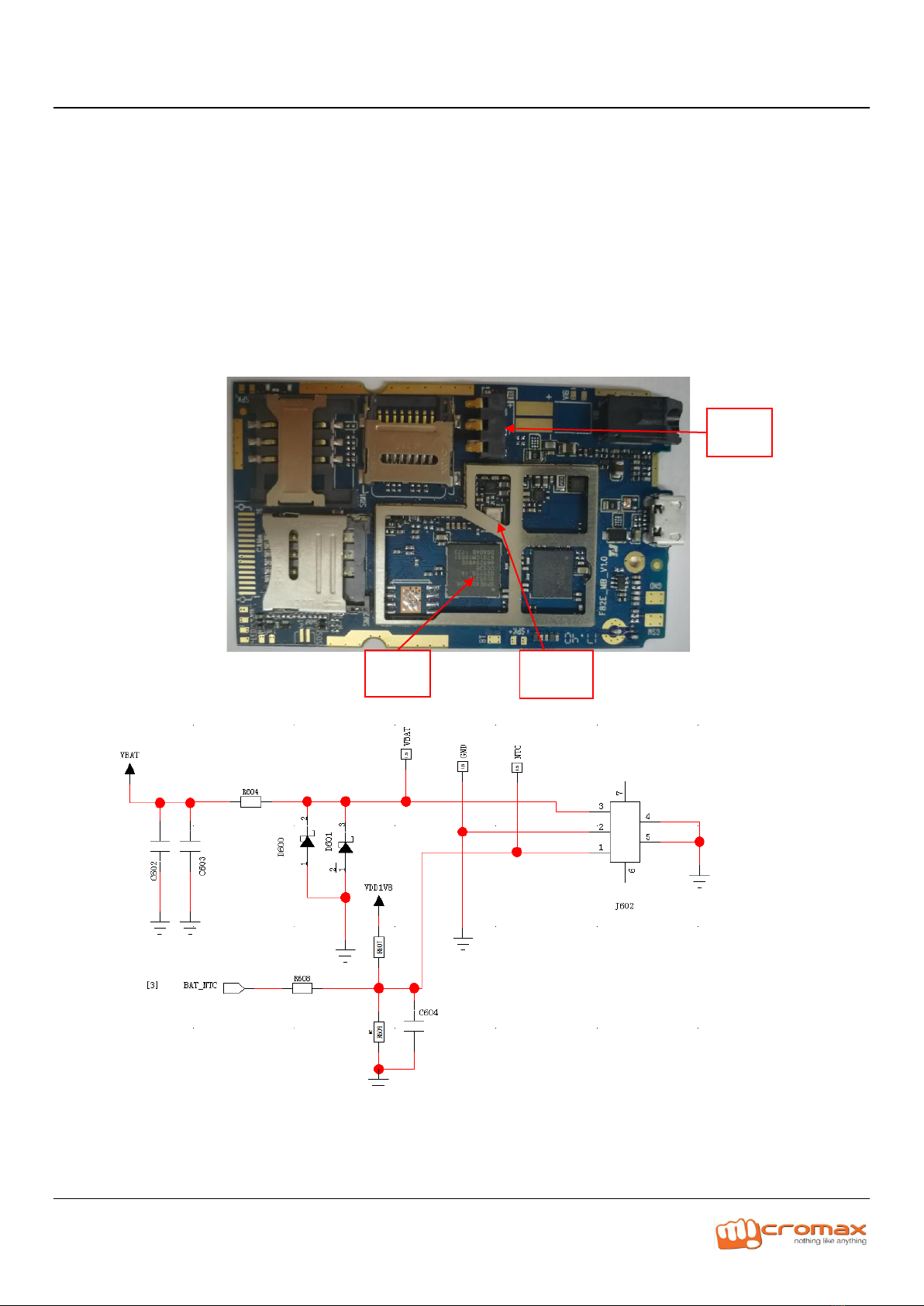

A- There is no current when the Power Key is pressed; check J602 to see if there is false soldering,

pseudo soldering, if yes, Carry out Resoldering or replacement;

B- When the Power Key is pressed, and the current stays within 10~15mA, if yes, Upgrade the

software version;

C- There is current when the Power Key is pressed; the current changes to 0~5mA when the key is

loosened, if yes, The problem is caused by pseudo soldering or damage of 26M crustal(Y200);

carry out repair soldering or replacement of the crystal. Or, it is caused by pseudo soldering or

damage of CPU;

D- There is heavy current when the Power Key is pressed, if yes, Find the hot point, and replace the

corresponding material CPU(U300) are damaged in most cases.

2) Restart / Hang

Solution: Refer same to Power failure issue.

3) LCD

Y200

U300

J602

Model X771 L3 Service Manual

Solution:

A- Exchange the front shell to judge if the LCD itself is abnormal, if yes, Replace the LCD;

B- Replace the CPU(U300)

4) Touchpad

5) Proximity Sensor

6) Accelerometer

7) Keypad

LCD

U300

Model X771 L3 Service Manual

Solution:

A- The common breakdown mainly does not work for the pressed key, the pressed key expiration. May defer to the

schematic diagram to examine whether by short circuit, abruption phenomenon. Or examined whether

underneath Dome has the foreign matter.

8) Charging

Solution:

A- Check if the charging IC U600 is abnormal, if yes, Carry out repair soldering or replacement;

B- Check if the resistors R601 are abnormal, if yes, Carry out repair soldering or replacement;

Model X771 L3 Service Manual

C- Replace the U300

9) USB

Solution:

U300

R601

U600

Model X771 L3 Service Manual

A- Check if the connector J603 is damaged or pseudo soldering, if yes, Carry out repair soldering or

replacement of the material

B- Check if the charging IC U600/R601 is abnormally soldered or damaged, if yes, Carry out repair

soldering or replacement.

C- Replace U300

10) Main Camera

J603

U600

R601

U300

Model X771 L3 Service Manual

Solution:

A- Check if the camera is properly installed, if yes, Reinstall it;

B- Exchange the camera to see if the problem is solved, if yes, The problem is caused by the

camera itself; replace it;

11) Front Camera

J500

Model X771 L3 Service Manual

12) Flash Light

13) Vibrator

14) Network

Solution:

A- Test the conduction power to see if it normal; if normal, test the circuit between the RF test

pad and the antenna to see if it is normal; or else, see the analysis of“abnormality of

conduction power”.

B- Test the circuit between the RF test pad and the antenna to see if it is normal are shown in the

following chart;

C- Check if the contact between the antenna and the antenna spring clip is normal. Deformation

of the antenna spring clip, which will affect coupling of RF signal, further resulting in low

coupling power. This problem can be solved by replacing the damaged component.

D- Damage of component material in the RF circuit, which can be solved by replacing the

material;

E- Pseudo soldering of components, which can be solved by repair soldering;

F- Direction error or position shift of components due to surface mounting, which can be solved

by Properly soldering the components;

G- Power abnormality caused by abnormal calibration, which can be solved by using proper

Calibration software configuration and instrument.

The repairman can check item by item according to the signal trend in the diagram, so as to

Determine the failure position.

RF_

ANT
