Micro-trak 17445 Manual de usuario

SPLICE

SWITCH SUPPLIED BY USER

(SWITCH CLOSED = RUN)

OPTIONAL RUN/HOLD CONNECTION

CUT JUMPER AND WIRE TO

SWITCH AS SHOWN

MOTOR

BLUE – ORANGE +

RUN/HOLD

DUST COVER W/JUMPER

P/N 13100

3-PIN M/P 150 SHROUD

BATTERY

WHITE

(+12 VDC)

TO FUSE TO

POSITIVE BATTERY

BLACK

(GROUND)

ORANGE

(+12 VDC)

BLACK

(GROUND)

TO NEGATIVE

BATTERY

POWER CABLE

P/N 17444

10 FT.

MOTOR CABLE

P/N 17448

20 FT.

BLACK - TO NEGATIVE

PUMP LEAD

WHITE - TO POSITIVE

PUMP LEAD

25A Manual Controller

Installation Instructions

OPTIONAL 2-PIN M/P 280 MOTOR

EXTENSION CABLES

P/N 17445 10' CABLE

P/N 17446 20' CABLE

IMPORTANT!

Do not connect the motor

leads to the battery or power

supply. Resulting damage to

controller will not be covered

under warranty.

Optional Pressure Gauge Bracket

also available - P/N 14799

LED STATUS INDICATOR CODES

Light on steady

Unit is turned on and operating normally

Steady Flashing

Unit in HOLD. Check Run/Hold jumper or remote

switch for correct operation.

1 Flash/pause

Open circuit detected. Check motor connections for

open circuit.

2 Flashes/pause

Output short circuit detected. Check motor wir-

ing.

3 Flashes/pause

Over-current condition. Check total load.

NOTE: Cycle power with the ON/OFF switch to clear a fault code

Front View

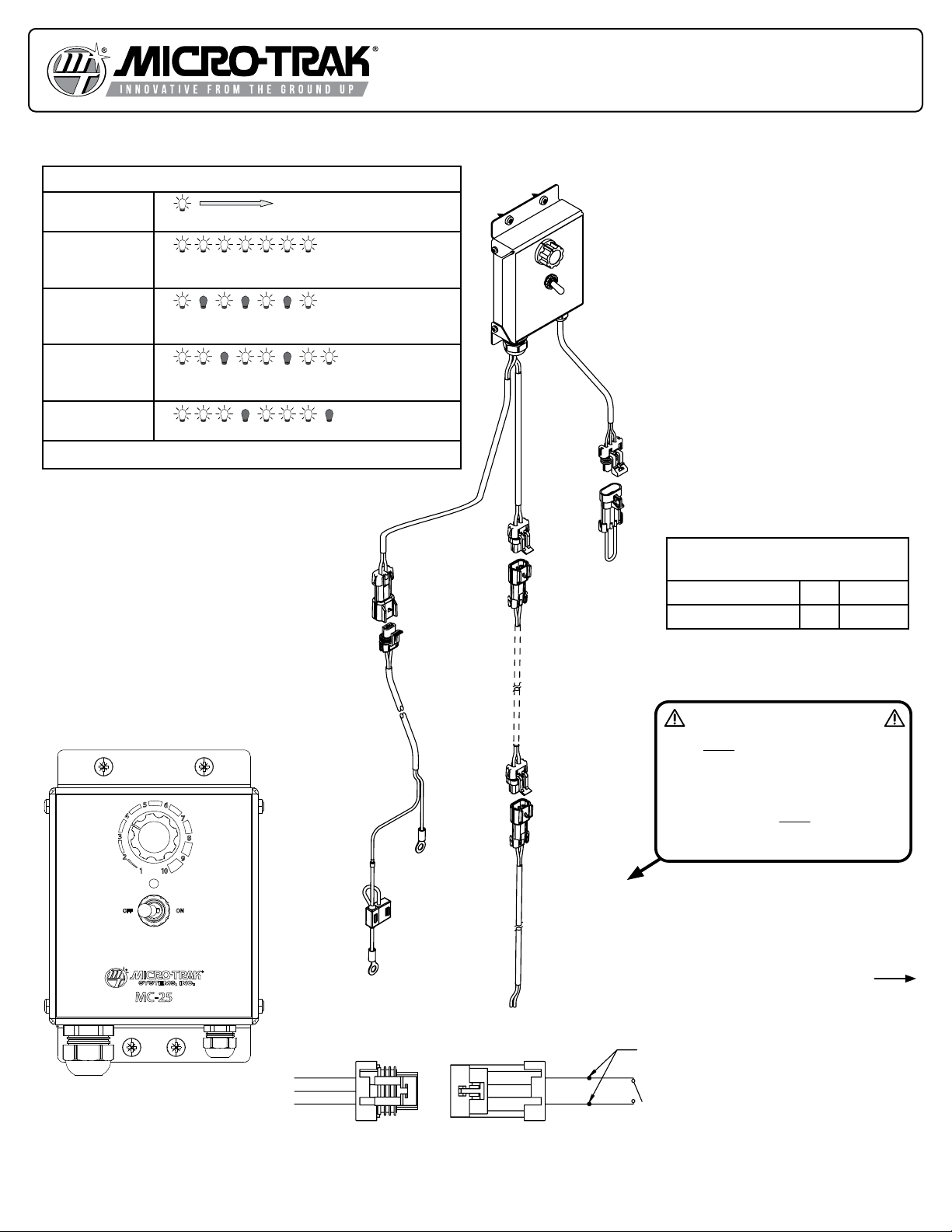

Cabling Details

Other Side

1305 Stadium Rd.

Mankato, MN 56001-5355

Web: www.micro-trak.com

Phone: (507)257-3600

Toll-Free: (800)328-9613

Email: [email protected]

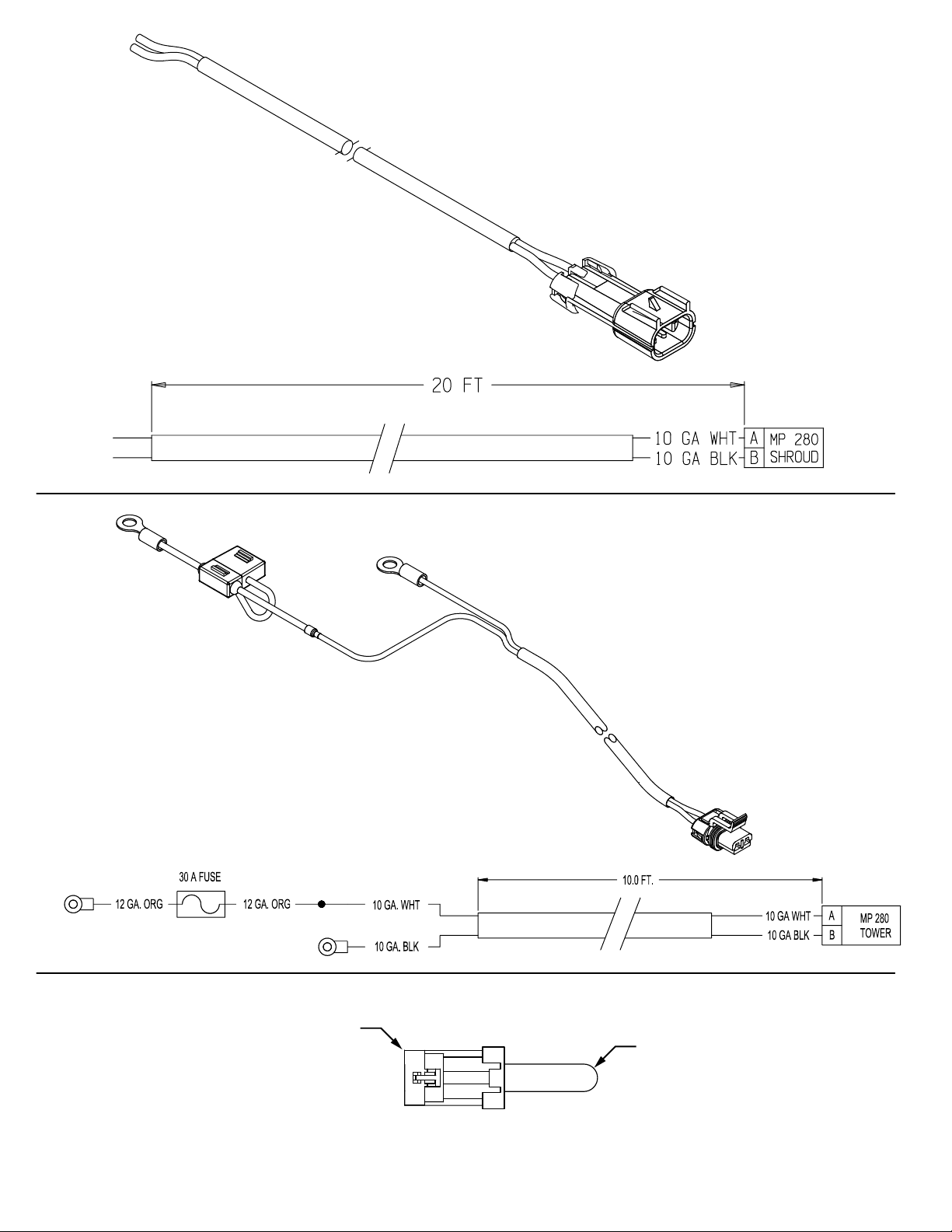

PN17448 Motor Cable

PN17444 Power Cable

PN13100 Dust Cover w/jumper

3-Pin MetriPack 150 Shroud

Jumper Wire:

Cut wire here to add switch for

Run/Hold function.

Switch Closed = Run
