MF DIGITAL SCRIBE EC Manual de usuario

Scribe EC with OptiEC Printer

Installation Guide

Document Revision: 2/21

SCRIBE EC WITH OptiEC PRINTER INSTALLATION GUIDE

Minimum PC System Requirements

• A Pentium II/III PC 800 MHz or faster

• Windows 2000 Pro (Service Pack 4.0) or Windows XP

• 512 MB Ram

• 7200 RPM ATA-100 Clean Hard Disk NTFS - (5GB Free Space)

• 800 x 600 display, 16-bit color recommended

• Two Button Mouse

• Two Free PCI Slots

• 1 external COM port (COM1 or COM2) - 2 ports needed if using Prism

Plus or Spectrum2

• Win ASPI driver layer (Included)

• IEEE-1394s adapters (Included) (Except print Station)

• Appropriate IEEE-1284 Printer Cable if attached

MF DIGITAL

121 Carolyn Blvd.

Farmingdale, NY 11735

001 631 249 9393

www.mfdigital.com

IF YOU PURCHASED A PRINT STATION – SKIP THIS PAGE

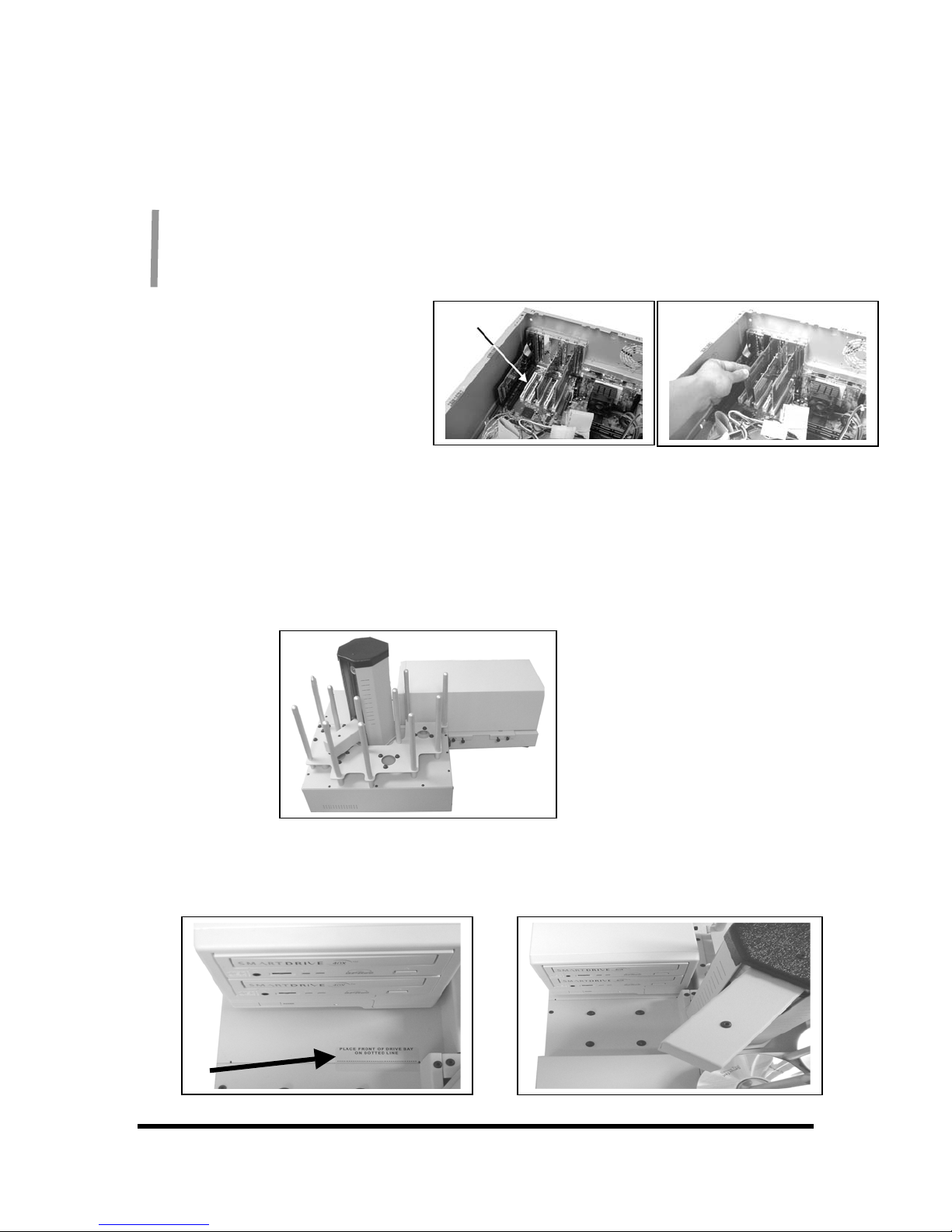

Installing the Firewire Adapter Card

One and two drive ScribeECs require one

IEEE-1394 card. Four drive systems require

two IEEE-1394 cards.

1. Shut down the PC.

2. Turn the PC’s power off.

3. Unplug the PC.

4. Remove the PC’s cover as

indicated in the PC’s manual.

(fig. 2)(fig. 1)

You should never attempt to service a unit without ensuring proper anti-static protection. The

use of a grounding strap, or other such grounding device, is advised. In addition, the internal

configuration of your computer may be different from the computer pictured below.

Note:

5. Locate an empty PCI slot, as

seen in (fig.1).

6. Install the firewire adapter card (fig. 2).

Installing the Drive Bay

1. Place the drive bay onto the base unit as seen in (fig. 1).

2. Position the drive bay so that the front right corner sits over the dotted line (fig. 2). Proper position is

shown in (fig. 3).

(fig.1)

Page 2

(fig. 2) (fig. 3)

Making the Connection

1 & 2 Drive Systems 4 Drive System

PC Connection

Two drive unit uses one fire wire adapter card and one cable.

Four drive unit uses two firewire adapter cards and two cables… Install one cable in each

firewire card.

Page 3

Installing the SCRIBE EC Software

1. Insert the SCRIBE EC

software CD.

2. From the CD ROM drive of

the computer, click Install

SCRIBE Software.

3. Click Next (fig. 1).

4. Accept the license agreement

and click Next (fig. 2).

5. Click Install (fig. 3).

6. Click Finish (fig. 4).

(fig. 1)

(fig. 2)

(fig. 3)

(fig. 4)

Page 4

Installing the SCRIBE EC Alignment Utility for Aligning the Drive

Tower

1. Insert the SCRIBE CD into the CD-

ROM drive of your PC.

2. Click on setup.exe of the alignment

utility and Click OK (fig. 1).

3. Click the button indicated in (fig. 2).

4. Enter a name for the group where

the Alignment Utility will be

located. Click Continue (fig. 3). The

Scribe Program Utility will appear

under Start / Programs / ”group

name” after installation is

complete.

5. A progress bar will appear (fig. 4).

6. Click OK (fig. 5) to finish

installation.

(fig. 1)

(fig. 3)

(fig. 2)

(fig. 4)

(fig. 5)

Page 5

Installing the OptiEC Printer Driver

1. Click Start-> Settings-> Printers

2. Click Add New Printer

3. The “Welcome to the Add Printer

Wizard” window will appear (fig 1).

Click Next.

4. In the “Local or Network Printer”

window, uncheck the “Automatically

detect installed printer” option ,

leaving the “Local printer attached to

computer” option (fig 2) and click

Next..

5. In the “Select a Printer Port” window,

leave the default as LPT1 (fig 3) and

click Next.

6. In the “Install Printer Software”

window, click the “Have Disk” button

(fig 4). You will then be prompted to

“Install from Disk”, click the

“Browse” button (fig 5). Select the

location of the printer driver from

your CD-ROM drive in the PC (fig 6).

fig 1

fig 2

fig 3 fig 4

fig 5

fig 6

Page 6

Installing the MF Digital OptiEC Printer Driver (cont.)

fig 9

fig 11

7. After specifying the driver for the MF

Digital OptiEC printer, the printer “MF

Digital OptiEC” will appear in the “Add

Printer Window” (fig 7). Click Next to

continue.

8. In the “Name your Printer” window,

leave the printer as the default name, and

select the printer to be the default printer

(fig 8) and click Next.

9. In the “Printer Sharing” window, select

“Do Not Share the Printer” (fig 9) and

click Next.

10. Say No to “Print Test Page” (fig 10)

and click next.

11. The “Completing the Add Printer

Wizard” window will appear (fig 11).

Click Finish. After clicking finish, the MF

Digital OptiEC printer driver will be

installed. You will be asked to accept that

the printer driver is not digitally signed by

Microsoft, click Continue (fig 12). You

have now successfully installed the printer.

fig 7

fig 8

fig 10

fig 12

Page 7

Adjusting the MF Digital OptiEC Printer Driver Settings

nter Spooling

It is important to disable printer spooling on the MF

Digital OptiEC printer. To do so, please follow the

steps below:

1. Go to Start-> Settings -> Printers

2. Right-click on the MF Digital OptiEC

printer in the Printers Folder

3. Go to Properties

4. Go to the Advanced Tab

5. For the Scribe Program to use the printer

effectively, please match the settings of

your printer driver to the example on the

right-side of this page.

6. To save settings, Click Apply and OK to

exit.

***NOTE: Any changes made to the printer

driver settings, require a NEW PRN file to be

made. If you change one of the settings, be sure

to create a NEW PRN file.***

Page 8

Aligning the Drive Tower

(fig. 6)

(fig. 3)

1. From your Start Menu Open the SCRIBE E

Alignment Utility (fig. 1). It will be located in

the folder designated when you installed the

alignment utility. Choose the appropriate COM

Port which the Scribe EC Loader is installe

on. Select all other printers and drives, an

Click Start Test.

2. Follow the instructions by opening the top

CD/DVD drive tray, and Clicking Yes (fig. 2).

The picker arm will hover a disc over the drive

tray, observe the discs position and make the

adjustments to the drive tower (fig. 3).

3. Click Yes when you are satisfied with you

adjustment (fig. 4).

4. The picker arm will then place the disc onto

the drive tray. Follow the on screen

instructions and click OK (fig. 5).

5. Once you are satisfied with the drive towe

alignment, tighten the thumb-screws locate

on both sides of the drive tower (fig. 6).

(fig. 1)

(fig. 2)

(fig. 4)

(fig. 5)

Page 9

Aligning the MF Digital OptiEC Printer

Alert:

1. From your Start Menu Open the SCRIBE E

Software.

2. Once the Scribe EC Software opens, click on

the Settings tab.

3. Click Change Settings and select the MF

Digital OptiEC Printer. After making this

selection, you will need to restart the Scribe

EC Software program.

4. After restarting the Scribe EC Software

rogram, go to the Settings Tab. You will now

see a button that says “Test Loading an

Unloading the Printer”. Click this button. (fi

5. A Printer Alignment Box will appear. First,

you will click the “Pick up a disc from the

Input spindle and put it down on the printe

tray” (fig 2). Adjust the printer so that the CD

is aligned in the printer tray (fig 3).

6. After ensuring proper placement of the CD on

the printer, continue with the Alignmen

Utility and pick up the CD from the printe

tray.

7. After you are satisfied with the alignment o

the CD on the printer tray, lock the printer in

lace by tightening the thumb screws on the

printer plate to hold the printer in place.

Before starting the Alignment Utility,

osition the front end of the printer plate

on the dotted line of the drive tower.

(fig 1)

(fig 2)

(fig. 3)

Page 10
