Meyra 1.750 Manual de usuario

Operating manual

We move people.

Lightweight wheelchairs

Model-Family 1.7xx

Model-Family 1.8xx

Contents

Introduction 4

List of models 5

Indications 5

Acceptance 5

Speciﬁcations 6

Use 6

Adjustment 7

Reinstallment 7

Life span 7

Overview 8

Brake 9

Pressure brake - user 9

Locking the brakes 9

Releasing the brakes 9

Service brake 9

Drum brake for accompanying persons 10

Function as operating brakes 10

Activating/releasing the drum brakes 10

Brake lever extension 11

Calf belt 11

Leg supports 12

Folding up the footboard 12

Folding down the footboard 12

Turning the leg supports to the side 13

Removing the leg supports 14

Attaching the leg supports 14

Arm supports 16

Removing the arm support 16

Inserting the arm support 17

Swivelling up the arm support 18

Height adjustable arm supports 19

Back support 20

Back support with angle adjustment 30° 20

Push handles 21

Wheels 23

Drive wheels 23

Quick release axle 23

Tyre damage on pneumatic tyres 23

Specialities for double handrims 24

Propelling the wheelchair 24

Folding/unfolding with double handrims 24

Support castors 25

Support castor length 25

Stick-in support castors 25

Removing/inserting the support castors 25

Swing-out support castors 26

Swinging the support castors 26

Retaining strap 26

Wheelchair folding/unfolding/carrying 27

Loading and transportation 28

Transport security 28

Maintenance 28

Maintenance schedule 29

Technical data 31

Tyre pressure of pneumatic tyres 31

Meaning of the labels on the wheelchair 38

Meaning of the symbols on the type plate 39

Inspection certiﬁcate 40

Notes 41

Warranty / Guarantee 42

Warrantee / Guarantee section 43

Inspection certiﬁcate for transfer 43

INTRODUCTION

We thank you for the conﬁdence you have

placed in our company by choosing a

wheelchair from this series.

The model of your selection, fulﬁls the wish

for mobility and more independence by

way of a new styling of the proven MEYRA

technology.

With all equipment and their accessories

the wheelchair oﬀers die respective adapta-

tion to your disability.

Like any other vehicle, a wheelchair is a

technical aid. It is subject to explanations,

requires regular care and can cause danger

when used improperly. The correct han-

dling must therefore be learned. This oper-

ating manual is to help you get accustomed

to the handling of the wheelchair as well as

to prevent accidents.

☞Note:

Please note that the illustrated equip-

ment variants can deviate from your

model.

We have therefore also listed chapters with

options that might not be applicable for

your individual wheelchair.

Attention:

Read and observe the following docu-

mentation belonging to the wheelchair

before ﬁrst operation:

– this operating manual,

– the safety and general handling instruc-

tions < Mechanical and muscle powered

wheelchairs >.

☞Note:

Children and juveniles should read

the documentation belonging to the

wheelchair together with their parents

respectively a supervisor or an accom-

panying person before ﬁrst use.

For users with visual impairments the PDF-

ﬁles of the above mentioned documents

can be accessed on our website < www.

meyra.com >.

☞Contact your specialist dealer when re-

quired.

Alternatively users with visual impairments

can have the documentation read out by a

helper.

LIST OF MODELS

This operating manual applies to the follow-

ing models:

Model-Family 1.7xx

Model 1.750

Model 1.760

Model-Family 1.8xx

Model 1.840

Model 1.850

INDICATIONS

If the following indications occur we rec-

ommend the application of this mobility

product:

Walking disability resp. extremely limited

walking ability as part of the basic need to

move around in your own home.

The need to be able to leave home for a

short walk in fresh air or in order to reach

the places, commonly in the perimeter of

the home, required to fulﬁl basic needs.

ACCEPTANCE

All products are checked for faults in the

factory and packed in special boxes.

☞Note:

However, we request that you check

the vehicle for possible transport dam-

age immediately on receipt – prefera-

bly in the presence of the carrier.

☞Note:

The packaging of the wheelchair

should be stored for a further transport

that might become necessary.

USE

Through its constructive advantages the

wheelchair can universally be implemented

on level, ﬁrm surfaces and is therefore an all-

round-wheelchair:

– for indoors (e.g. apartment, day care),

– outdoors (e.g. in parks),

– as a companion on tours (e.g. in a bus or

train).

The wheelchair oﬀers manifold adjustment

possibilities to individual vital statistics.

The wheelchair should be adapted to your

needs by a specialist dealer before the ﬁrst

use. The adaptation will take into account

the driving experience, the physical limits of

the user and the main place of use of the

wheelchair.

Attention:

Always have adaptation and adjust-

ment work carried out by a specialist

dealer.

SPECIFICATIONS

The wheelchair of the lightweight-family,

was developed for adults and adolescents.

The wheelchair solely serves to transport

one person in the seat and not as a hauling

aid, transporter or similar.

ADJUSTMENT

The specialist workshop will hand out the

wheelchair to you under consideration of all

relevant safety instructions, ready for opera-

tion and adjusted to your needs.

☞Note:

We recommend a regular control if

the wheelchair adjustment in order to

ensure a long-term optimal provision

even with changing illness/handicap

patterns of the user.

☞We recommend regular medical exams

in order to ensure safety for active par-

ticipation in traﬃc.

☞Retrospective adjustments should be

carried out solely by the specialist deal-

er!

REINSTALLMENT

The wheelchair is suited for reinstallment.

With the building block system the wheel-

chair can be ﬁt to accommodate diﬀerent

handicaps body sizes.

LIFE SPAN

We expect an average life span of about

4 years for this product, as far as the product

is applied for its designated purpose and all

maintenance and service guidelines.

The life span of your product depends upon

the frequency of use, the application envi-

ronment and care.

The implementation of spare parts can pro-

long the life span of the product. As a rule

spare parts are available up to 5 years after

production is discontinued.

☞The indicated lifespan does not consti-

tute additional guarantee.

9 8 7

4321

Pos. Description

(1) Push handle

(2) Back support

(3) Arm support

(4) Clothes guard

(5) Seat belt/seat cushion

(6) Locking lever – Leg support

(7) Footboard/footplates divided

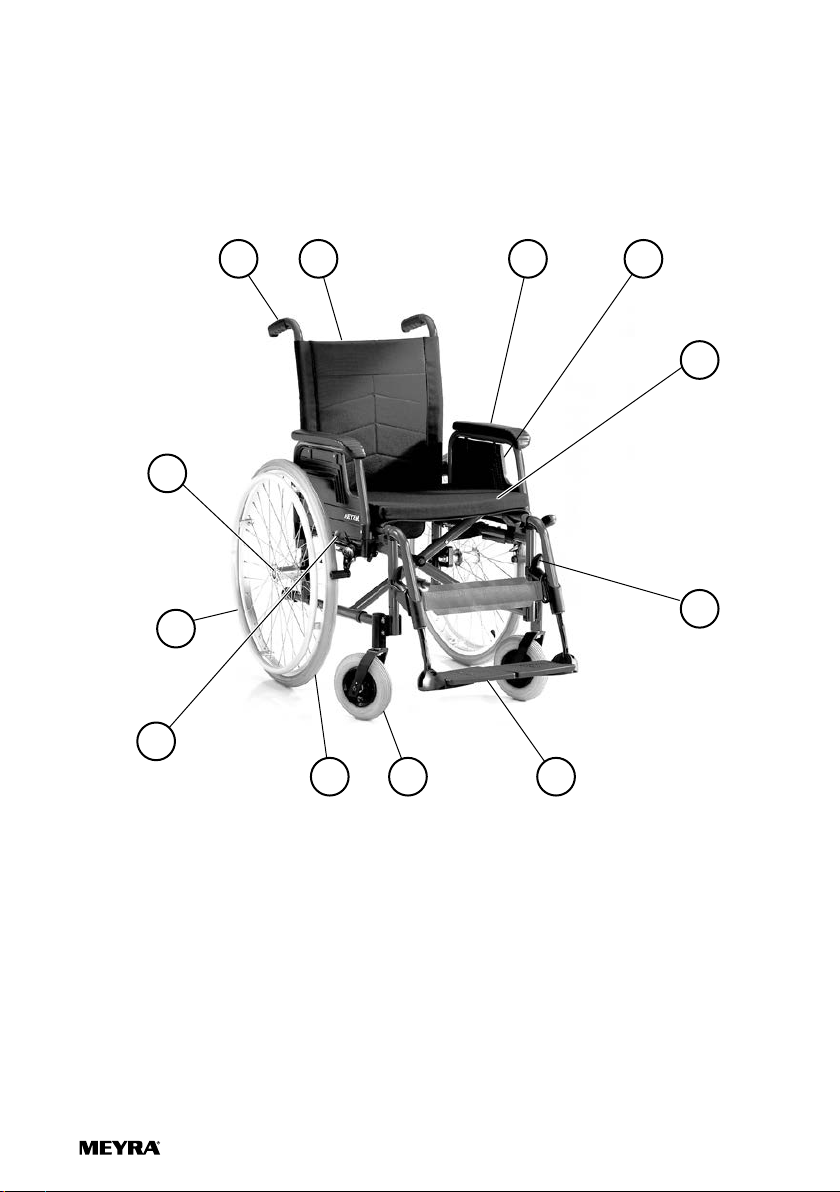

OVERVIEW

The overview shows, representative for all models, the most important components of the

wheelchair.

(8) Steering wheel

(9) Driving wheel

(10) Brake lever – pressure brake

(11) Handrims

(12) Locking knob – Quick release axle

BRAKE

By locking the brakes with the brake lever

(1), the wheelchair is secured against rolling

away unintentionally (parking brake).

Depending on the version, the wheelchair

can be equipped with pressure brakes (2) or

with drum brakes (3).

☞Note:

Therefore observe the Maintenance

schedule on page 29 as well as safe-

ty and general handling instructions

< Mechanical and muscle powered

wheelchairs > chapters < General safety

information > and < Brakes >.

Attention:

Arrange an immediate repair of the

brakes by your specialist workshop if

the braking performance reduces.

Pressure brake - user

Locking the brakes

To secure the wheelchair against any unin-

tentional rolling, press both brake levers for-

ward all the way [4].

☞Note:

It should not be possible to push the

wheelchair forward when both brakes

are locked.

Releasing the brakes

Pull both brake levers back all the way [2].

Service brake

The wheelchair is braked down with help of

the handrims.

☞Note:

If needed use suitable gloves in order to

brake down the wheelchair.

Drum brake for accompanying

persons

The drum brake is activated by the accom-

panying person through the brake levers (1).

Function as operating brakes

Pull both brake levers evenly and only light-

ly in order to achieve a controlled decelera-

tion of the wheelchair.

Activating/releasing the drum brakes

For activating/releasing the drumbrakes

observe the safety and general handling in-

structions < Mechanical and muscle powered

wheelchairs > chapter < Drum brake >.
