Meyer PV Series Manual de usuario

PV SERIES

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

MODELS LISTED IN THIS BOOKLET

GAS-DRIVEN (HONDA AND BRIGGS & STRATTON)

HYDRAULIC

BASE LINE

00108-760-01-REV-B

Page 1

OCTOBER, 2013

PV SERIES

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

THE BEST SAFETY

DEVICE IS A

CAREFUL OPERATOR

SAFETY ALERT SYMBOL

THIS SYMBOL MEANS ATTENTION!

BECOME ALERT!

YOUR SAFETY IS INVOLVED!

PLEASE READ AND UNDERSTAND COMPLETELY BEFORE DO-

ING!

SAFE EQUIPMENT INSTALLERS and OPERATORS:

NOTICE: INSTRUCTIONAL MATERIAL AND PARTS LISTS INCLUDED IN THIS MANUAL ARE

SUBJECT TO CHANGE WITHOUT NOTICE.

turn off all power before performing any service operations

• follow recommenDeD operating proceDures.

• Keep eQuipment in safe operating conDition at all times.

• recogniZe anD avoiD HaZarDs wHile operating, servicing anD

maintaining eQuipment.

00108-760-01-REV-B

Page 3

OCTOBER, 2013

PV SERIES

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

WARNING

USE SAFETY GLASSES OR OTHER FACE PROTECTION AGAINST POSSIBLE BATTERY

EXPLOSION. DO NOT SMOKE AND AVOID OTHER SOURCES OF IGNITION.

10. Attach the positive battery cable (each end should have a rubber boot) to the positive terminal of the

solenoid and to the positive terminal of the battery. Make sure these protective boots are covering the

positive terminal post on the battery and on the solenoid. Attach one end of the remaining battery cable

to the negative terminal of the battery.

11. Connect the negative battery terminal to the battery hold down post. When finished, make sure all

wires are away from moving parts and lower engine shroud.

12. Plug cable from spreader into socket mounted on truck.

Never operate machine with engine shroud in the upright position. Never climb into hopper

while the engine is operating or capable of being operated.

SERIOUS INJURY or DEATH MIGHT OCCUR.

NOTE: Read and fully understand the owners manual supplied by the engine manufacturer

before operating this equipment. Not doing so, endangers your safety and the warranty

of the engine.

WARNING

USE SAFETY GLASSES OR OTHER FACE PROTECTION AGAINST POSSIBLE BATTERY

EXPLOSION. DO NOT SMOKE AND AVOID OTHER SOURCES OF IGNITION.

10. Attach the positive battery cable (each end should have a rubber boot) to the positive terminal of the

solenoid and to the positive terminal of the battery. Make sure these protective boots are covering the

positive terminal post on the battery and on the solenoid. Attach one end of the remaining battery cable

to the negative terminal of the battery.

11. Connect the negative battery terminal to the battery hold down post. When finished, make sure all

wires are away from moving parts and lower engine shroud.

12. Plug cable from spreader into socket mounted on truck.

Never operate machine with engine shroud in the upright position. Never climb into hopper

while the engine is operating or capable of being operated.

SERIOUS INJURY or DEATH MIGHT OCCUR.

NOTE: Read and fully understand the owners manual supplied by the engine manufacturer

before operating this equipment. Not doing so, endangers your safety and the warranty

of the engine.

WARNING

00108-760-01-REV-B

Page 4

OCTOBER, 2013

PV SERIES

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

ENGINE COVER PROP ROD INSTRUCTIONS

WARNING

USE SAFETY GLASSES OR OTHER FACE PROTECTION AGAINST POSSIBLE BATTERY

EXPLOSION. DO NOT SMOKE AND AVOID OTHER SOURCES OF IGNITION.

10. Attach the positive battery cable (each end should have a rubber boot) to the positive terminal of the

solenoid and to the positive terminal of the battery. Make sure these protective boots are covering the

positive terminal post on the battery and on the solenoid. Attach one end of the remaining battery cable

to the negative terminal of the battery.

11. Connect the negative battery terminal to the battery hold down post. When finished, make sure all

wires are away from moving parts and lower engine shroud.

12. Plug cable from spreader into socket mounted on truck.

Never operate machine with engine shroud in the upright position. Never climb into hopper

while the engine is operating or capable of being operated.

SERIOUS INJURY or DEATH MIGHT OCCUR.

NOTE: Read and fully understand the owners manual supplied by the engine manufacturer

before operating this equipment. Not doing so, endangers your safety and the warranty

of the engine.

WARNING

1. Raise engine cover.

2. Locate the prop rod and remove it

from the plastic retainer allowing the

prop rod to swing down.

3. Locate the hole on the spreader

marked “insert prop rod here” and

slowly lower the engine cover until the

prop rod fully engages in to this hole.

4. Carefully release the engine cover

while ensuring it is being solidy sup-

ported by the prop rod.

2.500

Hole

Prop Rod

(Top View of Spreader with engine cover removed)

Engine

Cover

To prevent injury extreme caution must be used when opening, closing, or working under or near the engine

cover. To prevent the engine cover from falling the prop rod must be fully engaged into the proper hole.

Never operate or transport the spreader with the engine cover open.

Some maintenance proceedures may require the engine cover to be completley removed from the spreader to

allow full access to the gasoline engine or other components. The engine cover must be reinstalled and in the

closed position before starting engine or operating spreader.

00108-760-01-REV-B

Page 5

OCTOBER, 2013

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

CENTER HIGH MOUNTING STOP LIGHT

ITEM PART NO. QTY. DESCRIPTION

62097 1 Kit, Center High Mount Stop Light

1 62714 1 • Lamp, Stop

2 62715 1 • Grommet

3 62364 1 • Cable, Light Power

4 62738 1 • Cable, Stop Lamp

5 62283 1 • Weld, Stop Lamp Bracket - Hydraulic Units ONLY

6 62739 1 • Hardware Bag - Not Shown

(GAS ENGINE)

(HYDRAULIC)





Item Part Number Qty. Description

1 62714 04605-153-00 1 Lamp, Stop

2 62715 04605-154-00 1 Grommet, Mounting

3 62364 04605-155-00 1 Cable, Light Power (Hopper)

4 62738 04616-075-00 1 Cable, Stop Lamp Power (Truck)

5 63155 00119-878-00 1 Forming, Rear Stop Light Bracket

CS (Hydraulic units only)

64076 00119-878-01 Stainless steel bracket.



  

   

  

  



1. Use high quality butt connectors and shrink wrap on

all electrical splice connections. Wire should be routed

and secured to protect against abrasion, sharp edges,

and excessive movement. It is highly recommended that

wiring be placed in convoluted tubing and secured with

tie wraps

2. When drilling holes, any bare metal should be coated with

a rust preventative; use appropriate size grommets and seal

hole with appropriate sealant.

3. Allow for normal movement/twisting between

cab and chassis/pickup box when routing wires.

4. When spreader is removed from the truck, the

 must be reconnected.



























     

     





     





00108-760-01-REV-B

Page 6

OCTOBER, 2013

PV SERIES

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

INSTALLATION INSTRUCTIONS:

The PV Series Spreader can be mounted and stored

as a single unit. The PV Series Spreader will mount

on most medium or heavy-duty pickup trucks as well

as 1 ton trucks (with optional extended spinner).

DO NOT OVERLOAD THE VEHICLE

It is quite possible to overload the vehicle by im-

properly mounting or overloading the spreader. This

could result in dangerous stability and braking prob-

lems. Always consult and follow the vehicle manu-

facturer’s recommendations before attempting these

instructions.

1. Place the spreader in the rear of the truck with

the engine/motor to the rear of the truck. Center the

spreader(side to side) in the truck.

2. Attach or lower spinner assembly.

3. Position the spreader in the truck bed, just short of making

contact with the rear most part of the truck bed, bum-

per, pintle hook etc. Bolt the unit to the truck using a

minimum of four (4) 1/2” Grade 5 bolts and correspond-

ing washers and locknuts. The spreader is designed to

sit at on the bed of the truck, supported by the longitu-

dinal sides.

DO NOT SUPPORT THE SPREADER BY THE BODY

JACKS ALONE! UNIT IS NOT DESIGNED FOR CHASSIS

MOUNT APPLICATIONS!

5. Attach the hold down at each corner of the hopper

as shown. Locate and drill four .531(17/32”) diameter

holes for eyebolts in the truck bed. Straps must be po-

sitioned at opposing angles so that the spreader cannot

slide forward or rearward. Assemble ratchet/strap to

eye bolts. Tighten hold downs evenly. Do not overtight-

en, damage will result to the spreader or the truck.

Note: If vehicle is equipped with sufcient

tie downs, they may be used in place of

eyebolts.

INSTALLATION AND ASSEMBLY INSTRUCTIONS

BEFORE STARTING, VERIFY THAT THIS

MOUNTINGMETHODISACCEPTABLE TOTHE

VEHICLE MANUFACTURER.

CAUTION!

ENSURETHESPREADERCANNOT TIPWHENTHE SPIN-

NER ASSEMBLY IS ATTACHED.

CAUTION!

READ ALL OF THE INSTALLATION

INSTRUCTIONS BEFORE STARTING.

WARNING!

BEFORE BEGINNING ANY INSTALLATION ON

THIS UNIT, DISCONNECT THE SPREADER AND

VEHICLE NEGATIVE BATTERY CABLES.

THE SPREADER UNIT MUST BE SECURELY

FASTENED TO THE VEHICLE. FAILURE TO

PROPERLY RESTRAIN THE UNIT COULD

PERMIT THE UNIT TO BREAK FREE FROM THE

TRUCK AND CREATE THE POTENTIAL FOR A

LIFE THREATING ACCIDENT.

WARNING!

DO NOT SUPPORT THE SPREADER BY

THE BODY JACKS ALONE! UNIT IS NOT

DESIGNED FOR CHASSIS MOUNT APPLI-

CATIONS.!

CAUTION!

00108-760-01-REV-B

Page 7

OCTOBER, 2013

PV SERIES

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

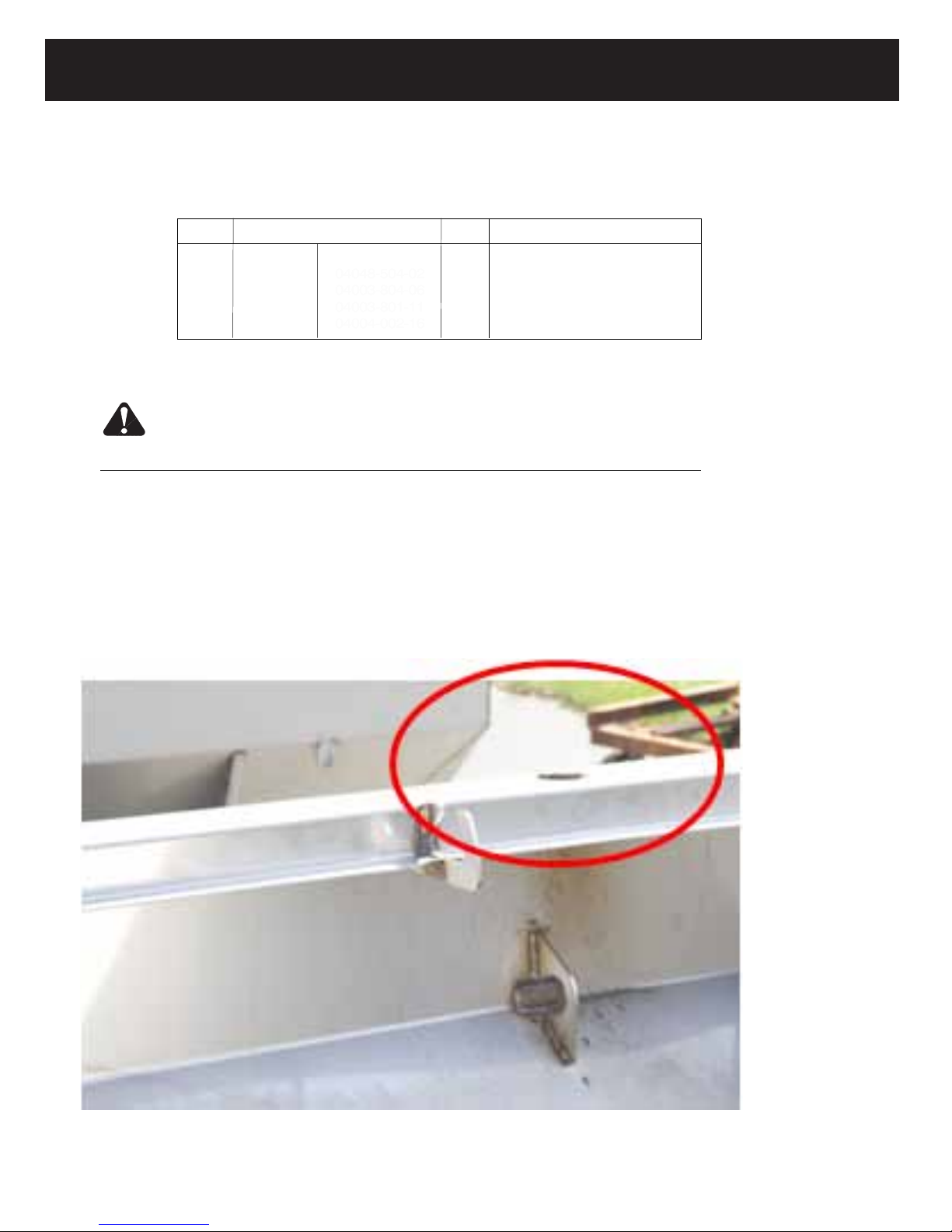

OPTIONAL HOLD-DOWN KIT

Part No. 62562 (00002-306-00)

INSTALLATION INSTRUCTIONS

READ ALL THE INST

ALLA

TION INSTRUCTIONS BEFORE ST

ARTING

Before starting, verify that this mounting is acceptable to the vehicle manufacturer.

Attach the hold down at each corner of hopper as shown. Locate and drill four .531

(17/32”) diameter holes for eye-bolts in the truck bed (position may vary from that shown). Straps must be

positioned at opposing angles so that spreader cannot slide forward or rearward. Mount eye-bolts as

shown, with locknuts and flatwashers on the bottom side. Assemble ratchet/strap to eye-bolts. Tighten

hold downs evenly. Do not over tighten damage will result to the spreader or the truck.

ITEM PART NUMBER QTY. DESCRIPTION

1 62602 04068-038-00 4 Ratchet/Strap

2 62807 04048-504-02 4 Bolt, 1/2” Eye

3 20307 04003-804-06 4 Locknut, 1/2-13 Esna ZP

4 62604 04003-801-11 4 Nut, 1/2-13 Hex ZP

5 62605 04004-002-16 8 Flatwasher, 3/4"

CAUTION

00108-760-01-REV-B

Page 8

OCTOBER, 2013

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES

OPTIONAL HOLD-DOWN KIT

Part No. 62562 (00002-306-00)

INSTALLATION INSTRUCTIONS

READ ALL THE INST

ALLA

TION INSTRUCTIONS BEFORE ST

ARTING

Before starting, verify that this mounting is acceptable to the vehicle manufacturer.

Attach the hold down at each corner of hopper as shown. Locate and drill four .531

(17/32”) diameter holes for eye-bolts in the truck bed (position may vary from that shown). Straps must be

positioned at opposing angles so that spreader cannot slide forward or rearward. Mount eye-bolts as

shown, with locknuts and flatwashers on the bottom side. Assemble ratchet/strap to eye-bolts. Tighten

hold downs evenly. Do not over tighten damage will result to the spreader or the truck.

ITEM PART NUMBER QTY. DESCRIPTION

1 62602 04068-038-00 4 Ratchet/Strap

2 62807 04048-504-02 4 Bolt, 1/2” Eye

3 20307 04003-804-06 4 Locknut, 1/2-13 Esna ZP

4 62604 04003-801-11 4 Nut, 1/2-13 Hex ZP

5 62605 04004-002-16 8 Flatwasher, 3/4"

CAUTION

00108-760-01-REV-B

Page 9

OCTOBER, 2013

PV SERIES

INSTALLATION AND INSTRUCTIONAL MANUAL

xxxxx-xxx-xx month/day/year

PV SERIES



(Sequence of Operations)



F. TO TURN ENGINE OFF (With or without conveyor

running).

1. TURTLE Push throttle slow button to

reduce setting to idle (this prevents

engine flooding and hard starting).

2. STOP Push STOP button and hold

5 seconds.









G. Do not attempt to start the engine

with the conveyor engaged.

H. Close fuel shut off valve on engine if

unit is to be transported while not

running.



1. As with all power equipment, safety is the number

one concern.

2. Do not operate this equipment until you fully

understand how it functions.

3. Before starting engine, be sure that no one is near

the rear of the unit and that no one is inside the

unit!

4. Do not start the engine or engage the conveyor

(which is interconnected to the spinner) until

everyone is clear from moving parts and flying

material from the spinner.

A. ON/Off System power activated (ready to

start). Spreader engine not running.

Spreader conveyor is not engaged.

B. START (Engine Only)

1. Open fuel shut off valve on engine.

CHOKE (Cold engine.) Hold down for

5 seconds to move the throttle

actuator to the choke position.





TART Hold down button until engine

starts.

URTLE Decreases throttle speed - adjust

asengine warms up. Will stop the

choke function.

RABBIT Increases throttle speed.

C. TO ENGAGE SPREADER CONVEYOR

1. CONVEYOR Push CONVEYOR switch only after

you are sure no one is in the hopper

or near the spinner!

D. TO CONTROL CONVEYOR SPEED

1. RABBIT Hold RABBIT to increase speed.

Note DO NOT hold switch in HI position

after the desired RPM is achieved

or you will choke and/or stall the

engine.

2. TURTLE Hold TURTLE to decrease speed.

E. TO DISENGAGE SPREADER CONVEYOR

1. CONVEYOR Push conveyor button.











2. S

3. T

Standard 

00108-760-01-REV-B

Page 10

OCTOBER, 2013

Tabla de contenidos

Otros manuales de Esparcidor de Meyer

Meyer

Meyer MINI SPREADER 36000 Manual de usuario

Meyer

Meyer 38160 Manual de usuario

Meyer

Meyer 38100 Manual de usuario

Meyer

Meyer HOTSHOT HD 38140 Manual de usuario

Meyer

Meyer SXI 720 Series Manual del propietario

Meyer

Meyer Blaster 350 Guía de inicio rápido

Meyer

Meyer HOTSHOT HD 38180 Manual de usuario

Meyer

Meyer HotShot 38185 Manual de usuario

Meyer

Meyer SEL SERIES Suplemento

Meyer

Meyer BL 240 Manual de usuario

Meyer

Meyer LPV 3 Manual de usuario

Meyer

Meyer 31125 Manual de usuario

Meyer

Meyer 9500 Series Manual del propietario

Meyer

Meyer Blaster 750 Guía de inicio rápido

Meyer

Meyer Blaster 350 Series Manual de usuario

Meyer

Meyer V-FORCE 7400 Series Manual del producto

Meyer

Meyer Hotshot-85 Manual de usuario

Meyer

Meyer HOTSHOT-120 Manual de usuario

Meyer

Meyer Diamond 62209 Suplemento

Meyer

Meyer SXI 720 Manual de usuario

Meyer

Meyer 7200 Manual del producto

Meyer

Meyer Diamond Edge 41685 Manual de usuario

Meyer

Meyer V-MAX 2636 Operators Manual de usuario

Meyer

Meyer MDV Series Hoja de datos

Manuales populares de Esparcidor de otras marcas

PEQUEA

PEQUEA GT-100 Manual de usuario

Herculano

Herculano H2RS9 Manual de usuario

Epoke

Epoke SKE8 Manual de usuario

GEA

GEA EL44 Hoja de especificaciones

Boss Snowplow

Boss Snowplow TGS 800 Manual de usuario

Fisher

Fisher EMERSON 168 Series Manual de usuario

Fisher

Fisher POLY-CASTER 78601 Manual de usuario

TurfEx

TurfEx RS7200 Manual del propietario

Ferris

Ferris Pathfinder Series Manual de usuario

Fayat Group

Fayat Group DYNAPAC S100 Guía de solución de problemas

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Manual de instalación y operación

EASTMAN

EASTMAN CR 500 Manual de usuario

Nogueira

Nogueira RoyalFlow-600 Manual de usuario

Buyers

Buyers TGS05B Manual de usuario

Magnum

Magnum V-BOX PV Series Suplemento

Meyer's

Meyer's VB280 Manual de usuario

SnowEx

SnowEx VX-4210 Manual de usuario

Kramer

Kramer VM-400HDCP Manual de usuario
