Installation Instruction and Owners Manual

BLASTER SALT/SAND SPREADERS

Models: 350/350S/750/750R/750S & 750RS

Form 1-915 R3

November 2011

Meyer Products LLC reserves the right, under its continuing product improvement program, to change construction or design details,

specifications and prices without notice or without incurring any obligation.

Meyer Products LLC

18513 Euclid Ave. • Cleveland, Ohio 44112-1084

Phone 486-1313 (Area Code 216)

www.meyerproducts.com• email [email protected]

BLASTER 750(33000)

750R(33750)

750S (39000)

750RS (39010)

BLASTER 350 (32000)

350S (37000)

TABLE OF CONTENTS

INTRODUCTION ................................................................................................. 1

VEHICLE REQUIREMENTS ................................................................................ 1

SAFETY GUIDELINES ........................................................................................ 2

350 & 350S PARTS LIST..................................................................................... 3

INSTALLING RECEIVER MOUNT MODEL: 350/350S/750R/750RS.................. 4

750 & 750S PARTS LIST..................................................................................... 5

750R & 750RS PARTS LIST................................................................................ 6

ELECTRICAL INSTALLATION ............................................................................ 7

OPERATING THE SPREADER ........................................................................... 8

SPREADER MAINTENANCE .............................................................................. 9

TROUBLESHOOTING ......................................................................................... 9

WARRANTY INFORMATION.............................................................................. 10

INTRODUCTION

This manual will assist you in the proper set-up, installation, and use of the Blaster series spreaders.

Please read and understand the contents of the manual completely (especially all safety information) before attempting any

procedure contained herein.

The Blaster line of spreaders may be attached to many types of vehicles to suit different spreading needs.

The modular design allows for multiple mounting variations using the same spreader.

Our heavy-duty construction uses high quality steel, stainless steel or polyethylene along with industrial grade electrostatic

paint finishes so that maintenance is minimal.

Our high torque, direct drive motor powered by a state-of-the-art, variable speed, solid state electronic controller will provide

reliable power and control when spreading, even at extremely low temperatures.

Meyer Products LLC reserves the right to make any changes or improve the design of any parts and not be obligated to make

changes on units previously sold.

VEHICLE REQUIREMENTS

FOR MAGNUM SERIES SALT/ SAND SPREADER INSTALLATION

1.) For installation Blaster 750 series salt spreaders:

A.) Due to the size and capacity of these spreaders we recommend installation on full size trucks with a 3/4 Ton

rating or higher.

B.) Stock mountings (“Hinged” or “Fixed”) are designed to be used only with full size pick-up trucks which have

rear bumpers in good condition (top surface must be straight and relatively level with truck)

C.) If hinged mounting is desired, the truck’s bed rails must also be of good condition and stake pockets free for

use.

D.) If fixed mounting will be used, the tailgate must close and latch solidly

2.) For installation of Blaster 350 series salt spreaders:

A.) This product line can be installed on any vehicle with a class 3 hitch receiver that will accept a 2" square tube

and has a tongue weight rating of at least 500 lbs.

B.) If your vehicle is not factory equipped with a hitch, we recommend taking it to a reputable trailer hitch installation

shop or your vehicles dealership.

C.) Reese and Draw-Tite offer a dual port hitch (DPS) with two round, downward angled receivers. A 5.75 cu. ft.

Blaster spreader can be ordered to fit this system.

As with any vehicle accessory, please refer to you owners manual to verify that the GVWR (Gross Vehicular Weight

Rating) will not be exceeded, especially if this product will be used in conjunction with other mounted equipment. If

equipment is mounted to vehicle with other than stock hardware or components, we the manufacturer cannot and will

not be held responsible for damages. Also, check your vehicle owner’s manual to be sure that the installation of “after-

market” accessories will not void the manufacturers’ factory warranty.

(1)

SAFETY GUIDELINES

For you safety when the word WARNING is used, this refers to information that if not carefully followed could result in personal

injury or death.

The word CAUTION refers to a situation that could cause minor injury or damage to equipment.

WARNING – Before operating READ and UNDERSTAND this operators manual in its entirety.

WARNING – NEVER operate equipment while under the influence of alcohol, drugs, or medications that might impair your

judgment and reaction time.

WARNING – NEVER allow children to operate equipment.

ALWAYS CHECK AREAS to be spread to be sure no hazardous conditions or substances are present.

ALWAYS INSPECT UNIT FOR DEFECTS: broken, bent, or worn parts, or weakened areas on spreader or mount.

WARNING – ALWAYS SHUT OFF vehicle power source before attaching, detaching, or servicing the equipment.

WARNING – ALWAYS MAKE SURE PERSONNEL ARE CLEAR of spread pattern when using equipment.

WARNING – NEVER EXCEED 45 M.P.H when loaded spreader is attached to vehicle. Braking distances and handling

characteristics may be impaired at greater speeds.

CAUTION – Never use wet materials or material with foreign debris. This unit is designed to handle clean, dry, free-flowing

material.

CAUTION - Never leave material in hopper for long periods of time. All ice melt materials will attract atmospheric moisture

and may clump together.

WARNING – INSPECT pins and bolts whenever attaching, detaching, and before travel. All factory installed bolts utilize lock

nuts however road and operational vibrations might loosen them.

WARNING – INSPECT unit periodically for defects. Parts that are broken, worn, or missing musts be replaced immediately.

The unit or any part of it should NOT be altered in any way without prior written permission from the manufacturer.

WARNING – When using swing mount, NEVER swing spreader with material in hopper!.

WARNING – NEVER attempt to clear a jammed feed screw with the power on!

WARNING – NEVER place hands into hopper or around feed screw and spinner when power is on. Also, keep loose clothing

and hair away from moving parts!

CAUTION – De-icing materials can be damaging to plant life and concrete. Know what you are spreading and where you are

spreading it.

(2)

(3)

350 350S

Item Part No. Part No. Qty. Description

32000 37000 Blaster Assembly

1 32100 32100 1 • Hopper Assembly

2 22729 22729 2 •• Bolt 1/4-20 x 5/8” SS

3 34407 34407 2 •• Latch Hook

4 34200 34200 1 • Lid Assembly

5 22725 22725 4 •• Bolt 1/4-20 x 3/4” SS

6 34408 34408 2 •• Rubber Latch

7 32200 32200 1 • Frame Assembly

8 35001 35001 1 • Hitch Weldment

34100 34110 1 • Power Weldment Assembly

9 34101 34101 1 •• Motor Mount

10 34102 34102 1 •• Motor

11 22730 22730 4 •• Bolt 3/8-16 x 1-1/4” SS

12 22735 22735 4 •• Locknut 3/8-16 SS

13 22734 22734 8 •• Flawasher 3/8” SS

34000 34010 1 •• Spinner Auger Assembly

14 34001 34001 1 ••• Spinner

15 34004 34004 1 ••• Auger

16 --------- 34603 1 ••• Auger Extension

17 22725 22725 3 ••• Bolt 1/4-20 x 3/4” SS

18 22727 22727 3 ••• Locknut 1/4-20 SS

19 22724 22724 3 ••• Flawasher 1/4” SS

20 22726 22726 1 ••• Set Screw 5/16” SS

21 --------- 22759 1 ••• Set Screw 3/4-10 x 2 SS

Parts List

Blaster 350/350S

350 350S

Item Part No. Part No. Qty. Description

22 --------- 34601 1 • Baffle Plate

23 34401 34401 1 • Deflector

24 34402 34402 1 • Hopper Collar

25 34400 34400 1 • Motor Guard

26 22736 22736 4 • Bolt 1/2-13 x 3” SS

27 22732 22732 4 • Locknut 1/2-13 SS

28 22733 22733 8 • Flatwasher 1/2” SS

29 22737 22737 18 • Bolt 3/8-16 x 1” SS

30 22735 22735 18 • Locknut 3/8-16 SS

31 22734 22734 35 • Flatwasher 3/8” SS

32 22725 --------- 2 • Bolt 1/4-20 x 3/4” SS

32 --------- 22725 6 • Bolt 1/4-20 x 3/4” SS

33 22727 --------- 2 • Locknut 1/4-20 SS

33 --------- 22727 6 • Locknut 1/4-20 SS

34 22724 --------- 2 • Flatwasher 1/4” SS

34 --------- 22724 6 • Flatwasher 1/4” SS

32218 32218 1 • Carton Accessory Parts

35 34106 34106 1 •• Wire Harness

36 22800 22800 1 •• Controller

37 22731 22731 1 •• Hinge Pin w/Clip

32216 32216 2 •• Tie Down Hook

32217 32217 2 •• Ratchet Tie Down Strap

38 --------- 34602 1 • Vibrator

Parts indented are included in the assembly under which they are indented.

Note: Auger Extension (16)

must be removed when using

salt only. If it is not removed

this may cause the motor to

stall.

Red

Black

Battery

Speed

Control

Spreader

Motor

Blue

White

Ground

Red

White

Red

Pigtail

Mounting

Bracket

Red

(4)

INSTALLING RECEIVER MOUNT MODEL:

350/350S/750R/750RS

The Blaster 350/350S/750R/750RS is a dedicated, Class 3, receiver (hitch) mount salt spreader. Prior to installation, be certain

that the vehicle receiver is in good working order, is rated for at least a 500 lb. tongue load, and is fastened to the vehicle

securely.

CAUTION - The spreader is a large heavy item that should be installed with an assistant. As with any new equipment installation

read and understand all instructions prior to starting the job, and do not hurry through it. A correct installation now can save

time and money later.

1.) Using an assistant remove the spreader unit and all loose components from the packaging and set cover aside until

installation is complete. Retain original packaging for storage purposes.

2.) Locate the large hitch pin and cotter clip from the hardware package. Set these items aside, as they will be used later

during the installation.

3.) Inspect the vehicles receiver tube and check for rust, dirt, or foreign debris that may have collected in it. If there are any

blockages clean with compressed air and a wire brush.

4.) Apply good quality grease to the inside of the receiver tube, this will prevent rusting and make the spreader easier to

remove at the end of the season.

5.) The framework will have four 1/2-13 x 3” SS Bolts already installed in the mounting holes for the stinger. Remove the

1/2-13 SS Locknuts and 1/2” SS Flatwashers and apply a light oil to the threads, this will make assembly easier; yet will

not affect the locking properties of the safety nuts. Place the stinger over the bolts, replace the nuts and washers and

fully tighten. (Note: The mounting tube may be placed in either the raised or lowered position by flipping the stinger

over. This is owner preference) The DPS version is always installed with a downward angle for the two round stingers.

6.) Lift the spreader unit upright (hopper opening facing up) with mounting tube pointed toward the truck.

7.) Slowly slide spreader mounting tube into the vehicles receiver until the through holes in receiver match through holes

in spreader. (See note below)

8.) Insert the large hitch pin through the receiver tube and spreader mounting tube. Secure with the cotter clip.

WARNING – The cotter clip must be in place for safe operation.

9.) Place the cover over the hopper and secure clamps on left and right sides.

NOTE: •The spreader mounting tube has 2 pre-punched hole sets to provide some adjustment when installing the unit.

•Always use the hole set that places the unit closest to the vehicle but without touching it.

WARNING – Never attempt to drill new holes in the spreader mounting tube, contact your local trailer hitch supplier

about relocating or replacing you current hitch, if mounting problems occur.

10.) Use the Ratchet Tie Down Strap and Tie Down Hooks to tie spreader to vehicle frame to elininate any rocking of the

spreader.

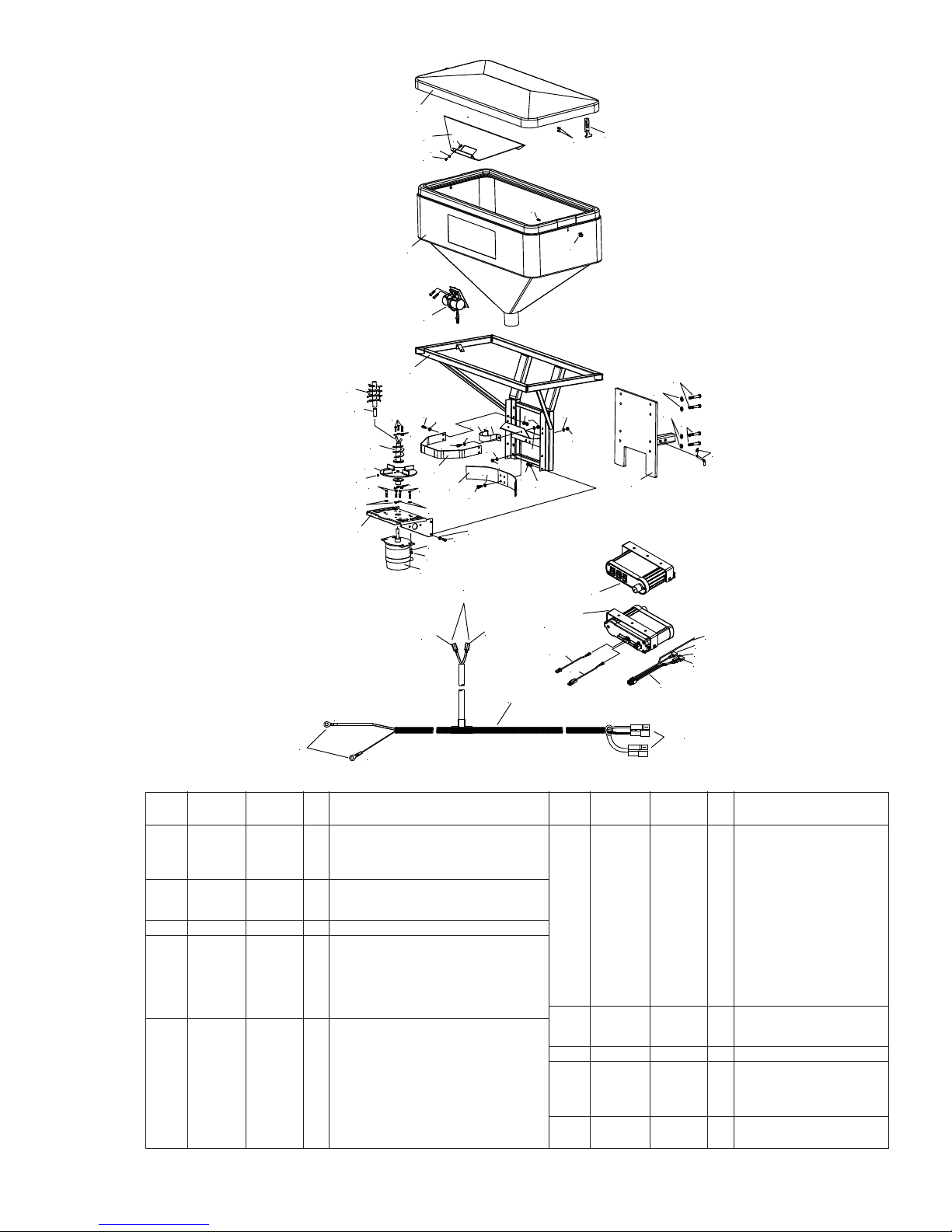

Blaster 750/750S

(5)

750 750S

Item Part No. Part No. Qty. Description

33000 39000 Blaster Assembly

1 33100 33100 1 • Hopper Assembly

2 22729 22729 2 •• Bolt 1/4-20 x 5/8” SS

3 34407 34407 2 •• Latch Hook

4 34200 34200 1 • Lid Assembly

5 22725 22725 4 •• Bolt 1/4-20 x 3/4” SS

6 34408 34408 2 •• Rubber Latch

7 33200 33200 1 • Frame Assembly

34100 34110 1 • Power Weldment Assembly

8 34101 34101 1 •• Motor Mount

9 34102 34102 1 •• Motor

10 22730 22730 4 •• Bolt 3/8-16 x 1-1/4” SS

11 22735 22735 4 •• Locknut 3/8-16 SS

12 22734 22734 8 •• Flawasher 3/8” SS

34000 34010 1 •• Spinner Auger Assembly

13 34001 34001 1 ••• Spinner

14 34004 34004 1 ••• Auger

15 --------- 34603 1 ••• Auger Extension

16 22725 22725 3 ••• Bolt 1/4-20 x 3/4” SS

17 22727 22727 3 ••• Locknut 1/4-20 SS

18 22724 22724 3 ••• Flawasher 1/4” SS

19 22726 22726 1 ••• Set Screw 5/16” SS

20 --------- 22759 1 ••• Set Screw 3/4-10 x 2” SS

Parts List

750 750S

Item Part No. Part No. Qty. Description

21 --------- 34601 1 • Baffle Plate

22 34401 34401 1 • Deflector

23 34402 34402 1 • Hopper Collar

24 34400 34400 1 • Motor Guard

25 22737 22737 14 • Bolt 3/8-16 x 1” SS

26 22735 22735 16 • Locknut 3/8-16 SS

27 22734 22734 28 • Flatwasher 3/8” SS

28 22725 --------- 2 • Bolt 1/4-20 x 3/4” SS

28 --------- 22725 6 • Bolt 1/4-20 x 3/4” SS

29 22727 --------- 2 • Locknut 1/4-20 SS

29 --------- 22727 6 • Locknut 1/4-20 SS

30 22724 --------- 2 • Flatwasher 1/4” SS

30 --------- 22724 6 • Flatwasher 1/4” SS

33218 33218 1 • Carton Accessory Parts

31 34106 34106 1 •• Wire Harness

32 22800 22800 1 •• Controller

33 --------- 34602 1 • Vibrator

Parts indented are included in the assembly under which they are indented.

Note: Auger Extension (15)

must be removed when using

salt only. If it is not removed

this may cause the motor to

stall.

Red

Black

Battery

Speed

Control

Spreader

Motor

Blue

White

Ground

Red

White

Red

Pigtail

Mounting

Bracket

Red

Blaster

750R & 750RS

(6)

Parts List

Parts indented are included in the assembly under which they are indented.

750R 750RS

Item Part No. Part No. Qty. Description

33750 39010 Blaster Assembly

1 33100 33100 1 • Hopper Assembly

2 22729 22729 6 •• Bolt 1/4-20 x 5/8” SS

3 34407 34407 2 •• Latch Hook

4 34200 34200 1 • Lid Assembly

5 22725 22725 4 •• Bolt 1/4-20 x 3/4” SS

6 34408 34408 2 •• Rubber Latch

7 32200 32200 1 • Frame Assembly

34100 34110 1 • Power Weldment Assembly

8 34101 34101 1 •• Motor Mount

9 34102 34102 1 •• Motor

10 22730 22730 4 •• Bolt 3/8-16 x 1-1/4” SS

11 22735 22735 4 •• Locknut 3/8-16 SS

12 22734 22734 8 •• Flawasher 3/8” SS

34000 34010 1 •• Spinner Auger Assembly

13 34001 34001 1 ••• Spinner

14 34004 34004 1 ••• Auger

15 --------- 34603 1 ••• Auger Extension

16 22725 22725 3 ••• Bolt 1/4-20 x 3/4” SS

17 22727 22727 3 ••• Locknut 1/4-20 SS

18 22724 22724 3 ••• Flawasher 1/4” SS

19 22726 22726 1 ••• Set Screw 5/16” SS

20 --------- 22759 1 ••• Set Screw 3/4-10 x 2” SS

750R 750RS

Item Part No. Part No. Qty. Description

21 --------- 34601 1 • Baffle Plate

22 34401 34401 1 • Deflector

23 34402 34402 1 • Hopper Collar

24 34400 34400 1 • Motor Guard

25 22737 22737 14 • Bolt 3/8-16 x 1” SS

26 22735 22735 16 • Locknut 3/8-16 SS

27 22734 22734 28 • Flatwasher 3/8” SS

28 22725 --------- 2 • Bolt 1/4-20 x 3/4” SS

28 --------- 22725 6 • Bolt 1/4-20 x 3/4” SS

29 22727 --------- 2 • Locknut 1/4-20 SS

29 --------- 22727 6 • Locknut 1/4-20 SS

30 22724 --------- 2 • Flatwasher 1/4” SS

30 --------- 22724 6 • Flatwasher 1/4” SS

33218 33218 1 • Carton Accessory Parts

31 34106 34106 1 •• Wire Harness

32 22800 22800 1 •• Controller

33 --------- 34602 1 • Vibrator

34608 34608 1 • Hardware Bag

34 22736 22736 8 •• Bolt H 1/2-13 x 3” SS

35 22732 22732 8 •• Locknut 1/2-13 SS

36 22733 22733 16 •• Flatwasher 1/2” SS

37 22731 22731 1 • Hitch pin w/clip

38 35010 35010 1 • Hitch Weldment

24 26

36 37

Red

Speed

Control

Blue

White

Ground

Red

White

Red

Pigtail

Mounting

Bracket

Red

Black

Battery

Spreader

Motor

21 28

ELECTRICAL INSTALLATION

FOR ALL BLASTER SERIES SPREADERS

1.) Locate the wire harness and begin to route it from the rear of the vehicle to the front. The molded rubber plug indicates

the rear of the harness, closest to the spreader. Use frame holes and frame supports as lashing points. Do not attach

to fuel or brake lines. Avoid wire-runs along exhaust system or hot engine parts. Melting damage to the harness can

occur in the proximity of extreme heat.

2.) Mount the rubber plug under the rear bumper. Position this plug toward the center of the vehicle.

3.) Place the Harness portion that connects to the battery along the firewall and fender well, but do not connect yet.

4.) Drill a 1" diameter hole through the firewall. This hole will be used to route the controller portion of the harness into the

vehicle. Before drilling always check to see what is on the other side.

5.) Push the controller portion of harness through the hole in the firewall that was previously drilled. NOTE: The controller

end will have 2 plugs on it, but only 1 plug can pass through the firewall at a time.

6.) Move to engine compartment. Connect power leads to battery: RED WIRE (+) positive, BLACK WIRE (-) negative. Coat

the connections with dielectric grease to prevent corrosion and build up. Check harness marked ‘battery’ for voltage

by temporarily removing the red tape affixed to it.

7.) Connect the blue wire from pigtail to brake light. Connect white wire from pigtail to optional vibrator harness if equipped.

Connect red wire on pigtail to a 12 volt keyed accessory. Connect black ground wire to ground. Connect white jumper

wire to the back of the controller marked motor white wire. Connect red jumper wire to the back of the controller

marked battery red wire wire. The two red wires from the main connector can now be connected to the two jumper

wires. (Note: wires will only connect one way) ANY ATTEMPT TO JOIN THE CONNECTORS IMPROPERLY, FOR

EXAMPLE MALE TO MALE, COULD SHORT OUT THE CONTROLLER.

Misconnection resulting in a damaged controller is not covered by warranty.

8.) Select a suitable location to mount the controller. After mounting verify that the power switch is in the off position.

9.) Coil excess wire and use wire ties to secure it to a safe location.

10.) Mate the plug coming from the spreader unit to the plug previously installed under the rear bumper.

11.) Make sure that feed screw/spinner area of the spreader is clear of obstructions. Turn power on at the controller and

verify that the spreader is operating in all modes. Looking down on the impeller from the rear of the vehicle, determine

that the impeller is turning counter-clockwise. Unit may now be operated.

(7)

OPERATING THE SPREADER

Before using the spreader read and understand all aspects of this operators manual.

PREPARATION

CAUTION – Sweep area clear of foreign objects or obstacles that could cause personal injury. Keep other persons and

animals out of area to be spread.

SPREADER LOADING

Your spreader will come equipped with a cover that will protect your de-icing material from rain or snow; this can be

removed simply by detaching the holding clamps on the sides of the hopper.

WARNING – Do not overload vehicle. Below is a chart to calculate weight of materials.

MATERIAL WEIGHT PER CUBIC FT.

Rock Salt 35-40 lbs.

Coarse Sand 85-90 lbs.

WARNING – NEVER leave materials in hopper for long periods of time as de-icing materials will attract atmospheric moisture

and may clump together.

Always replace cover after filling to prevent saturation of material from snow or rain.

OPERATING THE SPREADER

The controller is equipped with: on/off switch, lighted dial, rotary speed control, and a blast switch.

To start spreader, be sure vehicle is running to prevent battery from wearing down, flip the switch from off to on. The spreader

will power up to full power for approx. one second then drop to wherever the dial has the speed set at. Spreader switch must be

flipped to the off position when vehicle is turned off to prevent the vehicle battery from wearing down.

Adjust the speed of the unit by rotating the dial clockwise for faster and counterclockwise for slower.

The burst switch is a momentary full power override, use this of you require a heavier pass in certain areas.

If there are any problems while operating the spreader refer to the troubleshooting guide on page 8.

SPREADING HINTS

Never exceed 10 M.P.H. when spreading.

For a wider pass, increase spinner speed.

For a heavier pass, drive more slowly.

Never operate spreader around people and calculate spread pattern around vegetation.

(8)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Esparcidor de Meyer

Meyer

Meyer SEL SERIES Suplemento

Meyer

Meyer Blaster 750 Guía de inicio rápido

Meyer

Meyer HOTSHOT-120 Manual de usuario

Meyer

Meyer 38100 Manual de usuario

Meyer

Meyer MDV Series Hoja de datos

Meyer

Meyer HOTSHOT HD 38180 Manual de usuario

Meyer

Meyer Industrial Series Manual del producto

Meyer

Meyer HotShot 38185 Manual de usuario

Meyer

Meyer Hotshot-85 Manual de usuario

Meyer

Meyer BL 240 Manual de usuario

Meyer

Meyer 8720 Operators Manual de usuario

Meyer

Meyer 31125 Manual de usuario

Meyer

Meyer SXI 720 Manual de usuario

Meyer

Meyer Blaster 350 Series Manual de usuario

Meyer

Meyer HOTSHOT HD 38140 Manual de usuario

Meyer

Meyer 9500 Series Manual del propietario

Meyer

Meyer SXI 720 Series Manual del propietario

Meyer

Meyer V-MAX 2636 Operators Manual de usuario

Meyer

Meyer 7200 Manual del producto

Meyer

Meyer LPV 3 Manual de usuario

Meyer

Meyer V-FORCE 7400 Series Manual del producto

Meyer

Meyer Diamond Edge 41685 Manual de usuario

Meyer

Meyer MINI SPREADER 36000 Manual de usuario

Meyer

Meyer 38160 Manual de usuario

Manuales populares de Esparcidor de otras marcas

PEQUEA

PEQUEA GT-100 Manual de usuario

Herculano

Herculano H2RS9 Manual de usuario

Epoke

Epoke SKE8 Manual de usuario

GEA

GEA EL44 Hoja de especificaciones

Boss Snowplow

Boss Snowplow TGS 800 Manual de usuario

Fisher

Fisher EMERSON 168 Series Manual de usuario

Fisher

Fisher POLY-CASTER 78601 Manual de usuario

TurfEx

TurfEx RS7200 Manual del propietario

Ferris

Ferris Pathfinder Series Manual de usuario

Fayat Group

Fayat Group DYNAPAC S100 Guía de solución de problemas

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Manual de instalación y operación

EASTMAN

EASTMAN CR 500 Manual de usuario

Nogueira

Nogueira RoyalFlow-600 Manual de usuario

Buyers

Buyers TGS05B Manual de usuario

Magnum

Magnum V-BOX PV Series Suplemento

Meyer's

Meyer's VB280 Manual de usuario

SnowEx

SnowEx VX-4210 Manual de usuario

Kramer

Kramer VM-400HDCP Manual de usuario
