METROLOGIC

INSTRUMENTS, INC.

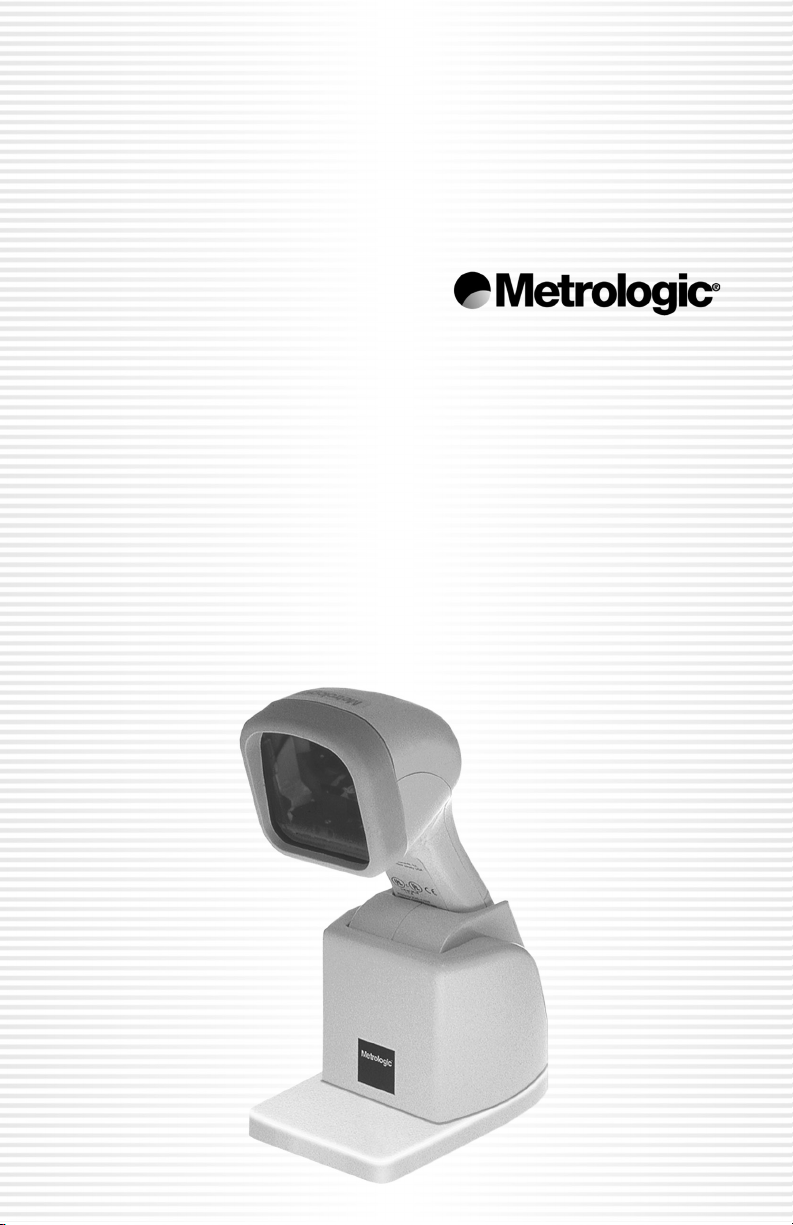

MS6720 Hand-Held Laser Scanner

Installation and User’sGuide

LOCATIONS

CORPORATE HEADQUARTERS

NORTH AMERICA

EUROPEAN, MIDDLE EAST & AFRICAN

HEADQUARTERS

USA, NEW JERSEY GERMANY, MUNICH

Metrologic Instruments, Inc. Metrologic Instruments GmbH

Tel: 1-800-ID-METRO Fax: 856-228-6673 Tel: 49-89-89019-0 Fax: 49-89-89019-200

Email: info@metrologic.com Email: info@europe.metrologic.com

SOUTH AMERICA, BRAZIL SÃO PAULO GERMANY, MUNICH

Metrologic do Brasil Ltda. Metrologic Instruments GmbH

Tel: 55-11-5182-8226 Fax: 55-11-5182-8315 Tel: 49-89-89019-0 Fax: 49-89-89019-200

Email: info@br.metrologic.com Email: info@de.metrologic.com

SOUTH AMERICA, OUTSIDE BRAZIL SÃO PAULO ITALY, BOLOGNA

Metrologic South America Metrologic Instruments Italia srl

Tel: 55-11-5182-7273 Fax: 55-11-5182-7198 Tel: +39 0 51 6511978 Fax: +39 0 51 6521337

Email: info@sa.metrologic.com Email: info@it.metrologic.com

ASIA, SINGAPORE FRANCE, PARIS

Metrologic Asia (Pte) Ltd Metrologic Eria France SA

Tel: 65-6842-7155 Fax: 65-6842-7166 Tel: +33 (0) 1 48.63.78.78

Email: info@sg.metrologic.com Fax: +33 (0) 1 48.63.24.94

Email: info@fr.metrologic.com

CHINA, SUZHOU

Metro Technologies Co., Ltd. SPAIN, MADRID

Tel: 86-512-62572511 Fax: 86-512-62571517 Metrologic Eria Ibérica, SL

Email: info@cn.metrologic.com Tel: +34 913 272 400 Fax: +34 913 273 829

Email: info@es.metrologic.com

Metro Sales Office

Tel: 86-512-67622550 Fax: 86-512-67622560 Metrologic Europe Repair Center (MERC)

Email: info@cn.metrologic.com Metrologic Eria Ibérica, SL

Tel: +34 913 751 249 Fax: +34 913 270 437

JAPAN, TOKYO

Metrologic Japan Co., Ltd. UNITED KINGDOM, BASINGSTOKE

Tel: 81-03-3839-8511 Fax: 81-03-3839-8519 Metrologic Instruments UK Limited

Email: info@jp.metrologic.com Tel: +44 (0) 1256 365900

Fax: +44 (0) 1256 365955

Email: info@uk.metrologic.com

RUSSIA, MOSCOW

Metrologic Russia

Tel: +7 095 730 7424 Fax: +7 095 730 7425

Email: info@ru.metrologic.com

any form or by any means without prior written consent, except by reviewer, who may quote brief passages in a review, or

provided for in the Copyright Act of 1976.

Products and brand names mentioned in this document are trademarks of their respective companies.

iii

TABLE OF CONTENTS

Introduction................................................................................................................1

Scanner and Accessories............................................................................................2

Quick Start .................................................................................................................3

Operational Test.........................................................................................................4

MS6720 Installation: Powered by External Power Supply ........................................5

MS6720 Installation: Powered by Host Device .........................................................6

MS6720-47 Keyboard Wedge Installation to the PC .................................................8

MS6720 Optional Stands ...........................................................................................9

Scanner Parts............................................................................................................11

Audible Indicators....................................................................................................12

Failure Modes ..........................................................................................................13

Visual Indicators......................................................................................................14

Scanner Labels.........................................................................................................15

Maintenance.............................................................................................................15

Depth of Field Specifications

Normal Depth of Field.........................................................................................16

Short Depth of Field ............................................................................................17

Extended Depth of Field......................................................................................18

Optional Depth of Field.......................................................................................19

Normal Depth of Field.........................................................................................20

Short Depth of Field ............................................................................................20

Scan Pattern Specifications

Projection Axis ....................................................................................................21

Omnidirectional Scan Volume.............................................................................21

Cross-Sectional Scan Pattern...............................................................................22

Troubleshooting Guide ............................................................................................23

Applications and Protocols ......................................................................................28

Appendix A

Design Specifications ..........................................................................................29

Appendix B

Default Settings ...................................................................................................31

TABLE OF CONTENTS

Appendix C

Pin Assignments for the Coil Cable.....................................................................35

Pin Assignmentsf or the MCA951.......................................................................36

Pin Assignmentsf or the MS6720-47 Keyboard Wedge Cable............................37

Appendix D

Limited Warranty ................................................................................................38

Appendix E

Notices.................................................................................................................39

Appendix F

Patents .................................................................................................................41

Index ........................................................................................................................42

INTRODUCTION

The MS6720 is the first laser bar code scanner to truly bridge the gap

between omnidirectional fixed projection and hand-held scanners. It

incorporates fixed projection performance and patented 20-line scan pattern

into the comfortable, ergonomic styling of our popular hand-helds.

The MS6720 utilizes a unique, patented infrared sensor and control scheme

for hands-free projection scanning and fatigue reduced hand-held operation.

Whether operators choose to present small items to the scanner or transport

the lightweight scanner to bulkier items, the compact size and comprehensive

scan pattern make the MS6720 the perfect choice for many applications.

For increased flexibility there are three optional stands available. The

stationary stand is ideal for applications where the MS6720 is being used as

a hand-held scanner. Or if a customer application requires more in stand

scanning Metrologic’s adjustable stand provides 7 rotational and 9 tilting

positions while still providing the option for hand-held scanning. If

countertop space is an issue there is an optional bracket for a wall mounting

that can be used with the adjustable stand cup.

The MS6720 features both short-range and long-range activation, user-

friendly programming, reliability and versatility. Operators are sure to

appreciate the convenience and flexibility of the MS6720.

Scanner Interface

MS6720-9 OCIA (OCIA)

MS6720-11 IBM (46XX)

MS6720-14 RS-232 (232)

MS6720-15 Light Pen Emulation (LTPN)

MS6720-47 Keyboard Wedge (KBW)

SCANNER AND ACCESSORIES

The following is a list of parts that may or may not be included in a

MS6720 kit.

•MS6720 Hand-Held Laser Scanner

•AC to DC Power Transformer – Regulated 5VDC @ 300 mA output

•One of the following options may be included:

•120V United States [MLPN 46-46010]

•220V Continental European [MLPN 46-46009]

•240V United Kingdom [MLPN 46-46008]

•Stand

•One of the following options may be included:

•Stationary Stand [MLPN 45-45429]

•Adjustable Stand [MLPN 45-45967]

•Wall Mounting Kit [MLPN 45-45968]

•Installation and User’s Guide [MLPN 00-02368]

•ScanSelect®Scanner Programming Guide [MLPN 00-02186] or

MetroSet2 CD

RS-232, Light Pen, some OCIA and some 46xx

•MCA (Metrologic Connector Adapter) [MLPN MCA951]

•For direct connect application (No Power Transformer)

4 position MCA ground jumper [MLPN 51-51191]

Keyboard Wedge Scanners:

•Adapter Cable with a 5-pin DIN male connector on

One end and a 6-pin mini DIN female connector

On the other [MLPN 45-45927]

•For direct connect application (No Power Transformer)

4 position direct power jumper [MLPN 52-52332]

Other items may be ordered for the specific protocol being used.

To order additional items, contact the dealer, distributor or call Metrologic’s

Customer Service Department at 1-800-ID-METRO or 1-800-436-3876.

QUICK START

1. Plug in the scanner. The red LED will come on, the green LED will

flash once and the unit will beep simultaneously.

2. The scanner is shipped from the factory programmed with default

settings. To configure the MS6720 scanner to meet the host system’s

specific needs, refer to the ScanSelect®Programming Guide

[MLPN 00-02186] or the help files provided with MetroSet2 for

instructions on how to enter the program mode and to select the

appropriate bar codes.

Note: Any time the Load Defaults bar code is scanned the MS6720 is

configured for an RS-232 interface. If a RS-232 is not being

used, scan at least one other bar code to enable Keyboard

Wedge, OCIA, Light Pen or 46xx.

OPERATIONAL TEST

If the scanner is to receive power from an external power supply*, test the

scanner before it is connected to the host system.

Keyboard Wedge Scanners:

1. Plug one end of the coil cable into the keyboard connector on the PC.

Then plug the keyboard connector into the other end of the coil cable.

Plug in the external transformer.

2. Check the AC input requirements of the power supply to make sure the

voltage matches the AC outlet. Connect AC power to the transformer.

3. Both LEDs come on together along with the beep (the green LED only

flashes).

RS-232, Light Pen, OCIA and 46xx scanners:

1. Plug the scanner’s coil cable into the MCA (Metrologic Connector

Adapter).

2. Check the AC input requirements of the power supply to make sure the

voltage matches the AC outlet. Plug the power supply into the MCA

and the appropriate AC outlet. The outlet should be installed near the

equipment and be easily accessible.

3. Both LEDs come on together along with the beep (the green LED only

flashes).

The scanner can be powered in two ways:

•by an External Power Supply* or

•by the Host Device** i.e. the PC for the MS6720 with a Built-

in PC Keyboard Wedge interface.

Caution:

*To maintain compliance with applicable standards, all circuits connected to the scanner must meet the

requirements for SELV (Safety Extra Low Voltage) according to EN 60950.

**To maintain compliance with standard CSA C22.2 No. 950/UL 1950 and norm EN 60950, the power

source should meet applicable performance requirements for a limited power source.
