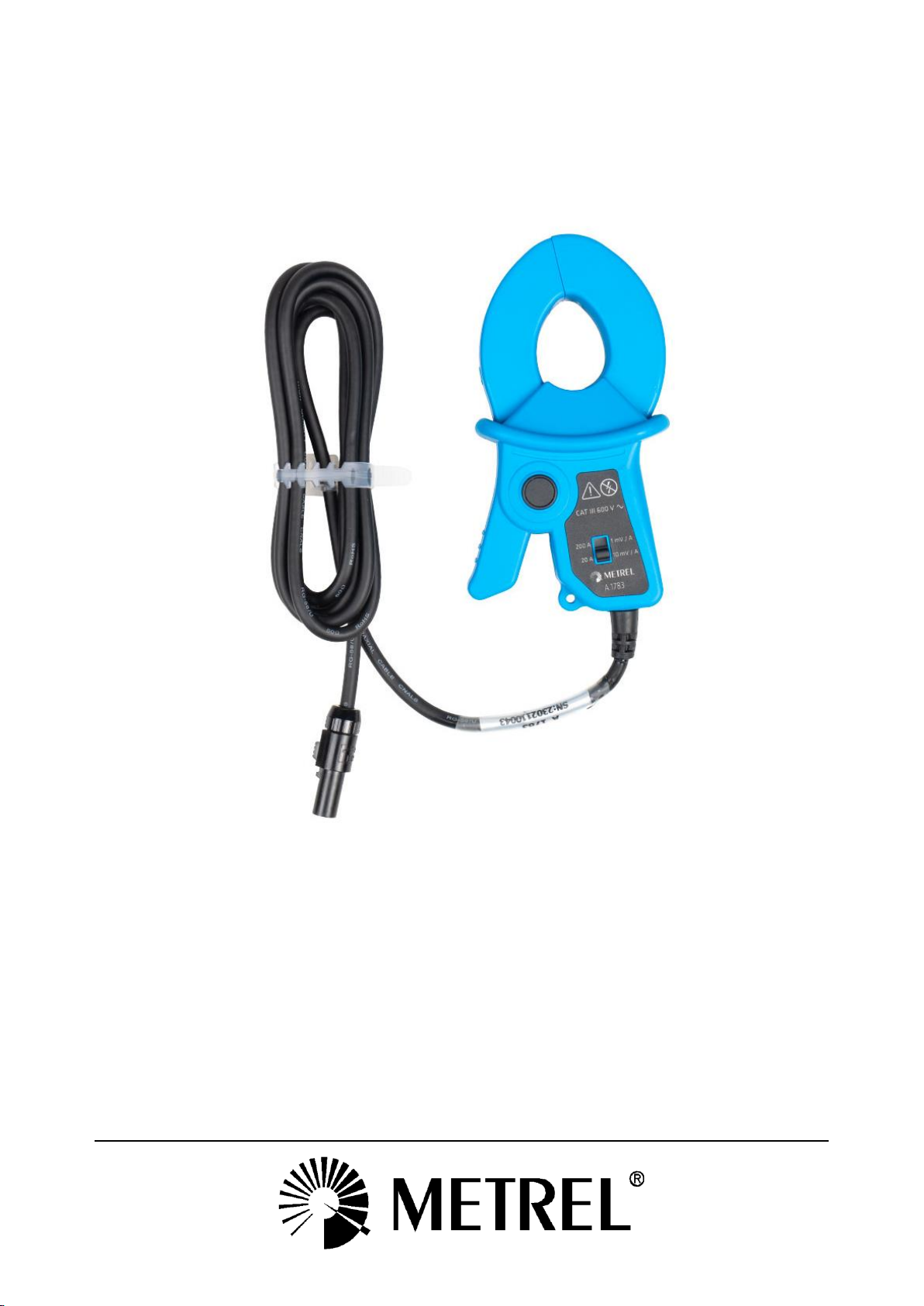

Mini AC current clamps 20/200 A

A 1783

Instruction manual

Version 1.1.1; Code No. 20 753 286

Distributor:

Manufacturer:

Metrel d.o.o.

Ljubljanska cesta 77

SI-1354 Horjul

Slovenia

e-mail: info@metrel.si

https://www.metrel.si

Mark on your equipment certifies that it meets requirements of all subjected EU regulations

Hereby, Metrel d.o.o. declares that the A 1783 is in compliance with subjected EU

directives. The full text of the EU declaration of conformity is available at the

following internet address https://www.metrel.si/DoC.

Mark on your equipment certifies that it meets requirements of all subjected UK regulations.

Hereby, Metrel d.o.o. declares that the A 1783 is in compliance with subjected UK

regulations. The full text of the UK declaration of conformity is available at the

following internet address https://www.metrel.si/UK-DoC.

The trade names Metrel®, Smartec®, Eurotest®, Auto Sequence®are trademarks registered in Europe and

other countries.

No part of this publication may be reproduced or utilized in any form or by any means without

permission in writing from METREL.

A 1783 Mini AC current clamps 20/200 A Table of contents

 3
Table of contents
1General Description............................................................................................4
1.1 Typical applications ......................................................................................4
2Safety and operational considerations .............................................................5
2.1 Warnings and notes......................................................................................5
2.2 Standards applied.........................................................................................6
3Current clamp operation.....................................................................................7
4Inspection............................................................................................................8
5Cleaning...............................................................................................................8
6Service and Calibration ......................................................................................8
7Technical specifications.....................................................................................9


A 1783 Mini AC current clamps 20/200 A General Description

1 General Description

The A 1783 current clamps are designed for measuring alternating currents on insulated

conductors on low power installations: 50 mA ÷ 200 A. They are designed for Metrel Power Quality

Instruments MI 2893 / MI 2892 / MI 2885 / MI 2884 / MI 2883.

The current transducer is housed in a plastic case that maintains double insulation. Parts are

shown on figure bellow:

1) handles,

2) safety barrier,

3) conductor opening,

4) clamps jaw,

5) cable connection with connector,

6) range selection switch.

Figure 1: A 1783 current clamps

1.1 Typical applications

Power Quality Measurement

The A 1783 current clamps have linear response through wide frequency bandwidth.

Therefore, they are well suited for:

–Power Quality auditing,

–EN 50160 or troubleshooting. Particularly for:

oCurrent distortion measurement

oInrush measurement

oHarmonics measurement for frequency

oFunctional testing of appliances, machines, etc.

High precision and measurement range up to 30 A / 260 A can cover most current measurements

on the secondary side of current transformer (CT) without opening of current circuit.

Energy and Power Measurement

The A 1783 current clamps have small phase shift over wide frequency range. Therefore, they are

well suited for:

–Power and energy measurements (active, reactive, apparent)

–Power factor measurements

–Power/Energy efficiency

A 1783 Mini AC current clamps 20/200 A Safety and operational considerations

2 Safety and operational considerations

2.1 Warnings and notes

In order to maintain the highest level of operator safety while carrying out various tests and

measurements Metrel recommends keeping your A 1783 Mini AC current clamp in good condition

and undamaged. When using the A 1783, consider the following general warnings:

❑The symbol on the A 1783 means »Read the Instruction manual with special

care for safe operation«. The symbol requires an action!

❑If the test equipment is used in a manner that is not specified in this Instruction

manual, the protection provided by the equipment might be impaired!

❑Adhere to local and national safety codes. Individual protective equipment must be

used to prevent shock and arc blast injury where hazardous live conductors are

exposed.

❑Before each use, inspect the A 1783 Current Clamp and its latching system for any

damage. Pay particular attention to the insulation surrounding the jaw. Look for

cracks or missing portions of the clamp housing or output cable insulation. Also

look for loose or weakened components. Don't use current sensor if the wear

indicator of the cable connection is visible.

❑Do not use a clamp that is cracked, damaged, or has a defective cable.

❑Do not use the A 1783 Current Clamp to measure bare conductors carrying a voltage

higher than 30 V ac rms or 42 V ac peak.

❑Never use the clamp on a circuit with voltages higher than 300 V CAT II (insulated

conductors).

❑De-energize the installation on which current will be measured or adopt safe

operating procedures during application and removal of the current clamp.

❑Use extreme caution when working around bare conductors or bus bars (follow the

requirements of EN 50191).

❑Do not apply around or remove from UNINSULATED HAZARDOUS LIVE

conductors, which may render electric shock, electric burn, or arc flash.

A 1783 Mini AC current clamps 20/200 A Safety and operational considerations

Markings on the A 1783:

Symbol

Description

Read the Instruction manual with special care to safety operation«.

The symbol requires an action!

Do not apply around or remove from HAZARDOUS LIVE conductors.

Mark on your equipment certifies that it meets requirements of all

subjected EU regulations.

Mark on your equipment certifies that it meets requirements of all

subjected UK regulations.

This equipment should be recycled as electronic waste.

2.2 Standards applied

The A 1783 Current Clamp is manufactured and tested in accordance with the following

regulations:

Electromagnetic compatibility (EMC)

EN 61326 - 1

Electrical equipment for measurement, control and laboratory use

–EMC requirements –Part 1: General requirements

EN 61326 - 2 - 2

Electrical equipment for measurement, control and laboratory use

–EMC requirements –Part 2-2: Particular requirements - Test

configurations, operational conditions and performance criteria for

portable test, measuring and monitoring equipment used in low-

voltage distribution systems

Safety (LVD)

EN 61010 - 1

Safety requirements for electrical equipment for measurement,

control and laboratory use –Part 1: General requirements

EN 61010 - 2 - 032

Safety requirements for electrical equipment for measurement,

control and laboratory use –Part 2-032: Particular requirements for

hand-held and hand-manipulated current sensors for electrical test

and measurement

Note about EN and IEC standards:

❑Text of this manual contains references to European standards. All standards of EN

6XXXX (e.g. EN 61010) series are equivalent to IEC standards with the same number

(e.g. IEC 61010) and differ only in amended parts required by European harmonization

procedure.

A 1783 Mini AC current clamps 20/200 A Current clamp operation

3 Current clamp operation

Step 1

Connect A 1783 Current Clamps to the desired input on the measuring instrument.

Step 2

Clamp the probe around the insulated current-carrying conductor(s) to be measured. Make

sure that probe jaws are tightly closed around the conductor(s). In the case of measuring

current near live, naked conductor(s), remove electrical power from wires, before clamping

(follow the requirements of EN 50191).

Figure 2: Current clamps A 1783- connection to the measuring instrument

LOADSOURCE

current direction

indicator

Figure 3: Current clamps proper position

Position the clamp with the current direction indicator pointing toward the load side. If install the

clamp in the opposite direction, the phase displacement will deviate 180 degrees.

Step 3

Select Phase and Neutral clamps to A 1783 in Connection setup menu on your instrument.

Select proper Clamps range on the PQA (same as it was selected on the clamps Step 2).

Step 4

Observe the current value and waveform on the instrument’s display.

A 1783 Mini AC current clamps 20/200 A Inspection, Cleaning, Service & Calibration

4 Inspection

To maintain operator safety and ensure reliability of the A 1783 Current Clamp, it is good practice

to inspect it on a regular basis. Check that the enclosure and optional connection are without

defects such as scratches or breaks.

Jaw surface must be clean. Pollution on jaw surfaces reduces the current clamp sensitivity.

5 Cleaning

No special maintenance is required for the housing. To clean the surface of the A 1783 use a soft

cloth slightly moistened with soapy water or alcohol. Then leave the A 1783 to dry totally before

use.

Warnings:

❑Do not use liquids based on petrol or hydrocarbons!

❑Do not spill cleaning liquid over the A 1783!

6 Service and Calibration

It is essential that your clamp is regularly calibrated in order to guarantee the technical

specification listed in this Instruction manual. We recommend 2-year calibration interval. Metrel

encloses an original calibration certificate with every new instrument and clamp.

For recalibration and repairs under or out of warranty time please contact your distributor for

further information.

Warning:

❑Only a competent, authorized person is allowed to carry out service intervention!

A 1783 Mini AC current clamps 20/200 A Technical specifications

7 Technical specifications

Nominal current (INom)...................................20 A / 200 A

Nominal current range ..................................5 % INom … 100 % INom

Maximal current (IMax) ...................................30 A / 260 A

Output signal .................................................10mV/A (20 A range)

1mV/A (200 A range)

Bandwidth .....................................................45 Hz …60 Hz

Uncertainty....................................................±(0,5 % of reading + 0,02 % FS)

Phase Error ....................................................±≤0,5°(45 –5 kHz)

External fields................................................30 A/m (No influence)

Continuity of measurements.........................20 A (continuous)

30 A (40 min / 20 min intermitted)

Dimensions & Mechanical data:

Current sensor type.......................................D

Length of connection cable ...........................1.5 m

Jaw opening...................................................24 mm

Maximum conductor sizes.............................fi < 24 mm

Dimensions (W x H x L).................................. 64 mm x 130 mm x 26 mm

Weight ..........................................................300 g

Safety specification:

Over-voltage category...................................600 V CAT III

Pollution degree ............................................2

Degree of protection.....................................IP 40

EMC:

Emission.........................................................Class B

Immunity .......................................................Portable equipment

Environment conditions:

Working temperature range .........................-15 °C … 50 °C

Storage temperature range...........................-20 °C … 60 °C

Humidity range..............................................0 %RH …80 %RH

Reference temperature range.......................25 C ± 5 C @ 40 %RH …60 %RH

Altitude..........................................................up to 2000 m

Operation ......................................................Indoor use

Substitute Electric Model for A 1783 Mini AC current clamps 20/200 A

Equivalent circuit diagram for current clamp measurement:

Instrument

1:2500

Figure 4: A 1783 Mini AC current clamps 20/200 A - block diagram

Symbols on circuit diagrams have following meaning:

Measured (AC) current, primary current

Secondary transformer current

Tabla de contenidos

Otros manuales de Instrumento de medición de METREL

METREL

METREL 3-phase AktivGT/Machine adapter Plus A 1322 Manual de usuario

METREL

METREL A 1179 Manual de usuario

METREL

METREL Multinorm MI 6201 Manual de usuario

METREL

METREL TeraOhmXA 10 kV Manual de usuario

METREL

METREL EurotestCOMBO MI 3125 Manual de usuario

METREL

METREL EurotestAT MI 3101 Manual

METREL

METREL A 1501 Manual de usuario

METREL

METREL MI 3144 Euro Z 800 V Manual de usuario

METREL

METREL MI 3290 Manual de usuario

METREL

METREL A 1636 Manual de usuario

METREL

METREL eMobility A 1632 Manual de usuario

METREL

METREL EurotestXC Manual de usuario

METREL

METREL EurotestXE MI 3102H Manual de usuario

METREL

METREL MI 3295 Manual de usuario

METREL

METREL MI 3103 Manual de usuario

METREL

METREL TeraOhmLT 10kV Manual de usuario

METREL

METREL MD 9250 Manual de usuario

METREL

METREL CE MultiTesterXA MI 3394 Manual de usuario

METREL

METREL A 1391 Manual de usuario

METREL

METREL power master MI 2892 Manual de usuario

METREL

METREL MI 3321 MultiservicerXA Manual de usuario

METREL

METREL EurotestPV Lite MI 3109 Manual de usuario

METREL

METREL MI 3250 Manual de usuario

METREL

METREL A1472 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
