Metra Electronics 99-7581 Manual de usuario

INSTALLATION INSTRUCTIONS

99-7581

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

KIT FEATURES

• DIN radio provision with pocket

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

KIT COMPONENTS

• A) Radio housing • B) ISO DIN brackets • C) ISO DIN trim plate • D) ISO DDIN trim plate

TOOLS REQUIRED

• Torx T-20 screwdriver • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly

– Nissan Frontier 2005-2017................................4

– Nissan Pathﬁnder 2005-2012 ...........................3

– Nissan Xterra 2005-2013 ...................................4

– Suzuki Equator 2009 ........................................4

Kit Assembly

– DIN radio provision with pocket ......................5

– ISO DIN radio provision with pocket ...............6

– ISO DDIN radio provision ..................................7

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: Please visit metraonline.com

for options

Antenna Adapter: Please visit metraonline.com

for options

A B C D

Nissan 2005-2017 / Suzuki 2009

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

APPLICATIONS

See inside front cover

386.257.1187

MetraOnline.com

APPLICATIONS

Nissan

Frontier LE 2005-2008

Frontier S 2011-2012

Frontier S (king cab) 2013-2015

Frontier SE 2005-2008

Frontier SE

(with a 4-cylinder engine) 2009-2011

Frontier XE 2005-2011

Frontier (radio delete) 2016-2017

Pathﬁnder LE (without NAV) 2005-2007

Pathﬁnder S 2006-2012

Pathﬁnder S FE+ 2008-2011

Pathﬁnder SE 2005-2007

Pathﬁnder XE 2005

Xterra S 2005-2008

Xterra SE 2005-2008

Xterra X 2006-2008

Xterra X (RWD) 2009-2013

Suzuki

Equator (extended cab) 2009

REV. 3/10/2020 INST99-7581 3

DASH DISASSEMBLY

Nissan Pathﬁnder 2005-2012

(Note: Do not cycle the key while the dash is

removed or the air bag light will come on.)

1. Unclip and remove the trim panel from

around the cup holders, in the center

console. (Figure A)

2. Unclip and remove the shifter trim

panel, including the pocket below the

radio, and the a/c controls. (Figure B)

3. Unclip and remove the panel at the top

of the radio, then remove (1) Phillips

screw underneath. (Figure C)

4. Unclip and remove the entire trim panel

surrounding the radio, including the a/c.

(Figure D)

5. Remove (4) Phillips screws securing the

radio to remove. (Figure E)

Continue to Kit Assembly

(Figure B) (Figure D)

(Figure A) (Figure C) (Figure E)

386.257.1187

MetraOnline.com

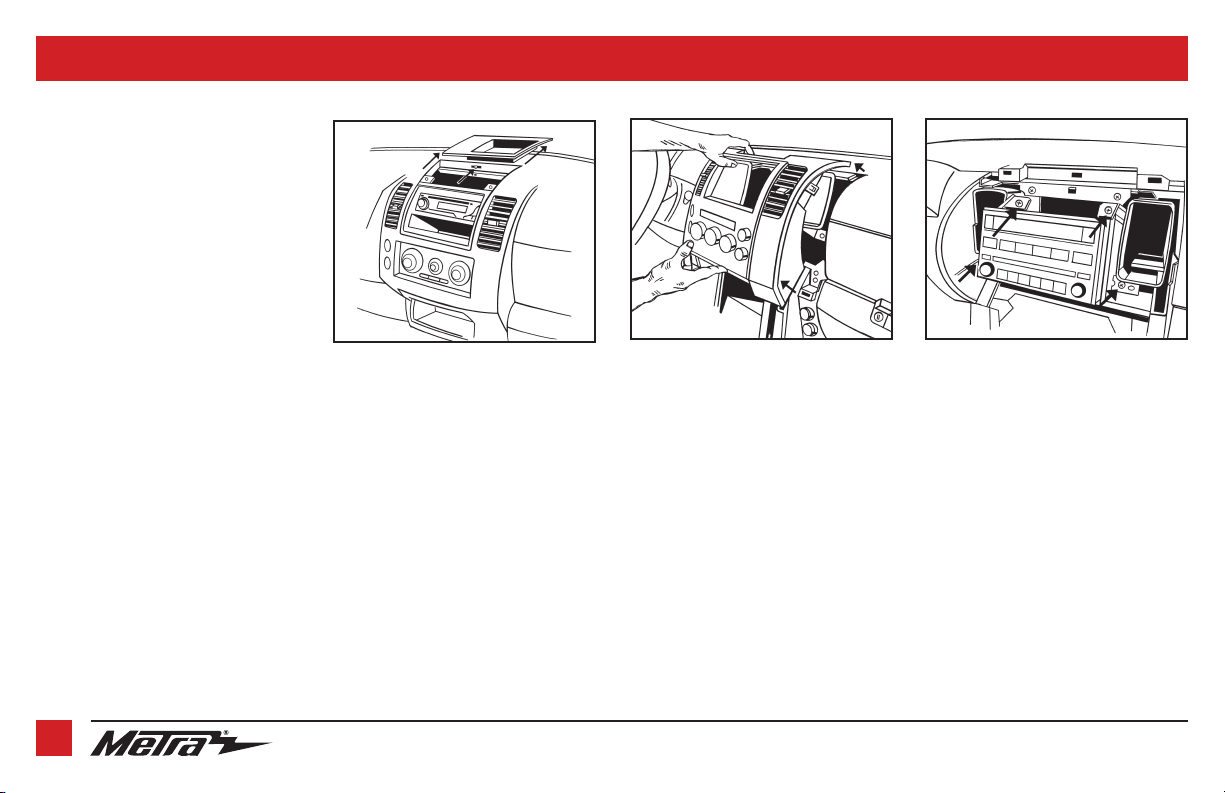

DASH DISASSEMBLY

(Figure A) (Figure B) (Figure C)

Nissan Frontier 2005-2017,

Xterra 2005-2013 /

Suzuki Equator 2009

(Note: Do not cycle the key while the dash is

removed or the air bag light will come on.)

1. Unclip and remove the panel at the top

of the radio, and remove (1) Phillips

screw underneath. (Figure A)

2. Unclip and remove the entire trim panel

surrounding the radio, including the a/c

controls. (Figure B)

3. Remove (4) Phillips screws securing the

radio to remove. (Figure C)

Continue to Kit Assembly

REV. 3/10/2020 INST99-7581 5

KIT ASSEMBLY

(Figure A) (Figure B)

DIN radio provision with pocket

1. Remove the metal DIN sleeve from the

aftermarket radio.

2. Slide the sleeve into the radio housing

and secure by bending the metal locking

tabs down. (Figure A)

3. Slide the radio back into the sleeve until

it clicks in. (Figure B)

4. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio and climate controls. Metra

recommends using the proper mating

adapter from Metra or AXXESS. Test the

radio for proper operation.

Reassemble the dash in reverse order of

disassembly to complete the installation.

386.257.1187

MetraOnline.com

KIT ASSEMBLY

ISO DIN radio provision with pocket

1. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

2. Secure the ISO DIN brackets to the radio

using screws supplied with the radio.

(Figure A)

3. Slide the radio into the radio housing

until it snaps into place. (Figure B)

4. Snap the ISO DIN trim plate onto the

front of the radio housing. (Figure B)

5. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio and climate controls. Metra

recommends using the proper mating

adapter from Metra or AXXESS. Test the

radio for proper operation.

Reassemble the dash in reverse order of

disassembly to complete the installation.

(Figure A) (Figure B)

REV. 3/10/2020 INST99-7581 7

KIT ASSEMBLY

(Figure A)

ISO DDIN radio provision

1. Remove the mounting brackets from the

factory radio. Secure the brackets to the

aftermarket radio using screws supplied

with the aftermarket radio.

2. Remove (2) T-20 Torx screws from the a/c

vents, then remove. (Figure A)

3. Secure the ISO DDIN trim plate to the panel

using (2) T-20 Torx screws removed from

the prior step.

4. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio and climate controls. Metra

recommends using the proper mating

adapter from Metra or AXXESS. Test the

radio for proper operation.

5. Reassemble the dash in reverse order of

disassembly to complete the installation.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certiﬁed technicians

INSTALLATION INSTRUCTIONS

99-7581

If you are having difﬁculties with the installation

of this product, contact our Tech Support line

either by phone at 386-257-1187, or email at

techsupport@metra-autosound.com. Before

doing so, look over the instruction booklet a

second time and ensure that the installation was

performed exactly as the instruction booklet

is stated. Have the vehicle apart and ready to

perform troubleshooting steps before contacting

Metra/Axxess Tech Support.

¡Precaución!

Todos los accesorios, interruptores,

paneles de controles de clima y especialmente las

luces del indicador de las bolsas de aire deben estar

conectados antes ciclar la ignición. Además, no quite

el radio de fábrica con la llave en la posición o de

encendido ni con el vehículo funcionando.

INSTRUCCIONES DE INSTALACIÓN

99-7581

CARACTERÍSTICAS DEL KIT

• Provisión de radio DIN con cavidad

• Provisión de radio ISO DIN con cavidad

• Provisión de radio ISO DDIN

COMPONENTES DEL KIT

• A) Carcasa del radio • B) Soportes ISO DIN • C) Placa de moldura ISO DIN • D) Placa de moldura ISO DDIN

HERRAMIENTAS REQUERIDAS

• Destornillador Torx T-20 • Destornillador Phillips

INDICE

Desmontaje del tablero

– Nissan Frontier 2005-2017................................4

– Nissan Pathﬁnder 2005-2012 ...........................3

– Nissan Xterra 2005-2013 ...................................4

– Suzuki Equator 2009 ........................................4

Ensamble del kit

– Provisión de radio DIN con cavidad ................5

– Provisión de radio ISO DIN con cavidad ..........6

– Provisión de radio ISO DDIN .............................7

CABLEADO Y CONEXIONES DE ANTENA

(se venden por separado)

Arnés de cableado: Visite metraonline.com

para opciones

Adaptador de antena: Visite metraonline.com

para opciones

A B C D

Nissan 2005-2017 / Suzuki 2009

Visite MetraOnline.com para obtener información más detallada sobre el producto y aplicaciones

actualizadas especíﬁcas para vehículos.

APLICACIONES

Ver interior de la portada

386.257.1187

MetraOnline.com

APLICACIONES

Nissan

Frontier LE 2005-2008

Frontier S 2011-2012

Frontier S (cabina rey) 2013-2015

Frontier SE 2005-2008

Frontier SE

(con un motor de 4-cilindros) 2009-2011

Frontier XE 2005-2011

Frontier (borrar radio) 2016-2017

Pathﬁnder LE (sin NAV) 2005-2007

Pathﬁnder S 2006-2012

Pathﬁnder S FE+ 2008-2011

Pathﬁnder SE 2005-2007

Pathﬁnder XE 2005

Xterra S 2005-2008

Xterra SE 2005-2008

Xterra X 2006-2008

Xterra X (RWD) 2009-2013

Suzuki

Equator (cabina extendida) 2009
