MERLYN MB12 Manual de usuario

MB12 Pivot

Installation Guide

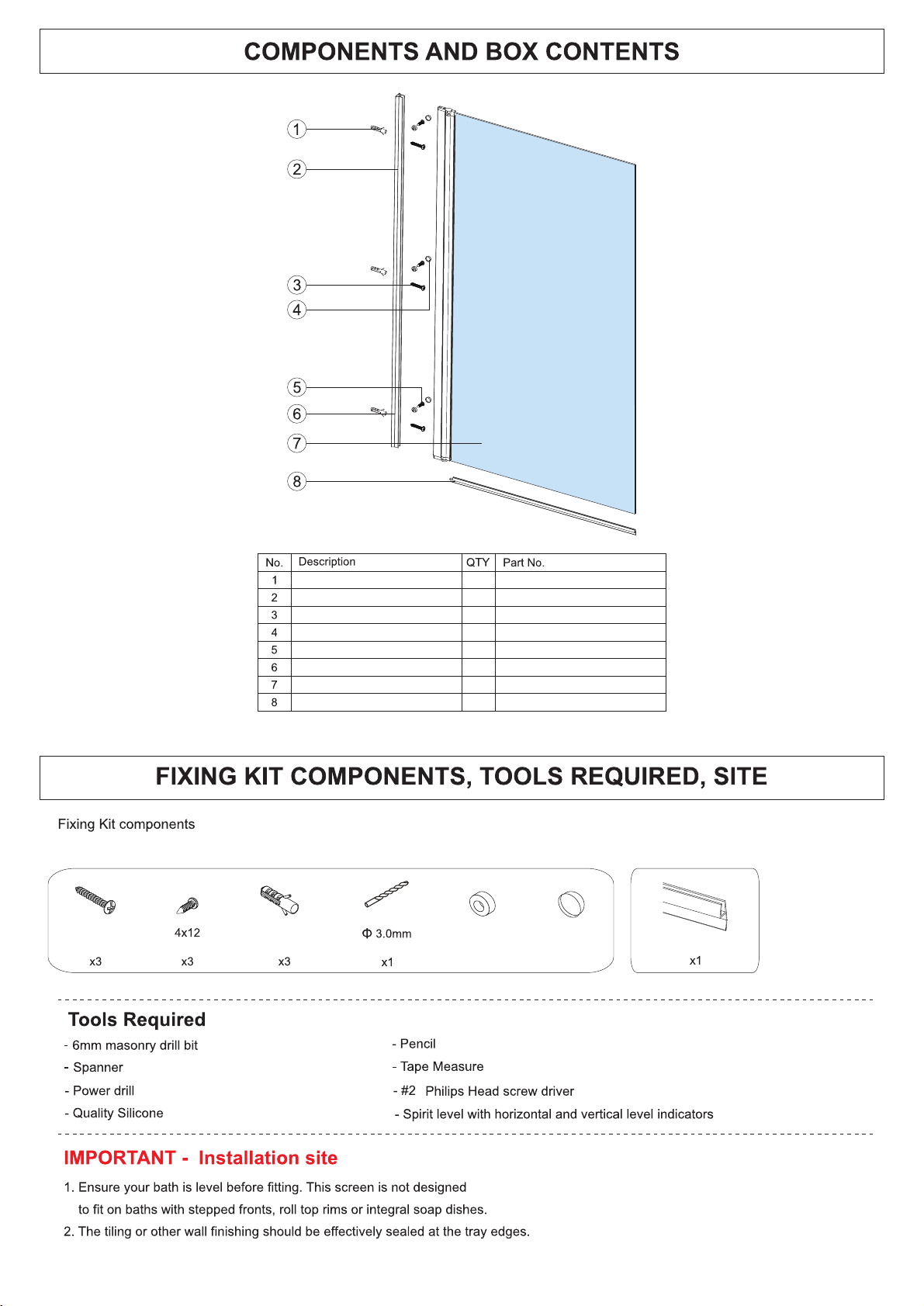

The wall plugs supplied with the installation kit are for use in solid walls.

Hollow or ‘stud partition’ walls will require alternative fixings. Please consult

a hardware supplier for the correct type. It may also be necessary to consult

your tiling supplier about the correct method for drilling your tiles.

Wall plug 3

Screw ST4x40

1

Wall profile

3

3

Screw cover cap 3

Screw ST4x12

1

Screw cover cap clip 3

Bottom seal 1

Glass Panel

SP0B08070

A2403001

SP0L909C

SP0A308

A2401201

SP0A309

SP0BSF014

A

SP0BSF014

SP0B08092

parts shown are not to scale

A2401201 SP0A308

x3

SP0A309

x3

4x40

A2403001 SP0B08070

FIG 4

4. Plumb the wall profiles SP0L909C using the vertical

element of the spirit level. Mark 3 holes, drill with 6mm

masonry bit and fit wall plugs SP0B08070. Using the 3

Screw A2403001, fix wall profiles to wall. Fig 4.

NOTE: Only silicone the wall profile after fixing to the wall

(see sealing section). Do not silicone on the back of the

wall profile before fixing to the wall.

3. Position the wall profile SP0L909C so the

seal on the moving panel sits on the inside

edge of the bath. Fig 3.

FIG 3

INSIDE

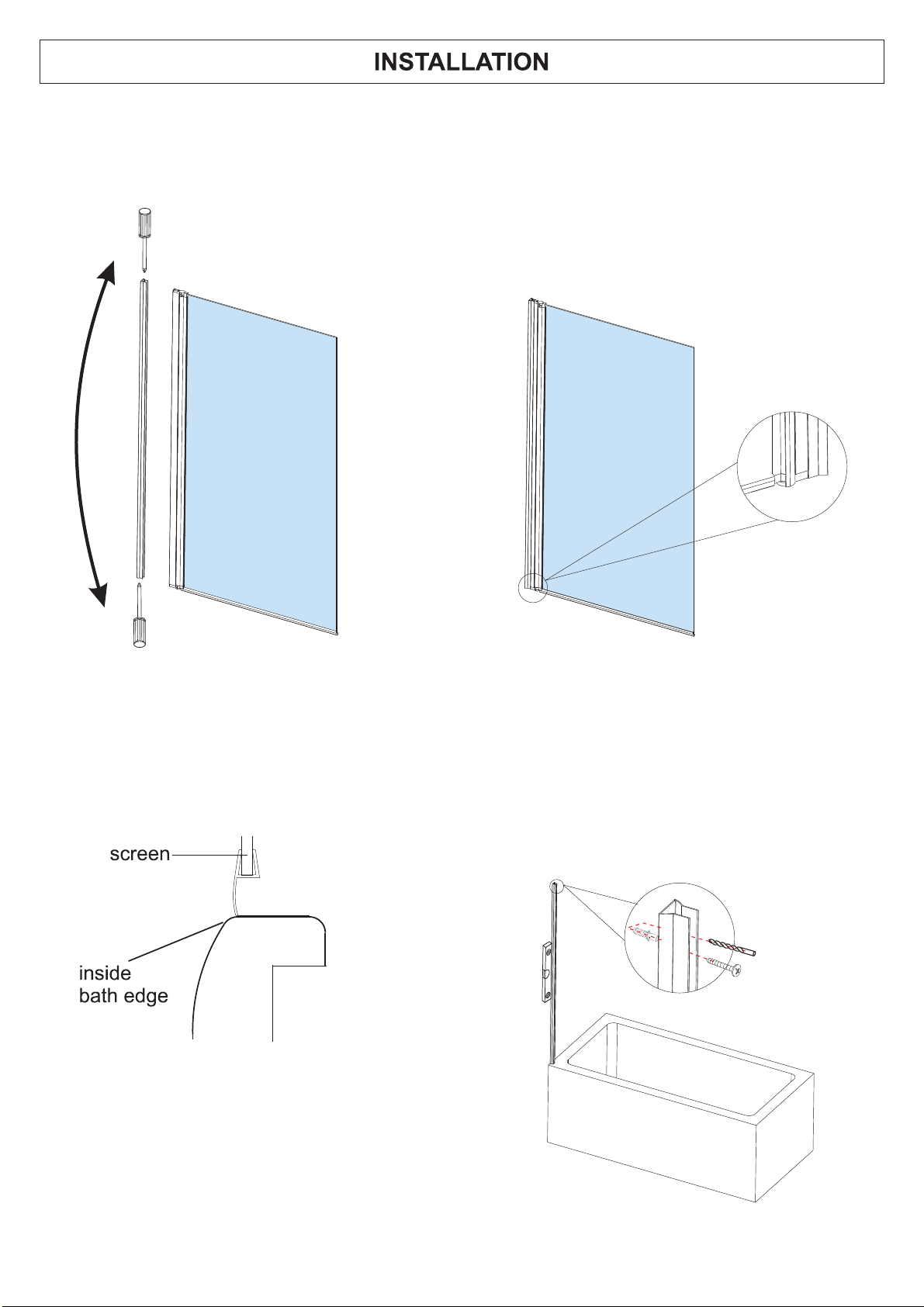

1. The screen is reversible for fitting to a wall on the right or left. The screen is set up for Left hand use. If you need to reverse it, unscrew one of the

brackets and remove the moving panel A Fig 1.

FIG 1

FIG 2

NOTE: Ensure the upright seal is on the inside. Fig 2.

2. Turn the hinge post upside down, reinsert the moving panel (do not turn panel upside down). Reattach the bracket. Fig 1. The screen can then

be fitted on the Right hand Side of the Bath. Ensure the upright seal is on the inside. Fig 2.

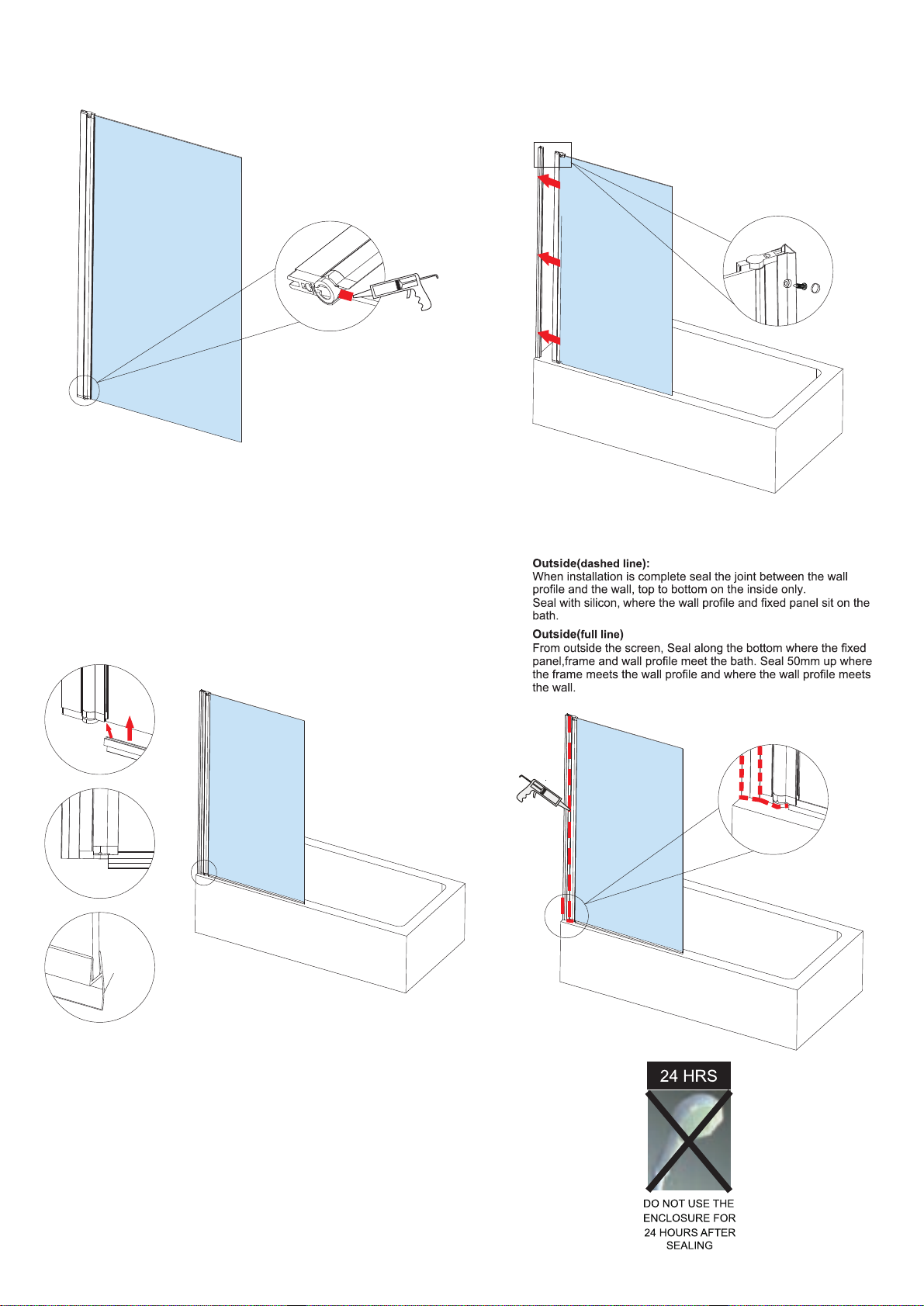

5.Silicone the bottom of the pivot part.

FIG 5

FIG 6

6.Insert the screen into the wall profile. Ensure the bottom seal

on the moving panel A is parallel to the top surface of the bath.

7.Insert the bottom seal into the Frame, So it

sits against the bottom bracket. Ensure the fin

on the bottom seal is to the inside. FIG7.

FIG 7

Inside

8.

FIG 8

Drill 3 holes through the wall profile and fixed panel using a

3mmsteel drill bit. Using the Screws A2401201, screw cover

caps SP0A308 and screw cover caps clips SP0A309, fix the hinge

upright to the wall profile in 3 places. Fig 6.
