MR-526 ELLIPTICAL TRAINER
INSTRUCTION MANUAL
Dear Customers,
We want to thank you for having chosen an Elliptical trainer and wish you a lot of
fun and success during training.
Please note and follow the enclosed safety and assembly instructions carefully.
If you have questions please do not hesitate to contact us.
Support email:[email protected].
Safety Instruction ...................................2-3
Exploded Drawing ....................................4
Parts List .........................................5-7
Installation Steps ...................................8-13
Operation instruction of multifunctional sports monitor ......14-16
Table of Content as below
2
Before you start training on your home Elliptical trainer, please read the instructions
carefully. Be sure to keep the instructions for information, in case of repair and for
spare part delivery.
This elliptical trainer is made for home use only and tested up to a maximum body
weight of 350lb.
Follow the steps of the assembly instructions carefully.
For assembly use only suitable tools and asks for assistance with assembly if
necessary.
Check before the first training and every 1-2 months that all connecting elements
are tight fitting and are in the correct condition. Replace defective components
immediately and/or keep the equipment out of use until repair. For repairs, use only
original parts.
In case of repair, please ask your dealer for advice.
Avoid the use of aggressive detergents when cleaning the home exerciser.
Ensure that training starts only after correct assembly and inspection of the item.
For all adjustable parts be aware of the maximum positions to which they can be
adjusted/tightened to.
The home exerciser is designed for adults. Please ensure that children use it only
under the supervision of an adult.
SAFETY INSTRUCTION
■Ensure that those present are aware of possible hazards, e.g.
movable parts during training.
■Consult your physician before staring with any exercise program.
He or she can advise on the kind of training and which impact is
suitable.
WARNING！INCORRECT/EXCESSIVE
TRAINING CAN
CAUSE HEALTH INJURIES.
■Please follow the advice for correct training as detailed in training
instructions.
■The load/work level can be adjusted by turning the adjustment
knob on the handle bar stem.
■The safety level of this equipment can be maintained only if it is
check regularly for all assembly procedure mentioned in the
assembly instruction sheet.
■Please check regularly for the tightening knobs to notice any
irregular wear.
3
EXPLODED DRAWING
4
16
9L
10
11 12 13
15
14
17
21
22 23 24
26 27
9R
25L
34R
36R
40
18
41
89
90
91L
92
74 75 76 58 57 56
86
88
87
85
84
32
31
30
Item.99*2
Item.100*1
28
29
44R 45
42
43
46
20
48
49
50
53
64
65
67 68 69 70
63
71 72 73
77 78 79
80
81
82
83
91R
95
94
60
61 62
47
55
51
54
19
33
34L
35
36L
39
38
37
1
2
3
4
5
6
8
7
25R
59
66
93
96
99
100
44L
52
98
97
MR-526 Components and Parts List
No
Product name
Specification
Material
Quantity
1 Electronic meter
JS-10327 outgoing line 120MM, two heartbeat outgoing line
100MM
1
2
Hand-held heartbeat
sheet
Flexible rubber 2
3
Handle weld
∅
25
FE
1
4
Cup head self-tapping
screw
M4*20 BK 2
5
Semi-round end cover
∅
25
PP
2
6
Foam
∅
25*3T*500mml
HDR
2
7
End cover
∅
50*32 upper swing pipe with a small top ring
PP
2
8
Foam
32*3t*570MML upper swing pipe
HDR
2
9R
Upper swing right
∅
32*1.5T*752MML
FE
1
9L
Upper swing left
∅
32*1.5T*752MML
FE
1
10
Umbrella-head
inner-hexagon screw
M8*20 Nylonpatch 360°, 5MM handle 2 + central axis 2 +
crank spindle 2
Plating black
6
11
Spring washer
∅
8 pedal spindle 2 + central axis 2 + handlebar 6
Plating black
10
12
Spring washer
8*36*3 central axis
Plating black
2
13
Nylon bush
18.8*38 outer ring without groove
PA+MnS2
4
14
Curved washer
8*19*1.5T upper swing pipe 4+ handlebar 6+ handle 2
Plating black
12
15
Umbrella-head
inner-hexagon screw
M
8*20 5mm Upper swing with hexagon hole 4 + handlebar 6
Plating black
10
16
Spring washer
∅
19.5*
∅
38*0.5
BK
2
17
Big flat head screw
M5*12
BK
4
18
Line clamping plug
∅
12 Hardness 55-60 degree
PVC
1
19
Nylon bush A
19*38 outer ring with groove
PA+MnS2
2
20
Heartbeat line
650MM
2
21
Central axis
∅
18. 8*354. 2MML extrusion tap on both sides M8*25
UCP
1
22
Umbrella-head
inner-hexagon screw
M10*78 part-thread lower swing pipe type A 5-leg hexagon
hole
Plating black
2
23
Lower swing casing
pipe
∅14*59 UCP 2
24
Bush
32*14
PA+MnS2
4
25L
Lowe swing weld left
∅
32*1.5T*580MML
FE
1
25R
Lower swing welding
right
∅32*1.5T*580MML FE 1
26
Spring washer
10*19*2 lower swing pipe
Plating black
2
27
Nylon nut
M10 lower swing pipe
Plating black
2
28
Bottle holder
TC-F01
Black
1
29
Big head thread cutting
screws
M5*15 Bottle holder
Electrophoresis
black
2
30
Handlebar pipe weld
∅
60*1.5T*985MML cut 51°
FE
1
31
Upper line
1100MML
1
32
Fine tuning lower
section
Lower section of 1300mm outgoing line 34MM straight pipe
screw
1
33
Elliptical tube plug
30*60 pedal tube
PP
2
34L
Pedal welding left
30*60*1.5T*780MML Ellipse
FE
1
34R
Pedal welding right
30*60*1.5T*780MML Ellipse
FE
1
35
Carriage bolts
M6*50 pedal plate
Plating black
4
36L
Pedal left
8001 All Black
PP
1
36R
Pedal right
8001 All Black
PP
1
37
Spring washer
6*14*2 pedal plate
Plating black
4
38
Spring washer
∅
6
Plating black
4
39
Small round flower
rotary knob
M6 internal thread ABS 4
40
Spring washer
8*24*2 pedal mandrel
Plating black
2
5
41
Nylon powder
∅
16.3*022.4 Crank connecting pipe
PA+MnS2
4
42
Umbrella-head
inner-hexagon screw
M8*50A type, tooth length 12MM
Electrophoresis
black
2
43
Powder metallurgy
11.5*8*15 (pedal tube)
4
44L
M piece welding left
3T, no M5 hole in the middle
FE
1
44R
M piece welding right
3T, no M5 hole in the middle
FE
1
45
Spring washer
8* office 16*1.5
Plating black
2
46
Nylon nut
M8 opposite side with 14
Plating black
2
47
spring washer out-plane
hexagonal nut
M10*1.25 opposite 15MM*7T magnetic control wheel ucp 2
48
Wave spring washer
∅
17.5*22*0.5
BK
1
49
Magnetic control wheel
∅
250*345kg
1
50
Bearing
6000-2RS
2
51
Nut
M10*1.25 opposite 17MM*3T magnetic control wheel
ucp
2
52
Drill screw
M5*20 Housing 2 + Sensor 1
BK
3
53
Magnetic control wheel
spindle
M10*1.25 teeth pitch *112MM Blacking 1
54
Chain adjuster
BK
2
55
Axis protector
opposite side 15
PP
1
56
Sensor
1100MML Sensor bar 25MML
1
57
Spring washer
17*22*2 Tianxin
BK
2
58
C-type buckle (jump
ring)
∅15(axle 17) BK 1
59
welded frame
1
60
C type buckle
For 10 axis
BK
3
61
Pressing wheel
∅
37 * 20.5 L black surface double bearings(PB3851)
1
62
Compression wheel
arbor
∅10*42mml BK 1
63
Magnet
40*25*10MM
Indication S/N
10
64
Nut
M6 opposite side 10
ucp
2
65
Double-thread screw
∅
6 * 80 denticulate hinge on both sides M6*25
BK
1
66
Silica spring washer
8*16*1.5
1
67
Spring washer
∅
6*14*1.5
ucp
3
68
Nylon nut
M6 opposite side 10
ucp
1
69
Spring
∅1 * 12 circle taper, big head 15, small head 9, total length 60
ucp
1
70
Magnet set fixing seat
4T
FE
1
71
Rotating mandrel
∅
12*33.2
ucp
1
72
Spring washer
∅
6
ucp
2
73
Umbrella-head
inner-hexagon screw
M6*15 ucp 2
74
Flange nut
BK
2
75
Cross welding
FE
2
76
Large flat head
self-tapping screw belt
M4.5*15 disc BK 8
77
Bearing
60032RS
2
78
Spring washer
17*22*1 Tianxin
BK
3
79
Wave spring washer
∅
17.5*22*0.5
BK
1
80 Belt pulley 260*17.1 hole 4 holes
Aluminium
tray
1
81
Belt
460J6
1
82
Tianxin welding
∅
17*134MML
FE
1
83
Outer hexagonal screw
M8*12(Tianxin)
BK
4
84
Front foot pad
∅
60 (inner wheel)
ABS
2
85
Front foot pipe
∅
60*1.2T*380MML
FE
1
86
Back foot pad
∅
60 dodecagon
ABS
2
87
Hind foot pipe
∅
60 * 1.2t * 485mml for bumping
FE
1
88
Umbrella-head
inner-hexagon screw
Medium carbon steel 8.8/5mm hexagonal hole in M8*70
front and rear bottom pipe
Plating black
4
89
Crank plug
Black hardness 55-60 °
PVC
2
6
90
Disc
8509 black
HIPS
2
91L
Housing Left
KS-8007
ABS
1
91R
Housing Right
KS-8007
ABS
1
92
Drill screw
M5*15 shell 6
BK
6
93
Sealing ring
∅
60( Hardness 55-60 degrees)
Black
1
94
Ornament cover of front
pipe
KS-8007 ABS 1
95
Self-tapping screw
M4.5*25
BK
6
96
Fine tuning upper
section
The upper section is 540mm and the outgoing line is 30MM
1
97 Round head screw M5*55
Plating
black
1
98 Curved washer 5*16*1.5T
Plating
black
1
99
Hexagon socket wrench
5mm with cross
UCP
2
100
Open spanner
10.17.14.19 heat treatment
UCP
1
7
I
nstallation Steps
S

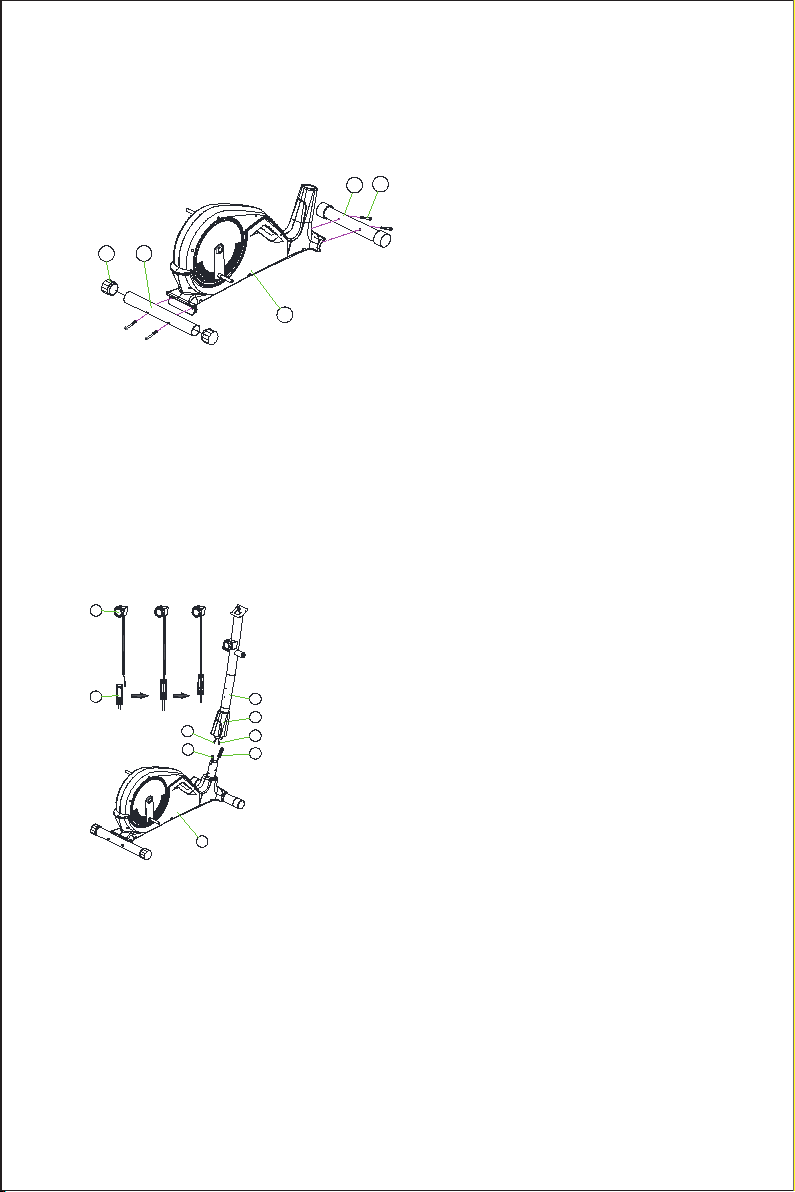

tep 1
1
. After assembling the foot pad (86) and rear foot pipe(87)
2
. Fixing the front foot pipe (85) with screws, and aligning hole sites from the lower foot pipe with two carriage screw
s
In the same way, Fixing the rear foot pipe(87) with screws, and aligning hole sites from the lower foot pine wit
h
carriage screws(88) Screwing with an Allen wrench (99).
S
tep 2
1
. Firstly, inserting the front pipe ornament cover (94 ) into the handlebar stand pipe(30), and then the connecting line (31
)
is connected with the induction line (56) in the figure.
2
. Firstly, turning the fine adjustment to the maximum value (level 8). Connecting the fine-tuning wire (32) of th
e
platform and fining the upper end (96). Inserting the handlebar stand pipe(30) into the platform (59).
STEP 2
32
94
31
30
96
32
56
96
59
STEP 1
88
85
87
86
59
8
Tabla de contenidos
Otros manuales de Entrenador elíptico de Merach
Manuales populares de Entrenador elíptico de otras marcas
Weslo
Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento
Progear Fitness
Progear Fitness Air elliptical pro 1307 Manual de usuario
Torque Fitness
Torque Fitness XPLLP Manual de usuario
Octane Fitness
Octane Fitness PRO3700C Manual de usuario
Xterra
Xterra FS5.8e Manual de usuario
Bodyguard
Bodyguard E-40 Manual de usuario
Bonn Germany
Bonn Germany Concept 2.2 Manual de usuario
Precor
Precor Resolute RSL 620 Manual de usuario
NordicTrack
NordicTrack E 9.2 Elliptical Manual de usuario
Vision Fitness
Vision Fitness X6600iNetTV Manual de usuario
Matrix
Matrix MX-A5x Manual de usuario
SportsArt Fitness
SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario
