Menumaster Jetwave JET14 Series Guía de instalación

FEATURES &

OVERVIEW

SPECIFICATIONS

INSTALLATION

COMPONENT

LOCATIONS

WIRING INFORMATION

SERVICE TEST MODE

& USER OPTIONS

RESOURCES

COMPONENT

ACCESS

SERVICE/TRAININGMANUAL

SAFETY

POWER OUTPUT

TEST

Tableof Contents

FEATURES & OVERVIEW

Features & Overview 3

SPECIFICATIONS

Specifications 4

INSTALLATION

Clearances and Placement 5

Radio Interference 6

Earthing Instructions 7

SAFETY

Microwave Service 8

Discharging Capacitors 9

Microwave Emissions 10

COMPONENTLOCATIONS

Front 12

Right Side 13

LeftSide 14

Bottom 15

Top 16

Door 17

COMPONENTACCESS

Antenna/Stirrers 19

Blower Fan Motor 23

Control Board 26

Convection FanMotor 28

Display Board 31

Fuse 32

Catalyst Assy. 33

Heater Box/Heater 35

InterlockSwitch 40

Monitor Relay Board 42

PowerRelay 44

RTD 46

Thermal Cutouts 47

Triacs 51

HIGHVOLTAGECOMPONENTS

Capacitors & Diodes 53

High Voltage Transformer 57

Magnetron 60

SERVICE TEST MODE& USER OPTIONS

Service Test Mode 64

UserOptions 65

POWER OUTPUT TEST

Power Output Test 66

WIRINGINFORMATION

Diagram 67

Schematic 68

RESOURCES

ACP ServiceSolutions 69

SPECIFICATIONS

Models JET14*

JET19*

JET514

Power Source

Voltage AC 208-240 VAC 208-240 VAC 230 VAC

Amperage (Single Unit) 16 A 26 A 16 A

Frequency 60 Hz 60 Hz 50 Hz

Single Phase, 3 wire grounded YES YES YES

Receptacle 6-20R 6-30R CEE5/7

Plug 6-20P 6-30P Schuko

Power Output Microwave

Nominal microwave energy (IEC705) 1400 Watts 1900 Watts 1400 Watts

Minimum temperature rise 14ºF / 7.5ºC 19ºF / 10.5ºC 14ºF / 7.5ºC

Power Consumption

Amps 16 Amps 26 Amps 13 Amps

Watts 3200 Watts 5300 Watts 2900 Watts

Dimensions

Cabinet (in / cm)

Width 19 3/4" 50 cm 19 3/4" 50 cm 19 3/4" 50 cm

Height 18 1/8" 46 cm 18 1/8" 46 cm 18 1/8" 46 cm

Depth 26 " 66 cm 26 " 66 cm 26 " 66 cm

Oven Interior (in / cm)

Width 13" 33 cm 13" 33 cm 13" 33 cm

Height 10 1/2" 27 cm 10 1/2" 27 cm 10 1/2" 27 cm

Depth 15" 38 cm 15" 38 cm 15" 38 cm

Weight

Crated 102 lbs. 46 kg. 102 lbs. 46 kg. 102 lbs. 46 kg.

Uncrated 95 lbs. 43 kg. 95 lbs. 43 kg. 95 lbs. 43 kg.

Oven Clearances

A—For North American (UL/CSA) models, allow at least 2” (5.1 cm) of

clearance around

top of oven. For International (50 Hz) models, allow at least 7” (17.8 cm)

of clearance

around top of oven. Proper air flow around oven cools electrical

components.

With restricted air flow, oven may not operate properly and life of

electrical parts is

reduced.

B—Allow at least 2 9/16” (6.5 cm) between air discharge on back of oven

and back wall.

C—Allow at least 1 1/4” (3 cm) of clearance around sides of oven.

Oven Placement

• Do not install oven next to or above source of heat, such as pizza oven

or deep fat fryer. This could cause microwave oven to operate

improperly and could shorten life of electrical parts.

• Do not block or obstruct oven filter. Allow access for cleaning.

• Install oven on level countertop surface.

• If provided, place warning label in a conspicuous place close to

microwave oven.

• Outlet should be located so that plug is accessible when oven is in

place.

INSTALLATION

Radio Interference

Microwave operation may cause interference to radio, television, or a similar oven. Reduce

or eliminate interference by doing the following:

• Clean door and sealing surfaces of oven according to

instructions in Care and Cleaning section.

• Place radio, television, etc. as far as possible from oven.

• Use a properly installed antenna on radio, television, etc.

to obtain stronger signal reception.

INSTALLATION

Earthing Instructions

Oven MUST be grounded.

The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or servicer if grounding instructions are not completely

understood, or if doubt exists as to whether the oven is properly grounded.

Do not use an extension cord.

If the product power cord is too short, have a qualified electrician install a three-slot

receptacle.

This oven should be plugged into a separate circuit with the electrical rating as provided in

product specifications. When the combination oven is on a circuit with other equipment,

an increase in cooking times may be required and fuses can be blown.

External Equipotential Earthing Terminal (export only)

Equipment has secondary earthing terminal. Terminal provides external earthing

connection used in addition to earthing prong on plug. Located on outside of oven back,

terminal is marked with symbol shown at right.

INSTALLATION

Microwave Ovens produce voltage up to -5000 volts DC!

Microwave Oven Capacitors can store high voltage even with oven unplugged!

Always discharge capacitors whenever checking high voltage components!

Always disconnect the power supply before servicing!

NEVER perform high voltage tests!

Wear appropriate eye and hand protection!

Follow safety precautions in Product and Service literature!

Test oven operation after repairs are completed!

SAFETY –MICROWAVE SERVICE

SAFETY - DISCHARGING CAPACITORS

ALWAYS DISCHARGE CAPACITORS BY SHORTING TERMINALS USING AN INSULATED TOOL(s)

CAPACITORS CAN HOLD HIGH

VOLTAGE EVEN WHEN POWER TO

OVEN IS DISCONNECTED!

FOOD AND DRUG ADMINISTRATION

DEPARTMENT OF HEALTH AND HUMAN SERVICES

SUBCHAPTER J –RADIOLOGICAL HEALTH

Sec. 1030.10 Microwave ovens.

. . . .

(v) One (the primary) required safety interlock shall prevent microwave radiation emission in excess of the

requirement of paragraph (c)(1) of this section; the other (secondary) required safety interlock shall prevent

microwave radiation emission in excess of 5 milliwatts per square centimeter at any point 5 centimeters or more

from the external surface of the oven. The two required safety interlocks shall be designated as primary or

secondary in the service instructions for the oven.

Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive

Microwave Energy

. . . .

(e) A Microwave leakage check to verify compliance with the Federal performance standard should be performed

on each oven prior to release to the owner.

NOTE: Other Government Agencies Have Same/Similar Standards

PART 1030 -- PERFORMANCE STANDARDS FOR MICROWAVE AND RADIO FREQUENCY EMITTING PRODUCTS

SAFETY –MICROWAVE EMISSIONS

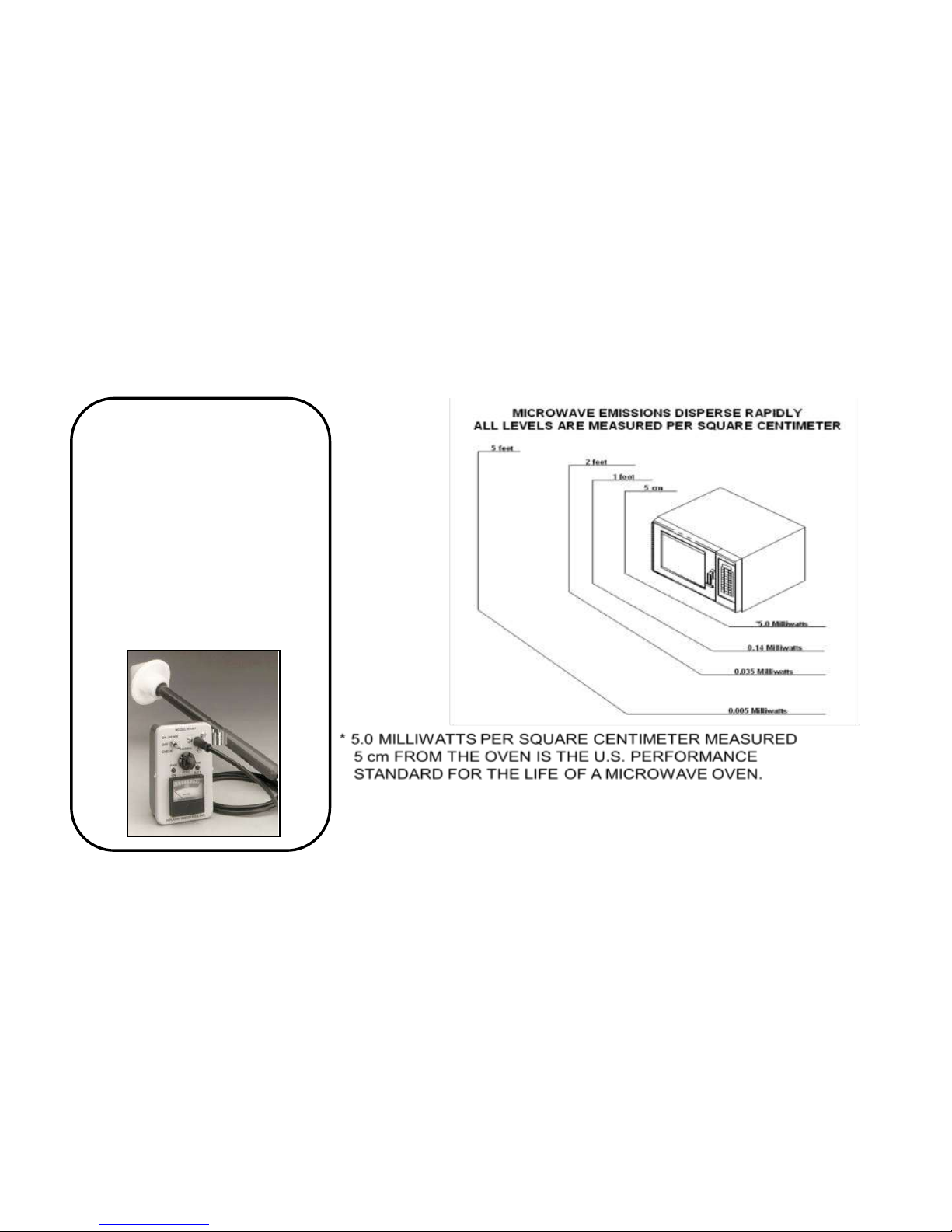

To ensure the unit does not emit

excessive microwave leakage and

meets Government Agency

guidelines, check the oven for

microwave leakage using the

Narda model 8100, 8200 Holaday

HI1500, HI1501, or Simpson 380M

leakage monitor as outlined in the

instructions. The maximum

leakage level allowed when

following those instructions is

5mw/cm2 .

SAFETY –MICROWAVE EMISSIONS
