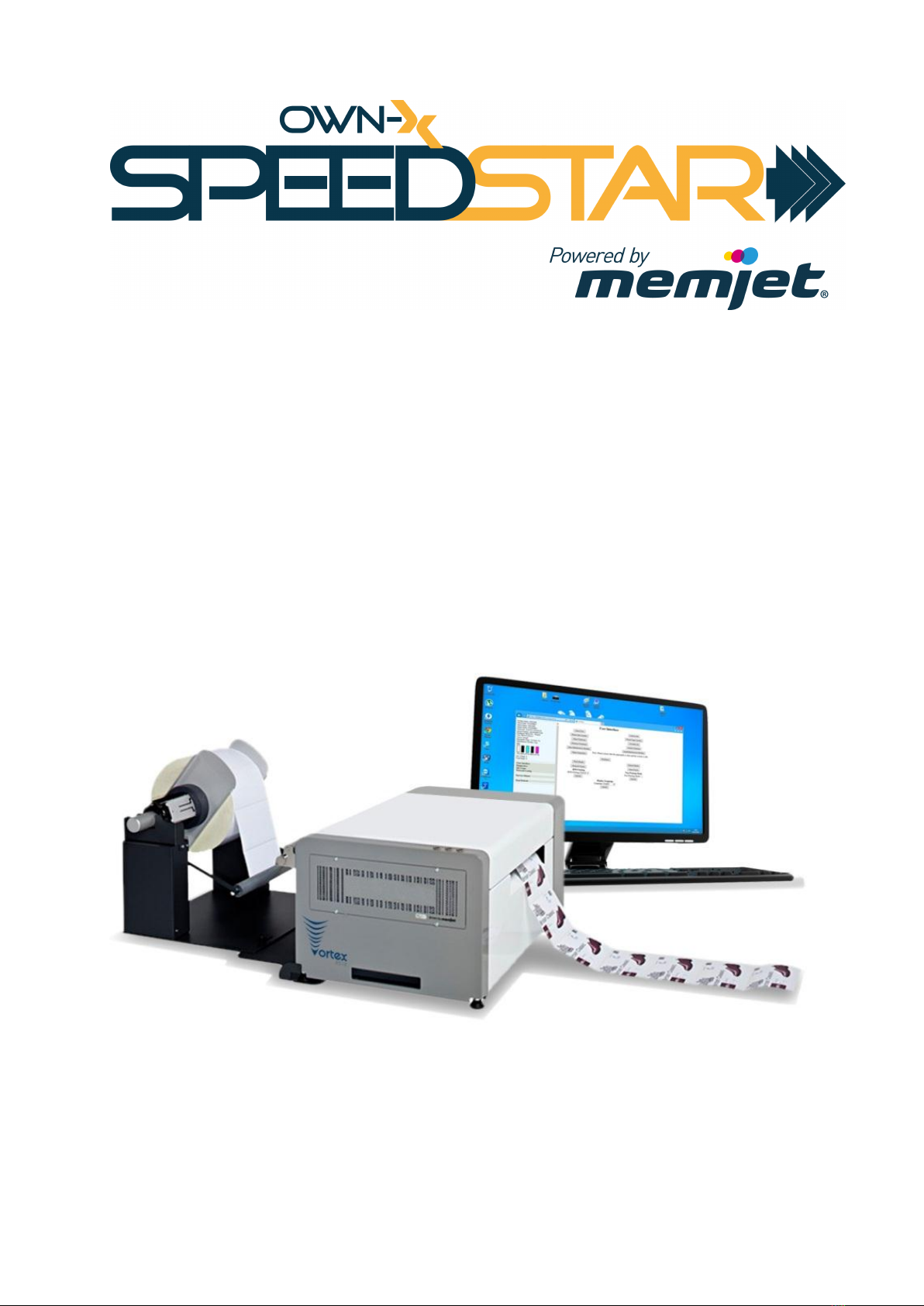

Memjet OWN-X Speedstar 1000 Manual de instrucciones
Quick User Guide
Speedstar 1000
-2-
Install the printer driver
There are two ways for installing the printer software. One is installing the printer as a USB device,
however this process doesn’t always work, as the driver software may conflict with previously
installed USB printer softwares.
The best way to install the printer is installing it as a network printer.
The steps of the network printer installation are the following:
NOTE: Do NOT connect the printer to the PC, laptop or network.
1. On the user PC or laptop, go to the folder that contains the printer driver software ’R12
driver’:
2. Open the folder and run the ’WinSetup.exe’ file:
-3-
3. As the installer starts, Windows will prompt for permission. Click ’Yes’:
4. The setup console will start:
5. Click ’Install printer software’ and accept the terms in the license agreement, then click
’Next’.
-4-
6. When asked, select 'network printer'.
-5-

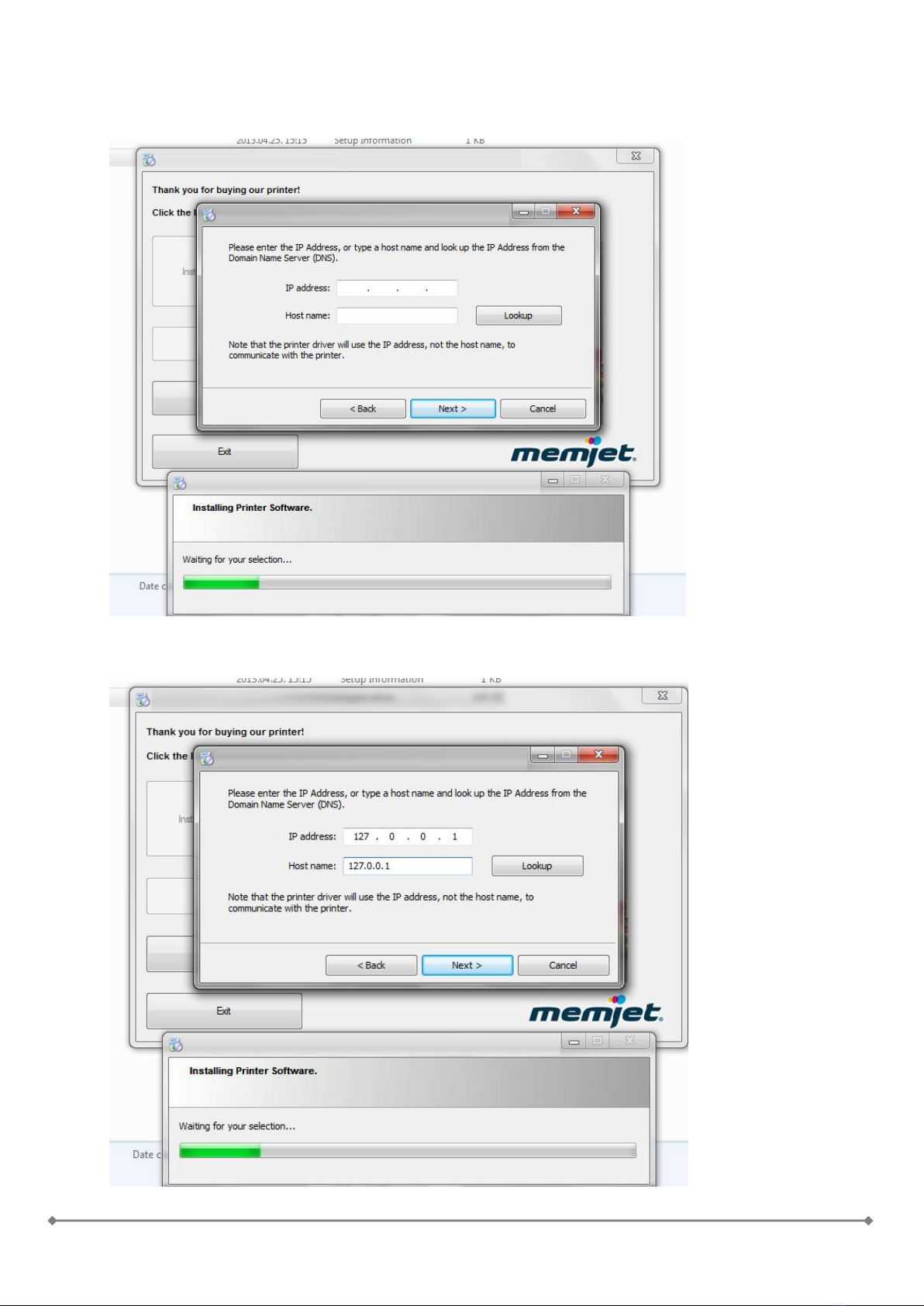

7. The installation will begin and a new window will pop-up to configure
the printer’s IP address.
8. Use the following IP address (127.0.0.1) settings and click ’Next’:
-6-
9. Another window will pop-up to confirm that you really wish to use the
given IP address. Click ’Yes’

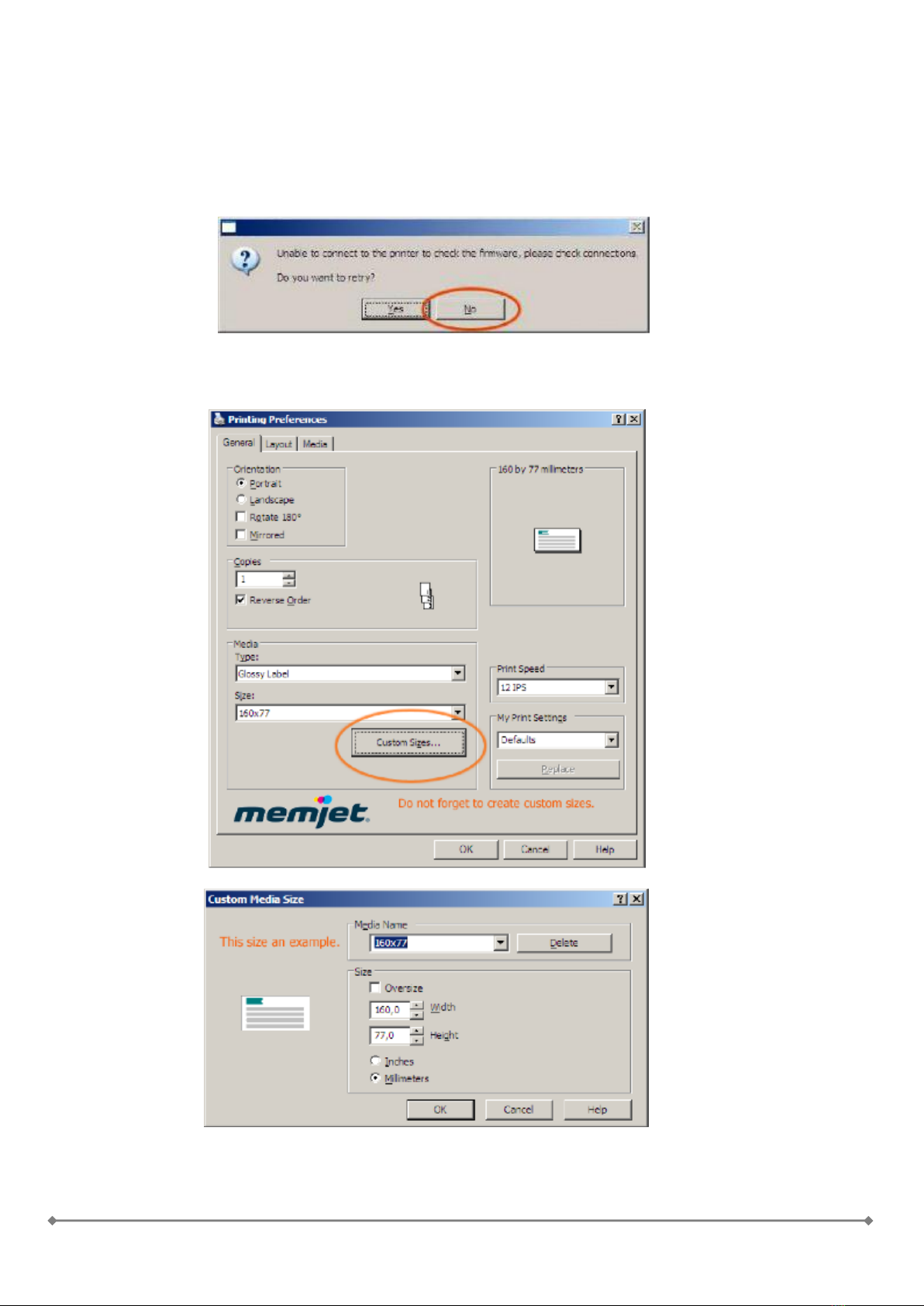

10. As the printer is not connected a window will appear stating, that the
software is unable to connect to the printer. It will ask, whether to
retry. Click ’No’
-7-

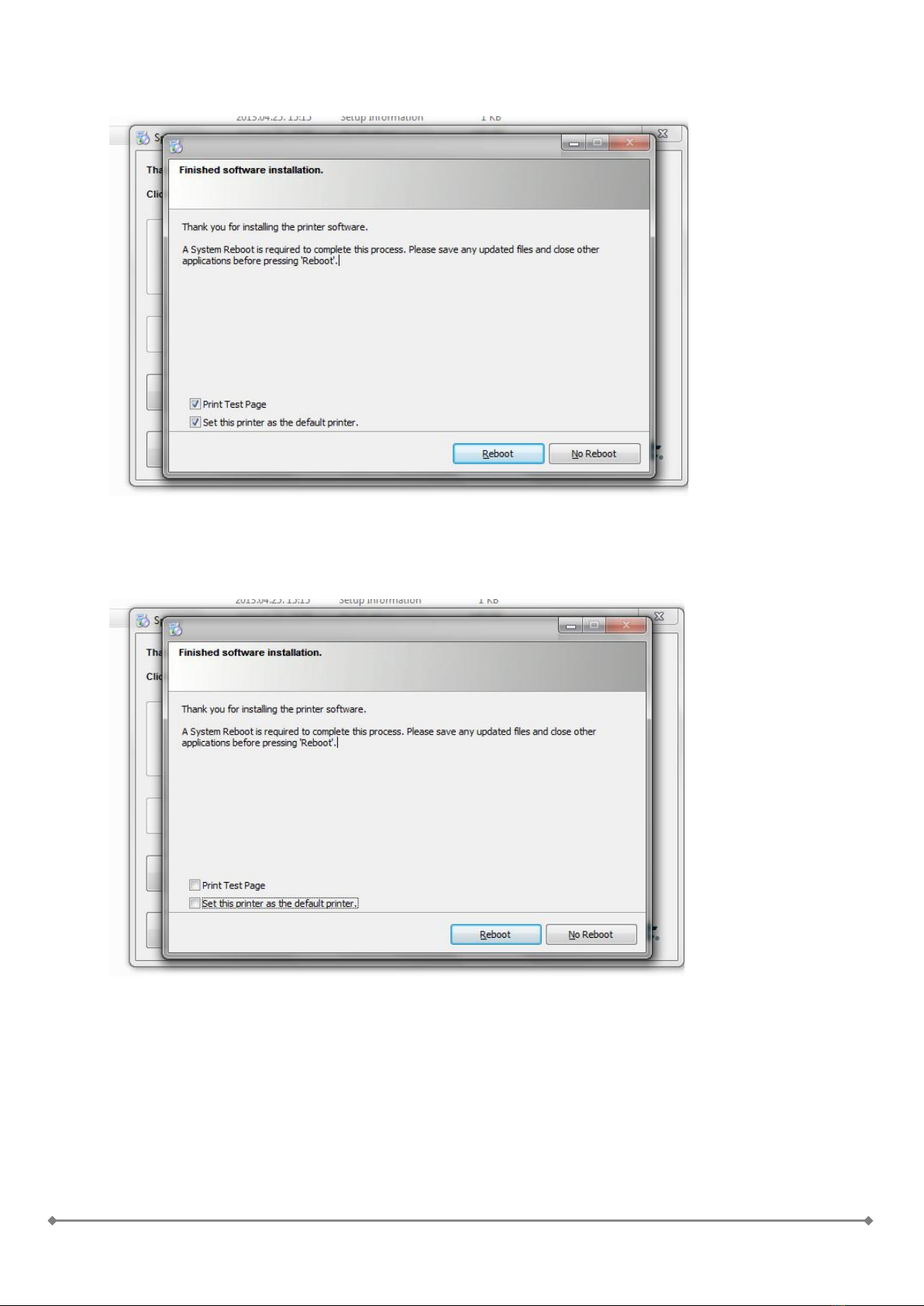

11. After that the installer will finish and a new window will appear.
12. At the bottom of this new window there are two checkboxes ’Print Test
Page’ and ’Set this printer as default’. Uncheck both boxes and click
’Reboot’. This will restart your computer.
-8-
13. After restart open the Windows Start menu and open the ’Devices and
Printers’ menu:
14. From your list of printers select the SpeedStar printer. Open the device
options with the mouse right button click and select ’Printer properties’
-9-
15. In the device properties window go to the ’Ports’ tab. In the list below you
will see that the printer is configured with a network connection
(IP_127.0.0.1 Universal TCP/IP Port). From the list select the USB001 –
Virtual printer port.
At the bottom the ’Enable bidirectional support’ checkbox also needs to be
unchecked! Otherwise the printer will not print any print jobs.
-10-
16. Click ’Apply’ and connect your printer to your PC with a USB cable. The
printer is ready to use and you can also access the printer Toolbox for
further changes, if required.
During setup the software may ask for 'Run firmware update'. Please select 'No'.
Before printing do not forget to create custom sizes when printing. See example here:
Installation finished.
