Members Mark GR2210601-MM-00 Guía de referencia rápida

1 of 36 20151113-Ver1

STAINLESS STEEL AND PORCELAIN

5-BURNER GAS GRILL

Model number: GR2210601-MM-00

ASSEMBLY & OPERATING INSTRUCTIONS

For Outdoor Use Only

This instruction manual contains important information necessary for the

proper assembly and safe use of the appliance.

Read and follow all warnings and instructions before assembling/using the

appliance.

Failure to follow these instructions and warnings could result in damage to the

product or injury to the user.

Keep this manual for further reference.

Should you encounter any problem,

CALL US FIRST.

DO NOT return product to the retail store!!

WE CAN HELP.

For assistance, contact customer service at customerservice@rankam.com

or at (888) 837-1380, Mon to Fri, 8:00am – 5:00pm Pacific Standard time

2 of 36 20151113-Ver1

WARNINGS

SAFETY LABELS

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING: Be alert to the possibility of serious bodily injury if the instructions are

not followed. Be sure to read and carefully follow all of the messages.

CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in

minor or moderate injury.

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

If odor continues, keep away from the appliance and immediately call

your gas supplier or fire department.

Failure to follow these instructions could result in fire or explosion which

could cause property damage, personal injury or death.

WARNING

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of

this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any

other appliance.

DANGER

(a) Do not store a spare LP gas cylinder under or near this appliance;

(b) Never fill the cylinder beyond 80 percent full;

injury may occur.

PROP 65 WARNING

Chemicals known to the

state of California to cause cancer, birth defects or other

reproductive harm are created by the combustion of propane.

3 of 36 20151113-Ver1

WARNING

This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a

building, garage or any other enclosed area.

This outdoor cooking gas appliance is not intended to be installed in or on boats. This

appliance is not intended to be installed in or on recreational vehicles.

Use your grill OUTDOORS in a well

ventilated space away from dwellings or

other buildings to prevent dangers

associated with gas accumulation and

toxic vapors. The grill should be situated

at least 60 inches (152.4 cm) from

buildings. Not adhering to these

clearances will prevent proper ventilation

and may increase the risk of a fire and/or

property damage, which could also result

in personal injury.

Maintain a minimum clearance of 60

inches (152.4 cm) between all sides of

grill, deck railings, walls or other

combustible material. DO NOT use grill

under any overhead combustible

construction.

DO NOT obstruct the flow of combustion/ventilation air.

DO NOT leave the grill unattended while in use.

DO NOT use while under the influence of drugs or alcohol.

Keep the fuel supply hose away from heated surfaces.

DO NOT put the grill in storage or move it after use. Allow the grill to be cool to the touch

before moving/storing. Failure to do so could result in a fire causing

property damage,

personal injury or death.

The appliance is for household use only. DO NOT

use this grill for other than its intended

purpose.

Never use natural gas in a unit designed for liquid propane gas.

Never use charcoal or wood briquettes

in a gas grill. Flavoring chips must be contained in

a metal smoking box to contain ash and prevent fires.

A Leak Test must be conducted prior to each use.



Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your local

authority to determine proper size and type.

Grill is hot when in use. To avoid burns:

DO NOT attempt to move the grill.

Lock the wheels so the unit does not accidentally move.

Wear protective gloves or oven mitts.

DO NOT touch any hot grill surfaces.

DO NOT wear loose clothing or allow hair to come in contact with grill.



Never close the side burner lid during operation.

Maintain a minimum clearance of 60

inches from combustible material.

4 of 36 20151113-Ver1

USE AND INSTALLATION OF LP GAS CYLINDER (PROPANE TANK)

BEFORE INSTALLING:

The installation must conform with local codes or, in the absence of local codes, with either the

National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code,

CSA B149.1, or Propane Storage and Handling Code, B149.2, or the Standard for Recreational

Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as

applicable.

BEFORE EVERY USE:

Be sure to inspect the hose for leaks, cuts, wear, abrasion, or damage of any sort before using

this appliance. If any damage is apparent, the hose must be replaced with a new hose specified

by the manufacturer before further use.

LP GAS CYLINDER

The LP (liquid propane) cylinder specifically designed to be used with this unit MUST have a 20

lb. (9.1kg) capacity with a Type 1 cylinder valve and an overfilling protection device (OPD). Only

use LP cylinders with this type of valve.

LP tank valve requirement:

Purchase LP tanks only with these required measurements: 12”

(30.5cm) (diameter) x 18” (45.7cm) (tall) with 20lb. (9kg) capacity

maximum.

Type 1 outlet compatible with regulator or appliance.

Safety relief valve.

UL-listed Overfill Protection Device (OPD). This

OPD safety feature is identified by a unique

triangular hand wheel. Use only tanks equipped with

this type of valve.

LP tank must be arranged for vapor withdrawal.

The LP cylinder must be constructed and marked in

accordance with the Specifications for LP-Gas

Cylinders of the U.S. Department of Transportation

(D.O.T.) or the National Standard of Canada

CAN/CSA – B339, Cylinder, Spheres and Tubes for

Transportation of Dangerous Goods; and

Commission of Dangerous Goods; and Commission,

as applicable.

The LP cylinder must include a collar to protect the cylinder valve.

If the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply

cylinder(s).

The LP cylinder must be stored outdoors out of the reach of children and MUST NOT be

stored in a building, garage, shed, breezeway, or any other enclosed space.

Storage of an outdoor cooking gas appliance indoors is permissible ONLY if the cylinder is

disconnected and removed from the outdoor cooking gas appliance.

The cylinder shouldALWAYS be put in an upright position.

Safety Cap

5 of 36 20151113-Ver1

DANGER



DO NOT connect this grill to an existing #510 POL cylinder valve with Left hand threads.

The Type 1 valve can be identified with the large external threads on the valve outlet.

DO NOT connect to a propane cylinder exceeding its capacity.

DO NOT connect to a cylinder that uses any other type of valve connection device.



Never store a spare LP gas cylinder under or near your grill. This could cause pressure to

be expelled through the v

apor relief valve resulting in fire, explosion, or severe personal

injury, including death.

Keep the ventilation opening(s) of the LP gas cylinder enclosure free and clea

r from

obstructions and debris.

DO NOT insert any foreign objects into the valve outlet. Damage to the valve outlet could

result. A damaged

valve outlet can cause a leak, possibly resulting in explosions, fire,

severe bodily harm, or death.

WARNING

FOR FILLING THE LP GAS CYLINDER

Allow only qualified LP gas dealers to properly fill or repair your LP cylinder.

DO NOT allow the cylinder to be filled beyond 80% capacity. Over-filled tanks can create a

dangerous condition. Over-filled tanks can build up pressure and cause the relief valve to

expel propane

gas vapors. The vapor is combustible and if it comes in contact with a spark

source or flame an explosion causing severe burns, bodily harm, or death could occur.

Always use a safety cap when the grill is not connected to a cylinder.

If you exchange a cyl

inder with a qualified exchange program, be sure the cylinder has a

Type 1 valve and an over-fill prevention device (OPD).

6 of 36 20151113-Ver1

INSTALLING GAS CYLINDER

1. Check that the cylinder valve is closed by turning the knob in clockwise.

2. Pull out the cylinder holder along the slot.

3. Place the cylinder into cylinder holder and tighten the fixing bolt. Place cylinder such that the

valve opening faces the side burner in such a way that the hose is not kinked/damaged.

4. Fix the cylinder holder in place and lock with the latch bracket.

5. Attach or detach the regulator to the LP gas cylinder only when the cylinder is placed on the

cylinder holder.

7 of 36 20151113-Ver1

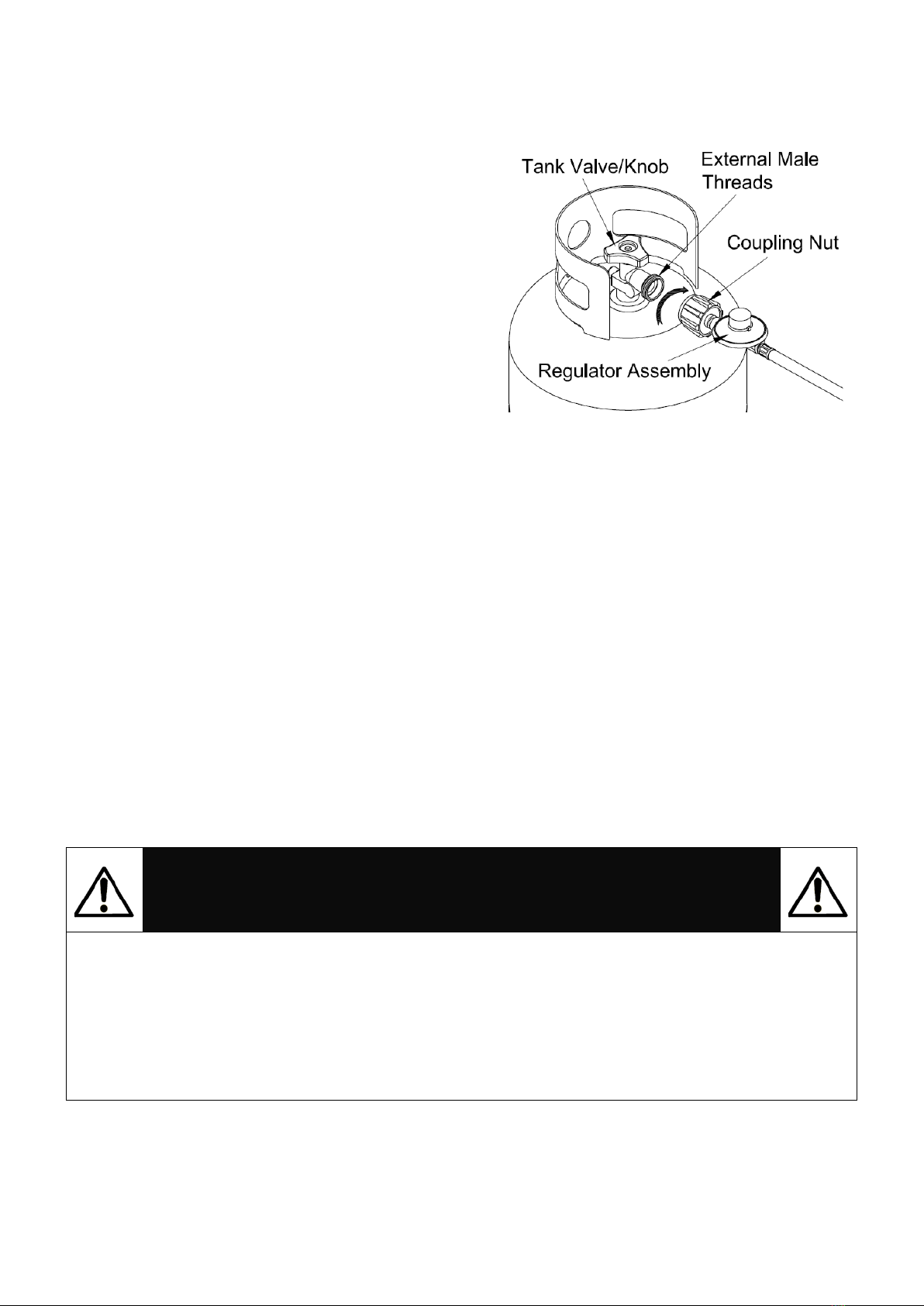

CONNECTION PROCEDURES

1. Make sure the tank valve is closed (turn valve

clockwise until tight).

2. Check the tank valve to insure it has the

proper external male threads.

3. Make sure all burner valves are turned OFF.

4. Inspect valve connections, port, and regulator

assembly. Look for any damage or debris.

Remove any debris. Inspect the hose for

damage. Never attempt to use damaged or

obstructed equipment. Contact your local LP

gas dealer for repair.

5. When connecting the regulator assembly to the valve, hand tighten the quick coupling nut

clockwise to a complete stop. Do not use a wrench to tighten. Use of a wrench may damage

the quick coupling nut and result in a hazardous condition.

6. Open the tank valve fully (counterclockwise). Use a soapy water solution to check all

connections for leaks (a Leak Test) before attempting to light the grill (see P.26-27). If a leak

is found, turn the tank valve off and do not use the grill until your LP gas dealer can make

repairs.

TO DISCONNECT LP CYLINDER:

1. Turn the burner valves off.

2. Turn the tank valve off fully (turn clockwise to stop).

3. Detach the regulator assembly from the tank valve by turning the quick coupling nut

counterclockwise.

CAUTION

When installing LP cylinders,

the pressure regulator and hose supplied by the

manufacturer

MUST be used with the appropriate cylinder. Replacement regulators

and hoses need to be specified by the manufacturer of this appliance.

Place the dust cap on the cylinder valve outlet whenever the

cylinder is not in use.

Only install the type of dust cap on the cylinder valve outlet that is provided with the

cylinder. Other types of caps or plugs may result in leakage of propane.

8 of 36 20151113-Ver1

PRODUCT DIAGRAM

9 of 36 20151113-Ver1

COMPONENT LIST

1. Warming Rack 2. Cooking Grate 3. Flame Tamer

Qty: 1pc Qty: 3pcs Qty: 5pcs

4. Grill Body assembly 5. Side Burner Grate 6. Side Burner Assembly

Qty: 1pc Qty: 1pc Qty: 1pc

7. Side Burner Control Panel 8. Control Knob Bezel 9. Control Knob / Side Burner

Control Knob

Qty: 1pc Qty: 1pc Qty: 1pc

10. Side Table Assembly 11. Side Table Panel Assembly 12. Grease Cup

Qty: 1pc

Qty: 1pc Qty: 1pc

10 of 36 20151113-Ver1

13. Grace Collecting Tray 14. Left Cart Side Panel

Assembly

15. Tank Heat Shield

Qty: 1pc Qty: 1pc

Qty: 1pc

16. Tank Holder Assembly 17. Rear Cart Assembly 18. Bottom Cart Panel

Qty: 1pc Qty: 1pc Qty: 1pc

19. Right Cart Side Panel 20. Front Cart Assembly 21. Cart Frame Connecting Tube

Qty: 1pc Qty: 1pc Qty: 4pcs

22. Door Handle 23. Left Door Assembly 24. Plastic Insert

Qty: 2pcs Qty: 1pc Qty: 4pcs

Tabla de contenidos

Otros manuales de Parrilla de Members Mark

Members Mark

Members Mark GR2071013-MM-00 Guía de referencia rápida

Members Mark

Members Mark M3206ALP Manual de usuario

Members Mark

Members Mark PRO Series Manual del propietario

Members Mark

Members Mark CG2320401-MM Manual del propietario

Members Mark

Members Mark REGAL04ALP Manual de usuario

Members Mark

Members Mark 720-0584 Guía de referencia rápida

Members Mark

Members Mark BQ05051-3 Manual de usuario

Members Mark

Members Mark BQ05046-6 Manual de usuario

Members Mark

Members Mark 720-0586 Guía de referencia rápida

Members Mark

Members Mark PRO Series Manual del propietario

Members Mark

Members Mark 720-0582B Guía de referencia rápida

Members Mark

Members Mark B08SMG-1 Manual de usuario

Members Mark

Members Mark 720-0830F Guía de referencia rápida

Members Mark

Members Mark GR2071013-MM-01 Guía de referencia rápida

Members Mark

Members Mark 720-0582 Guía de referencia rápida

Members Mark

Members Mark Y101XC Manual de usuario

Members Mark

Members Mark Y0660LP-2 Manual de usuario

Members Mark

Members Mark PRO G54501 Manual del propietario

Members Mark

Members Mark GR2210601-MM-OO Guía de referencia rápida

Members Mark

Members Mark MONARCH04ALP Manual de usuario

Members Mark

Members Mark PRO Series Manual de usuario

Members Mark

Members Mark BQ06043-1 Manual de usuario

Members Mark

Members Mark GR2310803-MM-00 Manual del propietario

Members Mark

Members Mark G62302 Manual del propietario

Manuales populares de Parrilla de otras marcas

Orbegozo

Orbegozo GR 2300 Manual de usuario

bora

bora PT11 Manual de usuario

Klarstein

Klarstein 10031664 Manual de usuario

Garland

Garland MWE3W Manual de usuario

Char-Broil

Char-Broil 463722714 Manual de usuario

Nexgrill

Nexgrill 720-0830HK Manual de usuario

Kenmore

Kenmore 415.16123800 Manual de usuario

Camp Chef

Camp Chef PG24CLAU Manual de usuario

Tucker Barbecues

Tucker Barbecues GTR Series Instrucciones de montaje

Monogram

Monogram ZGG540NCP1SS Manual de usuario

Equipex

Equipex Sodir Savoy Manual de usuario

Gaggenau

Gaggenau VR 414 610 Manual de usuario

Miele

Miele KM 408-1 Manual de usuario

George Foreman

George Foreman GGR50B Manual de usuario

AOG

AOG T series Manual de usuario

Gorenje

Gorenje TG2000CB Manual de instrucciones

Weber

Weber Genesis Silver-B Permamount NG 051701 Manual de usuario

Glen

Glen SA 3037 Manual de usuario
