USE AND CARE GUIDE FOR

MODEL MERB10B

High-Speed Brewer

READ AND SAVE THESE INSTRUCTIONS

MERB10B rev 1/21/05 9:26 AM Page 1

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should

always be followed, including the following:

• Read all instructions.

• Do not touch hot surfaces. Use handles or knobs.

• To protect against fire,electric shock and injury to persons do

not immerse cord, plugs, or appliance in water or other liquid.

• Close supervision is necessary when any appliance is used by

or near children.

• Unplug from outlet when not in use and before cleaning. Allow

to cool before putting on or taking off parts, and before cleaning

the appliance.

• Do not operate any appliance with a damaged cord or plug or

after the appliance malfunctions, or has been damaged in any

manner. Contact Consumer Service for examination, repair or

adjustment.

• The use of accessory attachments not recommended by the

appliance manufacturer may result in fire, electric shock or

injury to persons.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot

surfaces.

• Do not place on or near a hot gas or electric burner, or in a

heated oven.

• To disconnect remove plug from wall outlet.

• Do not use appliance for other than intended use.

• The Carafe is designed for use with this appliance.It must never

be used on a range top.

• Do not set a hot Carafe on a wet or cold surface.

• Do not use a cracked Carafe or a Carafe having a loose or

weakened handle.

• Do not clean Carafe with cleansers, steel wool pads, or other

abrasive material.

SAVE THESE INSTRUCTIONS

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY.

MERB10B rev 1/21/05 9:26 AM Page 2

ADDITIONAL IMPORTANT

SAFEGUARDS

WARNING: This appliance generates heat and escaping steam

during use. Proper precautions must be taken to prevent the risk

of burns, fires, or other injury to persons or damage to property.

• All users of this appliance must read and understand this Use

and Care Guide before operating or cleaning this appliance.

• The cord to this appliance should be plugged into a 120V AC

electrical outlet only.

• Use water only in this appliance! Do not put any other liquids

or food products in this appliance. Do not mix or add anything

to the water placed in this appliance, except as instructed in the

User Maintenance Instructions to clean the appliance.

• DO NOT attempt to move an appliance containing hot liquids.

Allow appliance to cool completely before moving.

• Keep appliance at least 4 inches away from walls or other

objects during operation. Do not place any objects on top of

appliance while it is operating.Place the appliance on a surface

that is resistant to heat.

• If this appliance begins to malfunction during use, immediately

unplug the cord. Do not use or attempt to repair the

malfunctioning appliance.

• If this appliance falls or accidentally becomes immersed in

water or any other liquid, unplug it immediately. Do not reach

into the water! Do not use this appliance after it has fallen

into or has become immersed in water. Contact Consumer

Service for examination and repair.

• Do not leave this appliance unattended during use.

• The appliance must be left to cool down sufficiently before

adding more water to avoid splattering.

• Always use fresh, cool water in your appliance. Warm water or

other liquids, except as listed in the “Care and Cleaning”

section, may cause damage to the appliance.

• DO NOT put Carafe into a microwave.

• DO NOT leave empty Carafe onWarming Plate when appliance

is turned ON, as the Carafe may crack or become otherwise

damaged.

MERB10B rev 1/21/05 9:26 AM Page 3

POLARIZED PLUG: This appliance has a polarized plug (one

blade is wider than the other).To reduce the risk of electric shock,

this plug is intended to fit into a polarized outlet only one way.If the

plug does not fit fully in the outlet, reverse the plug. If it still does

not fit, contact a qualified electrician. Do not attempt to modify the

plug in any way.

SHORT CORD INSTRUCTIONS: A short power-supply cord is

provided to reduce the risk resulting from becoming entangled in

or tripping over a longer cord. Do not use an extension cord with

this product.

ELECTRIC POWER: If the electrical circuit is overloaded with

other appliances, your appliance may not operate properly. It

should be operated on a separate electrical circuit from other

appliances.

CAUTION: To prevent plasticizers from migrating from the finish of

the countertop or tabletop or other furniture, place NON-PLASTIC

coasters or placemats between the appliance and the finish of the

countertop or tabletop.

Failure to do so may cause the finish to darken, permanent

blemishes may occur or stains can appear.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT REMOVE THE BOTTOM COVER. NO USER-

SERVICEABLE PARTS INSIDE. REPAIR SHOULD BE DONE BY

AUTHORIZED SERVICE PERSONNEL ONLY.

MERB10B rev 1/21/05 9:26 AM Page 4

FILL/BREW

Control Dial

Water

Chamber Lid

Before adding water set dial to “FILL”

Removable

Filter

(P/N 31186B)

Swing-Out

Filter Holder

(P/N 31187B)

Water Chamber Lid

Power

Indicator Light

Warming Plate

Indicator Light

Power Switch Warming Plate

Switch

Warming Plate

Shower Head

Glass Carafe

w/Lid

(P/N 31188B)

Water Fill Area

Water Chamber

Carafe Lid

(P/N 31189B)

Your product may vary slightly from illustration.

Parts Identification

FIGURE B

FIGURE A

MERB10B rev 1/21/05 9:26 AM Page 5

Coffee Maker Features

and Benefits

The one-time initial set-up of the coffee maker (see “Before Using

Your Momentum Coffee Maker,”page 7) prepares the coffee maker

by filling the Water Chamber completely full of water and allowing

time for the water to heat to proper brewing temperature. After this

one-time set-up is completed, each time you brew a pot of coffee

the cold water you pour into the coffee maker pushes out an equal

amount of pre-heated hot water from the Water Chamber. The hot

water flows over the coffee grounds and produces a fresh, hot pot

of coffee. The cold water you just poured in remains in the Water

Chamber where it is heated in preparation to brew the next pot!

10-Cup Brewing Capacity - The coffee maker is designed to

brew 6 to 10 cups of coffee at a time.

Removable Filter - The Removable Filter pulls out for fast and

easy cleaning and filling.

Non-Stick Warming Plate - This feature allows you to keep

your coffee hot after brewing. The non-stick coating prevents the

Carafe from sticking to the surface of the Warming Plate.

To avoid damaging the Carafe, theWarming Plate On Switch must

be turned Off when the Carafe is empty or when the coffee maker

is not in use.

ON/OFF Power Switch- Allows you to turn off the power to the

Water Chamber if the coffee maker will not be used for a few days.

NOTE:The coffee maker is designed to remain plugged in with the

Power Switch turned On except during those times when your

coffee maker is emptied for transport or storage or during times

when it will not be used for several days.

If the coffee maker has been unplugged or the Power Switch turned

Off for longer than a few hours it will take approximately 20 minutes

after the unit is plugged back in and the Power Switch turned On to

reheat the water supply to the proper temperature for brewing.

If the coffee maker has not been used for 3 or more days, it is

recommended that the Water Chamber be emptied and replaced

with fresh water.

MERB10B rev 1/21/05 9:26 AM Page 6

Before UsingYour

Momentum Coffee Maker

Before using your Momentum Coffee Maker for the first time, we

suggest you become familiar with all of its parts. Read all

instructions and cautions carefully.

This initial set-up procedure prepares the coffee maker for use by

filling the Water Chamber completely full of water and allowing

time for the water to reach proper brewing temperature. This

procedure is only required the first time the coffee maker has not

been used, if your coffee maker has not been used for several

days and has been emptied, or after the coffee maker has been

drained for transport or long term storage (see “Draining Your

Coffee Maker For Transport or Storage,” page 10.)

CAUTION: To avoid damage to the coffee maker, do not connect

the power cord to a power outlet until the following steps have

been completed.

NOTE: The coffee maker will be heavy after the initial set-up steps

are completed. For that reason it is recommended you place your

coffee maker where you intend to use it before following the initial

set-up procedure.

1. Make sure the coffee maker is unplugged. Wash the Carafe,

Carafe Lid and the Removable Filter in warm water and mild

detergent. Rinse thoroughly then dry with a clean cloth. Place

the Removable Filter in the Swing-Out Filter Holder.

2. For this initial set-up, set the Control Dial to “Brew.”

3. Fill the Carafe with fresh, cold water to the “10 cup” line.

4. Slowly empty the water into the Water Fill Area on top of the

coffee maker. Allow a few minutes for the water to drain into

the Water Chamber.

5. Fill the Carafe a second time with fresh, cold water to the “10

cup” line.

6. Slowly empty the water into the Water Fill Area on the top of

the coffee maker. Allow a few minutes for the water to drain

into the Water Chamber.

7. Fill the Carafe a third (final) time with fresh, cold water to the

“2 cup” line corresponding to the top of the metal band.

8. Slowly empty the water into the Water Fill Area on top of the

coffee maker and close the Water Chamber Lid.

MERB10B rev 1/21/05 9:26 AM Page 7

NOTE: Adding more water than the amount specified may

cause water to flow from the Removable Filter. If this occurs,

replace the Carafe under the Swing-Out Filter Holder or use a

separate container to collect the excess water. Make sure all

excess water has been collected and carafe has been

emptied before moving on to the next step.

9. Plug the power cord into a working 120 Volt AC power outlet

and press the Power Switch. The Power Indicator Light will

illuminate while appliance is On.

NOTE: The coffee maker is designed to remain plugged in

with the Power Switch turned On except during those times

when your coffee maker is emptied for transport or storage or

during times when it will not be used for several days.

10. Wait 20 minutes to allow the water in the Water Chamber to

reach the proper brewing temperature.

You have completed the one-time set-up procedure and are ready

to use your coffee maker to brew fresh, hot, delicious tasting coffee.

For step-by-step instructions please read the “Brewing” section

below.

Brewing

Make sure that you have completed the initial set-up before

brewing.

1. Set the Control Dial to “FILL.” This setting prevents the water

from entering the Water Chamber and allows time for the

Carafe to be placed in position before starting the brew cycle.

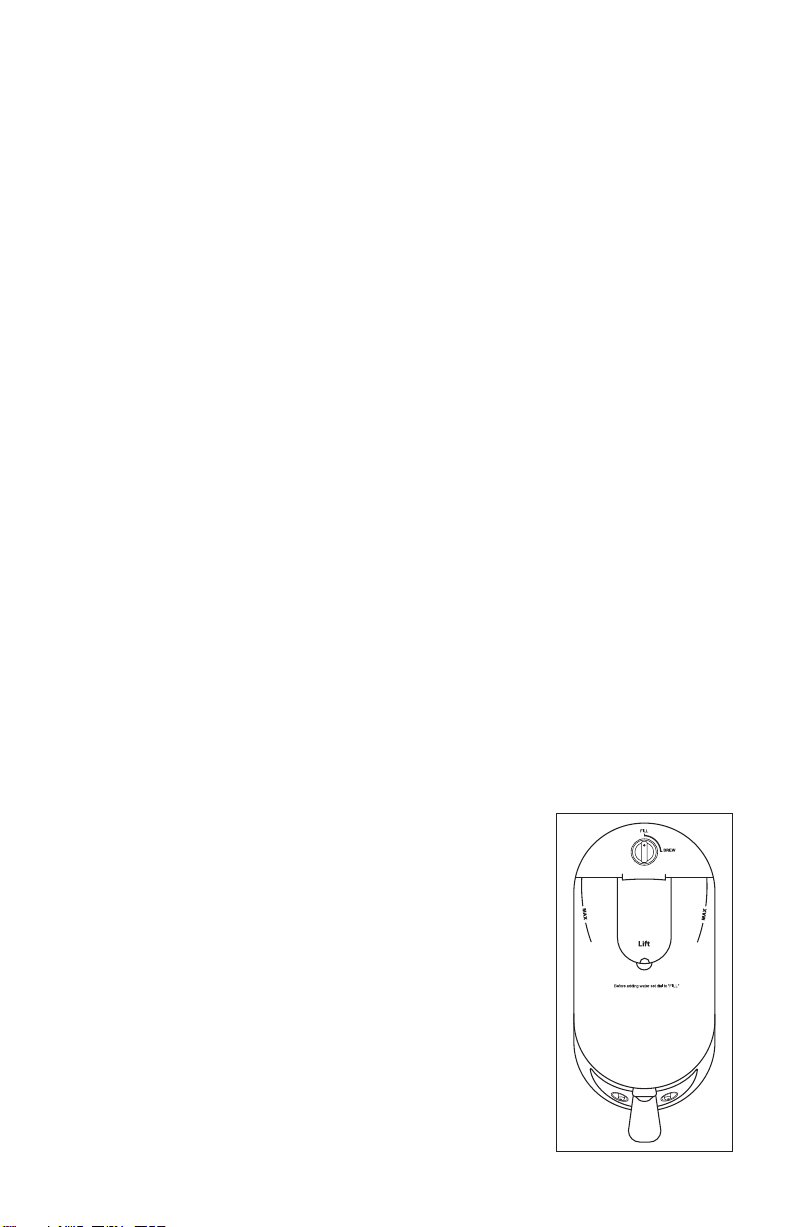

FIGURE B

MERB10B rev 1/21/05 9:26 AM Page 8

2. With the Removable Filter in position in the Swing-Out

Filter Holder, place a #4 Melitta Cone Filter into the

Removable Filter.

3. Add the appropriate amount of ground coffee to the filter (See

Suggested Coffee Measurement Chart below.) Move the

Swing-Out Filter Holder in position on the coffee maker, it will

snap when it is secure.

WARNING: To avoid risk of personal injury or damage to

property, be sure that the Swing-Out Filter Holder is securely

in place. Failure to secure the Swing-Out Filter Holder may

result in hot water overflowing and spilling out of the machine.

Suggested Coffee Measurement Chart

For best results, use a level tablespoon for ground coffee

measurement. Make sure you use medium grind coffee for

perfect brew.

Number of Cups LevelTablespoons

10 7.5

6 4.5

1 cup = 5-oz. brewed coffee

Use more or less coffee to adjust to your taste.

4. Fill the Carafe with 6 to 10 cups of cold water.

NOTE: The coffee maker is designed to brew 6 to 10 cups of

coffee at a time. Attempting to brew less than 6 cups may

provide unsatisfactory results.

5. Carefully pour the water into the Water Fill Area on top of the

coffee maker.

6. Place the Carafe on the Warming Plate.

7. To start the brew cycle, set the Control Dial to “BREW.”

8. Press the Warming Plate Switch to On. The Warming Plate

Indicator Light will illuminate to indicate that the Warming

Plate is on.

NOTE: To avoid damaging the Carafe, the Warming Plate

Switch must be turned Off when the Carafe is empty or when

the coffee maker is not in use.

9. When the brew cycle is complete set the Control Dial to “FILL”

to prepare machine for the next pot of coffee. You can now

enjoy your freshly brewed pot of delicious coffee.

MERB10B rev 1/21/05 9:26 AM Page 9

10. After allowing the coffee grounds to cool, carefully remove

and discard the used coffee grounds and filter.

WARNING: Brewed coffee and grounds, both in the

Removable Filter and Carafe are very hot! Handle with care to

avoid scalding. If Removable Filter overflows, or if the

Removable Filter fails to drain the coffee into the Carafe

during the brew cycle, do not open or handle the Swing-Out

Filter Holder and Removable Filter. Turn the Control Dial to

“FILL”, unplug the coffee maker and wait for the contents to

cool before opening.

DrainingYour Coffee Maker for

Transport or Storage

The Water Chamber in your coffee maker should be emptied

whenever the coffee maker will be transported, or stored for

extended lengths of time.

WARNING: The coffee maker is very heavy. Use caution when

draining the chamber.

1. Turn the Power Switch to Off and unplug the coffee maker

power cord from the power outlet.

CAUTION: TO PREVENT INJURY DO NOT ATTEMPT TO

DRAIN THE UNIT UNTIL THE WATER IN THE WATER

CHAMBER HAS COOLED. THIS WILL TAKE SEVERAL

HOURS.

NOTE: To shorten the length of time required for the water to

cool, the hot water in the Water Chamber can be flushed out

and replaced with cold water.To do this:

a. Turn the Power Switch Off and unplug the unit from the

power outlet.

b. Using 10 cups of cold water follow the instructions for

“Brewing” section. While performing this procedure do

not use a filter or coffee grounds.

c. Repeat the 10 cup brewing process at least three times

to ensure that the hot water in the chamber has been

replaced with cold water.

2. Turn the Control Dial to “FILL.”

3. Remove the Removable Filter and Swing-Out Filter Holder.

MERB10B rev 1/21/05 9:26 AM Page 10

Tabla de contenidos

Otros manuales de Cafetera de Melitta

Melitta

Melitta Excellent Therm Manual de usuario

Melitta

Melitta Excellent Manual de usuario

Melitta

Melitta CI E970-003 Manual de usuario

Melitta

Melitta LatteSelect Manual de usuario

Melitta

Melitta MY CUP Manual de usuario

Melitta

Melitta SINGLE 5 THERM Manual de usuario

Melitta

Melitta ENJOY THERM 100-208 Manual de usuario

Melitta

Melitta Caffeo 84 Manual de usuario

Melitta

Melitta Cafina XT4 Manual de usuario

Melitta

Melitta AROMA ENHANCE THERMAL Manual de usuario

Melitta

Melitta LOOK Selection Manual de usuario

Melitta

Melitta AromaSignature Therm Manual de usuario

Melitta

Melitta CaffeO Solo&milk Manual de usuario

Melitta

Melitta Optima Timer 1008-01 Manual de usuario

Melitta

Melitta Easy Series Manual de usuario

Melitta

Melitta One:One MES2B Manual de usuario

Melitta

Melitta MEFB6B Manual de usuario

Melitta

Melitta Aroma Tocco Plus Glass Manual de usuario

Melitta

Melitta CI Touch F630-102 Manual de usuario

Melitta

Melitta MEMB1W Mill & Brew Manual de usuario

Melitta

Melitta Gourmet Manual de usuario

Melitta

Melitta AromaFresh Therm Pro Manual de usuario

Melitta

Melitta SINGLE 5 THERM Manual de usuario

Melitta

Melitta MECF10 Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

Saeco

Saeco Vienna Plus Sup 018M Manual de usuario

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Philips

Philips HL3844N Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario
