1. Copyright and Disclaimer

MEITRACK and are trademarks that belong to Shenzhen Meiligao Electronics Co., Ltd.

The user manual may be changed without prior notification.

This user manual, or any part thereof, may not be reproduced for any purpose whatsoever without the written

authorization of Meiligao (MEITRACK), or transmitted in any form, either electronically or mechanically, including

photocopying and recording.

In no event shall Meiligao (MEITRACK) be liable for direct, indirect, special, incidental, or consequential damages

(including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use

or inability or illegality to use the product or documentation.

2. Applications

Personal Tracking and Protection

Pet Tracking

Assets Tracking and Security

Vehicle Tracking

3. Product Function and Specifications

3.1 Product Function

SiRF III GPS and Quad Band GSM 850/900/1800/1900Mhz

Small in size (77mm x 47mm x 20mm) and lightweight (65g)

Waterproof IP66

Low Power Consumption and Long Standby Time

GPS and GSM base station of bi-module positioning

Track by SMS/GPRS (MEITRACK Protocol)

Track on Demand

Track by Time Interval

Track by Distance Interval

Track on Mobile Phone

Listen-in (Voice Monitoring)

Internal 4MB Memory for Logging

Inbuilt Motion Sensor

Inbuilt Battery

SOS Alarm

Geo-fence Alarm

GPS Fake Zone Alarm

File Name

MEITRACK MT90 User Guide

Creator

Cavana Cheung

Project

MT90

Creation Date

Update Date

2011-05-16

2011-08-01

Sub Project

User Guide

Page

4 of 15

Revision

V1.00

Confidential

External Documentation

Low Battery Alarm

Speeding Alarm

Mileage Report

3.2 Specifications

Items

Specification

Dimension

77 x 47 x 20mm

Weight

65g

Charging Voltage

Mini USB charging interface, DC4.2V~5.5V/400mA

Back-up Battery

950mAh/3.7V rechargeable and replaceable lithium-ion battery(NokiaBL-5C compatible)

Power Consumption

65mA standby current

Operating

Temperature

-20℃~55℃

Humidity

5%~95%

Work Time

80 hours in power-saving mode and 10 hours in normal mode

LED

3 LED lights to show power, GPS, GSM and otherstatus

Button

5 buttons for making phone call and sending SMS

Microphone/Speaker

Internal microphone and speaker

Memory

4MB Byte

Sensor

Accelerometer

GSM Frequency

GSM850/900/1800/1900MHz

GPS Chip

Latest GPS SIRF-Star III chipset

GPS Sensitivity

-159dB

Positioning Accuracy

10 meters, 2D RMS

4. MT90 and Accessories

MT90 main unit

A Battery

USB data cable

Travel charger

Car charger

CD

File Name

MEITRACK MT90 User Guide

Creator

Cavana Cheung

Project

MT90

Creation Date

Update Date

2011-05-16

2011-08-01

Sub Project

User Guide

Page

5 of 15

Revision

V1.00

Confidential

External Documentation

5. View

No.

Item

Description

GPS LED (Blue)

Indicating GPS status, please refer to “6.3”for more details.

GSM LED (Green)

Indicating GSM status, please refer to “6.3”for more details.

Power LED(Red)

Indicating the status of charging, lower power, working, sleep mode and

power off.

SOS Button

Long press for 2 seconds, MT90 will dial 3 preauthorized phone numbers in

turn. It will stop dialing when one number answers. Meanwhile, MT90 will

send an SMS to the preauthorized phone number and send GPRS message to

the server if GPRS function is enabled.

Press to wake up if MT90 is in sleep mode.

Answer/Hand-up

Button

Press to receive an incoming call.

Press to complete a conversation.

Long press for 2 seconds to send GPRS message to the server when no

incoming call or conversation.

Microphone

It will run automatically when using listen-in and call functions.

Speaker

It will run automatically when using call function.

Power On/Off

Button

Long press for 2 seconds to turn on MT90.

Long press for 2 seconds to turn off MT90.

Press to wake MT90 up from sleep mode, power LED will slowly flash for 10

seconds.

Mini USB

Mini USB is used for charging, connecting to computer for setting up

parameters, updating software and so on.

Volume+/Logger

Button

Long press to turn up the volume.

Long press for 2 seconds to start hands-free conversation.

In standby mode, long press for 2 seconds, when the buffer “BI”once, the

logger will run automatically. （MT90 will log the route every 30 seconds

automatically. Route record can be exported with the computer.

File Name

MEITRACK MT90 User Guide

Creator

Cavana Cheung

Project

MT90

Creation Date

Update Date

2011-05-16

2011-08-01

Sub Project

User Guide

Page

6 of 15

Revision

V1.00

Confidential

External Documentation

Long press for 2 seconds again, when the buffer “BI”twice, and the logger will

stop automatically.

Volume-/GPRS

Button

Long press to turn up the volume.

In standby mode, long press for 2 seconds, when the buffer “BI”once, GPRS

function will be enabled automatically. ( Precondition: GPRS parameter must

be set in advance, default GPRS message interval is 10 minutes)

Long press for seconds again, when the buffer “BI”twice, GPRS function will

be disabled automatically.

Lanyard Loop

For connecting lanyard.

6. First Use

6.1 Install SIM Card

Ensure that your MT90 has a working SIM card installed.

Make sure the SIM card has enough balance (it’s available to phone and SMS test).

Make sure the SIM coded lock is turned off

If you need to use the authorized number to call MT90, please make sure the SIM has the caller ID display

function.

Please power off the MT90 before inserting the SIM card.

Take out the battery and insert a SIM card then reinstall battery and back cover.

6.2 Charging

Please make sure to charge the battery for at least 3 hours.8 hours is highly appreciated.

6.3 LED Indications

Long press the switch for 3~5 seconds to turn on/offMT90

Power LED(Red)

Charging

Flashing every 5

seconds

Low battery

Flashing(1 second

on and 1 seconds

off)

Press any one button to wake up MT90, this status will last for 10 seconds.

Off

Working or sleeping or power off

GPS LED (Blue)

Flashing (every 5

seconds)

Sleeping

Flashing(1 second

on and 1 seconds

off)

No GPS fix or initializing

Off

GPS fix

File Name

MEITRACK MT90 User Guide

Creator

Cavana Cheung

Project

MT90

Creation Date

Update Date

2011-05-16

2011-08-01

Sub Project

User Guide

Page

7 of 15

Revision

V1.00

Confidential

External Documentation

GSM LED (Green)

A call is coming in or busy

Flashing (every 5

seconds)

Sleeping

Flashing(1 second

on and 1 seconds

off)

No signal

Off

MT90 is connected to the GSM network

6.4 Track by Calling

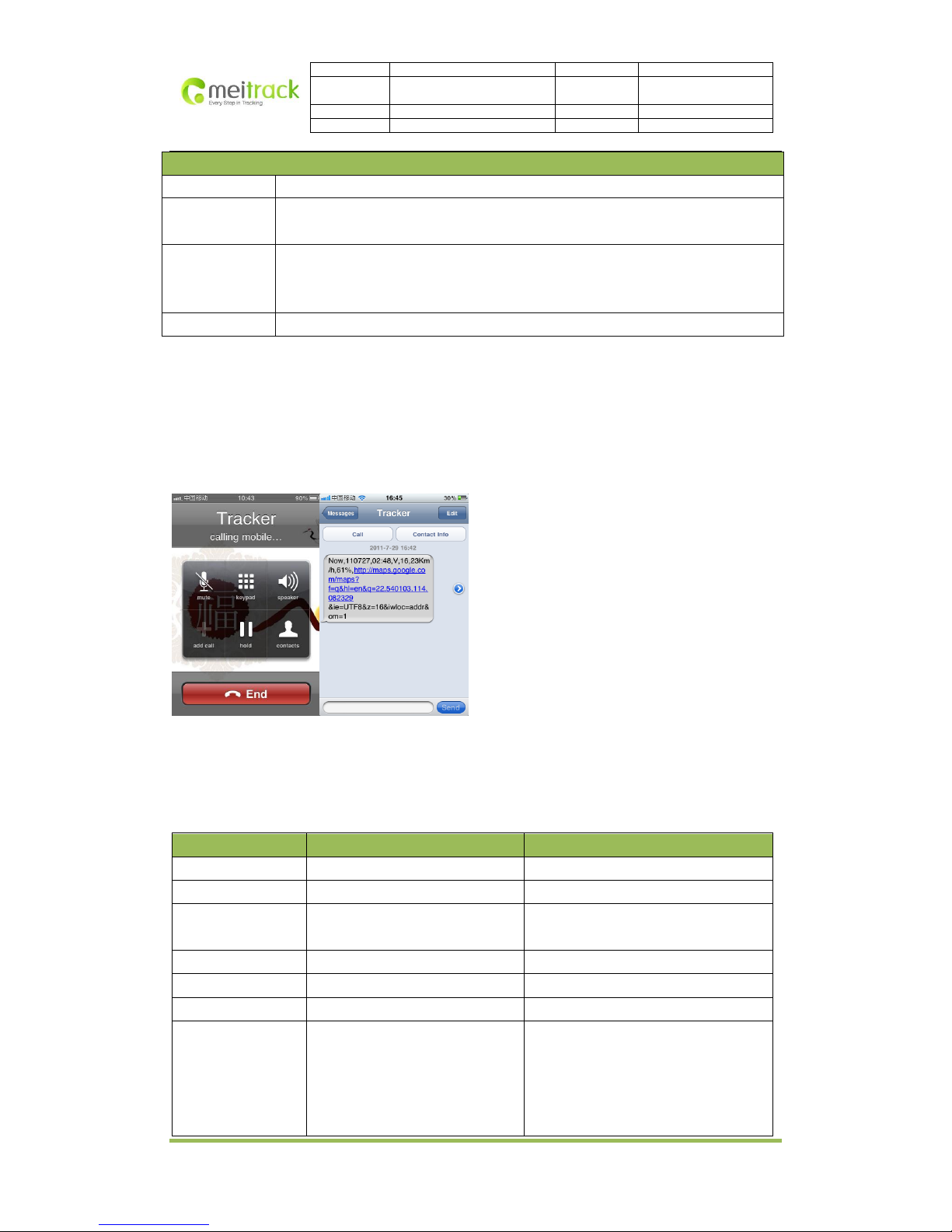

Make a call to MT90 and it will report with one SMS.

For example,

Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329

&ie=UTF8&z=16&iwloc=addr&om=1

Click on the link then the location can be shown directly on Google Maps on your mobile phone.

Report description:

Now,110727 02:48,V,16,23Km/h,61%,http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329

&ie=UTF8&z=16&iwloc=addr&om=1

Content

Description

Note

Now

Current Location

Alarm Type

110721 16:40

Date & Time: 21 July, 2011, 16:40pm

Date & Time in YYMMDD HH:MM

No GPS fixed

GPS Status Indicator:

A = valid, V = invalid

GSM signal=10

GSM Signal. Decimal Digit (0~31)

0Km/h

Speed=0

KM/h. Decimal digit

97%

Battery Power: 97%

Battery Power Balance (Percentage)

http://maps.google.c

om/maps?f=q&hl=en

&q=22.540103,114.0

82329&ie=UTF8&z=1

6&iwloc=addr&om=1

Latitude: 22.513015

Longitude: 114.057235

Google Maps Web Link with Latitude and

Longitude. Click on the link to get the

location.

File Name

MEITRACK MT90 User Guide

Creator

Cavana Cheung

Project

MT90

Creation Date

Update Date

2011-05-16

2011-08-01

Sub Project

User Guide

Page

8 of 15

Revision

V1.00

Confidential

External Documentation

If your mobile cannot visit HTTP websites, input the latitude and longitude into Google Maps as the following

picture shows to get the position:

More SMS commands

You can configure MT90 by mobile phone or by computer using the MEITRACK Parameter Editor.

For more details, please refer to part 6.5, Configure by Computer.

Note:

1. Password is 4 digits only and defaulted as 0000. You can change the password by Parameter Editor and SMS

command.

2. MT90 will only accept commands from a user with the correct password and report SMS report to the user.

If preauthorized phone number was set, only this phone number can receive SMS reports.

6.4.1 Multiple Phone numbers–A71

Command: 0000, A71, phone number 1, phone number 2, phone number 3

SMS Get: IMEI, A71, OK

Note：

Authorize a phone number for SOS alarm, calling for location report, geo-fence alarm, and low battery alarm.

Phone Number: Max 16 characters.

If no preset phone number, it is empty (default is empty).

Send command “0000, A71”to delete all phone numbers.

When the SOS button is pressed, MT90 will make a call to phone number 1, 2 and 3. It will stop calling when one

number answers.

Example: 0000,A71,13811111111,13822222222,13833333333

SMS Get: 353358017784062,A71,OK

6.4.2 Listening-in (Voice Monitoring)–A72

Command: 0000, A72, phone number 1, phone number 2

SMS Get: IMEI, A72, OK

File Name

MEITRACK MT90 User Guide

Creator

Cavana Cheung

Project

MT90

Creation Date

Update Date

2011-05-16

2011-08-01

Sub Project

User Guide

Page

9 of 15

Revision

V1.00

Confidential

External Documentation

Note:

Authorize a phone number to make a silent call to the tracker. The tracker will answer the call automatically and

allows the caller to listen to what is happening around the tracker. There is no sound when the tracker is working.

Phone Number: 2 monitoring numbers at the most can be set, 16 characters per number.

If no preset phone number, it is empty (default).

If no phone number, but has “,”, the number related to this “,” is deleted.

Send command “0000, A72”to delete all phone numbers.

Example: 0000,A72,13844444444,13855555555

SMS Get: 353358017784062,A72,OK

6.4.3 Sleep Mode–A73

Command: 0000,A73, X

SMS Get: IMEI,A73,OK

Note:

This setting is for power saving.

X= 0, turn off sleep mode (default).

X=1, normal sleep.

X=2, deep sleep.

Example: 0000,A73,2

SMS Get: 353358017784062,A73,OK

6.4.4 Time Zone–B35

Command: 0000,B35,T

SMS Get: IMEI,B35,OK

Note:

Default time of the tracker is GMT. You can use this command to change the time on your tracker to your local

time. This command is for SMS tracking only.

Time zone of SMS report is separated with that of GPRS data. If you need to set the time zone in GPRS data,

please use SMS command: 0000, B36, T

T=0, to turn off this function.

T=[-32768,32767] to set time difference in minutes to GMT.

For those ahead of GMT, just input the time difference in minutes directly. For example, GMT+8,

W000000,032,480

‘-‘is required for those behind GMT. For example, W000000,032,-120.

Example: 0000,B35,480

SMS Get: 353358017784062,B35,OK

For more details regarding SMS commands, please refer to MEITRACK SMS Protocol.

6.5 Configure by Computer

This part mainly shows you how to use the MEITRACK Parameter Editor.

Please refer to the MEITRACK Parameter Editor User Guide for more information regarding configuration and

File Name

MEITRACK MT90 User Guide

Creator

Cavana Cheung

Project

MT90

Creation Date

Update Date

2011-05-16

2011-08-01

Sub Project

User Guide

Page

10 of 15

Revision

V1.00

Confidential

External Documentation

functions.

Run ‘PL2303_Prolific_DriverInstaller’ to install the driver for the USB data cable.

Note: PL2303_Prolific_DriverInstaller is in the folder ‘USB-232 Driver’ in the CD.

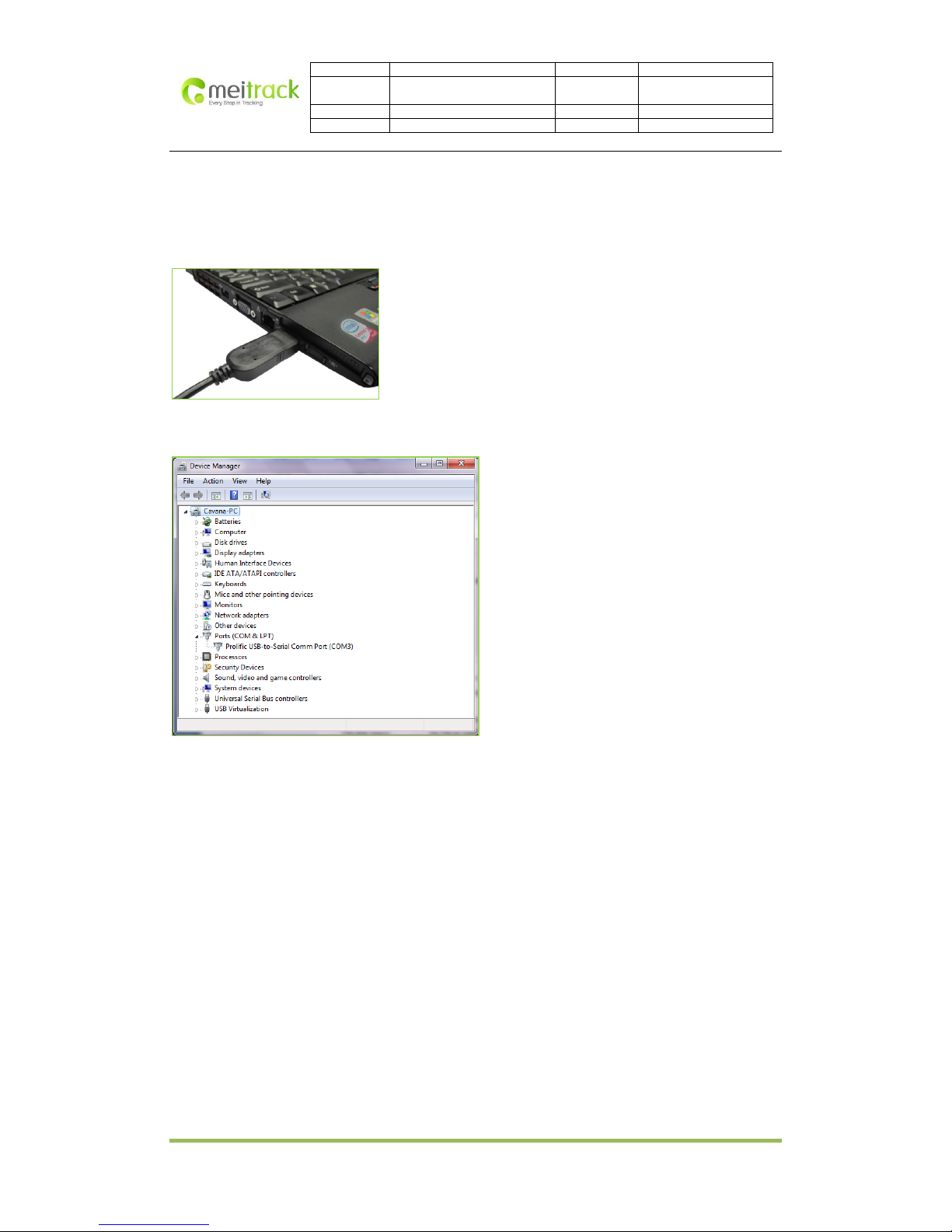

Connect the USB Data Cablebetween MT90 and PC.

Open Device Manager (Device Manager is under Control Panel\System and Security\System). You can then find

‘Prolific USB-to-Serial Comm Port’ as the following picture shows.

Note: Remember this Com number. It needs to be input into the MEITRACK Parameter Editor. It is COM3 in this

example and it would be COM4 or COM5 in your computer.

Run ‘MEITRACK Parameter Editor.exe’ and the following configuration window will pop up:

Otros manuales para MT90

Tabla de contenidos

Otros manuales de GPS de MeiTrack

MeiTrack

MeiTrack T711L Manual de usuario

MeiTrack

MeiTrack iButton MVT600 Manual de usuario

MeiTrack

MeiTrack MT90G Manual de usuario

MeiTrack

MeiTrack T355 Manual de usuario

MeiTrack

MeiTrack iButton T1 Manual de usuario

MeiTrack

MeiTrack TC68L Manual de usuario

MeiTrack

MeiTrack iButton MVT600 Manual de usuario

MeiTrack

MeiTrack T322X Manual de usuario

MeiTrack

MeiTrack TC68 Manual de funcionamiento

MeiTrack

MeiTrack T311 Manual de usuario

MeiTrack

MeiTrack GT30i Manual de usuario

MeiTrack

MeiTrack MT90 Manual de usuario

MeiTrack

MeiTrack T633G Manual de usuario

MeiTrack

MeiTrack P88L Manual de usuario

MeiTrack

MeiTrack T322X Manual de usuario

MeiTrack

MeiTrack iButton T333 Manual de usuario

MeiTrack

MeiTrack iButton T1 Manual de usuario

MeiTrack

MeiTrack T322 Manual de usuario

MeiTrack

MeiTrack MD500S Manual de usuario

MeiTrack

MeiTrack TC68S Manual de usuario

MeiTrack

MeiTrack T366G Manual de usuario

MeiTrack

MeiTrack Mobileye T622 Manual de usuario

MeiTrack

MeiTrack MVT380 Manual de usuario

MeiTrack

MeiTrack MT90G Manual de usuario

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Garmin

Garmin SOUNDER 125 Manual de usuario

Garmin

Garmin DEZL 580 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Garmin

Garmin ECHOMAP PLUS Manual de usuario

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Garmin

Garmin 15 H Series Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

Garmin

Garmin DEZL OTR500 Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario
