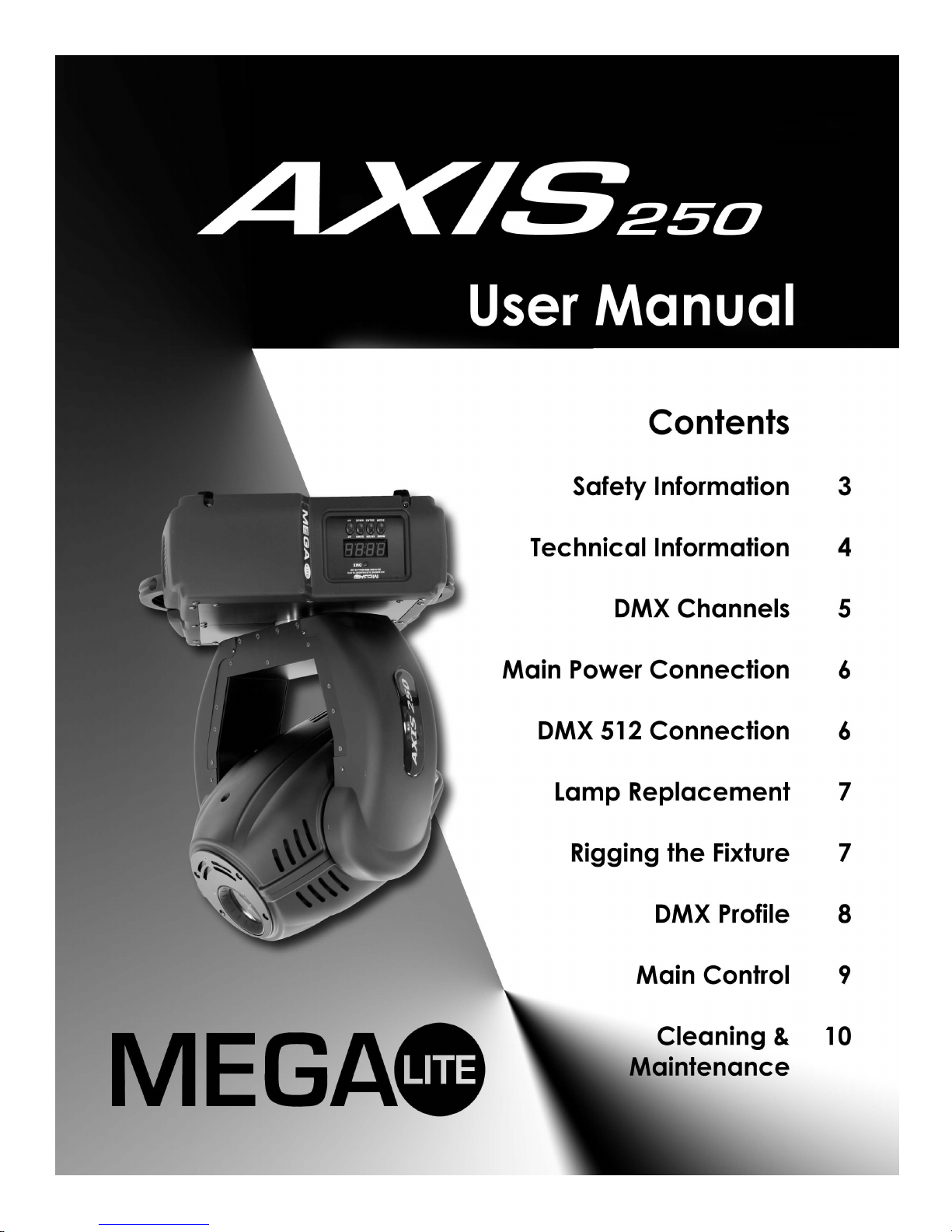

MegaLite AXIS 250 Manual de usuario

Check that the unit has not been damaged during transport

Protection Against Fire

1. Maintain a minimum of 1 foot distance from any type of flame.

3. Replace fuse only with the specified type and rating.

4. Do Not install the unit to close to a heat source.

5. Make sure cable are properly secured away from unit movement.

6. Maximum surface operating temperature 90º.

Protection Against Fire

1. Disconnect power before lamp replacement or servicing.

2. For connection to main power supply proceed to page 6.

3. This unit must be earthed. (electronically grounded)

4. Do not expose unit to rain or moisture.

Protection Against Mechanical Hazards

1. Use safety chain when hanging unit.

2. Use quality clamps or bolts when positioning unit

3. Do not open unit risk of electrical shock.

Protection Against UV Radiation

1. Do not look directly at the lamp when cover are off and lamp is on.

2. Do not start unit with out lamp covers or if the protection screens, or ultraviolet filters.

Part Numbers

Fixture Lamp Flight Case

1030 - AXIS 250 LNSK250/2 9051-Dual Flight Case

Mechanical Specifications

Fixture Packaged for Shipping

Size: 16.75”L x 16”W x 20.5”H

Weight: 52 lbs

Size: 20”L x 19.25”W x 22.25”H

Weight: 61.60 lbs

Pan: 530° Tilt: 280°

DMX Connectors: 3-pin XLR connectors

Reflector: Glass reflector with cold mirror coating

Thermal: Maximum ambient temperature 40° C

Maximum surface temperature 80° C

Fastening System: 2 clamp placement attachments

Electrical Specifications

Lamp: NSK/2 MSD250/2 (optional)

Light output: 12,000 ANSI lumen 12,000 ANSI lumen

Lamp life: 3,000 hours 3,000 hours

Color temperature: 8,000 K 6,200 K

Power consumption: 120V 50/60 Hz

Base: GY-9.5

Ballast: Magnetic

16 ” ( with handles ) 16 ”

8”

16.75 ”

5.25

15.25

17.5 ”

Focus: Motorized focus

Prism: 3-Facet prism rotating in both directions at different speeds

Dimmer / Shutter: Full range dimming and variable strobe effect

Electromechanical Effects

3”

Specifications

Color

Gobo

DMX Channels

Channel Function Channel Function Channel Function

1 Pan 7 Color Wheel 13 Prism Rotation

2 Tilt 8 Gobo Wheel 14 Focus

3 Pan Fine 9 Gobo Rotation

4 Tilt Fine 10 Shutter

5 Pan/Tilt Speed 11 Dimmer

6 Control 12 Prism

1: Open

2: Red

3: Yellow

4: Purple

5: Light Green

6: Orange

7: Blue

8: Magenta

9: Dark Blue

10: Light Blue

1: Open

2: Magenta Swirl

3: Daisy

4: Swivel

5: Stars

6: Diffusion

7: Circular Stars

Dichroic Glass Gobo: Diameter 27 mm Image 24 mm Thickness 4 mm max

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit must be earthed. (electronically grounded)

3. Replace fuse only with the specified type and rating.

The occupation of the connection-cable is as follows:

Cable (USA) Cable (EU) Pin International

Brown Brown

Blue

Yellow / Green

Blue

Yellow/Green

Live

Neutral

DMX-512 Connection

110V 50/60hz Connection

The fixture is equipped with 3 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a shielded

twisted pair cable designed for RS-485 and 3 pin XLR plugs and connectors in order to connect the controller with the fixture or

the fixture with another.

DMX—input DMX—output

1. Shield

2. Signal (-)

3. Signal (+)

Caution!

At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120

Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it in to the

last fixture on the signal run. Pre-manufactured terminator plugs are available for

purchase from your Mega-Lite dealer (HOS-DMXT).

Lamp Replacement

Caution!

1. Disconnect power before you begging.

2. Allow 15min for the unit and lamp to cool.

3. Do not touch lamps glass envelope with your fingers. If this happens clean with alco-

hol / to remove oils.

To insert the lamp MSD 250/2, HSD250. Use a Phillips screw-

driver to unscrew the bolts that hold the plastic Bessel in place

there will be 3 screws. Unscrew the knurled-head screws of the

lamp holder and remove it. Carefully insert the lamp into the lamp

holder. Make a note that there is a large and small pole insert the

new lamp into corresponding socket.

Do not install a higher wattage lamp this will void your warranty.

Please note the light bulb manufactures warnings. Do not touch

the bulb with bare hands. Close lamp cover. Adjust the lamp as

described under lamp adjustment make sure lamp is not touching

any of the metal housing.

Due to the difference between lamps. Fine adjustment may improve light performance. You will need to strike the lamp and set

the light so the optical path is clear. You will need to turn the screws A&B one after another a slight turn clockwise and counter

clockwise until you set the hot spot of the light in the center of the image. If no hot spot can be seen then set the lamp till the

light is evenly distributed.

Lamp Placement

Lamp Adjustment

Warning: Disconnect the fixture from AC power

Before re-lamping.

Lamp is hot! Risk of fire! Protect hands and eyes.

Wait at least 15min before opening the covers

and removing lamp from fixture.

Maximum room temperature t=45°C

Minimum distance from flammable material d=0.5m

Exterior surface temperature T=80°C

Not for domestic use.

Be sure that the lamp

never touches the lens

Adjust lamp position by turning screws and

Rigging the fixture

Caution!

1. The installations must be carried out by an authorized dealer or trained professional.

2. Unit may cause severe injures if you have doubts concerning the safety do not install.

3. Unit is to be 24inches away from flammable materials (decoration material)

4. Use high quality installation equipment to hang unit.

When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experience includ-

ing but not limited to calculating working loads, material being used and periodic safety inspections. If you lack these qualifica-

tions, do not attempt the installation yourself, instead use a professional structural rigger.

When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector has got to

be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be checked at least

one time a year by a skilled person.

Axis 250 DMX Profile

DMX Channel Function Description Value

1 Pan Pan 0-255

2 Tilt Tilt 0-255

3 Pan Fine Pan Fine 0-255

4 Tilt Fine Tilt Fine 0-255

Pan/Tilt Speed (From fast to slow) 0

5 Speed Max Speed 1-249

Blackout During Movement 250-252

6 Reset Reset 200-209

Open 0-13

Red 13-25

Yellow 26-38

Purple 39-51

Light Green 52-64

7 Color Orange 65-77

Blue 78-90

Magenta 91-103

Dark Blue 104-116

Light Blue 117-127

Forward Color Scroll (slow to fast) 128-191

Backwards Color Scroll (fast to slow) 192-255

Open 0-17

Magenta Swirl 18-35

Daisy 36-53

Swivel 54-71

8 Gobo Wheel Stars 72-89

Diffusion 90-107

Circular Stars 108-125

Forward Gobo Wheel Spin 127-191

Stop 192

Backwards Gobo Wheel Spin 193-255

No Function 0-15

9 Gobo Rotation Clockwise Rotation (slow to fast) 16-135

Counterclockwise Rotation (slow to

fast) 136-255

Open 0-13

10 Shutter Strobe (slow to fast) 14-214

Random (slow to fast) 215-249

Open 250-255

Close 0-5

11 Dimmer Open 6-59

Dimmer 0% to 100% 60-255

12 Prism No Function 0-127

Prism 128-255

No Function 0-15

13 Prism Rotation Clockwise Rotation (slow to fast) 16-135

Counterclockwise Rotation (slow to

fast) 136-255

14 Focus Focus 0-255

Main Control Menu

The control board on the fixture base is your interface to access and control

all the functions on the unit. Its digital display gives you a code view of the

options and functions. The following will explain each function and its options.

MODE

ENTER

DOWN

DMX

DMX Address Color Control

0-512

DMX Address

Reverse Pan

Use the up/down keys to select the required DMX start channel. Press Enter to confirm or Mode to exit and return to main

menu. The display will flash if there is no DMX signal been received from the console.

Reverse Tilt

This function allows you to invert the Pan direction. Use the up/down keys to select, Yto invert pan and Nnot to invert the pan.

Press Enter to confirm or Mode exit and return to the main menu.

Color Control

This function allows you to invert the Tilt direction. Use the up/down keys to select, Yto invert tilt and N not to invert the tilt.

Press Enter to confirm or Mode exit and return to the main menu.

This function allows you to chose from Bi-Color placement or Fixed Color placement. Use the up/down keys to select, Yto select

bi-color mode or Nto select fixed color mode . Press Enter to confirm or Mode exit and return to the main menu.

Demo Mode

This option allows you to turn on the demo mode. Use the up/down keys to select, Yto turn on demo mode and N not to turn off

the demo mode. Press Enter to confirm or Mode exit and return to the mail menu.

Reset

This option allows you to reset the fixture and re-home all the motor setting. Use the up/down keys to select, Yto Reset and N

not to reset the fixture. (note: after you reset the fixture you must also set it to Nto stop resetting or it will continue to reset)

Press Enter to confirm or Mode exit and return to the main menu.

Reverse Pan Reverse Tilt Demo Mode Reset

Cleaning and maintenance

Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electron-

ics checked by an expert every 2 years.

The following points have to be considered during the inspection:

1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.

2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).

3) Mechanically moved parts like axles, eyes and other must not show any traces of wearing and must not rotate with unbal-

ances.

4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further

instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems

have to be removed.

Disconnect from mains before starting maintenance operation!

Caution Danger to life!

We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or solvents!

1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require more peri-

odic cleaning as fog fluid tends to build up residues, reducing the light output.

2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can damage the

fans operation.

3) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.

4) The interior of the fixture should be cleaned using a vacuum.

5) We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid oil run

outs when motor wheel rotates

Note: There is no serviceable parts inside the device except for the lamp and the fuse. Maintenance and service operations are

to be carried out by authorized dealers.

Replacing the fuse: Only replace the fuse with the same type and rating.

Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized dealers only

In order to avoid hazards.

Should you have further questions , please contact your dealer.

Parts List

1030-MPCB Main PCB Card

1030-DC-G Driver Card-gobo

1030-DC-P Driver Card-prism

1030-dis Display Card

9051 Dual Axis 250or 300 Case

1010FAN-S Lamp Fan 1.5X1.5

1030-IG Igniter

1030-PRISM Prism

1030-QRM Quick Release Mount Set

1010FAN Fan 3X3

1030-RF Reflector

LNSK250 JENDO NSK250/2

1030-TRA Transformer

P-1010IRF IR Filter

1030-PLLS Full Lens Set

LMSD250 Phillips MSD250/2

1030-DISB Display Body Set

1030-HEADB Head Body Set

1010-CBB65R Capacitor CBB65R

1030-MC Motor Color

1030-ARMB Arm Body Set

1030-MG Motor Gobo

Tabla de contenidos

Otros manuales de Equipo de iluminación de MegaLite

MegaLite

MegaLite Drama Strip P840 Manual de usuario

MegaLite

MegaLite ARFlood Manual de usuario

MegaLite

MegaLite Framebot 600 Manual de usuario

MegaLite

MegaLite Drama LED Q170 Manual de usuario

MegaLite

MegaLite HELIUS M Manual de usuario

MegaLite

MegaLite Deco Pendant Q20 Manual de usuario

MegaLite

MegaLite N-E Color FX18 Manual de usuario

MegaLite

MegaLite TUFFBABYVW-42 Manual de usuario

MegaLite

MegaLite PARAMOUNT PENDANT Q350 Manual de usuario

MegaLite

MegaLite N-E Color FX9 Manual de usuario

MegaLite

MegaLite AXIS CYCLOPS Manual de usuario

MegaLite

MegaLite DECO Cove Q18 Manual de usuario

MegaLite

MegaLite baby color Q70 IR Manual de usuario

MegaLite

MegaLite Deco Vintage Scoop Q32 Manual de usuario

MegaLite

MegaLite PAN T BOT Manual de usuario

MegaLite

MegaLite DECO CITYSCAPE Q30 Manual de usuario

MegaLite

MegaLite N-E PIXSTRIP H216 Manual de usuario

MegaLite

MegaLite Axis LED Manual de usuario

MegaLite

MegaLite Tuff Baby Q60 Manual de usuario

MegaLite

MegaLite AXIS 500 Manual de usuario

MegaLite

MegaLite N-E Color Strip Manual de usuario

MegaLite

MegaLite LEDiLINE M485 Series Guía

MegaLite

MegaLite XWITCH Manual de usuario

MegaLite

MegaLite outshine ww100 Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
