McIntosh MC602 LED Manual de usuario

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

Audio Classics, Ltd!

3501 Vestal Road!

Vestal, N.Y. 13850!

607-766-3501!

!

McIntosh MC602 LED!

Installation instructions!

!

Tools needed :!

Soft cloth or carpet!

#2 Philip's screwdriver!

1/4 inch nut driver!

5/16 inch nut driver!

!

Total assembly time about 1 hour!

!

Disconnect the AC Power mains before performing any service to the ampliﬁer.!

!

Start with the ampliﬁer upside down on a soft material. Remove the bottom panel.!

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

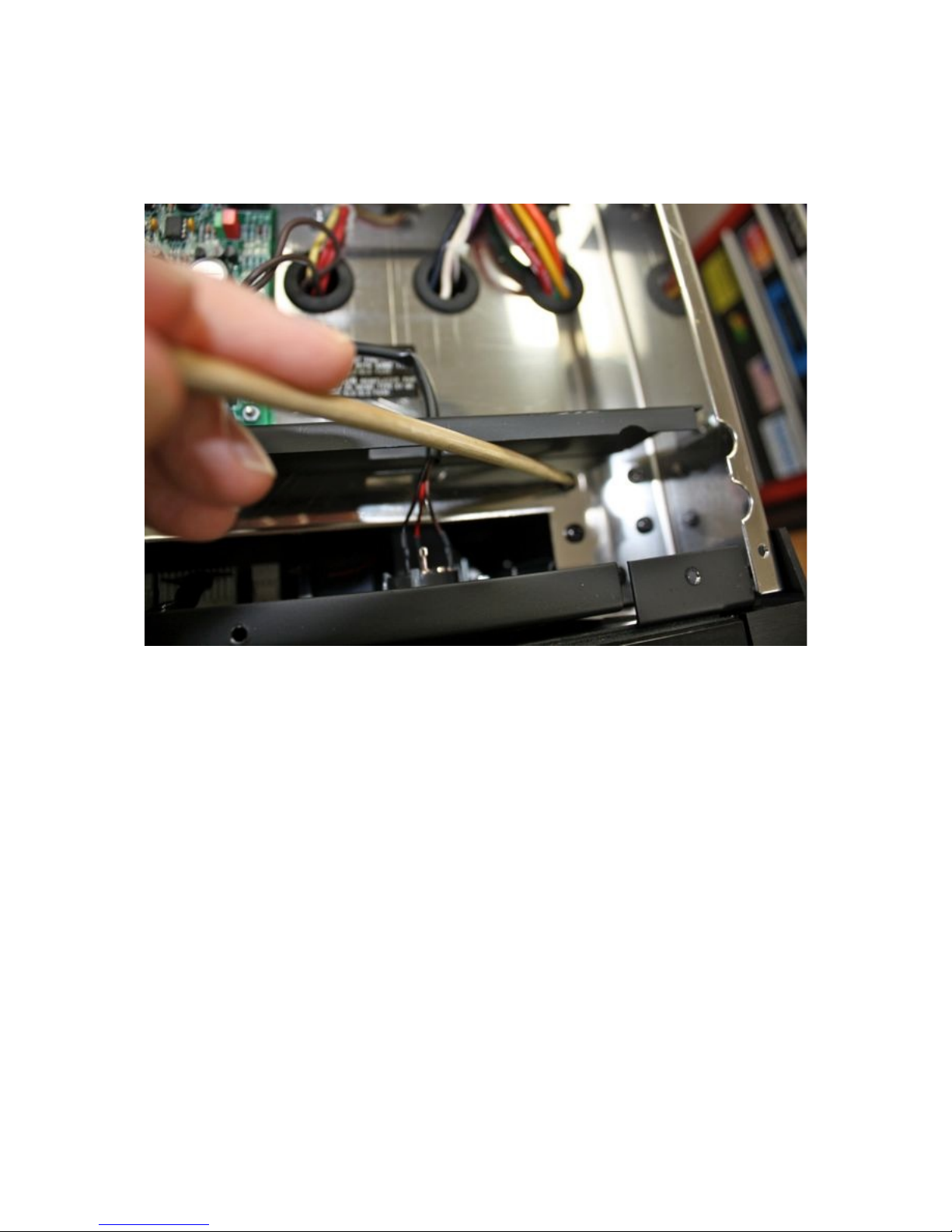

Once the bottom cover is removed you will ﬁnd the white connectors that run from the

PC board to the front panel. There are 4 as I have pointed out in the photos below.

Locate these and disconnect. Once they are disconnected from the board, feed them

back through the metal framing for ease of panel detachment. See photos below.!

!

!

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

!

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

Next locate the 5 black screws that attach the panel to the stainless chassis on each

side and remove them (total 10).!

!

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

Locate this screw on each lower side of the front panel and remove. The panel should

now be free from the chassis."

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

Now you can remove the panel rear shroud by removing the two screws on top and the

two on each side."

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

Locate the original meter illumination PC board and remove. It is held in place with 4

small white push clips. You can pop this loose with your ﬁnger. Discard this board."

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

Next step is to install the meter illumination. Locate the assembly from our kit that has 4

LED’s and resistors. It will look like the one I am holding in my hand. Install this

assembly in the right meter (left side as your working on it). The LED’s should point

towards the rear of the meter housing and the connection cable will feed over towards

the other meter."

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

Now install the left meter LED board and wire as shown."

Audio Classics Ltd. McIntosh MC602 LED installation instructions 1-800-321-2834

Below the meters you will see the PC board for nomenclature illumination. Using the

1/4 inch nut driver, remove this board and discard. Replace it with the new board that

has the same appearance and snug the nuts into place. Do not over tighten."
