MA 5300

STEREOINTEGRATEDAMPLIFIER TheCompendium

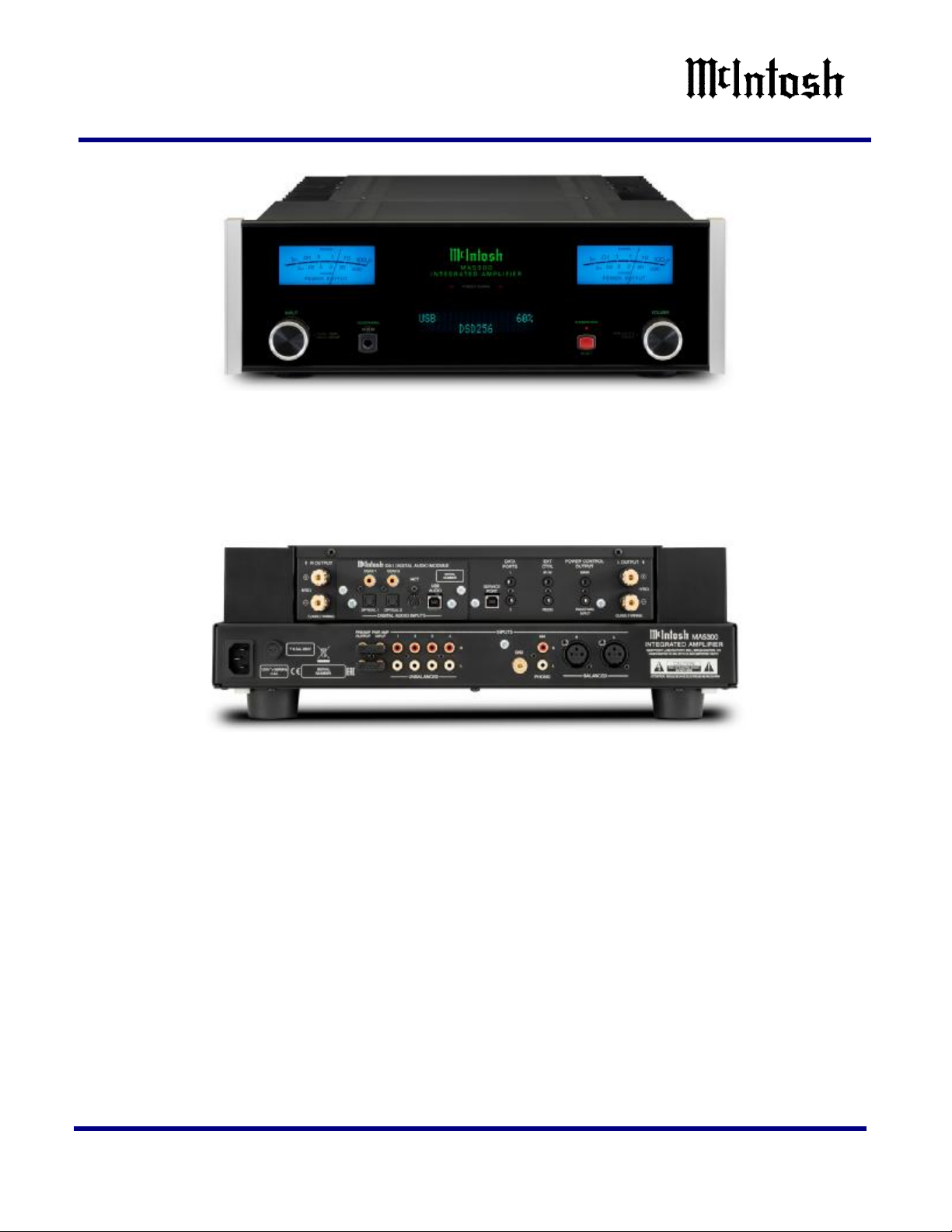

FRONTPANEL: Glass with LED/fiber-optic illuminatedgreen/goldlogoand model

designation.Left channel OUTPUT POWER meter (linear WATTS ).Left channel POWER

GUARD light.Rightchannel POWER GUARD light.IR sensor.Right channel OUTPUT

POWER meter(linear WATTS ).7INPUT /TRIM control.1/8” HEADPHONE jack.Digital

display.STANDBY/ON /RESET switch (with indicator).VOLUME /ADJUST control.

BACKPANEL:Right speaker OUTPUT for 4/8 speakers.DA 1DIGITAL AUDIO MODULE:

DIGITALAUDIOINPUTS:COAX 1, COAX 2,/ OPTICAL 1, OPTICAL 2, MCT digitalaudio input, USB

AUDIO.SERVICEPORT.DATA PORTS: 1, 2. EXTernal ConTRoL: IRIN /RS232. POWER CONTROL

OUTPUTS:MAIN / PASSTHRU INPUT.Left speaker OUTPUT connectorsfor 4/8 speakers.

7Powercord receptacle.FUSE.Unbalanced R & LOUTPUTS:PREAMPOUTPUT (jumper).

Unbalanced R & LPoWeRAMP (jumper),1, 2, 3, 4. GrouND binding post.Unbalanced R& L

PHONO INPUTS:MM.BALANCED INPUTS:R,L.

SPECIFICATIONS: PowerOutput: Minimumsinewavecontinuousaveragepower

output perchannel,with both channels operating is: 100 watts into8or4ohm

load. OutputLoad Impedance: 8or4Ohms. RatedPowerBand: 20Hzto

20,000Hz.TotalHarmonicDistortion: 0.005%maximumwith both channels

operating from250milliwattstoratedpower,20Hzto20,000Hz.Intermodulation

Distortion: 0.005%maximumiftheinstantaneouspeakpoweris 400 wattsorless

perchannelwith both channels operating foranycombinationoffrequenciesfrom

20Hz to20,000Hz.DynamicHeadroom: 1.8dB.

©2007-2021 VintageMac– LarryHodson Rev.09/19 Page1/2

MA 5300

STEREOINTEGRATEDAMPLIFIER TheCompendium

SPECIFICATIONS (continued):WideBand Damping Factor: Greater than 200– 8

ohm;greaterthan 100 – 4 ohm.PowerGuard: Less than 2%THD with up to16dB

overdriveat 1,000Hz.Frequency Response: +0-0.5dBfrom20Hzto20,000Hz,

+0-3dBfrom10-100kHz. PreamplifierOutput (atratedinput): 1.4V(8V

maximum).Sensitivity (atratedoutput): High Level–250mVunbalanced,

500mVbalanced;PhonoMM–2.5mV;PowerAmpIn–1V(8ohmload). Signal To

NoiseRatio(A-Weighted): High Level,95dBbelowratedoutput;PhonoMM,82

dBbelow5mVinput;PowerAmplifier,110dBbelowratedoutput.Input

Impedance: High Level-20Kohms;PhoneMM-47Kohms,50Pf. Preamplifier

OutputImpedance: 220ohms.PowerAmp In,10Lohms.MaximumInput

Signal: High Level,8Vunbalanced,16Vbalanced;PhonoMM,80mV;Power

AmplifierIn,8V.HeadphoneImpedance: 100to600ohms.VoltageGain: High

LeveltoPreampOutput:15dB;PhonoMMtoPreampOutput:55dB;Power Amplifier:

29dB.PowerControlOutput: 12VDC,25mA.PowerRequirements: 120 Volts,

50/60Hzat 2.3 amps.PowerGuard. Sentry Monitor. Directcoupled.Hashand

remote HR085.

MA 5300 - Sold from2017-Current. S/N: AFP1001~AFP????

Size: 6"H,17-1/2"Wand 22"D.Weight: 38 lbs.$5,000.00

©2007-2021 VintageMac– LarryHodson Rev.09/19 Page2/2
