CONTENTS
PerformanceSpecifications3
Notes3
RearPanel4
FrontPanelandTrimPartsList4
SectionLocations5-6
BlockDiagram5-6
InterconnectionDiagram6-9
Input/Output(LeftandRight)10-12
Amplifier11-14
ControlandBalanceControl14-18
Treble19
Bass20
SpeakerSwitch21
ACPowerSupply22
DCPowerSupply23
RepackingInstructions24
PerformanceSpecifications
FREQUENCYRESPONSE
+0,-0.5dBfrom20Hzto20,000Hz
RATEDOUTPUT
2.5VatMAINandSWITCHED1 and2,and
BALANCEDOUTPUTS
MAXIMUMVOLTAGEOUTPUT
Morethan8Vatalloutputs
TOTALHARMONICDISTORTION
0.002%maximumIHF,0.2%maximumfrom20Hz
to20,000Hzatratedoutput
SENSITIVITY
Phono:2.2mVfor2.5Vratedoutput,(0.45mVIHF)
HighLevel:250mVfor2.5Vratedoutput,(50mV
IHF)
SIGNAL-TO-NOISERATIO,A-WEIGHTED
Phono:80dBbelow10mVinput
HighLevel:90dBbelowratedoutput
VOLTAGEGAIN
PhonoToTape:41dBat1000Hz
PhonoToMain:61dBat1000Hz
HighLevelToTape:0dB
HighLevelToMain:20dB
INPUTIMPEDANCE
Phono:47Kohmsand65pFCapacitance
HighLevel:22Kohms
TONECONTROLS
BassandTreblestepped,20dBboostto20dBcut
ACPOWEROUTLETS
4switchedand1 unswitched,Totalcapacity1400
watts
POWERREQUIREMENTS
120V,50/60Hz,37watts
DIMENSIONS
FrontPanel: 16inches(40.6cm)wideby5-7/16
inches(13.8cm)high.Chassisdepthbehindmount-
ingpanel,includingclearanceforconnectors:14
inches(35.6cm).Knobclearancerequiredinfrontof
mountingpanel:1-1/2inches(3.8cm).
FINISH
Anodizedgoldandblackfrontpanel,chassisisblack.
WEIGHT
16pounds(7.3Kg)net,25pounds(11.4Kg)in
shippingcarton
Notes
1.Thefourtypesofheavylinesontheschematics
denotetheprimarysignalpathinthefollowing
manner:=LEFTCHANNEL
=RIGHTCHANNEL
=LEFTBALANCED
=RIGHTBALANCED
2.Unlessotherwisenoted,allvoltagesindicatedon
theschematicsaremeasuredunderthefollowing
conditions:
a.ACinputat120volts,50/60Hz.
b.Allvoltagesare±10%withrespectto
ground.A highimpedance(10megohm)
voltmetermustbeused.
3.Unlessotherwisespecified:
a.Resistorvaluesareinohms.
b.Capacitorvaluesareinmicrofarads(uF).
4.Thevoltagesenclosedina boxaresignalvoltages
thataremeasuredwitha 2.2mV,1kHzsignal
connectedtobothchannelsatthePHONO1
INPUTJACKS.
FRONTPANELCONTROLSaresetat:
BALANCECENTERDETENT
BASSandTREBLECENTERDETENT
INPUTSELECTORPHONO1
LOUDNESSNORMAL
MODESTEREO
POWERON
VOLUMECLOCKWISE
TAPEMONITOR1 and2 NORMAL
RUMBLEandHFFILTERSFLAT
SPEAKERS1&2
5.OnPCBoardDrawings,SquarePadIndicates:
a.PolarizedCapacitors- Positive
b.Diode- Cathode
c.Others- Pin1
6.WARNING:
Partsmarkedwiththesymbolhavecritical
characteristics.UseONLYreplacementparts
recommendedbythemanufacturer.
3
RearPanel
Fig.1 Rearview
FRONTPANELandTRIM
PARTSLIST
Symbol
016340
016334
018511
018512
018520
018521
C22-FrontPanel
090242
090243
090244
101035
104143
104144
Description
IndicatorGlass
FrontPanelGlass
TopPanelExtrusion
LowerPanelExtrusion
EndCapLeft
EndCapRight
FrontPanelCompleteW/Glass
Input/ModeKnob
Balance/VolumeKnob
Bass/Speaker/TrebleKnob
Screw,4-40x 5/16FillHead
FeltWasher3/4"Dia
FeltWasher5/8"Dia
4
5
6
BlockDiagram
SectionLocations
INTERCONNECTION
PARTSLIST
Symbol Part Description
CAPACITORS
C1.C2061276DISCCAP,.0047uF,
400VAC
JACKS
J2,J3
117563
PhoneJack
J4,J5117437XLRConnector,Male
LIGHTINGDEVICES
DS1.DS2058138LampFuseStyle
DS3.DS4058137LampDiscIndicator
SWITCHES
S1-S6148068SlideSwitch(SPDT)
TRANSFORMERS
T1159248PowerTransformer
InterconnectionDiagram
7
8
9

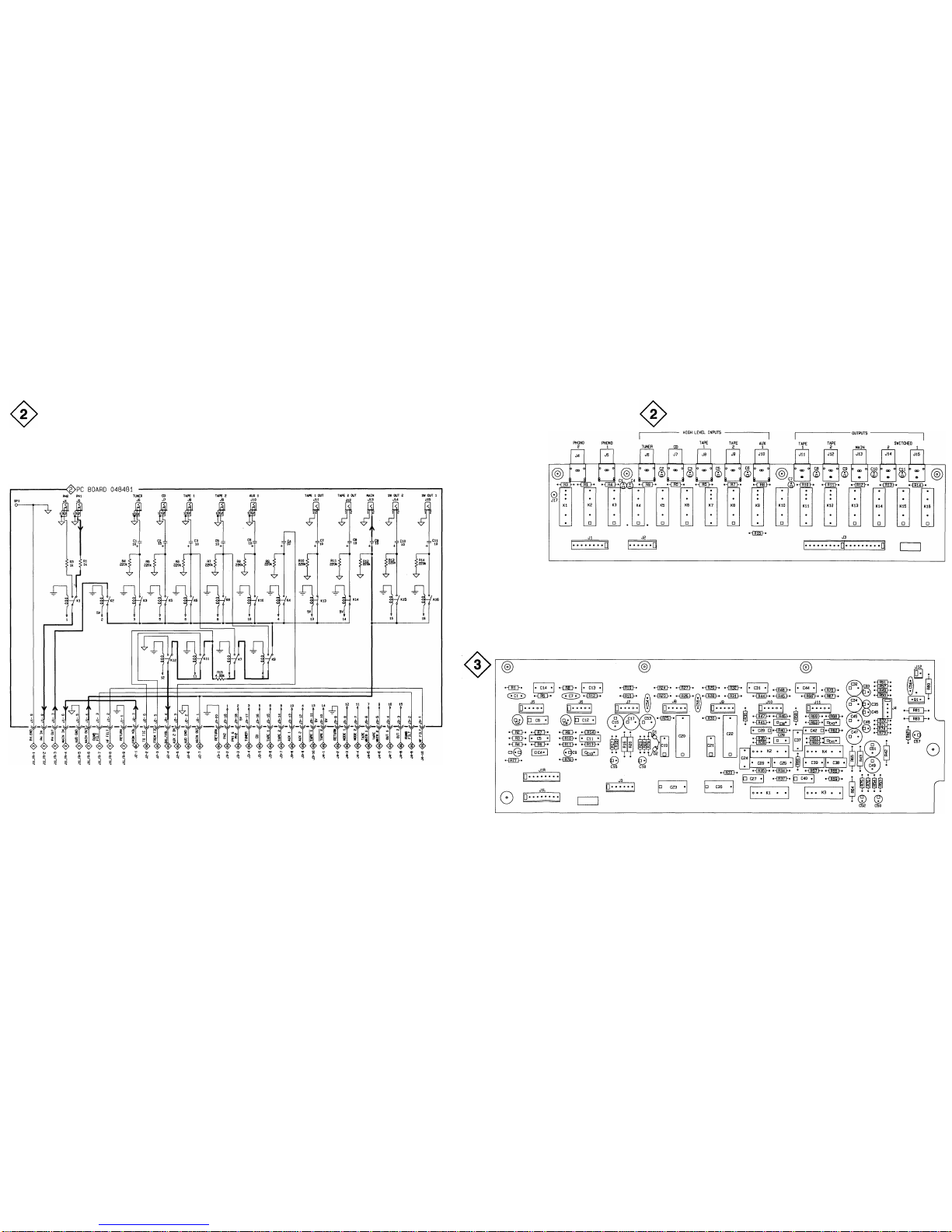

Input/Output,LeftandRight
AMPLIFIERPCB048474
12
10
11
LEFT
INPUTS/OUTPUTS
PCB
048481
AND
RIGHTINPUTS/OUTPUTSPCB048476
AMPLIFIER
PARTSLIST
Symbol Part
RELAYS
K1-K4087056
DIODES
D1.D2070102
TRANSISTORS
Q1132248
INPUT/OUTPUT
PARTSLIST
Symbol Part Description
RELAYS
K1,K7,K9,087056Form1C,5VDC,Reed,
K11,K12HE3321C0500
K2-K6.K8,087050SPST.5VDC,Reed,
K10,K13-K16HE3321A0400
Description
Form1C,5VDC,Reed,
HE3321C0500
Zener:51V,5%,400mW
NPN,300V,2SC3790DorE
NOTE:Componentsandvalues
tonedingraywarrantyour
attention;parenthesizedvalues
applytoserialnumbers
LK1001-LK1989.non-
parenthasizedvaluesapplyto
serialnumbersLK1990and
above.
Amplifier
14
13
ControlandBalanceControl
15
16
ControlandBalanceControl
BALANCECONTROL
PCB
048478
CONTROLPCB048479
BALANCECONTROL
PARTSLIST
Symbol Part Description
RESISTORSandPOTENTIOMETERS
R1134475BalanceControl
CONTROL
PARTSLIST
Symbol Part Description
DIODES
D1-D32070047SIG,75V,150mA,1N4148
INTEGRATEDCIRCUITS
IC1133189DualOp-Amp.MC33178P
IC21331085VRegulatorMC7805CT
RELAYS
K1-K3087050SPST,5VDC,Reed,
HE3321A0400
RESISTORS
R1134476VolumeControl
SWITCHES
S1146238InputSwitch
S2146239ModeSwitch
TRANSISTORS
Q1,Q2132224PNP,MPS4126
17
18
