COOKTOP PARTS

For Model: MGR6875ADB26

(Black)

1−11 Litho In U.S.A. (LANK) (eeb) Part No. W10274623 Rev. D

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8101P623−60

Installation

Instructions

8113P740−60

Owners Manual

Brochure, Tips

(Safe Cooking)

9762761 English

W10065852

French

8119P217−60

Diagram, Wiring

2 Cap, Burner

W10169983

LF (1)

W10194076

LR/RR (2)

W10173833

RF (1)

W10169985

Center (1)

8016P022−60

Glide, Main Top

4 Burner

8286181 Center 5K (1)

7540P043−60

LR/RR 9.2K (2)

8286183 Left Front 16K (1)

8286182 Right Front 12K(1)

2001N219−09

Cooktop

6 8285469 Grommet, Knob (5)

7733P423−60

Knob, Control (5)

7518P287−60

Grate, Burner (2)

(Includes Bumpers)

9 3368921 Screw (10)

CONTROL PANEL PARTS

For Model: MGR6875ADB26

(Black)

W10274623

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Support, Backguard

3807F734−70

Left

3807F733−70

Right

3608F121−09

Trim, Vent

2602N351−09

Panel, Control

7101P633−60

Screw

3801F851−51

Bracket, Control

3604F398−09

Shield, Vent

W10305089

Assembly, Control

8036P025−60

Shield, Sight

4005F805−51

Cover, Rear Wire

7101P500−60

Screw

7101P434−60

Screw

MANIFOLD PARTS

For Model: MGR6875ADB26

(Black)

W10274623

MANIFOLD PARTS

For Model: MGR6875ADB26

(Black)

W10274623

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7101P548−60

Screw, Valve (4)

2 Holder, Orifice

7527P021−60

Left Front 16K (1)

7527P022−60

(LR & RR) 9.2K (2)

7527P028−60

Right Frt 12.5K(1)

7527P023−60

Center 5K (1)

7502P565−60

Valve, Shut Off

(Includes Screw)

7506P422−60

Tubing,

Regulator−Manifold

7450P106−60

Harness, Igniter

(With Switches)

7432M126−60

Ignitor, Top

Burner (5)

7513P529−60

Pipe, Manifold

8 Valve

7502P561−60

Center 5K (1)

7502P562−60

(LR/RR/RF)9.2K (3)

7502P564−60

Left Front 16K (1)

7103P030−60

Nut

7505P323−60

Burner, Broiler

7505P324−60

Burner, Bake

7510P089−60

Regulator,

Pressure

13 Igniter

7432P130−60

Broil

7432P143−60

Bake

7506P429−60

Tubing (Broiler

Fitting To Valve)

7507P400−60

Fitting, Broiler

4005F421−45

Cover, Igniter

7103P195−60

Nut, Mounting

7101P388−60

Screw

7101P282−60

Screw

3601F339−45

Baffle, Bake

Burner

5171P603−60

Harness, Triple

Valve

3601F358−45

Baffle,

Broil Burner

23 8273062 Screw, Igniter

7507P395−60

Tubing, Bake

Burner

(With Orifice)

7501P221−60

Valve, Bake/Broil

7507P396−60

Tubing, Broil

Burner

(With Orifice)

3801F681−45

Bracket, Orfice

3801F691−51

Bracket, Regulator

7506P378−60

Tubing (Right) (2)

7506P379−60

Tubing (Left) (2)

7506P417−60

Tubing, (Center)

7506P428−60

Tubing, Manifold

to Valve

7431P053−60

Module, Spark

7724P194−60

Cover,

Valve Switch

Following Parts Not Illustrated

5789A602−60

Kit, LP Gas

7003P148−60

Insulator,

Orifice Igniter

CHASSIS PARTS

For Model: MGR6875ADB26

(Black)

W10274623

CHASSIS PARTS

For Model: MGR6875ADB26

(Black)

W10274623

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3826W047−45

Extension, Lower

Vent

8004P024−60

Spacer, Side Panel

7101P618−60

Screw, Shoulder

2618F194−70

Panel, Side

3801F656−51

Bracket, Anti−Tip

3823F015−51

Spacer, Side Panel

(Long)

3801F924−80

Bracket, Cooktop

7101P507−60

Foot, Leveler (4)

W10206589

Fan, Convection

10 Sensor, Oven

7430P045−60

Upper Oven

7430P041−60

Lower Oven

7450P108−60

Switch, Light Assy

7101P388−60

Screw

4005F743−51

Cover, Bottom Wire

W10210727

Cover, Upper Wire

15 Bracket

3801F705−51

Right

3801F706−51

Left

W10180198

Back, Main

3807F647−45

Plate, Broil

Fitting

7101P633−60

Screw (2)

19 Support, Upr Oven

3807F643−45

Right

3807F644−45

Left

3804F212−45

Retainer,

Insulation

7101P385−60

Screw

W10283986

Cover, Bottom

Insulation

W10260703

Support, Lwr Oven

7407P179−60

Light Assy. (2)

899138−001

Bulb, Light (2)

8002P077−60

Latch, Door Lock

27 Bottom, Burner Box

W10283688

Right

W10283722

Left

3601F321−50

Baffle, Vent Seal

3826W042−45

Extension, Upper

Vent

4022W055−45

Flue Assy., Upper

3826W052−45

Flue Assy., Lower

7101P375−60

Screw

7212P066−60

Seal, Front Frame

4005F736−45

Cover, Burner

Opening (2)

3601F308−19

Baffle, Lower Oven

Vent

2205F055−19

Bottom, Upper Oven

2205F051−19

Bottom, Lower Oven

3608F088−70

Trim, Kickplate

3804F212−45

Retainer, Bottom

Insulation

40 Pan, Bake

3401F091−45

Lower

3401F090−45

Upper

3605F338−19

Plate, Fan Cover

7101P385−60

Screw

4005F741−51

Cover,

Covect Motor

7101P376−60

Screw

INSULATION

Insulation, Wrap

7002P310−60

Upper Oven

7002P413−60

Lower Oven

Insulation, Back

7002P415−60

Upper Oven

7002P419−60

Lower Oven

UPPER DOOR PARTS

For Model: MGR6875ADB26

(Black)

W10274623

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2402W248−19

Lining, Door

2 Nut, Snap

7103P039−60

White

7103P141−60

Black

7201P091−60

Gasket, Door

7902P521−60

Glass, Inner (2)

7907P034−60

Frame, Glass

7101P388−60

Screw

3601F354−45

Baffle, Door

7002P488−60

Insulation, Door

7101P633−60

Screw

3804F179−45

Retainer, Glass

7902P799−60

Glass, Door

12 Bracket, Handle

3801F831−45

Right

3801F832−45

Left

8010P130−60

Spacer, Rubber

7101P376−60

Screw

7101P208−60

Screw (10ABx1/4P)

3608F141−70

Trim, Door Top

7101P681−60

Screw, Handle (2)

3608F118−70

Trim, Door (Rt)

3608F119−70

Trim, Door (Lt)

7101P282−60

Screw

3807F708−70

Support, Glass

7106P418−60

Hinge, Door

7701P516−60

Handle, Door

LOWER DOOR PARTS

For Model: MGR6875ADB26

(Black)

W10274623

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7701P516−60

Handle, Door

7902P797−60

Glass, Door

7101P388−60

Screw

4 Bracket, Handle

3801F832−45

Left

3801F831−45

Right

8010P130−60

Spacer, Rubber

7101P208−60

Screw,(10ABx1/4P)

7101P681−60

Screw, Handle

3807F708−70

Support, Glass

W10162384

Gasket, Door

3801F886−51

Bracket, Glass

7101P376−60

Screw

7902P436−60

Glass, Inner (2)

7101P633−60

Screw

3608F116−70

Trim, Door (Rt)

3608F117−70

Trim, Door (Lt)

7106P141−60

Hinge, Door

3608F141−70

Trim, Door Top

3601F373−51

Baffle, Door

7002P246−60

Insulation, Door

20 Nut, Snap

7103P141−60

Black

7103P039−60

White

2402W312−19

Lining, Door

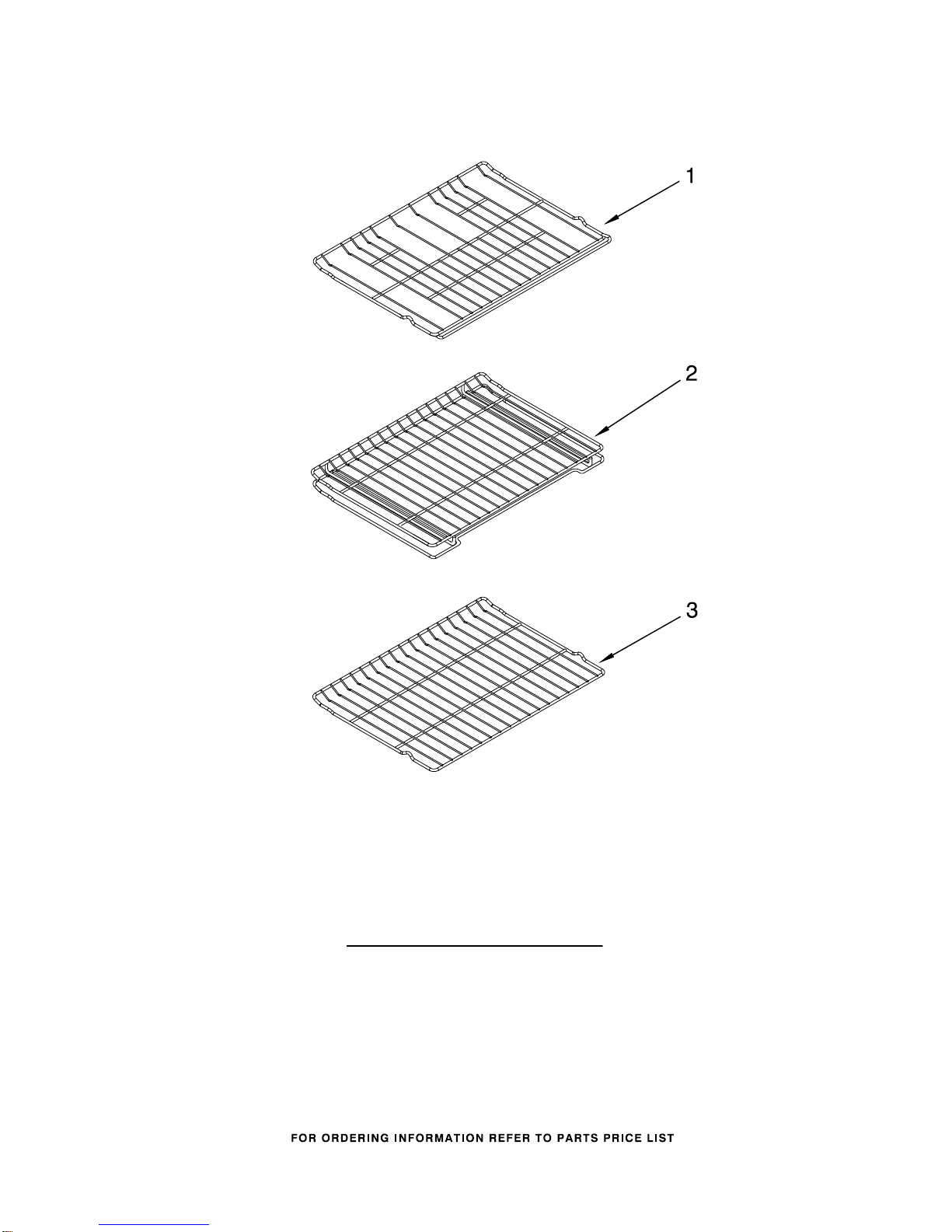

RACK PARTS

For Model: MGR6875ADB26

(Black)

W10274623

Illus. Part

No. No. DESCRIPTION

W10273816

Rack, Upper Oven

W10251904

Rack, Telescoping

7801P173−60

Rack, Lwr Oven (2)

OPTIONAL PARTS (NOT INCLUDED)

For Model: MGR6875ADB26

(Black)

W10274623

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

72032 Black

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

350939 Black

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

WIRING HARNESS PARTS

5171P601−60

Harness, Main

5171P467−60

Harness, Side

Mount Lock

5171P360−60

Harness, Sensor

W10202387

Harness, Spark

5175P365−60

Harness, Door

Position
