Maytag MGR7665WB0 Manual de usuario
COOKTOP PARTS
1
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
3−10 Litho in U.S.A. (JMJ) (eeb) Part No. W10274029 Rev. B
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10196161
Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10234650
Owners Manual
W10198615
Tech Sheet
9762761 Safer Cooking Tips
2 Cap, Burner
Left Front
W10183368
Black
W10169973
Grey
R. Front, L. Rear
W10183369
Black
W10169974
Grey
Right Rear
W10183370
Black
W10169975
Grey
3 Burner
8286183 Left Front
W10194076
R. Front, L. Rear
8286181 Right Rear
4 Cooktop
W10153562
White
W10153563
Black
5 Panel, Manifold
8523855 Black
8523854 White
6 Knob, Control (3)
W10200193
Black
W10200192
White
8 Grate, Burner (4)
W10233576
Black
W10233577
Grey
9 3400701 Screw
10 3196557 Screw
CONTROL PANEL PARTS
2
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Endcap, Left Hand
W10184437
Black
W10184433
White
Endcap, Right Hand
W10184438
Black
W10184434
White
2 8053505 Shield−Heat, Lwr
3 Panel, Console
W10225558
Black
W10111301
White
W10225560
Stainless Steel
4 9758080 Module, Spark
5
W10211996
Brkt−Mntg, Console
6 8523412 Bracket, Support
7
W10198745
Cover, Upper
8
W10192841
Shield, Heat
9
W10184370
Cover, Lower
10 3196169 Screw
11 Control, Range
W10236250
Black
W10236249
White
12 3196178 Screw
15 8273564 Clip
16
W10138683
Bracket, EOC Mount
14
W10137524
Bracket, DSI
MANIFOLD PARTS
3
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
MANIFOLD PARTS
4
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
Illus. Part
No. No. DESCRIPTION
1 8273096 Screw, Valve
3 Tubing, Burner
W/Orifice
W10170346
Left Front
W10157418
Left Rear
W10170345
Right Front
W10157415
Right Rear
4
W10157928
Tubing (Manifold
to Regulator)
5 8523406 Harness, Igniter
(W/Switches)
6
W10216419
Electrode (4)
7
W10169928
Pipe, Manifold
8 Valve
9757218 LF − RF − LR
8273004 Right Rear
10 8273062 Screw (4)
11 3400228 Bolt
12 8054078 Burner, Broiler
13
W10184491
Spreader, Flame
(Oven)
14 9758078 Burner, Bake
15 9761959 Valve/Regulator
16 Igniter
8054129 Broil
9758079 Bake
17 8272222 Tubing (Broiler
Fitting To Valve)
18 3186489 Fitting, Broiler
20 Orifice, Burner
W10170510
Left Front
W10170510
Right Front
W10170508
Left Rear
W10170506
Right Rear
21
W10137062
Spreader, Flame
(Broiler)
22 3196265 Screw
23 3196176 Screw
24 3196385 Screw
25 3400016 Screw
Following Parts Not Illustrated
W10170534
Spuds, LP Gas
(Kit of 4)
CHASSIS PARTS
5
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
CHASSIS PARTS
6
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
Illus. Part
No. No. DESCRIPTION
1
W10153186
Flue Box
2 8272747 Shield, Flue
3 8273036 Burner Box
4 Panel, Side (2)
8053830 White−Textured
8053832 Black−Textured
5 8523249 Brkt, Manifold Mtg
6 Frame, Front
(Not Serviced)
7 3196037 Foot, Front (2)
8
W10058460
Foot, Rear (2)
9 3195097 Bottom, Oven
10
W10181986
Sensor, Oven
11 8053967 Baffle, Burner
12 8053969 Shield, Heat
13 8053968 Shield, Lower
14 9760314 Rail, Base (2)
15
W10008830
Seal, Oven Flange
16 9758701 Spacer, Door
17
W10222733
Back, Main
18 8522416 Seal, Oven
19 8053971 Brace, Main Back
20 Retainer, Insul.
9761449 Left Hand
9761448 Right Hand
21
W10137382
Clip, Panel (6)
22 9757891 Cord, Power
23 9760407 Brkt − Hinge
24 9757262 Switch, Door
25 3196701 Light Socket Assy
26 311255 Bulb, Oven Light
27 9761013 Latch, Door
28
W10078370
Rod, Latch
29
W10107820
Latch−Mtr
30
W10114344
Glide, Drawer
31
W10182346
Insulation
33 3196178 Screw
34 3196152 Screw
35 Screw
3196166 White
3196168 Black
36
W10031780
Screw
37 3196179 Screw
38 3196177 Screw
39 3196168 Screw
40 9757239 Rod − Door Switch,
Rear Mount
41 3196560 Screw
INSULATION
8524099 Insulation, Wrap
W10180437
Insulation, Back
8272613 Insulation, Vent

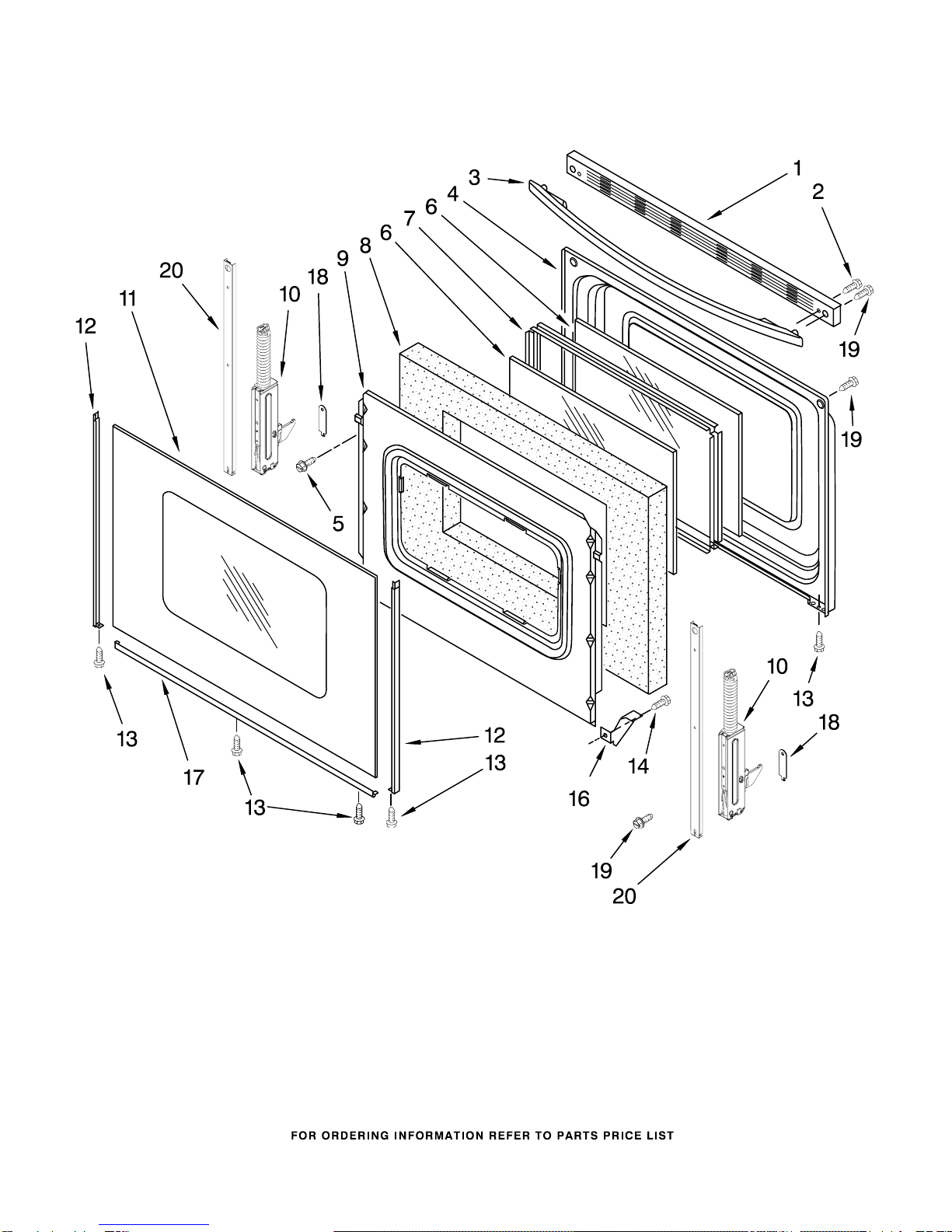

DOOR PARTS
7
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
DOOR PARTS
8
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
Illus. Part
No. No. DESCRIPTION
1 Trim, Top
W10118391
Black
W10118390
White
2 3196164 Screw
3 Handle, Door
W10111310
Black
W10111309
White
W10118391
Stainless Steel
4 9761344 Liner, Door
5
W10031790
Screw
6 9758162 Glass, Inner (2)
7 3186289 Frame, Glass
8 8272618 Insulation, Door
9 9761357 Retainer, Insul.
10 9761493 Hinge, Door
11 Glass, Outer Door
W10106405
Black
W10106404
White
W10181749
Stainless Steel
12 Trim, Door Side
Left Hand
8523171 Black
8523172 White
W10113926
Stainless Steel
Right Hand
8523165 Black
8523166 White
W10113925
Stainless Steel
13 3196160 Screw
14 3196165 Screw
16 3196794 Bracket, Window(2)
17 Trim, Bottom
8523177 Black
8523175 White
18 9761517 Clip, Door Mntg
19
W10031780
Screw
20
W10113759
Strap, Door
DRAWER & BROILER PARTS
9
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
Illus. Part
No. No. DESCRIPTION
1
W10179196
Rack, Oven (2)
2 9761031 Drawer, Storage
3
W10174397
Bracket, Drawer(2)
4 Rivet, Push (2)
3196814 White
3196813 Black
5 Panel, Drawer Frnt
W10022090
White
W10022100
Black
8053338 Stainless Steel
6 8053334 Spacer, Glide
7 3196168 Screw
8 3196167 Screw
9
W10217861
Panel (Stls Steel)
10
W10197980
Hndl (Stls Steel)
11 9781235 Clip (Stls Steel)
OPTIONAL PARTS
10
For Models: MGR7665WW0, MGR7665WB0, MGR7665WS0
(White) (Black) (Stainless Steel)
W10274029
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
REFINISHING MATERIAL
242756 Touch−Up
Self−Clean(1/2 Pt)
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
4396923 Pan − Broiler
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10182840
Harness, Main
(EOC Pyro)
W10170250
Harness, Wire
Bake/Broil
W10174458
Harness, Wire
(Cooktop Spark)
W10045060
Harness, Wire
(Ground)
3196896 Clip, Wire
3400016 Clip, Wire
313438 Clip, Harness
3196173 Screw
3196696 Clip, Harness
3196174 Screw−Grnd Harns
