Installation & operating instructions

MXL003/65 & 85 Seeker Wireless

UK contact:

Helpline: +44 (0)1553 811000

Email: support@maxview.co.uk

Web: www.maxview.co.uk

Maxview reserve the right to change speciﬁcations without prior notice

9111403 Iss 6

Visit: www.seekerwireless.co.uk for potential software updates

Contents:

Introduction 2

Proper use & operation 2

Safety precautions 3

Application example 4

Connections & features 5

Product contents 5

Required tools and equipment

Selecting an installation location 6

Positioning Control Box & Panel 6

Attaching Antenna Mount Plate 7

and LNB Park Plate

Electrical installation 8

Attaching Antenna Unit to 9

Mount Plate

Installing cables 9

Installing Control Box 10

Installing Control Panel 10

Connection diagram 11

Introduction:

Please read these instructions fully before using the antenna for the ﬁrst time. The operation of the antenna has

been designed to be as simple as possible however should you require any technical assistance please contact

Maxview customer service on +44 (0)1553 811000 or visit www.maxview.co.uk.

Proper use & operation:

The Seeker Wireless is designed to be installed in a motorhome, caravan or horsebox to automatically locate a

television broadcast satellite when the vehicle is stationary. The system comprises of 3 main components.

1. The Antenna which is to be permanently mounted externally to the roof structure of a motorhome/caravan

horsebox. The construction of the roof structure should be suitably robust and have no protruding obstacles

2. The Control Box is designed to be mounted internally in a cupboard it controls the antenna unit through a

cable connection and is powered by 12v DC only.

3. The Control Panel is the user interface allowing commands to be sent to the Control Box and the feedback

to be displayed on an integral screen. It is designed for internal use only. It communicates with the Control

Box either by radio or cable connection.

Use of the equipment for any other purpose than the one speciﬁed is not permitted and will invalidate the

Guarantee.

All instructions and models are subject to change. In accordance with policy of progressive product, the company

reserve the right to alter speciﬁcations.

Please keep these instructions safe for future reference.

Recycle packaging where facilities exist.

Page 2

Attaching Satellite Dish to Unit 11

Installing Batteries 12

Time and temperature display 12

Pairing Control Panel and

Control Box 13

Cable mode 13

Finding a satellite 13

Starting search mode 14

Pause function 14

Lowering the antenna 14

Ignition mode 15

Connecting to a Satellite Receiver 15

Power consumption 15

Skew adjustment 16

Software update 17

Fault ﬁnding 18

Guarantee 19

Speciﬁcations 20

Visit: www.seekerwireless.co.uk for potential software updates

Safety precautions:

Read this manual carefully and become familiar with your satellite antenna. Understand its applications, its

limitations and any hazards involved. Failure to follow all instructions listed below may result in electric shock,

ﬁre and/or serious injury. Maxview declines all responsibility in the event of incident or accident if they are due

to a non observation of the installation instructions or the way the product is used.

No modiﬁcations are permissible to the Antenna Unit, Control Box or Control Panel.

Installation

• Installation should be carried out by a competent person.

• Take care when working at heights keeping work area clean and tidy to avoid trip hazards

• Use creeper boards where necessary to ensure roof construction can support your weight

• Use a recommended adhesive from page 10 to bond the antenna unit to vehicle roof and follow the

manufacturer’s instructions during application

• Do not travel until adhesive has cured noting that curing times vary with weather conditions

• Power tools should be used in accordance with manufacturer’s instructions

• All electrical work should be carried out by a competent person. If in doubt seek advice from a qualied

electrician

• The Control Box and Control Panel are for internal use only and are not waterproof

Operation

• Before starting your journey check that antenna is in the park position

• The maximum speed of vehicle with antenna mounted on roof is 81mph (130km/h)

• Never operate the antenna if someone is in close proximity of the antenna

• Disconnect power to the antenna before installation or adjusting LNB skew angle

• If high winds or electrical storms are anticipated lower antenna to park position

• Maintain adequate ventilation around the Control Box to avoid overheating

• Do not allow children to operate the antenna unit

• Dispose batteries responsibly

• Remove Control Box fuse before accessing the roof space around the antenna unit

• Do not operate the Seeker Wireless with snow or ice on the antenna

Servicing

• If in the event that you do experience a problem with the system call Maxview Customer Service

+44 (0)1553 811000 with your model & serial number to hand

• Any inspection or repair must be carried out by Maxview or an appointed representative of the manufacturer

• No regular maintenance required on the system

• Do not remove cover on Antenna, Control Box or Control Panel

• Do not use solvent or abrasive cleaning agents on the system

• Use a soft damp cloth to clean the Control Box and Control Panel

• Use a suitable mild detergent to clean the Antenna Unit

• Do not pressure wash the Antenna Unit

• Check the Antenna Unit xings for mechanical integrity at least once a year

Page 3

Visit: www.seekerwireless.co.uk for potential software updates

Page 4



A. Antenna

The Antenna is mounted to the roof. It uses electric motors to scan for satellite signals. It has 3 cable

connections; 1 for controlling the motors and 2 satellites signal cables from the Twin LNB.

B. Control Box

The Control Box requires wired connections for power, antenna control and satellite signal. It can be mounted

discretely in a cupboard and can be ﬁxed vertically and horizontally.

C. Wireless/wired Control Panel

Wireless technology allows the Seeker Control Panel to be mounted in a convenient position without

unsightly wires. When not in use the panel displays a 24 hour clock and internal ambient temperature.

Application example:

Visit: www.seekerwireless.co.uk for potential software updates

Page 5

Connections and features:

Control Box:

11. Fuse

12. Power Switch

13. Power LED

14. Sync Button

15. Status LED

16. USB update port

17. RECEIVER

18. LNB IN

19. Antenna Connectors

20. RJ25 Panel Connector

21. Installation Button

22. Power Input

Wireless Control Panel

1. Antenna Search button

2. Antenna Park button

3. Antenna position icon

4. Battery status icon

5. Change Satellite Up. Down buttons

6. Wireless mode icon

7. Cable mode icon

8. ON/OFF switch

9. Battery door

10. RJ25 Socket

11. Magnets



11 12

8 9



17 18 19 20 22

Product contents:

> Antenna Unit / Control Box / Control Panel

> 65/85cm Antenna (separate carton)

> Accessory Pack

> LNB Park Plate x 1

> Control Box bracket x 2

> Control Panel mount x 1

> RJ25 Cable x 1

> Battery 1.5v AA x 2

> Power Cable x 1

> No.10 Screws x 6

> No.6 Screws x 6

> Cable Clips x 6

> M6 Button Head Screw x 4

> M6 Locking Nut x 4

> 6mm Plastic Washer x 4

> Cable Entry Plate x1

Required tools and equipment (not supplied):

> 32mm hole saw

> 2.5mm twist drill

> Power Drill

> No.2 Phillips screwdriver

> Weather Resistant Elastic Adhesive* and Applicator gun

> Surface Cleaner

> 10mm spanner

> Hexagonal socket key 4mm

> Deburrer/Round File/Emery paper

> Conduit (recommend method for securing cables)

> Automotive 2.5mm² cable

> Electrical connector block

> Flylead (for connection to satellite receiver)

*Maxview recommends the following adhesives:

> Sikaﬂex®-512 Caravan

> Geocel® Geobond HM

> Sikaﬂex®-252

Visit: www.seekerwireless.co.uk for potential software updates

Page 6

Selecting an installation location:

Positioning the Antenna Unit

> Check for obstructions such as roof lights and vents.

> Check for electrical cables beneath screw ﬁxing points.

> Check Antenna Unit cables will reach Control Box

(Maxview can supply extended cables).

> Do not allow the dish to overhang the edge of the vehicle

> Clearance around antenna system when in use is shown with reference I

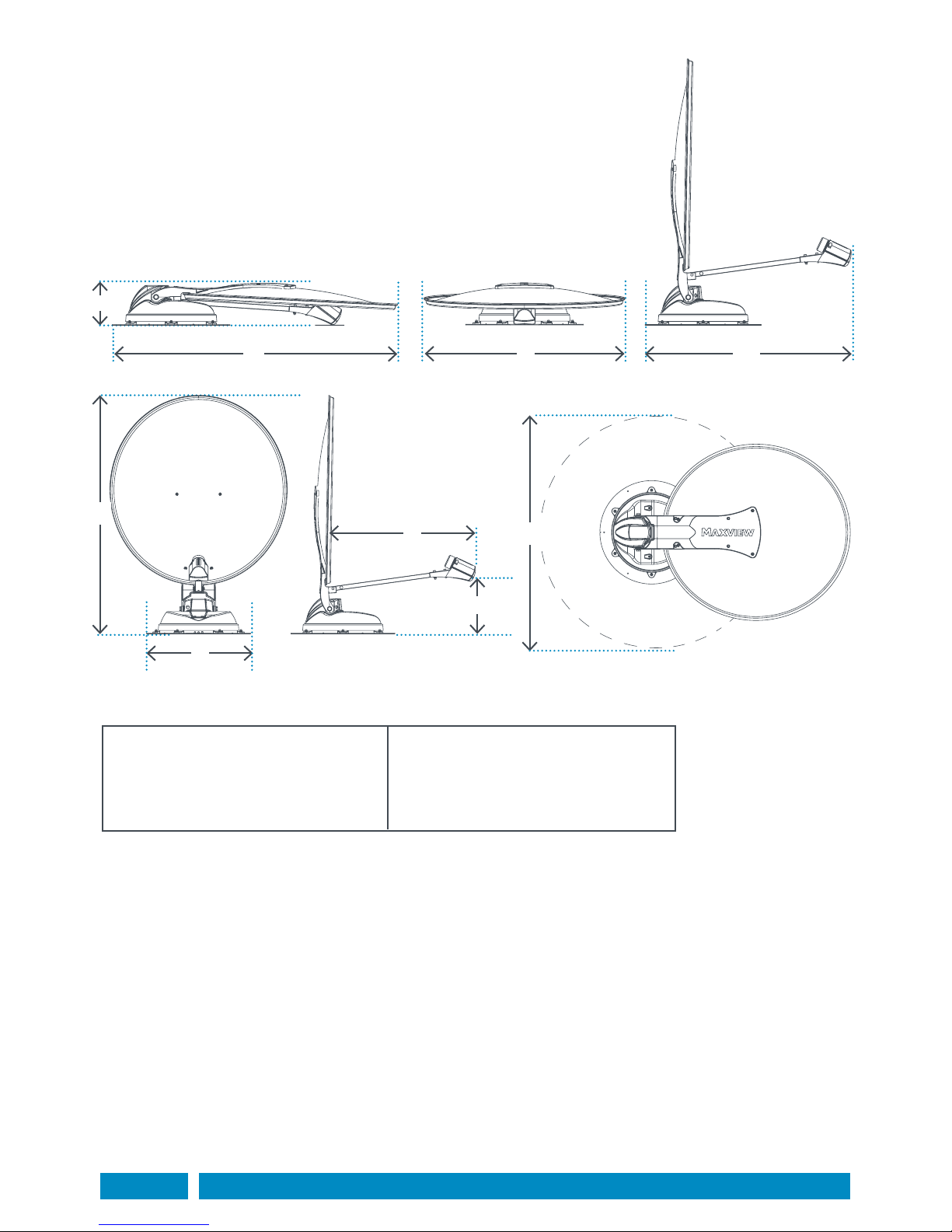

Key dimensions (cm) and weights

65cm Seeker: System weight 10kg

A: 17

B: 100

C: 67

D: 65

E: 96

F: ø43*

85cm Seeker: System weight 11kg

A: 17

B: 117

C: 85

D: 87

E: 113

F: ø43*

B C

G: 52

H: 15

I: 110

G: 64

H: 14

I: 125 *Mounting plate

Positioning Control Box:

Site the Control Box in a convenient location where:

> Front and rear connections are accessible.

> Cables can be routed and concealed neatly.

> There is an electrical supply of 12V dc permanent and ignition.

> There is adequate ventilation.

> The Control Box is not encased with metal (if using wireless mode).

> Material construction and thickness is suitable for ﬁxings.

Positioning Control Panel:

The Control Panel is designed to be easily visible in the living area as it displays a clock and thermometer when

in sleep mode.

> Do not place near wet hazard areas such as near sinks or bathroom.

> Do not place near heat sources or in direct sunlight.

> Avoid placing Control Panel next to walk ways where it could easily be knocked.

Visit: www.seekerwireless.co.uk for potential software updates



Attaching Antenna Mount Plate & LNB Park Plate:

1. Remove antenna unit from wooden transit packaging

2. Remove mounting plate from Antenna Unit by removing 6 x M6 nuts using 10mm spanner

3. Clean roof, Mounting Plate and LNB Park Plate in accordance with adhesive manufacturer’s guidelines

4. Mark a centre line for the antenna making sure dish will not overhang vehicle

5. Align notches on plate with centre line

6. Mark the position of 6 screw ﬁxing holes

7. Mark position of LNB Park Plate

8. Drill 6 x 2.5mm pilot holes into the roof

Note:

• Follow manufacturer’s instructions when applying adhesive. Do not travel until adhesive has

cured noting that curing times vary with weather conditions.

• Take care when working at heights. Always follow ladder manufacturer’s safety advice.

• Use creeper boards where necessary to ensure roof construction can support your weight.

• Power tools should be used in accordance with manufacturer’s instructions

255mm 65cm (MXL003/65)

385mm 85cm (MXL003/85)

Direction of travel

Central Line

Antenna Mount Plate

LNB Park

Plate

Page 7

9. Apply adhesive to entire surface of Antenna

Mounting Plate and LNB Park Plate and ﬁrmly

place them into position

10. Place a small amount of adhesive into each hole

before screwing plate to roof

11. Wipe off excess adhesive with a cloth

6 x No. 10

screws

Visit: www.seekerwireless.co.uk for potential software updates

Caravans

Power can be taken directly from the leisure battery on the caravan. The ignition cable should be connected to

the ignition key circuit which can be traced using the charts below. The caravan will either be ﬁtted with the

13 Pin Euro Connector or have two 7/8 Pin connectors.

Caution: All electrical work should be carried out by a competent person.

If in doubt seek advice from a qualiﬁed electrician.

Electrical installation:

Whilst the adhesive is curing prepare the electrical connections for the Control Box. The Control Box

requires a permanent 12V supply and a secondary 12V supply that provides power when the engine of the

vehicle is running. Note: the brake light circuit is not suitable.

It is recommended to create a new circuit direct to the battery using a minimum cable cross sectional area

of 2.5mm2 and an inline fuse of 5A. Do not connect to existing circuits that supply high power devices such

as water pumps, air conditioning units or sources of interference such as electric igniters for gas stoves.

Route cables carefully avoiding areas of excessive heat such exhaust systems and any moving parts in the

engine compartment or drive shafts.

Power Cable colours:

Black Negative Earth

Green Ignition (+12V)

Red +12V

Join Power Cable to new circuit using a

robust connection method such as...

• Crimp connectors

• Screw terminal connector block

• Snap t automotive tap connectors



13 Pin Euro Connector

12S 7 Pin Connector

Left Hand Indicator

Rear fog light(s)

Earth for contacts 1 to 8

Right Hand Indicator

Right Hand Side lights, marker lights & number plate light.

Brake lights

Left Hand Side lights, marker lights & number plate light.

Reversing light(s)

Positive direct from battery (Power)

Positive ignition key on (Fridge)

Earth return for contact 10

Signalling connection to trailer

Earth return for contact 9

Reversing light(s)

Positive ignition key on (Battery Charging)

Earth

Positive direct from battery (Power)

Reverse Sensor (Optional)

Positive ignition key on (Fridge)

Earth return for contact 6

Yellow

Blue

White

Green

Brown

Red

Black

Pink

Orange

Grey

White/Black

White/Blue

White/Red

Yellow

Blue

White

Green

Brown

Red

Black

Page 8

Terminal No. Function 13 core wire colour

Visit: www.seekerwireless.co.uk for potential software updates



Page 9

Attach antenna unit to mounting plate:

Carefully lower the antenna unit onto the Mounting Plate and re-attach the M6 Nuts and Washers that

were previously removed.

Caution:

Replace Nylon locking nuts if they have been removed more than twice. The locking action of the Nylon

becomes less effective if repeatedly assembled and disassembled.

Installing cables:

1. Check there are no hidden cables in the roof structure and that the hole location is clear of obstructions both

internally and externally.

2. Turn over for Cable Entry Cover installation instructions

Application example:

Note: To prevent trip hazards it is recommended that cables are concealed in PVCu conduit (not supplied)

where access is required to the roof of the vehicle.

Use extra Cable Entry Plate

to route 2nd Sat feed to a

different location.

Available to order from

Maxview MXL018

Direction of travel

(front of vehicle)

Visit: www.seekerwireless.co.uk for potential software updates



Page 10

Installing Cable Entry Cover

1. Plan your installation carefully

2. Drill a 32mmø hole in roof

3. Prepare surface for adhesion

4. Apply sealant as shown in A,B,C

(we recommend Sikaﬂex-512 Caravan)*

5. Position top hat

6. Position cable entry cover

7. Wipe excess sealant with a dry cloth

Applying sealant example:

Installing Control Box

Having previously chosen a suitable location

1. Clip the mounting brackets onto the Control Box.

2. Place Control Box on the horizontal or vertical surface and mark the 4 holes.

3. Depending on material drill a pilot hole or use a bradawl.

4. Attach cables to Control Box refer to page 11 for details.

5. Screw control box into position using 4 x No. 6 Screws.

Mounting positions:

Position the Control Box in one of the 4 ways shown left.

Make sure that the front is easily accessible.

Fitting the Control Box Brackets:

The brackets snap ﬁt to the Control Box casing

!= Generously apply

wet seal adhesive

Vehicle roof

Top hat

Hole location

tabs

Cable

32mm ø

A B

Direction of travel

(front of vehicle)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Antena de Maxview

Maxview

Maxview Roam X Campervan Instrucciones de montaje

Maxview

Maxview Precision I.D MXL019/55 Instrucciones de operación

Maxview

Maxview MXR0010 Manual de usuario

Maxview

Maxview TARGET MXL017/65Q Manual de usuario

Maxview

Maxview 5G/4G 4X4 MIMO Manual de usuario

Maxview

Maxview CONNECT MXL028/65Q Manual del propietario

Maxview

Maxview CRANK UP B2590/50SNZ Manual

Maxview

Maxview Gazelle Pro Manual de usuario

Maxview

Maxview MXL060 Roam 5G Instrucciones de montaje

Maxview

Maxview MXL012/75TWINAU Manual de usuario

Maxview

Maxview GAZELLE Hoja de información del producto

Maxview

Maxview Crank Up B2590/65 Manual

Maxview

Maxview MXL028/65 Connect Manual del propietario

Maxview

Maxview Target MXL017/65 Manual

Maxview

Maxview MXL028/65NZ Manual de usuario

Maxview

Maxview MXR0052 Manual de usuario

Maxview

Maxview MXL050 Roam Instrucciones de montaje

Maxview

Maxview Precision Waterways MXL024/55 Manual

Maxview

Maxview Connect Sky Q MXL028 Manual del propietario

Maxview

Maxview MXR0024 Manual de usuario

Maxview

Maxview MXL041 Manual de usuario

Maxview

Maxview Precision MXL012/55NZ Manual de usuario

Maxview

Maxview gazelle pro B2414 Manual de usuario

Maxview

Maxview Omnimax Instrucciones de montaje

Manuales populares de Antena de otras marcas

Alfa Network

Alfa Network APA-L01 Manual de usuario

Naval

Naval PR-422CA Manual de usuario

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manual de usuario

TERK Technologies

TERK Technologies TV44 Manual de usuario

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manual de usuario

HP J8999A Manual de usuario

MobilSat

MobilSat MSP-S Manual de usuario

Steren

Steren ANT-UHF 13 Manual de usuario

Novatel

Novatel 600-G Manual de operación

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manual de usuario

TRENDnet

TRENDnet TEW-AO12O Manual de usuario

Radio Shack

Radio Shack 15-1837 Manual de usuario

CommScope

CommScope CMAX-OMFX-43M-I53 Manual de usuario

Ramsey Electronics

Ramsey Electronics DAP25 Manual de usuario

COBHAM

COBHAM SAILOR 800 VSAT Manual de uso y cuidado

Trango Systems

Trango Systems AD900-9 Manual de usuario

Steren

Steren ANT-100 Manual de usuario

Proxim

Proxim 5054-PA-23 Manual de usuario
