Matrox Extio Series Manual de usuario

www.matrox.com/graphics

Graphics Solutions for Professionals

User Guide

10970-301-0110

2007.03.07

matrox

Extio Series

Extio F1220 • Extio F1400 • Extio F1420

ENGLISH

2 Matrox Extio Series – User Guide

Overview

Thank you for purchasing a Matrox Extio product. This product is a complete remote graphics

solution that supports up to 2 or 4 computer monitors at a time. As a remote graphics solution, it

separates the CPU and hard disks of your system from the computer peripherals – monitors,

keyboard, mouse, and audio hardware.

Hardware supplied

Hardware required (sold separately)

Software available (for Windows 2000, Windows XP, Windows Server

2003, Windows XP Professional x64, and Windows Vista)

Matrox PowerDesk-SE –

to use your Matrox product

Audio drivers

– to use the audio hardware on your Matrox product

Other software –

see the CD-ROM

Readme

file

Matrox Extio remote graphics unit

(Extio F1420 shown) 4 DVI-to-HD15 adapters

(Extio F1400/F1420 only) Power supply*

* Multiple power cables are provided for international support.

Matrox PCI or PCIe interface card

(PCI card shown) Dual LC optical cable

(50 µm/125 µm or 62.5 µm/125 µm)

Matrox Extio Series – User Guide 3

Installation overview

To install your Matrox product:

Install your interface card – see “Hardware installation”, page 4.

Connect your Extio unit, monitors, and other peripherals

–

see “Connection setup”, page

Install the software

–

see “Software setup”, page 11.

4 Matrox Extio Series – User Guide

Hardware installation

This section describes how to install a Matrox interface card in your host computer. If your Matrox

interface card is already installed in your computer, skip to “Connection setup”, page 7. For

information specific to your computer, like how to remove its cover, see your system manual.

1Open your computer and

remove your existing graphics

card *

If a graphics card

isn’t

already installed in

your computer, skip to step 2.

Using

Add/Remove Programs

in the

Windows

Control Panel

, remove any

currently installed display drivers.

Restart your computer for the changes

to take effect.

After your computer restarts, you’re

prompted to install drivers for the new

graphics hardware detected. Click

Cancel

Turn off your computer and all peripherals such as your monitor or printer.

Open the computer and remove your existing graphics card. (If graphics hardware is

built into the motherboard of your computer, you may need to disable it manually after

your Matrox card is installed. For more information, see your system manual.)

WAR NING:

To avoid personal injury and to prevent damage to your computer or Matrox

hardware, turn off your computer, unplug it, and then wait for it to cool before you install

your Matrox product and touch any of the internal parts of your computer.

While your computer is turned off but still plugged in, some electrical current is supplied

to the motherboard. This current may prevent newly installed hardware from working

properly.

Also, static electricity can severely damage electronic parts. Before touching any electronic

parts, drain static electricity from your body (for example, by touching the metal frame of

your computer). When handling a card, carefully hold it by its edges and avoid touching its

circuitry.

* With multi-display mode, you may be able to use your existing graphics card. For Windows 2000/XP, see Windows 2000/XP

online help under “Install additional monitors”.

Matrox Extio Series – User Guide 5

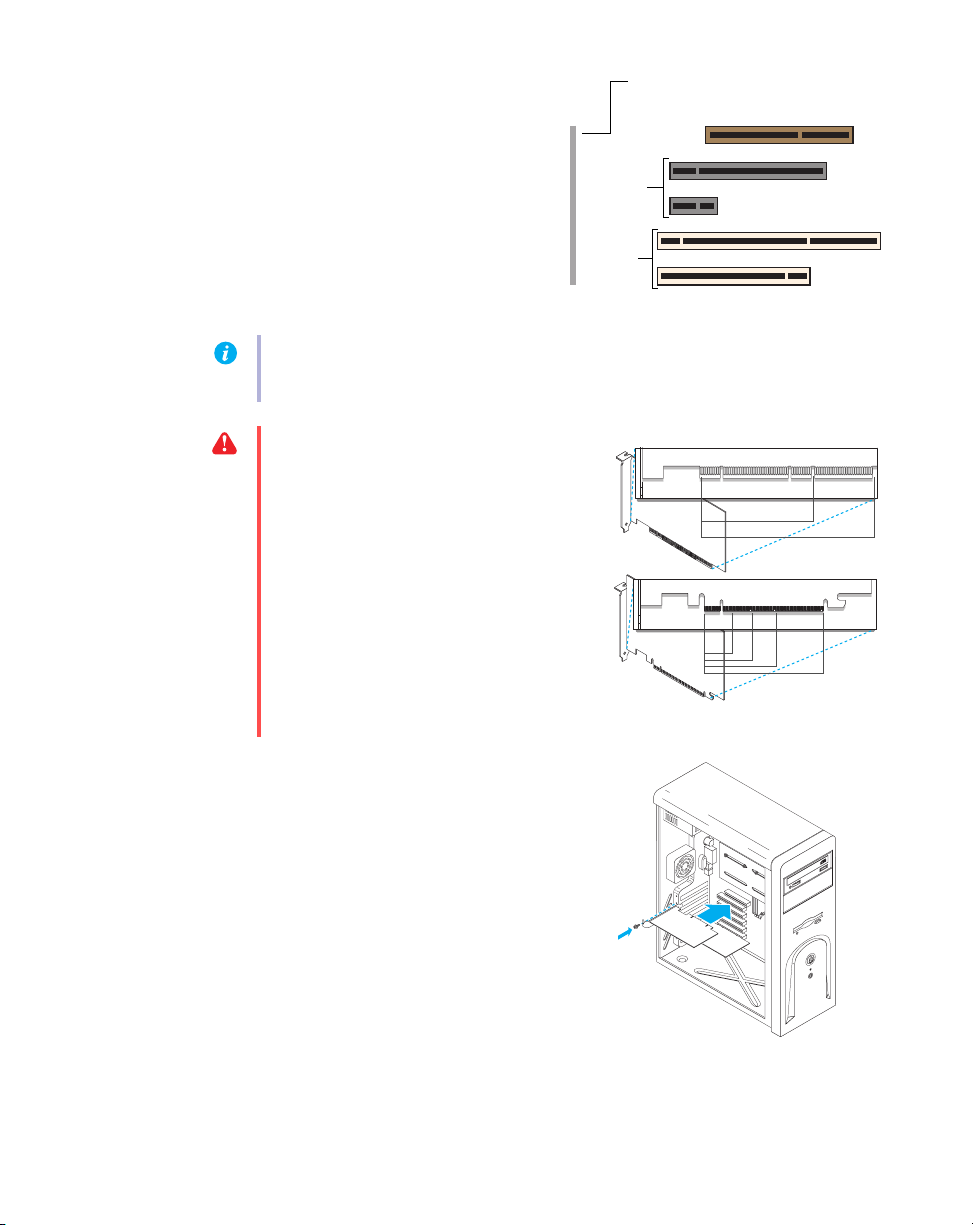

2Choose an expansion slot for

your interface card

Most computers have different types of

expansion slots. Choose a PCI or PCI

Express (PCIe) ×1 slot, depending on the

type of Matrox card you have. If you have a

PCI card, your card supports both 64-bit

and 32-bit PCI slots. Your system manual

should identify the location of each type of

expansion slot in your computer.

3Insert your Matrox interface

card

Position your Matrox card over the

expansion slot you’ve chosen.

Push the card in firmly and evenly until

it’s fully seated in the slot.

Secure the bracket of your Matrox card

to the computer frame.

(64-bit)

(Back of computer)

(32-bit)

PCI

Express

slots

AGP slot

(×16)

(×1)

PCI

slots

Note:

If you’re using a PCI card in a 64-bit PCI slot, your choice of PCI slot may affect your

card or system performance. For more information, see your computer manual.

WAR NING:

Inserting your Matrox card

into the wrong type of slot could damage

your card, your computer, or both.

If you’re using a PCI interface card in a

64-bit PCI expansion slot, your card uses

only the part of your expansion slot closest

to the back of the computer.

PCI card

32-bit 64-bit

PCI Express card

×16

×1 ×4 ×8

6 Matrox Extio Series – User Guide

Your Matrox card is now installed.

Before restarting your computer

, first connect your Extio unit to

your computer, then connect your monitors and your peripherals to your unit (see “Connection

setup”, page 7).

After connecting

, restart your computer and install your Matrox software (see

“Software setup”, page 11).

WAR NING:

If your computer doesn’t restart after your Matrox card is installed, turn off

your computer to avoid damaging electronic parts. For troubleshooting information, see

page 13.

Matrox Extio Series – User Guide 7

Connection setup

This section describes how to connect monitors and other peripherals to your Matrox Extio unit.

Connection overview

Audio cables (stereo)

USB cables

Power cable

Monitor connectors

(4 DVI for Extio F1400/F1420,

2 DVI + 2 HD-15 for Extio F1220) USB cables

Optical cables

Audio cable

(stereo or SPDIF)

FireWire cables

(Extio F1220/F1420)

8 Matrox Extio Series – User Guide

Step-by-step connection setup

1Connect your unit to your

interface card

To connect your Extio unit to your interface

card, you need a dual LC optical cable (sold

separately).

Connect one end of your optical cable to the

optical connector of your interface card.

Connect the other end of your cable to the

optical connector on your unit. Make sure

your connectors are properly connected.

2Connect your monitors

Extio F1400/F1420

–

Connect your

monitors to the monitor connectors at the

back of your Extio unit.

If your monitors have DVI connectors,

connect them directly to the monitor

connectors at the back of your unit.

If your monitors have HD-15 connectors,

use DVI-to-HD15 adapters to connect your

monitors to the monitor connectors at the

back of your unit.

WAR NING:

Because the body of your Extio unit is used to disperse heat, it may become

warm to the touch. Make sure your unit is located in a well ventilated area and nothing is

blocking its ventilation holes.

Note:

The maximum length of optical

cable supported by your Matrox product is

250 meters/750 feet. For more

information, see “Product information”,

page 30.

Optical cable

Cable A

Cable B

Cable A

Monitor

connector (DVI)

Monitor connector

(HD-15)

DVI-to-HD15

adapter

Matrox Extio Series – User Guide 9

Extio F1220

– Connect your monitors to the

monitor connectors at the back of your

Extio unit.

If your monitors have DVI connectors,

connect them directly to the DVI monitor

connectors (

) at the back of your unit.

If your monitors have HD-15 connectors,

connect them directly to the HD-15 monitor

connectors (

) at the back of your unit.

3Connect the power supply

Attach one end of the power supply cable

provided with your Matrox product to the

power connector on your Matrox product.

Plug the power supply cord into an electrical

outlet.

4Connect your input devices

(optional)

To use a keyboard or mouse, simply connect

a USB mouse or keyboard to one of the USB

connectors on your unit. There are 2 USB

connectors at the back of the unit and 4 at

the front.

Note

: While a monitor is connected to a

DVI connector on your unit, the

corresponding HD-15 connector is

disabled.

Monitor connector

(HD-15)

Monitor

connector (DVI)

Power supply

cable

USB connectors

Note:

Your USB keyboard and mouse are unavailable until Windows starts.

10 Matrox Extio Series – User Guide

5Connect your FireWire devices

(optional)

Extio F1220/F1420

– To use a FireWire

device, simply connect it to one of the 2

FireWire connectors at the front of the unit.

6Connect your audio devices

(optional)

Your unit has 2 input and 2 output audio

connectors. The 2 input connectors are

Line

()and

Microphone

().The2

output audio connectors are

Headphones

()and

Line out

( ). All audio

connectors support stereo jack connectors.

The

Line out

connector also supports

SPDIF

(Sony/Philips Digital Interface Format) mini-

plug optical connectors.

To connect an audio device to your unit:

Plug one end of your audio cable into the audio connector on your unit.

Plug the other end of the cable in your audio device. For information on the type of

connector supported by your audio device, see its documentation.

Your Matrox product is now installed. Restart your computer, and install your Matrox software (see

“Software setup”, page 11).

FireWire connectors

Audio connector

(SPDIF/Stereo)
