Matrix G3-MS80 (MS80) Manual de usuario

G3-MS80 (MS80)

8-STACK MULTI STATION

STRENGTH

SERVICE MANUAL

CHAPTER 1: SERIAL NUMBER LOCATION ………………………..…….3

CHAPTER 2: ASSEMBLY INSTRUCTIONS

2.1 G3-MS80 8-Stack Multi Station (MS80) Assembly Instructions..............................4

CHAPTER 3: TROUBLESHOOTING

3.1Troubleshooting - Cable issues……………………………….………………………12

CHAPTER 4: PART REPLACEMENT INSTRUCTIONS

4.1 Hand Grip Foam Replacement.............................................................................13

4.2 Pulley Set Adjustment Handle Replacement........................................................14

4.3 Pulley Set Sleeve Replacement...........................................................................16

4.4 Round Pad Replacement.....................................................................................17

4.5 Seat Pad Replacement.........................................................................................17

4.6 Back Pad Replacement........................................................................................18

4.7 Round Pad Adjustment Handle Replacement......................................................18

TABLE OF CONTENTS

1.1 SERIAL NUMBER LOCATION

The serial number is located at the bottom of the weight stack frame.

CHAPTER 1: SERIAL NUMBER LOCATION

2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS

UNPACKING G3-MS80 8-Stack Multi Station

Thank you for purchasing a MATRIX Fitness product. Your MATRIX G3-MS80 8-Stack Multi Station

is inspected before it is packaged.

Carefully unpack the unit from this box and dispose of the packing materials in accordance with

your local laws.

CAUTION

The weight of the G3-MS80 8-Stack Multi Station is 1980 lbs. (898.1 kg) not including the weight

stack. To avoid injury to yourself and prevent damage to the frame components, be sure to have

proper assistance removing the frame pieces from this box.

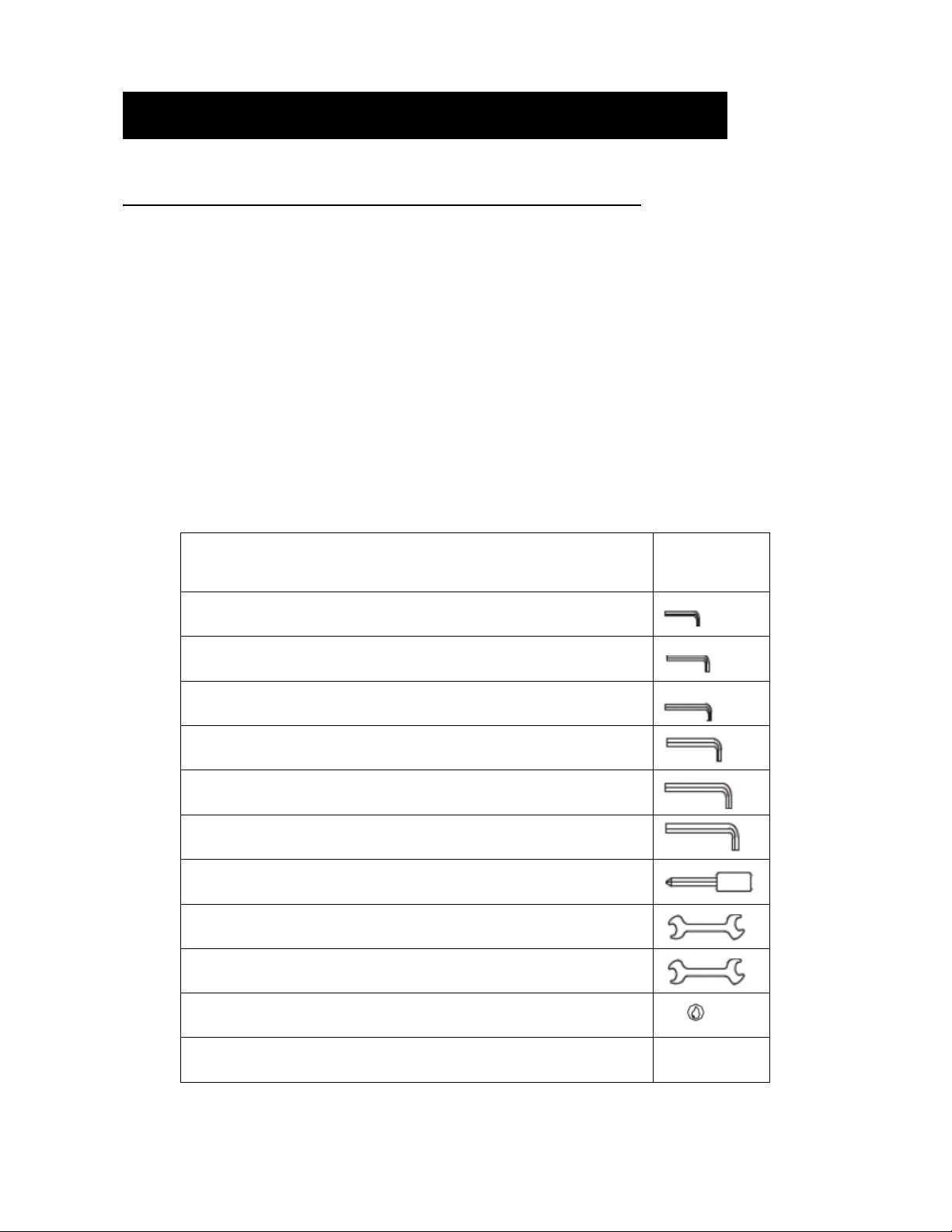

INCLUDE TOOLS REQUIRED FOR ASSEMBLY

3MM L-Shaped Allen Wrench

4MM L-Shaped Allen Wrench

5MM L-Shaped Allen Wrench

6MM L-Shaped Allen Wrench

8MM L-Shaped Allen Wrench

10MM L-Shaped Allen Wrench

Phillips Screwdriver

8MM Open-End Wrench

17MM Open-End Wrench

Guide Rod Lubrication

Hardware Bag

CHAPTER

: ASSEMBLY INSTRUCTIONS

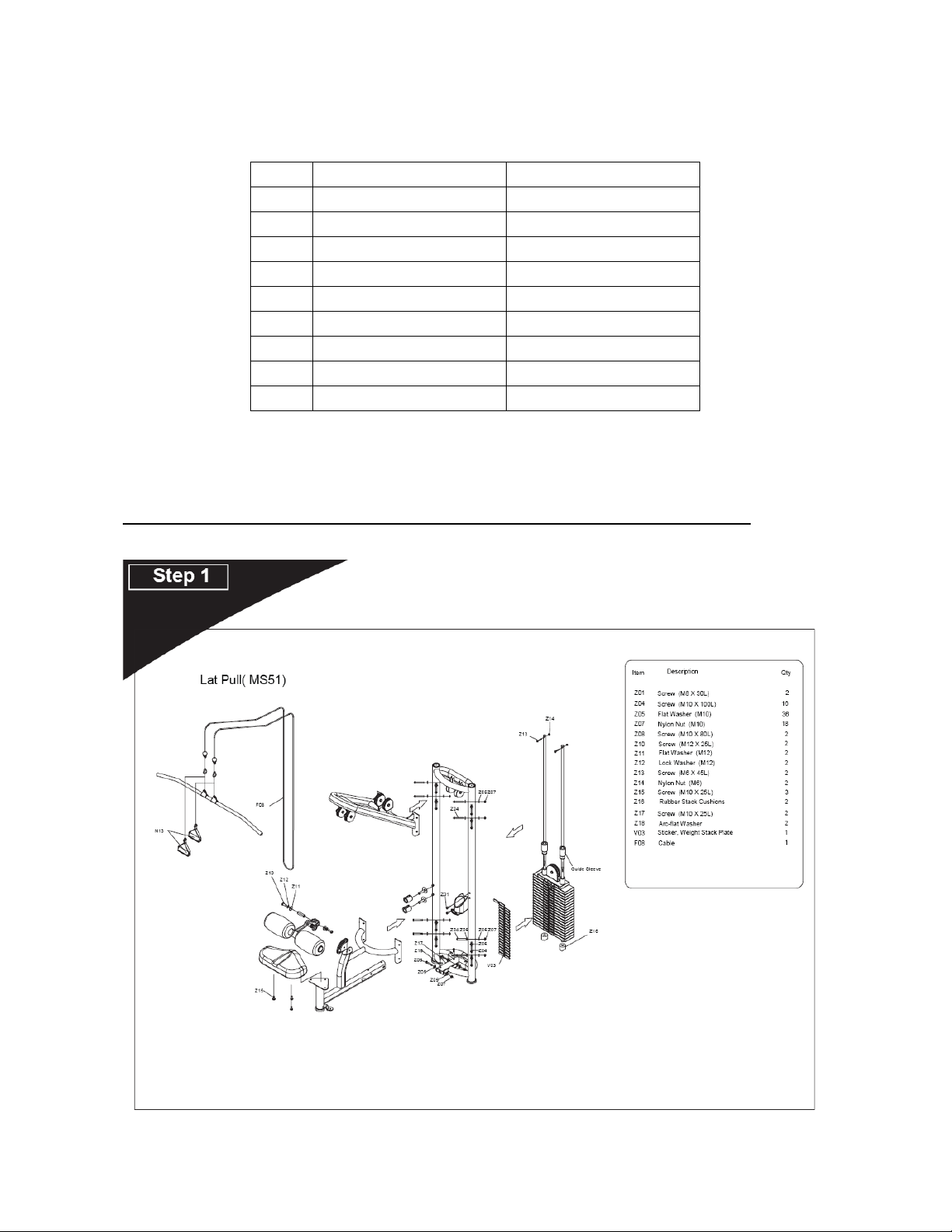

The standard of the screw torque

NO Nom Diameter Torque (lbs/in)

1 M4 24

2 M5 49

3 M6 84

4 M8 288

5 M10 684

6 M12 1197

7 M14 1901

8 M16 2968

9 M18 4079

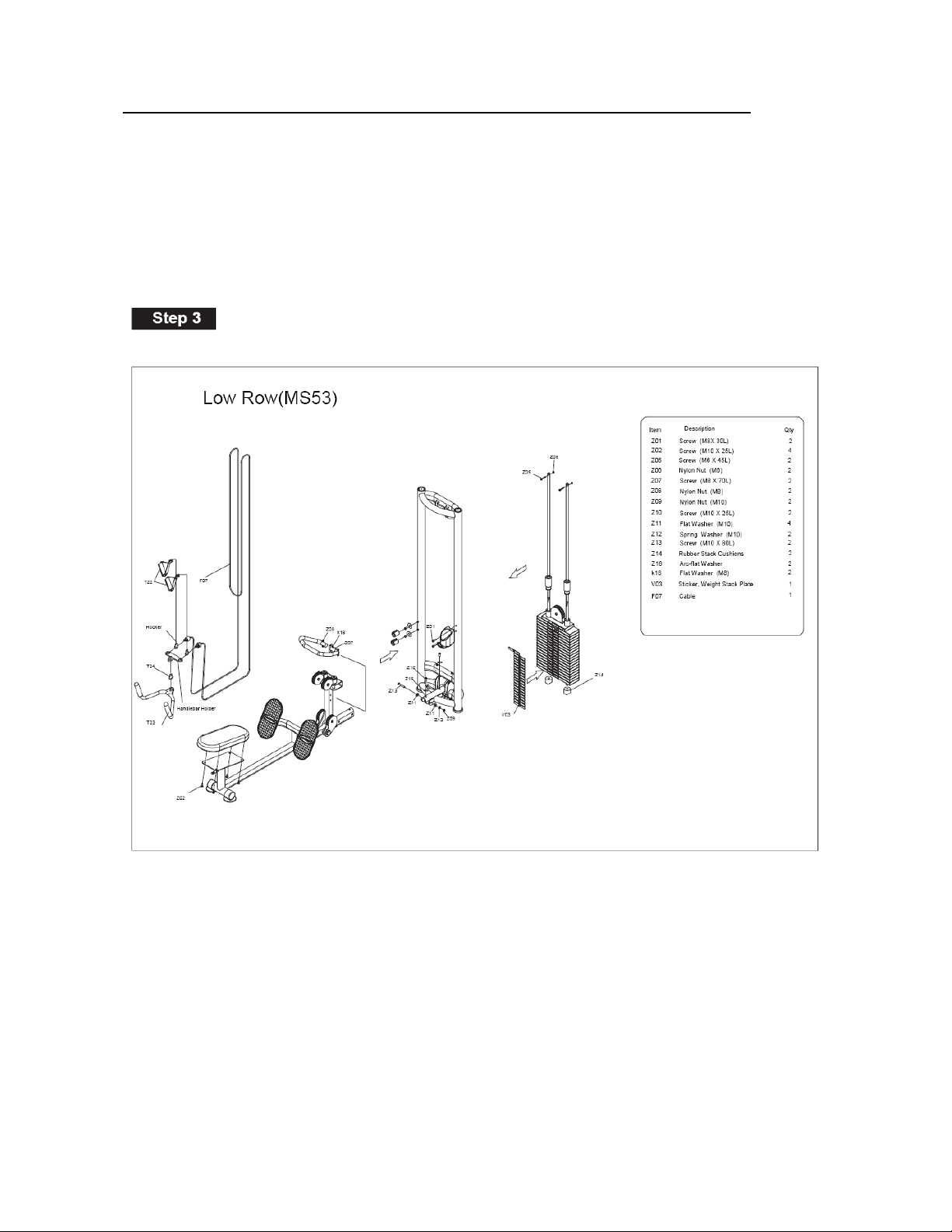

2.1 G3-MS80 8-STACK MULTI STATION ASSEMBLY INSTRUCTIONS - CONTINUED
