MasterChef S550 Manual de usuario
S550 Barbecue
Assembly Manual
199-9556-2 (G55103) Propane
199-9557-0 (G55104) Natural Gas
1 YEAR LIMITED WARRANTY
Manual Revision #: 07302014 AT
TM
MC
ANS Z21.58b-2012-CSA 1.6b-2012
ANS Z21.58b-2012-CSA 1.6b-2012 ANS Z21.58b-2012-CSA 1.6b-2012
ANS Z21.58b-2012-CSA 1.6b-2012
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
Assemble your grill immediately.
Missing or damaged parts claims must be submitted within 30 days of purchase date.
For product inquiries, parts, warranty and troubleshooting support,
please call 1-855-453-2150.
DANGER
1. If you smell Gas:
a. Shut o gas to the appliance
b. Extinguish any open ame
c. Open lid
d. If odor continues, keep away from
the appliance and immediately
call your gas supplier or your
re department
2. Requires two people to complete the
assembly process.
3. Beware of sharp edges.
WARNING
Failure to follow all of the Manufacturer’s
instructions could result in hazardous res,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully
prior to operation of barbecue, even if grill
was dealer assembled. Do not try to light
this barbecue without reading the Lighting
Instructions section of this manual.
THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
CAUTION
Read and follow all safety statements,
assembly instructions, use and care
directions before attempting to assemble
and cook.
WARNING
1. Do not store or use gasoline or other
ammable liquids or vapours in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
WARNING
IN DIRECT SUN, AND IN OPERATION,
YOUR BBQ’S STAINLESS STEEL AND
PAINTED STEEL PARTS CAN BECOME
VERY HOT.
CAUTION
Sharp edges. Wear gloves when assembling
your grill.
THIS BARBECUE IS FOR OUTDOOR USE ONLY
CONTACT CALL CENTRE IF ANY PARTS ARE MISSING
1-855-453-2150
INSTALLER OR ASSEMBLER/CONSUMER
This manual should be kept with the BBQ at
all times.
HEAVY ARTICLE NEEDS 2 TO LIFT
To ORDER non-warranty replacement parts or accessories, or to register your warranty,
please visit us on the web at
www.masterchefbbqs.com
1
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.
HARDWARE PACK
1/4” 13mm Screw
X 20
#8X3/8” Self Tapping Screw
X 14
Wheel Spacer
X 2
NO.10-24UNC Nut
X 3
¼” - 20UNC Nut
X 8
Ø7 Fiber Washer
X 8
Hitch Pin
X 1
NO.10-24UNC X18 Screw
X 3
Washer (Wheel)
X 1
1 2 3
4 5 6
7 8 9
KEY # DESCRIPTION PART NUMBER QUANTITY
1 1/4” 13mm Screw 20120-13013-036 20
2 1/4”-20UNC Nut 31220-13000-036 8
3 #8X3/8” Self Tapping Screw 24200-42008-136 14
4 φ7 Fiber Washer G431-0018-9000 8
5 Wheel Spacer G650-0012-9091 2
6 Washer (Wheel) G650-0013-9091 1
7 Hitch Pin G306-0005-9088 1
8 NO.10-24UNC X18 Screw 20124-10018-036 3
9 NO.10-24UNC Nut 31224-10000-036 3
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
For correct hardware assembly, always position
the lock washer between the screw and the at
washer.
Lock Washer
Flat Washer
Screw
BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. Grill is heavy. Two people are recommended
to complete assembly.
2
PARTS LIST PROPANE FOR 19995562 G55103
KEY # QUANTITY DESCRIPTION PART NO.
AA 1 Top lid assembly G551-0100-01
AB 1 Thermometer and bezel G432-000K-01
AC 2 Lid handle brackets G352-0015-01
AD 1 Top lid handle G551-0001-01
AE 2 Lid bumpers-back G303-0038-01
AF 2 Lid bumpers-front G430-00B8-01
AG 2 Screws for lid G430-0024-02
BA 1 Burner box assembly G551-0300-01
BB 5 Burner G432-B600-01
BC 1 Electrode set, main burner G501-0010-01
BD 4 Burner brace assembly G551-0006-01
BE 5 Flame tamer G432-0096-01
BF 3 Cooking grate G551-0400-01
BG 1 Warming rack G551-0005-01
CA 1 Control panel G551-0012-01
CB 1 Manifold assembly G551-6200-01
CC 1 Regulator G511-0031-01
CD 5 Bezel, control knob G430-0027-02
CE 5 Control knob G432-0090-01
CF1 1 Electronic ignition assembly G409-0021-A1
CF2 1 Electronic ignition button G409-0030-01
CG 1 Grease cup hook G305-0043-01
CH 1 Grease cup G430-0033-02
CI 1 Heat shield G551-0003-01
DA 1 Cart side panel, right G551-0900-01
DB 1 Cart side panel, left G551-0800-01
DC 2 Back brace G551-1000-01
DD 1 Upper Front panel G551-0008-01
DE 1 Lower Front panel G551-0009-01
DF 2 End caps G430-0023-01
DG 2 Wheel G401-0058-01
DH 1 Wheel axle G651-0027-01
DI 1 Match holder G401-0079-01
DJ 3 Tank exclusion G551-0011-01
DK 1 Gas Tank Support G551-0010-01
EA 1 Side shelf table, right G451-0B00-01
EB 1 Side shelf fascia, right G451-0061-01
EC 1 Side shelf table, left G451-0A00-01
ED 1 Side shelf fascia, left G451-0060-01
F1 1 Hardware pack G551-B003-01
F2 1 Assembly instructions G551-M003-01
F3 1 Safe use and care manual G451-M018-03
3

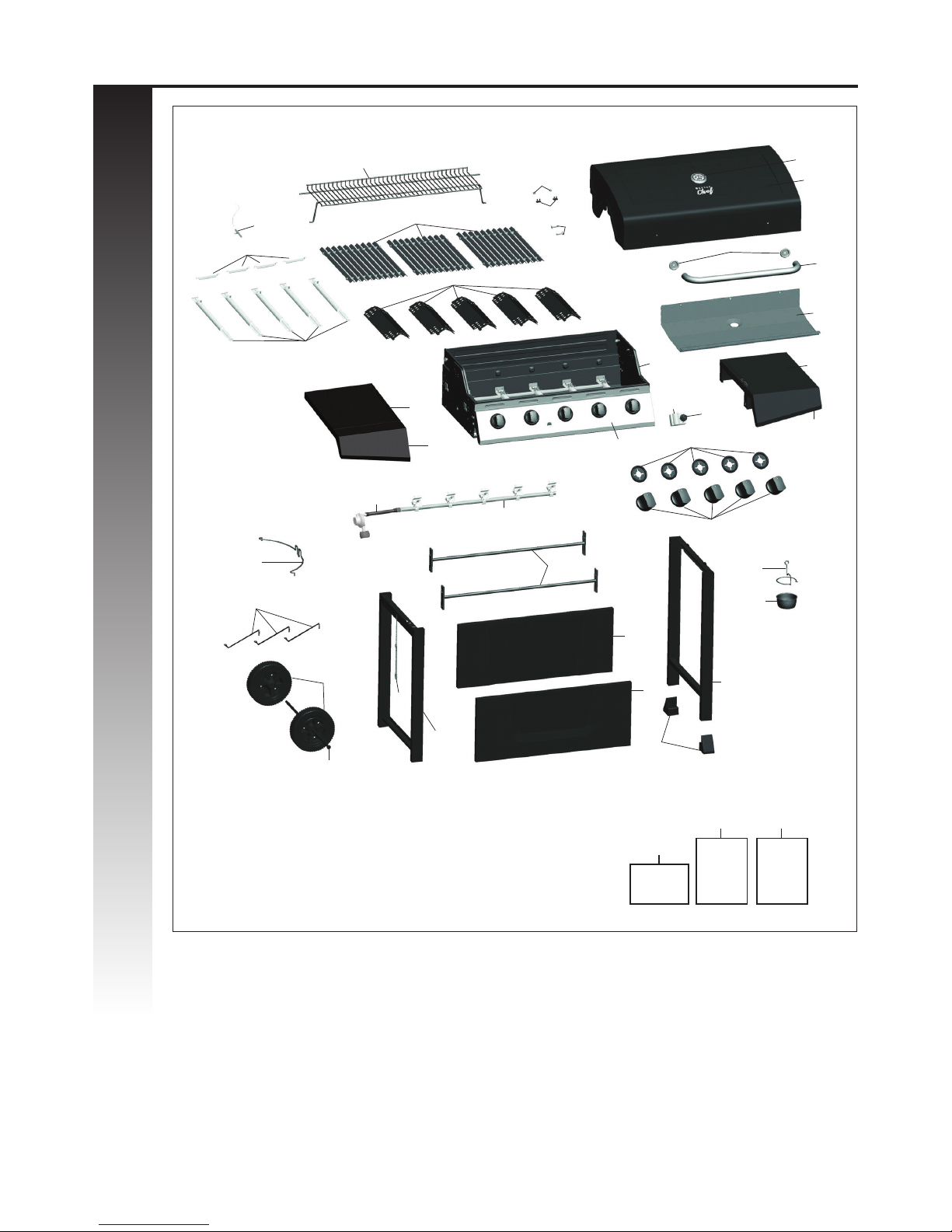

EXPLODED DIAGRAM PROPANE FOR 19995562 G55103
BF
BE
BA
CA
AG
AE
AF
AC
BG AB
AA
AD
CI
BC
DG
DH
DA
DC
CD
EA
CG
CH
EB
DF
DI
DD
DE
DB
BB
BD
CF2
CF1
DK
DJ
EC
ED
CC
CB
CE
HARDWARE
PACK
F1
F2 F3
ASSEMBLY
MANUAL
SAFETY
AND CARE
MANUAL
4
PARTS LIST NATURAL GAS FOR 19995570 G55104
KEY # QUANTITY DESCRIPTION PART NO.
AA 1 Top lid assembly G551-0100-01
AB 1 Thermometer and bezel G432-000K-01
AC 2 Lid handle brackets G352-0015-01
AD 1 Top lid handle G551-0001-01
AE 2 Lid bumpers-back G303-0038-01
AF 2 Lid bumpers-front G430-00B8-01
AG 2 Screws for lid G430-0024-02
BA 1 Burner box assembly G551-0300-01
BB 5 Burner G432-B600-01
BC 1 Electrode set, main burner G501-0010-01
BD 4 Burner brace assembly G551-0006-01
BE 5 Flame tamer G432-0096-01
BF 3 Cooking grate G551-0400-01
BG 1 Warming rack G551-0005-01
CA 1 Control Panel G551-0012-01
CB 1 Manifold assembly G551-6400-01
CC 1 Natural gas hose G501-0099-01
CD 5 Bezel, control knob G430-0027-02
CE 5 Control knob G432-0090-01
CF1 1 Electronic ignition assembly G409-0021-A1
CF2 1 Electronic ignition button G409-0030-01
CG 1 Grease cup hook G305-0043-01
CH 1 Grease cup G430-0033-02
CI 1 Heat shield G551-0003-01
DA 1 Cart side panel,right G551-0900-01
DB 1 Cart side panel,left G551-0800-01
DC 2 Back brace G551-1000-01
DD 1 Upper Front panel G551-0008-01
DE 1 Lower Front panel G551-0009-01
DF 2 End Caps G430-0023-01
DG 2 Wheel G401-0058-01
DH 1 Wheel Axle G651-0027-01
DI 1 Match holder G401-0079-01
EA 1 Side shelf table, right G451-0B00-01
EB 1 Side shelf fascia, right G451-0061-01
EC 1 Side shelf table, left G451-0A00-01
ED 1 Side shelf fascia, left G451-0060-01
F1 1 Hardware pack G551-B003-01
F2 1 Assembly instructions G551-M003-01
F3 1 Safe use and care manual G451-M018-03
5
EXPLODED DIAGRAM NATURAL GAS FOR 19995570 G55104
HARDWARE
PACK
F1
F2 F3
ASSEMBLY
MANUAL
SAFETY
AND CARE
MANUAL
BF
BE
BA
CA
AG
AE
AF
AC
BG AB
AA
AD
BC
DG
DH
DA
DC
EA
EB
DF
DI
DD
DE
DB
BB
BD
CF2
CF1
CC
EC
ED
CB
CG
CH
CI
CD
CE
6
Assemble the upper front panel (DD) and lower
front panel (DE) to the the left and right cart side
panels (DB and DA) as shown.
1
ASSEMBLY INSTRUCTIONS
YOU WILL NEED:
YOU WILL NEED:
1
3
X 8
X 8
Back View
Assemble the two back braces (DC) to the left
and right cart side panels (DB and DA) as shown.
2
DA DB
DA
DB
DD
DE
A
DC
7
Note: Turn Cart assembly upside down.
a. Place wheel (DG) and wheel spacer (#5) onto
the wheel axle (DH). “Cone”side of wheel
should be against cart side panel. Figure B.
b. Insert wheel axle assembly (DH) through wheel
axle hole in the front and rear of the left cart
side panel (DB), as shown.
c. To complete wheel assembly position the
wheel spacer (#5), wheel (DG), wheel washer
(#6) and hitch pin (#7), onto wheel axle (DH)
as shown.
d. Insert end caps (DF) into right cart side panel
(DA).
3
4
ASSEMBLY INSTRUCTIONS
876
YOU WILL NEED:
5
X 2
7
X 1
6
X 1
DG
5
56
7
DG
DH
A
DF
DB
PROPANE MODEL ONLY.
Assemble the three tank exclusion wires (DJ) to
the lower back brace (DC) and the front panel
(DD and DE) as shown.
Back View
Close up - front view
Close up - back view
DE
DD
DJ
DJ
DJ
YOU WILL NEED:
89
X 3 X 3
DC
Close upClose up
C
B
56
7
8
Note: TWO PEOPLE required for this step.
Ensure that the regulator hose (CC) (Propane
models only) is hanging outside of cart.
a. Position the lid and burner box assembly
(A & B), onto the cart assembly (C).
b. Assemble the burner box assembly (BA) to the
cart assembly (C) as shown in gure B.
YOU WILL NEED:
ASSEMBLY INSTRUCTIONS
1
X 4
A B
+
C
A
B
5
6
BA
DB
PROPANE MODEL ONLY.
Assemble the gas tank support (DK) to left cart
side panel (DB).
Back View
Close up
DK
DA
DB
DB
DK
