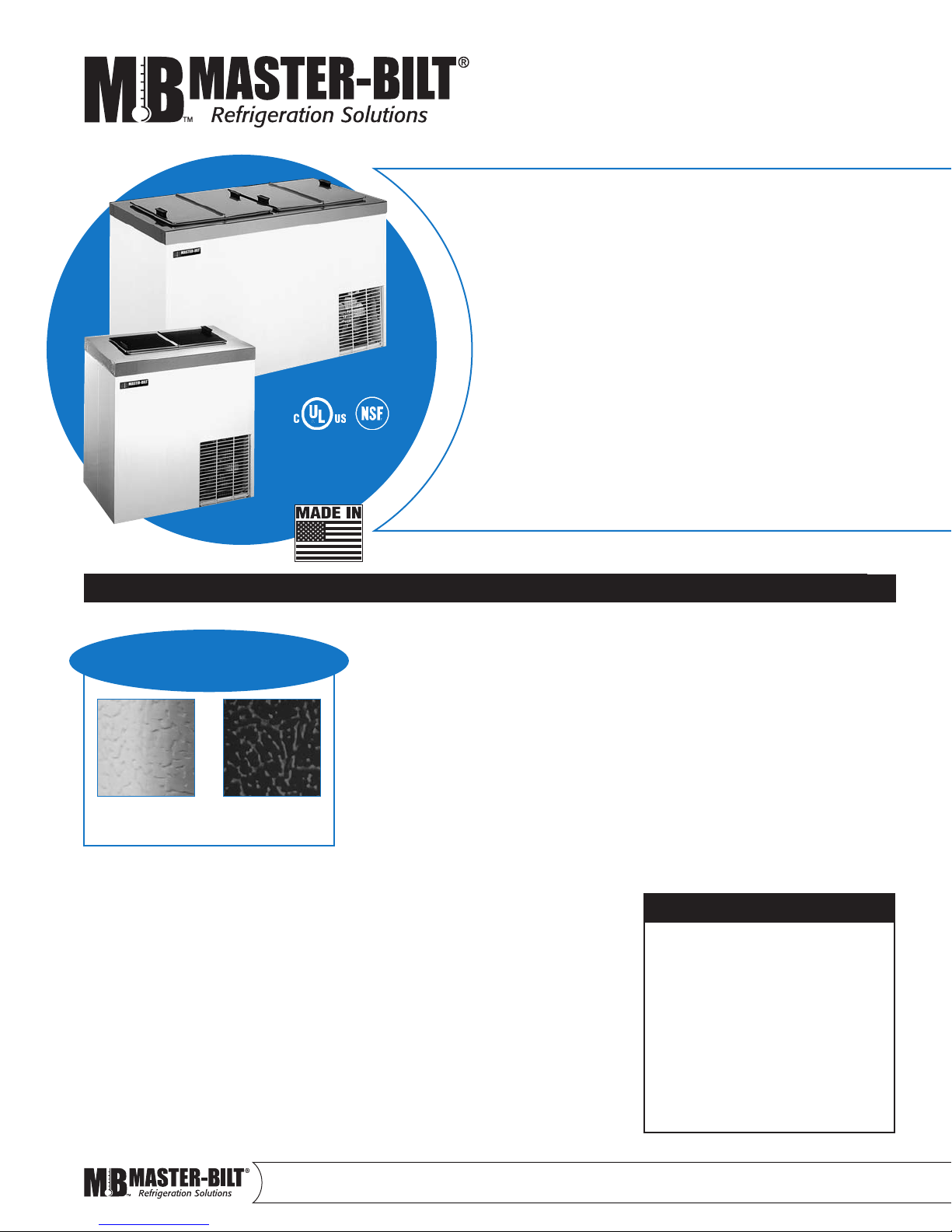

Master Bilt DC-10D Manual de usuario

ITEM NO. ______________________________________________________

PROJECT ______________________________________________________

LOCATION _____________________________________________________

DATE _________________________ QTY. ___________________________

908 Highway 15 North • New Albany, MS 38652

PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com

FEATURES

CONSTRUCTION

• Seamless stainless steel top

• 24 gauge painted textured

galvanized steel cabinet

• Galvanized steel interior

• Equipped with leveling legs to

correct for unlevel ooring

situations

• Floor drain with garden hose

tting

• Galvanized steel inner liner with

cold wall evaporator

• Anti-condensate heaters under

stainless top cap

• 21/4" foamed-in-place “zero

ODP” urethane insulation

LIDS

• Stainless steel

• Hinged with handles

• Gasket

REFRIGERATION

• Refrigerant:

DC-12D ..........................R-404A

All other models ............ R-134a

• Self-contained, factory tested

refrigeration system

• Force draft hermetic condensing

unit (semi-hermetic unit on DC-

12D with wire and tube con-

denser for low maintenance)

• Minimum 4" clearance required

between cabinet back and wall

• Temperature range:

10° to -10°F (-12° to -23°C)

• R-factor (insulation efciency

rating): 19.40

WARRANTY

• Standard limited three year

extended compressor and two

year limited parts and labor

FEATURES

DC-2S

DC SERIES

Conventional

Ice Cream Storage/Dipping

Cabinets

OPTIONS

❑ Add sufx “SE” for all-

stainless exterior

❑ Custom colors

❑ Lid locks

❑ Legs

❑ Casters

❑ Additional lids

❑ Load level shelves

❑ Dipper well

MODELS

❑ DC-2S ❑ DC-8D

❑ DC-4S ❑ DC-10D

❑ DC-4D ❑ DC-12D

❑ DC-6D

C-UL listing for

all models

except

DC-12D.

DC-8D

Standard

white

Black also

available

NEW

STANDARD TEXTURED EXTERIOR

NOTE: Cabinet designed for optimum performance in air-conditioned area at 75°F ambient and 55% relative humidity.

All specications subject to change without notice.

908 Highway 15 North • New Albany, MS 38652

PHONE: 800-647-1284 or 662-534-9061 • FAX: 800-232-3966 or 662-534-6049 • www.master-bilt.com

DC SERIES

CONVENTIONAL ICE CREAM STORAGE/DIPPING CABINETS

TECHNICAL SPECIFICATIONS

LISTINGS

HOOKUP

BID SPECIFICATIONS

Item no. DC-_______________

Provide_____________( ) Conventional

Ice Cream Storage/Dipping Cabinet(s),

Master-Bilt model DC-________.

Cabinet will feature textured nish on

exterior with galvanized steel interior.

Cabinet to have ip lids, seamless stainless

steel top, 24 gauge steel walls, galvanized

steel inner liner with cold wall evapora-

287-7/11-web

Via plug in, 9 foot long, exible 3 wire 14/3

cord with molded plug. Ten amp 115V service

is recommended.

PLAN VIEW SIDE VIEW ELEVATION VIEW

tor, anti-condensate heaters under stain-

less steel top, 21/4" foamed-in-place “zero

ODP” urethane insulation and baked-on

polyester enamel nish. Standard leveling

legs provided to correct for unlevel ooring

situations.

The refrigeration system will be self-

contained. DC-12D will contain R-404A re-

frigerant and all other models will contain

R-134a. The temperature range will be 10°

to -10°F (-12° to -23°C).

Cabinet to have standard limited three

year extended compressor warranty and two

year limited parts and labor warranty.

Cabinet to be UL, C-UL (on all except

DC-12D) and NSF listed.

NEMA 5-15P

MODEL

DIMENSIONS

(in.)

DIMENSIONS

(mm)

VOLTS AMPS

UNIT

H.P.

CAN CAP.

DISPLAY/

STORAGE*

CAP.

CU. FT.

SHIP

CU. FT.

SHIP

WT.

LB/KGL D H L D H

DC-2S 317/8211/8341/8810 537 867 115 5.7 1/4 3/1 5.2 19.0 195/89

DC-4S 54 211/8341/81372 537 867 115 5.7 1/4 6/4 11.0 36.0 280/127

DC-4D 305/8301/8341/8778 765 867 115 5.7 1/4 5/2 7.6 27.0 220/100

DC-6D 43 301/8341/81092 765 867 115 5.7 1/4 8/5 12.5 39.0 275/125

DC-8D 54 301/8341/81372 765 867 115 7.3 1/3 11/8 17.3 47.0 365/164

DC-10D 665/8301/8341/81692 765 867 115 7.3 1/3 14/11 22.0 59.0 430/195

DC-12D 845/8301/8341/82149 765 867 115 7.5 1/3** 18/15 29.1 71.0 490/223

*Capacity in 3 gal. cans **Semi-hermetic compressor

C-UL listing for all models except DC-12D.
