Master Bilt PPT-67 Manual de usuario

Pizza Prep Table Refrigerator

Installation and Operation Manual

Please read this manual completely before attempting to install or operate this equipment!

Full Stainless Steel Visible Exterior

PPT-67

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지2

SPECIFICATIONS............................................................................................ 2

SERIAL NUMBER............................................................................................ 2

CUTTING BOARD & BRACKETS Installation Schematic Diagram.................. 3

INSTALLATION OF CASTORS ........................................................................ 4

INSTALLATION OF HOOD LID ........................................................................ 4

HOW TO CLEAN THE PAN AIR DUCT PANEL ............................................... 6

HOW TO OPEN AND CLOSE THE HOOD LID ................................................6

INSTALLATION................................................................................................. 7

CLEANING & CAUTION................................................................................... 8

BASIC OPERATION......................................................................................... 9

BEFORE REQUESTING SERVICE ............................................................... 10

WARRANTY............................................................................................. 11~13

Pizza Prep Table

Master bilt

CONTENTS

SPECIFICATIONS

PAGE

MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT

PPT-67

5/8 115V/60Hz R-134a 10.4A 395lbs

The serial number is located on the rating label which is on the left interior

wall.

Please retain the unit’s serial number for service purpose.

SERIAL NUMBER

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지2

Master bilt

Part List

* Assemble CUTTING BOARD and BRACKETS as above drawing.

NO PART NAME SPECIFICATION QUANTITIES

1 CUTTING BOARD 67’* 19 5/16’* 1/2’ 1

2 CUTTING BOARD BRACKET SUS304 2

3 LID BRACKET LEFT SUS304 1

4 LID BRACKET CENTER SUS304 1

5 LID BRACKET RIGHT SUS304 1

6 CUTTING BOARD KEY SCREW M5*L6.5 2

7 SCREW M4*10 10

CUTTING BOARD & BRACKETS Installation Schematic Diagram

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지3

Master bilt

1) HANDLE ASSEMBLY

* Assemble the handle with washers and screws as above drawing.

1) Screw the castor (in rear side) and the castor brakes (in front side) by using

castor wrench.

2) Use the castor shims to level the cabinet, if necessary, by inserting them to

stems of the castors.

INSTALLATION OF CASTOR AND CASTOR BRAKE

INSTALLATION OF HOOD LID

Rotation

CASTOR (2EA)

DOOR(L) DOOR(R)

CABINET

CASTOR (WITH BRAKE) (2EA)

WASHER

SIDE VIEW OF

HOOD LID

SCREW

HANDLE

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지4

Master bilt

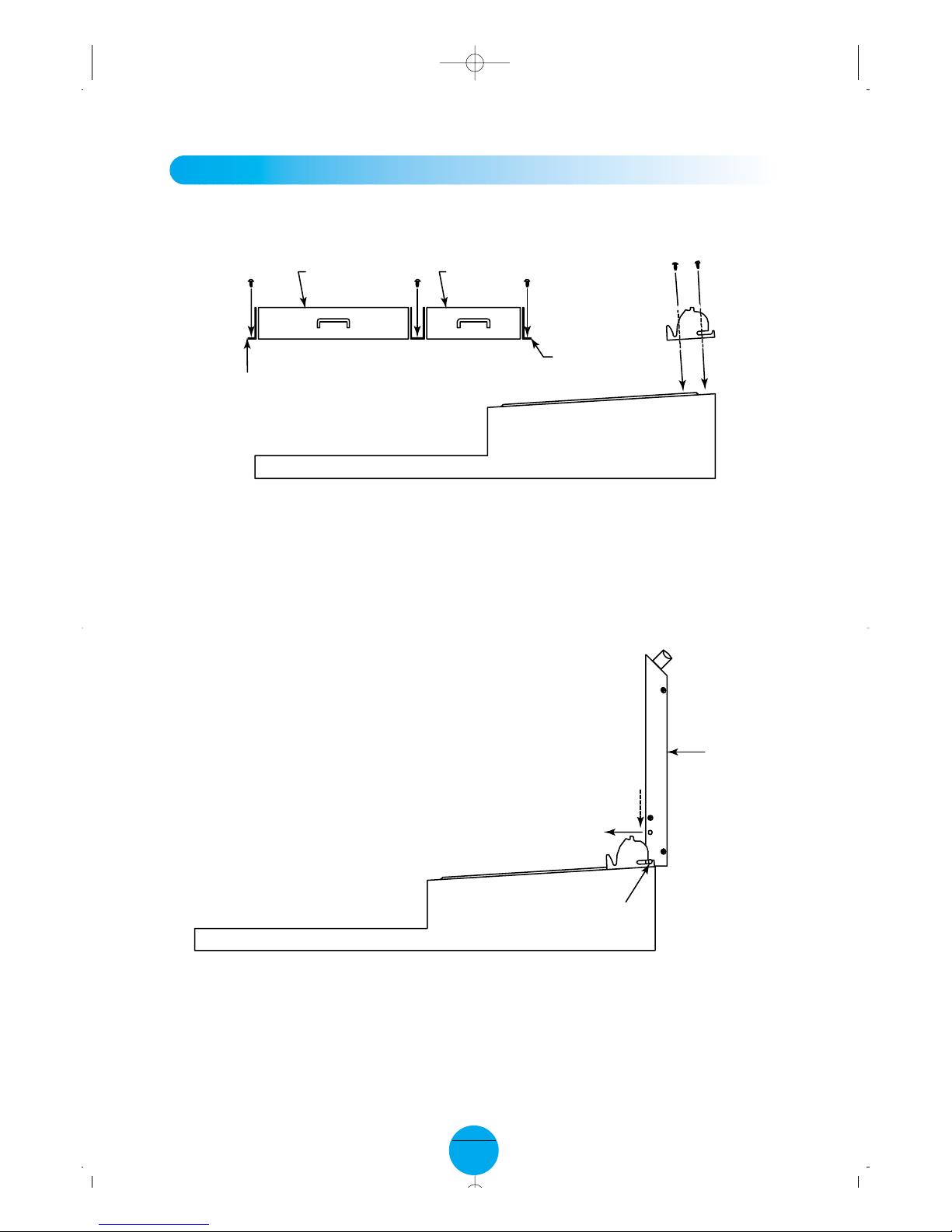

2) Assemble HOOD LID BRACKET like drawing below.

3) Insert HOOD LID SHAFT like drawing below.

* Insert shaft and pull hood lid with parallel like arrow direction.

INSTALLATION OF HOOD LID

LEFT LID RIGHT LID

FRONT VIEW OF THE UNIT

There are 3 kinds of bracket. They are for left, middle, right position.

LEFT BRACKET’S

BENDING DIRECTION

IS LEFT.

RIGHT BRACKET’S

BENDING DIRECTION

IS RIGHT.

HOOD

LID

SHAFT

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지5

Master bilt

HOW TO CLEAN THE PAN AIR DUCT PANEL

HOW TO OPEN AND CLOSE THE HOOD LID

1) Remove all pans.

2) Clean the PANEL with cloth and warm water.

❈When cleaning where pans are located or putting and removing food, be

careful that hood lid is in lid brackets correctly so it will not fall.

MODEL: PPT-67

The Pan Air Duct Panel is

located under pans.

PAN (6+3EA)

HOOD LID

1) When opening HOOD LID, push

forward away from you till locked

in place at lid bracket.

2) When closing HOOD LID, lift

handle and pull up, and close

slowly.

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지6

Master bilt

1. GOOD AIR CIRCULATION

- Do not place any object that will restrict air flow in front or back grills.

- Turbo air highly recommends that there is ample space in rear of unit. 3 inches or more

is best.

2. PLACE ON STRONG GROUND

- Be sure the location chosen has a floor strong enough to support the total weight of

the cabinet and contents.

3. DO NOT PLACE NEAR HEAT

- Be sure to avoid hot corners and locations near stoves.

- High ambient temperature will make cooling efficiency lower.

4. INDOOR USAGE ONLY

- Be sure to install this unit indoor, so it will not get wet from the rain.

5. STABILIZING

- Make sure the unit is installed in a stable condition with the front wheels locked

while in use.

6. LEVELING

- Be sure that the unit is level from front to back and side to side.

INSTALLATION

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지7

Master bilt

CLEANING

1. POWER CORD

- Be sure the power cord is connected to the proper voltage.

- A protected circuit of the correct voltage and amperage must be run for connection of

the line cord.

- Turn ‘off’the power switch before disconnecting the power cord, whenever performing

maintenance functions or cleaning the refrigerated cabinet.

- Compressor warranties are void if compressor burns out due to low voltage.

2. RE-STARTING

- If disconnected, wait 5 minutes before re-starting.

3. POSITIONING FOOD

- Do not obstruct the air inlet which is located at the right inside of the unit.

- Check the gap between the air inlet and food (etc.) whether above 3 inch or not.

CAUTION

Before cleaning, turn unit off at power switch.

1. CLEANING THE INTERIOR AND EXTERIOR

- The interior and exterior of the unit can be cleaned using warm water with soap.

- Do not use an abrasive cleaner because it will scratch the surface.

2. CLEANING THE CONDENSER FINS

- To maintain proper refrigeration performace, the Condenser coil must be free of dust,

dirt, and grease.

This will require periodic cleaning. Condenser fins should be cleaned at least every

three months (90 days) or as needed.

- To clean condenser, unplug at power cord. Condenser can be cleaned with vaccum,

brush, or CO2(high pressure air).

3. CLEAN THE GASKET

- The door gasket should be cleaned frequently to maintain proper sealing.

4. CLEAN THE DRAIN PAN

- Empty the Drain Pan which is located under the unit, periodically.

- When reinstalling Drain Pan, make sure Drain Hose is placed back in pan.

5. CHECK AFTER CLEANING

- Plug unit back in and turn on power switch.

- Check that the unit is operating properly.

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지8

Master bilt

BASIC OPERATION

PPT-67

1. The controller(thermostat) is located at the right inside of the unit.

2. The factory setting for the control is ‘Normal’, and maintains about 38˚F (3˚C) inside.

3. Set toward “Cool”for higher temperature and “Cold”for lower temperature.

4. The thermostat controls compressor’s cycling by sensing inside temperature.

5. When unit will not be used for a long time, turn the power switch off located under the

thermostat knob.

REFRIGERATORS

OFF

COOL

COLD

NORMAL

Temperature Controller

(Thermostat)

PPT-67(Pizza Prep) 2003.2.8 11:57 AM 페이지9

Master bilt

BEFORE REQUESTING SERVICE

SYMPTOMS CAUSES SOLUTIONS

Refrigerator(Freezer)

is freezing(melting)

food.

The unit does not

refrigerate at all.

The unit does not

refrigerate well.

There is a loud noise.

There are dew-drops

on the unit exterior.

There are dew-drops

on the unit interior.

The door does not

close tightly.

•The setting temperature is too

low(high) to maintain food

freshness.

•There is a power connection

failure problem.

•The unit is in sunlight or near a

heating device.

•The unit contains hot food or too

much food.

•The unit door is opened too

frequently or left open too long.

•The temp. dial is not on the

correct position.

•The condenser is clogged.

•The floor is too weak or the

leveling feet are set incorrectly.

•The backside of the unit is too

close to the wall.

•The tray is not in the correct

position.

•High-moisture air can produce

dewdrops during rainy seasons.

•The door is opened too

frequently or left open too long.

•Damp food is stored.

•The door is bent.

•The unit is not level.

•The door gasket has come out.

•Turn the temperature dial to a

warmer(colder) setting.

•

Check the power cord to make sure

the unit is pluged in it correctly

•Move out of sunlight or away

from heater.

•Check the condition of stored

food.

•Check the position of the temp

control dial.

•Check the installation and

adjust the tray position.

•Wipe with a dry cloth.

•Keep the door closed to

remove dewdrops.

•Level the unit again.

•Reposition the gasket.

The following points are not malfunctions:

•A water-flowing sound can be heard when the compressor stops.

This is the sound of REFRIGERANT flowing.

•The compressor does not run during the defrost cycle.
