Marshall Electronics V-R902DLW Manual de usuario

Marshall Electronics

Model V-R902DLW

Dual 9” Desktop and Rack Mount Dual Link / Waveform Monitor

Operating Instructions

Edition 2 Revision 0W

Page intentionally left blank

Table of Contents

Installation and Initial Setup ------------------------------------------------------------------------------------------------------5

Top and Front Panel Features ----------------------------------------------------------------------------------------------------7

Rear Panel Features-----------------------------------------------------------------------------------------------------------------8

Compatible Input Formats---------------------------------------------------------------------------------------------------------9

MAIN MENU AND NAVIGATION------------------------------------------------------------------------------------------------ 10

Using the RotoMenu knob ------------------------------------------------------------------------------------------------------ 10

Marker Setup Submenu ......................................................................................................................................................................10

Video Config Submenu ........................................................................................................................................................................13

Audio Config Submenu........................................................................................................................................................................16

Color Config Submenu.........................................................................................................................................................................17

System Config Submenu......................................................................................................................................................................17

OSD Config Submenu ..........................................................................................................................................................................19

IMD Config Submenu ..........................................................................................................................................................................22

IMD Fixed Config Submenu .................................................................................................................................................................24

Closed Captioning Submenu ...............................................................................................................................................................25

Wave/Vector Submenu .......................................................................................................................................................................26

Ancillary Submenu...............................................................................................................................................................................28

Service Submenu .................................................................................................................................................................................29

Specifications----------------------------------------------------------------------------------------------------------------------- 31

Dimensions-------------------------------------------------------------------------------------------------------------------------- 32

Maintenance------------------------------------------------------------------------------------------------------------------------ 34

Warranty ---------------------------------------------------------------------------------------------------------------------------- 34

Page intentionally left blank

Installation and Initial Setup

■Unpacking

Carefully unpack the V-R902DLW monitor and verify that the following items are included:

• V-R902DLW Monitor

• V-PS12V-5A-2 Power Supply

• Operating Instructions

Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately

contact Marshall Electronics at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-

0606.

■Installation

The V-R902DLW can be mounted in any standard EIA 19” equipment rack. The attached rack ears can be angled to provide the

user control over the viewing angle. Adequate ventilation is required when installed to prevent possible damage to the

monitor’s internal components. Please see the Dimensions section for more information.

■Connections, Power-On and Initial Setup

Plug the power supply into an AC power source (100-240 V @ 50/60 Hz). Attach the Power connector to the back of the monitor.

Connect the required cables for video signal input and output. (Power must be applied to the V-R902DLW for the active loop-

though output to be activated.) The monitor defaults to ‘ON’ when power is supplied. Video will automatically be detected and

displayed on the screen.

Page intentionally left blank

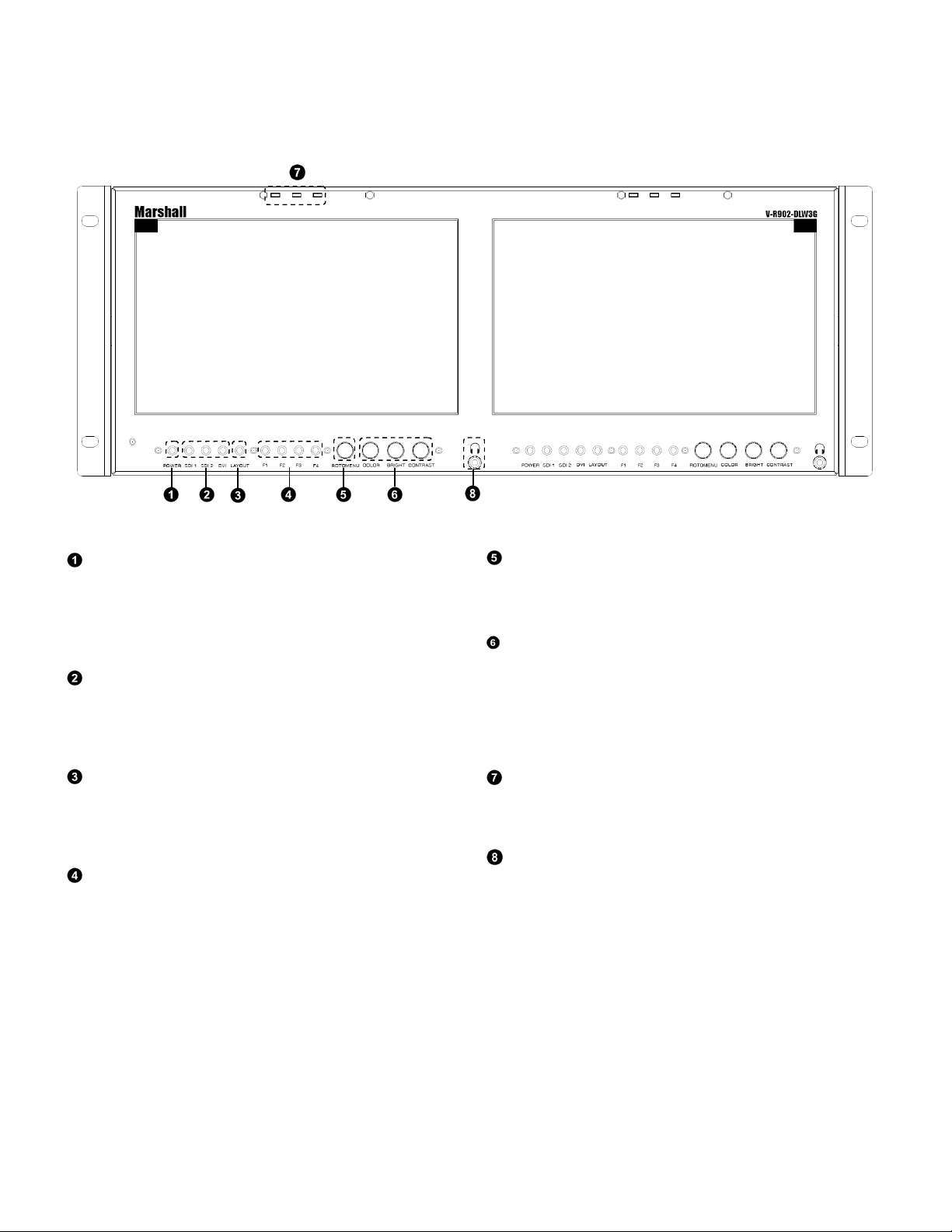

Top and Front Panel Features

Power Button

Use the power button to toggle between ON and STANDBY

modes. The LED on the POWER button will illuminate fully

when the unit is in STANDBY mode. The LED will dim when

the unit is ON.

Input Select Buttons (SDI 1, SDI 2, DVI)

Use the SDI 1, SDI2 and DVI buttons to select the

corresponding video input. Accepted video standards are

automatically detected.

Layout Button

Use the Layout button to switch between the four available

layouts on the monitor. See the Layouts section for more

information the available layouts.

User-Definable Function Buttons

Four user-definable function buttons can be used for direct

access to various settings. Functions are assigned using the on-

screen menu.

RotoMenu™Knob

The RotoMenu™knob allows for accessing and navigating the

main menu using only a single knob.

Image Adjustment Knobs

Use the image adjustment knobs to adjust color brightness,

color-saturation, tint, and contrast of the image. The status of

each image adjustment parameter is shown on the bottom left

of the screen, with values ranging from 0 to 100. Default value

is 50.

LED Tally

Three LED tally lights (yellow, red, green) are available above

the screen.

Headphone Output

The 1/8” jack on the monitor takes two channels of embedded

SDI audio and provides a Headphone audio signal. Volume can

be adjusted via the RotoMenu knob or in the Audio

Configuration submenu.

Rear Panel Features

SDI Inputs / Outputs and DVI-I Input

The V-R902DLW has two 3G-SDI inputs and two active loop-

through outputs. SDI 1 and SDI 2 can be used simultaneously

to display Dual Link SDI signals. The DVI-I Input Connector

includes EDID and HDCP for connection to computers, DVD

Players, Rasterizers, etc.

Power Input

Connect the 2-pin Twist-Lock power input connector here.

Power should only be supplied from the included power

supply.

IMPORTANT: If using a power source other than the included

power supply, damage may result. Please use the pin out

diagram in the Specifications section.

Tally Input / GPI Connector

The LED tally can be activated via the HD-15 connector by

connecting the corresponding pin to ground. A variety of

external devices can be used to perform the contact closure.

The HD-15 connector can also be used as a GPI port by

changing the settings in the On Screen Menu. No additional

power should be supplied to the HD-15 port.

RS-422/RS-485 Serial Interface

The RS-422/485 ports are used to remotely control the IMD or

all DLW features. (Note: Connector/pin-out may need to be

adapted depending on the protocol and controlling device

used). Only one connection to either port is needed to control

the monitors. The second port can be used to loop multiple

monitors in the same bus.

Line Out

The Line Out 1/8” jack on the back of the monitor takes two

channels of embedded SDI audio and provides a Line Level

audio signal. See the Audio Configuration section for

instructions on how to select the two audio channels.

Compatible Input Formats

The following video standards are supported by the V-R902DLW:

SDI Inputs

525i, 625i/50

720p/29.97, 30, 50, 59.94, 60

1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30

1035i/59.94, 60

1080i/ 50, 59.94, 60

3G – Level A and Level B

YCbCr, YCbCr+A, RGB, RGB+A

1080p/ 60, 59.94, 50

1080p/ 30, 29.97, 25, 24, 23.98, 30sF, 29.97sF, 25sF, 24sF, 23.98sF

1080i/ 60, 59.94, 50

3G – Level A and Level B

YCbCr, YCbCr+A, RGB, RGB+A

1080p/ 60, 59.94, 50

1080p/ 30, 29.97, 25, 24, 23.98, 30sF, 29.97sF, 25sF, 24sF, 23.98sF

1080i/ 60, 59.94, 50

Dual Link

YCbCr, YCbCr+A, RGB, RGB+A

1080p/ 60, 59.94, 50

1080i/ 60, 59.94, 50

1080p/30, 29.97, 25, 24, 23.98, 30sF, 29.97sF, 24sF, 23.98sF

1080p/ 30, 29.97, 25, 24, 23.98

DVI-I Input (DVI-Analog and DVI-Digital)

640 x 480/ 60

800 x 600/ 60

1024 x 768/ 60

1280 x 1024/ 60

1600 x 1200/ 60

Video standards (HDMI or YPbPr over DVI connector)

720p/50, 59.94, 60

1080i/50, 59.94, 60

1080p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60

MAIN MENU AND NAVIGATION

Access and navigate the main menu using the RotoMenu™knob:

Using the RotoMenu knob

• Press the RotoMenu™knob to enter the main menu.

• Rotate the knob to scroll up or down in the main menu or each submenu.

• Press the RotoMenu™knob to enter a submenu or choose a setting.

• To return to main menu from submenu, select ‘Back’ and press the RotoMenu™.

The menu timeout can be set in the OSD Timeout section of the OSD Config submenu.

Marker Setup Submenu

Use the Marker Setup submenu to select various on-screen markers, adjust the Marker Background, or toggle the Center Marker ON

or OFF.

Main Menu

Marker Setup Submenu
