Marshall Electronics V-LCD5.6-PRO Manual de usuario

NOTES:

_______________________________________________________

____________________________

II. Specifications

Screen size: 5.6” LCD

Active area: 111.36mm (H) x 83.52mm (V)

Drive system: A-si TFT Active matrix

Screen Color: Full-color

Dot matrix: 320 (H) x RGB x 240 (V) dots

Dot pitch: 0.116 (H) x 0.348 (V)

Overall dimensions: 162mm (H) x 133mm (V) x 54mm (D)

Contrast ratio: 85:1

Luminosity: 270 cd/m2

Sound output: 200mW x built-in 4cm speaker, 1piece

Input terminals: Power input, Video input, Audio input

Consumption power: DC 12V/600mA, 8W (MAX)

Power input: DC 9V - 20V, pin 2.0∅

Video input: 0.75Vp-p - 1Vp-p, pin 3.5∅

Audio input: 50mV (min), Stereo in, pin 3.5∅

Stereo output: Earphone, pin 3.5∅

Screen Display: switchable Reverse / Normal

Operating Temp: -10°C - +55°C

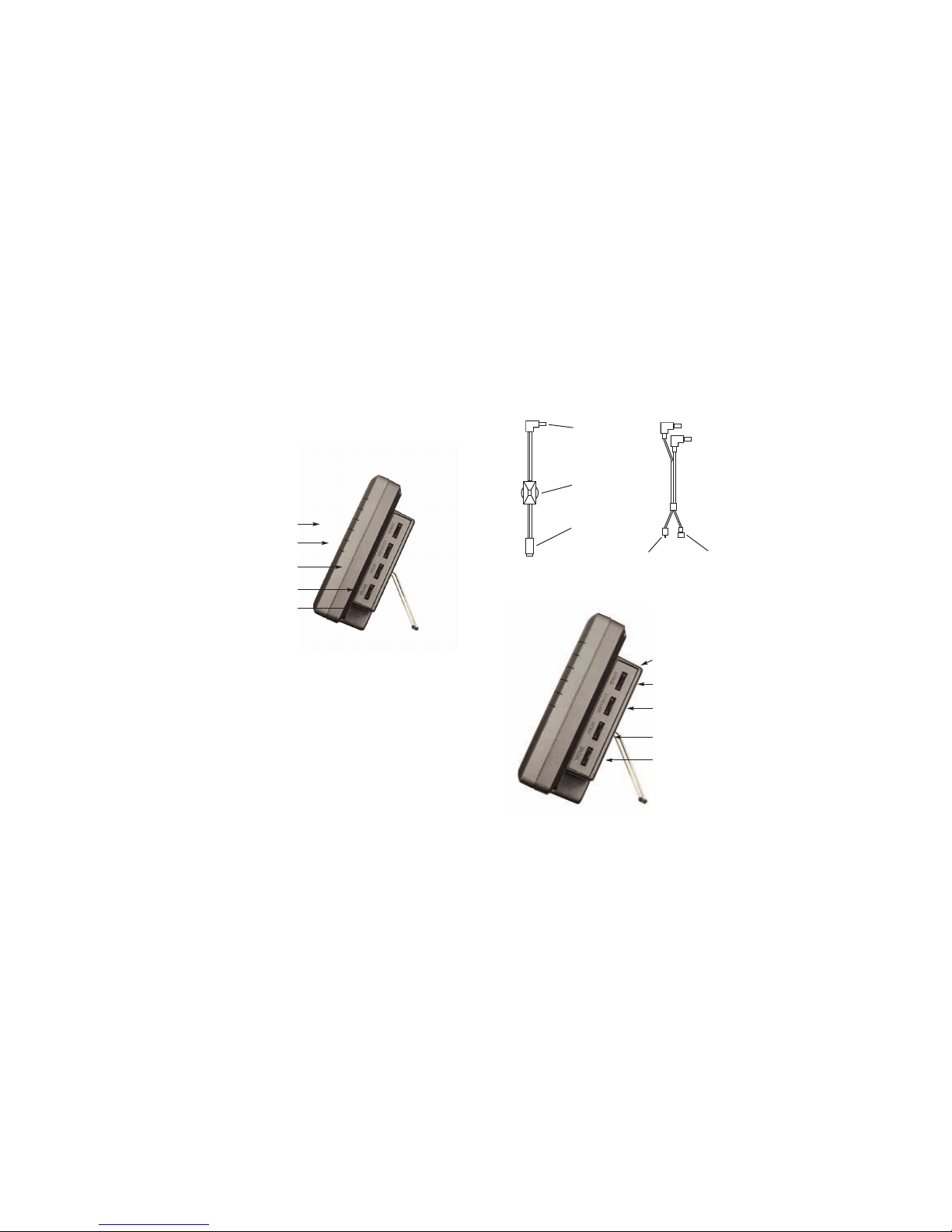

III. Operation

1. Power:

On-Off switch

12VDC, 1Amp

Video Input

Earphone

Audio In

2. Viewing Angle:

The ideal viewing angle is within the following range:

Upper angle: 30°

Lower angle: 10°

Left angle: 45°

Right angle: 45°

IV. Adjustment

Reverse Image

switch

Brightness

Contrast

Color

Audio Volume

3. Connection:

Connector for

LCD power in

Power Switch

Connector for

Rechargeable

battery or

12VDC input

Connector for

Audio Input

Connector for

Video Input

BNC Connector

for Video input

RCA Connector

for Audio input

COLOR 5.6 INCH TFT PANEL WITH AUDIO

USER’S MANUAL

V-LCD5.6-PRO

VIDEO WITH STEREO AUDIO INPUT

COLOR 5.6 INCH TFT PANEL WITH

CLEAR DEFINITION

I. Safety Warning

1. To prevent fire or shock hazard, do not expose this equip-

ment to high humidity and dust. Do not use it in an

unprotected outdoor installation or any area that is wet.

2. The temperature for installation should be kept between

-10°C - +55°C. Avoid direct sunlight or extreme changes

in temperature.

3. For safety sake, do not disseminate the unit or put on an

unstable base. Do not drop it and avoid heavy impact.

4. Ventilation: Openings in the enclosure are provided for

ventilation and to ensure reliable operation of the unit and

to protect it from overheating. These openings must not

be blocked or covered. This unit should not be placed in a

built-in installation unless proper ventilation is provided.

5. Cleaning: Unplug the unit from the outlet before cleaning.

Do not use liquid Cleaners or aerosol cleaners. Use a

damp cloth to clean it.

6. Overload: Do not overload outlets and extension cords as

this may result in a risk of fire or electric shock.

7. Objects and Liquid Entry: Never push objects of any kind

into this unit through openings as they may touch danger-

ous voltage points or short-out parts that could result in a

fire or electric shock. Never spill liquid of any kind on the

unit.

8. Service: Do not attempt to service this unit yourself as

opening or removing covers may expose you to high volt-

age or other hazards. Refer all servicing to qualified serv-

ice personnel.
