Marshall Electronics V-R84DP-HDSDI Manual de usuario

Product Overview

Features

Standard Accessories

Optional Accessories

Electrical Specifications

Mechanical Specifications

Faceplate Cleaning

Operational Setup

Input Connectors

Switch Settings, Adjustments and Indicators

Pixel to Pixel Function

Menu Functions

Warranty

Marshall Electronics

1910 East Maple Ave.

El Segundo, CA 90245

Tel.: 800-800-6608 • 310-333-0606

Fax: 310-333-0688

www.LCDRacks.com

Email: [email protected]

V-R84DP-HDSDI

Users Guide

Marshall Electronics warranties to the first consumer, that this V-R84DP-HDSDI portable monitor will, under normal use, be free from

defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.

This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof of pur-

chase provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above. Therefore, labor

and parts may be charged to you.

This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or modifica-

tions in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make any war-

ranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time

period described above.

Due to constant effort to improve products and product features, specifications may change without notice.

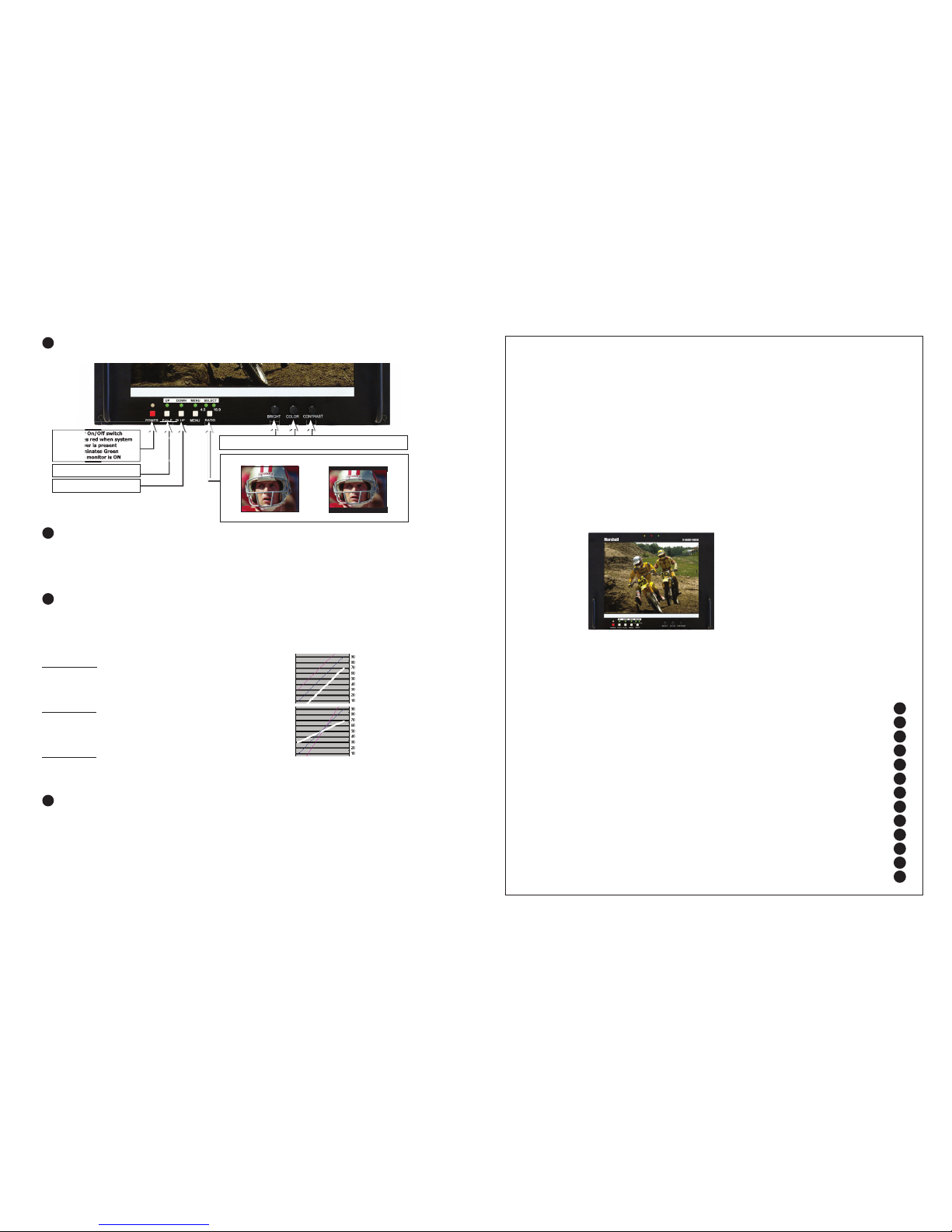

10 Switch Settings, Adjustments and Indicators

Power On/Off switch

Illuminates red when system

power is present

Illuminates Green

when monitor is ON

Pixel to Pixel On/Off

Lights when active

Blue Gun On/Off

Lights when active

Screen aspect ratio switch 4:3 or 16:9 selector and indicators

4:3 Aspect 16:9 Aspect

Image Adjustment Controls

Note: Tint only functions when NTSC Video or S-Video are selected

As the native LCD display is 800 pixels wide by 600 pixels high, it is necessary to change the size of the image to fill the whole screen.

Pixel to Pixel mode bypasses the enlargement or scaling function and displays the native incoming format.

For 525-NTSC based images, pixel to pixel will appear as a 480x640 (4:3 aspect) or 480x720 (16:9 aspect) display.

For 625-PAL based images, pixel to pixel will appear as a 576x640 (4:3 aspect) or 576x720 (16:9 aspect) display.

Bias Adjustment

Press Up (P-P), Dn (Blue), to navigate.

Press Select (Ratio) to activate.

Press Select to toggle R, G, or B

Press Up, Dn, to change value.

Press Menu to exit

Turn On/Off with Menu button.

Use Up (P-P), Dn (Blue), and Select (Ratio) for menu navigation functions.

Color Temperature – Select D65 or User. User mode will automatically be turned on if Gain or Bias are adjusted.

Adj Color Gain – Select to adjust RGB gains.

Adj Color Bias – Select to adjust RGB bias

OSD – Toggle OSD on/off.

Version Number – Display only

Gain Adjustment

Press Up (P-P), Dn (Blue), to navigate.

Press Select (Ratio) to activate.

Press Select to toggle R, G, or B

Press Up, Dn, to change value.

Press Menu to exit

Chart legend: Left Line = Increase of gain

Center Line = D65 (Default)

Right Line = Decrease of gain

Chart legend: Right Line = Increase of Bias

Center Line = D65 (Default)

Left Line = Decrease of Bias

OSD Adjustment

Press Up (P-P), Dn (Blue), to navigate.

Press Select (Ratio) to toggle OSD On/Off

11 Pixel to Pixel Function (Under scan)

12 Menu Functions

13 Warranty

1Product Overview

Our V-R84DP-HDSDI is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. This

cost effective model includes our Award Wining Digital TFT-Megapixel™ system for the LCD screen with 1.44 million pixels plus

our HyperProcess™ of interlace images to produce the smoothest motion available on an LCD/TFT. Standard features include

V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection. Video is scaled to ﬁt on screen

in the highest resolution using a state of the art LSI that incorporates 6x6 pixel interpolation with precision Gamma correction and

Match Color Conversion™ to product the best images available.

2Features

V-R84DP-HDSDI

Users Guide

Users Guide Marshall Electronics

TFT-MegaPixel™ Display

800x600 Dots (1.44 million pixels)

Capable of displaying more than 800 TV Lines resolution. The composite video signals are internally

up converted to High Deﬁnition. All signals remain completely digital to provide the most exact im-

ages available.

Standard Inputs 2 SDI with Auto Detect of 525/625 formats (BNC) (SMPTE259M) (ITU-R-BT601)

Durable metal enclosure Protection for all connections and controls with strategically placed ventilation for use in harsh envi-

ronments

Protective Screen Cover Optical grade polycarbonate screen cover with Antireﬂective/Antiglare coating

HyperProcess™ Display interlace images without smearing or sacriﬁce of temporal resolution with our proprietary

interpolation algorithms. Images are then displayed at a sample rate equal to the frame rate.

Memory Function Adjustment Settings Memory stored on shutdown and recalled when power is applied

MatchColor Conversion™ Factory programmed to closely match typical SMPTE/EBU CIE color metric and color temperature

speciﬁcations. This model is adjusted for D-65 color temperature and 62% SMPTE color gamut

Color Temp Adjustment User control for gain and bias of Red, Green, and Blue colors

Blue Screen Use for adjustment to SMPTE color Bars

OSD On screen display of Format and Ratio

Pixel to Pixel™ Scale process bypass to display native pixel inputs. Also functions as Underscan

50,000 hour backlight life Backlights are the most common failure on a TFT/LCD monitor. This backlight system has an MTBF

of 5 years and uses specially designed lamps to provide brighter images.

Tally (DB-15) Three LEDs (Red, Green, Amber) produce 7 different tally indications

Stand V-LCD4-ST Use for table top mount

Sun Hood V-H900 Use for viewing in bright lighting or outdoors

Power Adapter Cable V-PAC-D Use with Anton Bauer D-type connection

Power Adapter Cable V-PAC-XLR Use with 4 Pin XLR connections

Protective Carry Case TBD Manufactured by Storm Case

4Optional Accessories

3Standard Accessories Accessories Supplied with the V-R84DP-HDSDI

• Users manual

• “Brick” type 12vdc power supply with 4 Pin Female XLR connector

• “V” Mount battery adapter

• ¼”-20 mounting plate

210 Plastic Cleaner & Polish and 210 Plus Cleaner

Sumner Laboratories

186 Lincoln Street

Boston, MA 02111

617-542-8656 / Fax: 617-482-9001

20/20 Plastic-Cleaner

Craftics, Inc.

PO Box 91930

Albuquerque, NM 87199

(505) 338-0005

Crystalclean

Discovery Plastics

3700 Western Way, NE

Millersburg, OR 97231

541-926-2900 / Fax: 541-967-8441

www.discoveryplastics.com

Plexus Plastic Cleaner

Plexus

638 Lindero Canyon Rd. #371

Agoura, CA 91301

800-405-6495

Fax: 818-879-0697

Scotch-Brite High Performance Cloth

3M Stationery & Ofﬁce Supplies Div.

3M Center

St. Paul, MN 55144-1000

877-362-5684

Fax: 651-733-0382

www.mmm.com

NOVUS #1 Plastic Clean and Shine

NOVUS, Inc.

12800 Highway 13 South, Suite 500

Savage, MN 55378

800-548-6872 ext.451

Fax: 952-946-0435

The Simco Industrial Static Control

An Illinois Tool Works Co.

2257 North Penn Road

Hatﬁeld, PA 19440-1998

800-203-3419

215-822-2171

Fax: 215-822-3795

www.simco.biz

Exair Corporation

1250 Century Circle North

Cincinnati, OH 45246-3309

513-671-3322

Fax : 513-671-3363

www.exair.com

Recommended Anti-Static Cleaners and Polishes

8Operational Setup

1. Unpack the V-R84DP-HDSDI and accompanying power supply. Physically inspect for any damage that may have occurred dur-

ing shipping. Should there be any damage, immediately contact Marshall Electronics at 800-800-6608. If you are not located within

the continental united states call +1 310-333-0606.

2. Connect required cables for signal input and output.

Please note that power must be applied to the V-R84DP-HDSDI for the video outputs to be activated. All BNC connectors should

be rated for 75Ω.

3. Plug the power supply into the A.C. source. Please note that power can be supplied from a variety of DC sources, such as bat-

teries or Vehicle power. Input power range is 10.4 to 16.8 Volt D.C. In operation, the V-R84DP-HDSDI will draw approx. 1. amp.

Attach 4 Pin XLR power connection from V-PS12-V-5 power supply to the back of the unit.

4. Turn on the V-R84DP-2SDI by depressing the power switch located on the front of the unit.

9Input Connectors

Battery and External Power can

not be used simultaneously

V-Mount Battery Adapter

See Optional Accessory section

for a selection of batteries

* Tally lamps active when connected to ground

Optional Accessories (continued)

Battery Adapter V-DV-PWR1

Uses 2 Sony DVCam/HDV FP-Type batteries.

When used with monitor power supply, can charge batteries

plus operate monitor

V-mount to Anton Bauer adapter V-ABA-01

Use to power Marshall Electronics monitors that have V-

Mount plate with Anton Bauer Gold Mount battery.

Sequential 2 channel charger IDX-VL-2Plus

2-channel sequential charger with a built-in 60W power sup-

ply. Charges 2 ENDURA E series batteries in fewer than 5

hours. One 10’ XLR cable included. Weighs only 2 lbs

Sequential 4 channel charger IDX-VL-4 Economically charges 4 ENDURA E series batteries in

under 6 hours using Full Power Charge (FPC) method

Simultaneous 4 channel charger IDX-VL-4S Charges 4 ENDURA E series batteries in 2.5 hours or less

55 W Lithium Battery IDX-E7S V-Mount battery pack with 3 LED power Indicator

55 W Lithium Battery

with Power Link IDX-E7 V-Mount Battery Pack with PowerLink includes accurate

Power Status Display and supports Digi-View

82 W Lithium Battery IDX-E10S V-Mount battery pack with 3 LED power Indicator

82 W Lithium Battery

with Power Link IDX-E10 V-Mount Battery Pack with PowerLink includes accurate

Power Status Display and supports Digi-View

Digital to Analog Converter BC-0301-10 Converts SDI to analog Composite

Mounting Plate Attaches to any side for mount to ¼-20 threaded component

Cleaning Wipes V-HWP-K Package of 10 non-toxic, antistatic, alcohol and ammonia

free cleaning wipes.

Marshall Electronics 3

V-R84DP-HDSDI Users Guide

5Electrical Speciﬁcations

Display (Viewing Area) 8.4 Inch diagonal (170.4mm w x 127.8mm h)

Screen Aspect 4:3/16:9 switchable

Resolution (RGB Dots) 800H×RGB×600V (1.44 million pixels)

Viewing Angles 160° with protective screen and treatment (130°H x 120°V native)

Contrast Ratio 500:1

Dot Pitch .213mm square pixel

Pixel Response 10ms rise/25ms fall

Backlight Type / Life Field Replaceable CCFL (50,000 hour half life)

Brightness 500 cd/m²

LCD Screen Treatments Anti Reflection, Anti Glare, Hardcoat

Protective Screen 0.118” (3mm) thick Optical Grade Polycarbonate with Anti-Glare and Anti-Abrasion

coatings. (600 Cheesecloth mil-M-13508C)

Estimated MTBF 5 years of 24/7/365 operation

System NTSC/PAL auto recognition

Inputs 2 SDI (BNC) Self Terminating (SMPTE-259M) (ITU-BT-R601)

Active Outputs 1 SDI of on screen video (BNC) Available when power is applied

Color temperature D65 (6500° Kelvin)

Color Gamut SMPTE-C/EBU

Luma Linearity Typical +/- 3% with 5 ire increments (0 to 10 ire)

Power Required 10.4 to 16.8 VDC

Power Consumption Approx. 15 watt nominal

Operating Temperature 32°F to 120°F (0°c to 50°c)

Storage Temperature -4°F to 120°F (-20°c to 50°c)

Compliance ₠, FCC-Class A, ANSI-63.4 (Certificates on file)

RoHS WEEE/Environmental Do not dispose. Return to Manufacturer or Authorized Recycle Facility

6Mechanical Speciﬁcations

Dimensions 9”w x 6.875” h x 2.5” d (228.6mm x 174.6mm x 38.1mm)

Approx. Weight 3.3 lbs (1.5 Kg)

Power Supply Weight 1.0 Lb (.45 Kg)

7Faceplate Cleaning

Faceplate Cleaning

When cleaning the faceplate it is very important to use non-abrasive and ammonia free cleaning agents and a clean micro ﬁber

cloth. Do not use paper towels. Paper towel ﬁbers are coarse and may scratch the surface of the Polycarbonate faceplate. Paper

towels may also leave streaks on the surface. Antistatic and ﬁngerprint resistant cleaning agents are recommended.

Wash protective cover with a solution of mild soap or detergent and lukewarm water. Use a clean soft cloth, applying only light pres-

sure. Rinse with clean water and dry by blotting with a damp cloth or chamois. Grease, oil or tar may be removed with a good grade

of hexane, aliphatic naphtha, or kerosene. These solvents may be obtained at a paint or hardware store and should be used in ac-

cordance with manufacturer’s recommendations.

DO NOT USE: window cleaning sprays, kitchen scouring compounds or solvents such as acetone, gasoline, benzene,

alcohol, carbon tetrachloride, or lacquer thinner. These can scratch the sheet’s surface and/or weaken the sheet causing

small surface cracks called “crazing.”

Faceplate Dusting

Dust with a soft, damp cloth or chamois. Dry or gritty cloths may cause surface scratches and create a static electric charge on the

surface. Neutralizing static electricity effects by using recommended cleaning and polishing practice.

Faceplate Polishing

Protect and maintain surface gloss by occasional polishing with a good plastic cleaner and polish. Apply a thin, even coat with a soft

clean cloth and polish lightly with cotton ﬂannel. Then wipe with a damp cloth to help eliminate electrostatic charges that can attract

dust particles

Marking on the Faceplate

Use SHARPEE or equivalent marker. Clean as per instructions with an ammonia free cleaning agent.

All signal types and frame rates are automatically detected

• 525 –60i / 625 - 50i (Interlaced NTSC/PAL)

• 720 x 1280 – 23.97P, 24P, 25P, 50P, 59.94P, 60P (Progressive)

• 1035 x 1920 - 59.94i, 60i (Interlaced)

• 1080 x 1920 – 50i, 59.94i, 60i / 23.973Psf, 24Psf, 25Psf, 29.97Psf, 30Psf

Psf=Progressive or Segmented Frame formats

Digital Screen Formats and Frame Rates:

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Marshall Electronics

Marshall Electronics

Marshall Electronics V-R44P-HDSDI Manual de usuario

Marshall Electronics

Marshall Electronics V-LCD171MD Manual de usuario

Marshall Electronics

Marshall Electronics QV261-HDSDI Manual de usuario

Marshall Electronics

Marshall Electronics V-R151PV-R151P Manual de usuario

Marshall Electronics

Marshall Electronics V-LCD70P-HDMI Manual de usuario

Marshall Electronics

Marshall Electronics Orchid OR-702 Manual de usuario

Marshall Electronics

Marshall Electronics V-R72DP-2C Manual de usuario

Marshall Electronics

Marshall Electronics orchid OR-901-XDI Manual de usuario

Marshall Electronics

Marshall Electronics V-LCD70P-HDA Manual de usuario

Marshall Electronics

Marshall Electronics V-R72P-2HDSDI Manual de usuario

Marshall Electronics

Marshall Electronics M-LYNX-702 Manual de usuario

Marshall Electronics

Marshall Electronics V-R231-IMD-HDSDI Manual de usuario

Marshall Electronics

Marshall Electronics V-R84DP-2C Manual de usuario

Marshall Electronics

Marshall Electronics V-R902DLW Manual de usuario

Marshall Electronics

Marshall Electronics V-R241-DLW Manual de usuario

Marshall Electronics

Marshall Electronics TFT-MegaPixel Monitor V-R70P-SD Manual de usuario

Marshall Electronics

Marshall Electronics V-R573P Manual de usuario

Marshall Electronics

Marshall Electronics V-R70P-HDSDI Manual de usuario

Marshall Electronics

Marshall Electronics V-RD151-4 Manual de usuario

Marshall Electronics

Marshall Electronics V-R70P-HDA Manual de usuario

Marshall Electronics

Marshall Electronics V-R261P-AFHD Manual de usuario

Marshall Electronics

Marshall Electronics QV261A-HDSDI Manual de usuario

Marshall Electronics

Marshall Electronics SD/HD Widescreen LCD Monitor V-R201P-AFHD Manual de usuario

Marshall Electronics

Marshall Electronics V-R1041DP-DVI Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
