Marshall Electronics V-LCD171MD Manual de usuario

Marshall Electronics

Model No.

V-LCD171MD

Operang Instrucons

This page intenonally leblank

Table of Contents

Installaon and Inial Setup.......................................................................................................................................................4

Top and Front Panel Features ----------------------------------------------------------------------------------------------------5

Rear Panel Features-----------------------------------------------------------------------------------------------------------------6

Compable Input Formats---------------------------------------------------------------------------------------------------------7

Main Menu and Navigaon--------------------------------------------------------------------------------------------------------8

Using the menu buons..................................................................................................................................................................8

Using the RotoMenu (BRIGHT) knob...............................................................................................................................................8

Scaling Submenu .............................................................................................................................................................................9

Color Submenu..............................................................................................................................................................................12

Markers Submenu .........................................................................................................................................................................14

Filters Submenu.............................................................................................................................................................................16

Audio Submenu .............................................................................................................................................................................20

Signal Analysis Submenu ...............................................................................................................................................................21

User Sengs Submenu .................................................................................................................................................................22

System Submenu...........................................................................................................................................................................23

Speciﬁcaons ----------------------------------------------------------------------------------------------------------------------- 25

Dimensions-------------------------------------------------------------------------------------------------------------------------- 26

Maintenance------------------------------------------------------------------------------------------------------------------------ 27

Warranty---------------------------------------------------------------------------------------------------------------------------- 27

Installation and Initial Setup

Unpacking

Carefully unpack the V-LCD171MD monitor and verify thahe following items are included:

•V-LCD171MD Monitor (3G Module Oponal)

•V-PS12-5V-XLR Power Supply

•Operang Instrucons

Inspeche unior any physical damage that may have occurred during shipping. Should there be any damage, immediately

contact Marshall Electronics at (800) 800-6608. If you are not located within the connental United States, call +1 (310) 333-

0606.

Connections, Power-On and Initial Setup

Plug the power supply into an AC power source (100-240 V @ 50/60 Hz). Aach the Power connector to the back ohe monitor.

Conneche required cables for video signal input and output. (Power must be applied to the V-LCD171MD for the acve loop-

though outpuo be acvated.) The monitor defaults to ‘ON’ when power is supplied. Video will automacally be detected and

displayed on the screen.

Top and Front Panel Features

Power Button

Turn the display ON or OFF by pressing the power buon. In

the ON state, the LED on the power buon will dim. In the

OFF state, the LED on the buon will be aull power.

Input Select Button

Use the Input select buon to switch between the on-board

HDMI input or (if available) the module Input.

User-Denable Function Buttons

Four user-deﬁnable funcon buons can be used for direct

access to various sengs. Funcons are assigned using the on-

screen menu or by highlighng a funcon and pressing one of

the funcon buons. See User Sengs Submenu for

informaon on changing Funcons.

Menu Navigation Buttons

Use the Menu, , , and Select buttons to display and

navigate the on-screen menu. See MAIN MENU AND

NAVIGATION for details on using the Menu.

Image Adjustment Knobs

Use the image adjustment knobs to adjust color saturaon,

brightness and contrast ohe image. The status of each image

adjustment parameter is shown on the boom leohe

screen, with values ranging from 0 to 100. Pressing a knob

once displays the current value. Pressing a knob twice resets

the value to the default seng.

User Control Knob

The USER control knob can be customized to control mulple

funcons. Change the funcon ohis knob in the MENU. See

the User Sengs Submenu for more informaon.

Stereo Headphone Jack

The 1/8” Headphone jack on monitor’s side takes two

channels of embedded HDMI or SDI audio and provides an

audio signal. See the Audio Submenu for informaon on

working with audio capabilies.

Tally LED

Three user acvated LED tallys. Acvate these using the HD15

Connector on the rear ohe unihrough contact closure.

RearPanel Features

Power Connector

Power the unihrough this port. Power can be supplied from

the included power supply or from a variety of DC sources

supplying the appropriate voltage on the listed pins. See the

Speciﬁcaons secon for more informaon.

HDMI Input and Output

The V-LCD171MD has one HDMI input and one acve loop-

through output. The HDMI Outpus HDCP Compliant and will

NOT pass through HDCP protected content. See Compable

Input Formatsfor details on accepted formats.

Module Slot

Us the Module sloo install the 3GSDI module. Contact

Marshall Electronics for more informaon.

Tally Port

For acvaon ohe tally LEDs on the front ohe unit.

VESA mounting area

Standard VESA mount paern for customized mounng

opons.

Compatible Input Formats

MD-3GE

525i/60, 625i/50

720p/25, 29.97, 30, 50, 59.94, 60

1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30

1035i/59.94, 60

1080i/ 50, 59.94, 60

3G – Level A

YCbCr, RGB

1080p/ 60, 59.94, 50

HDMI Input

480p59.94, 576p50

720p/25, 29.97, 30, 50, 59.94, 60

1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30

1080p/ 50, 59.94, 60

1035i/59.94, 60

1080i/ 50, 59.94, 60

MAIN MENU AND NAVIGATION

Access and navigate the main menu using the 4 menu buons or the RotoMenu™ knob:

Using the menu buttons

•Press the MENU buon to enter the main menu.

•Use the and buons to scroll through the main menu or each submenu.

•Press the SELECT buon to enter a submenu or choose a seng.

•Press the MENU buon to exihe main menu, or return to the main menu from a submenu.

Using the RotoMenu (BRIGHT) knob

The Marshall Electronics RotoMenu concept has been brougho our line of camera top monitors to make navigang the Main

Menu easier than ever. To RotoMenu funconality has been integrated into the BRIGHT knob, so that whenever the Main Menu

is up,

•Press the MENU buon to enter the main menu.

•Rotate the BRIGHT knob to scroll up or down in the main menu or each submenu.

•Press the BRIGHT knob to enter a submenu or choose a seng.

By default, the menu automacally mes out aer 15 seconds oeing idle.

Main Menu

Scaling Submenu

Use the Scaling submenu to adjust various scaling opons and to allow greater control oow your video signal is shown on the

display.

•Input Crop

Enable the Input Crop funcon to seleche area of acve video that you would like shown on the image display. Seleche

desired Input by accessing the Adjust opon below the main funcon:

•Adjust

Use the BRIGHT knob to move the selecon box LEFT and RIGHT.

Use the COLOR knob to move the selecon box UP and DOWN.

Use the CONTRAST knob to move the right border LEFT and RIGHT.

Use the USER knob to move the boom border UP and DOWN.

Scaling Submenu

When you are sasﬁed with the posion, press the SELECT buon or press the BRIGHT knob to conﬁrm your selecon.

The new cropped selecon will be displayed on the screen. If your Aspect Rao is seo AUTO, the monitor will select

the closest aspect rao to the dimensions of your customized Input.

Aspect Ratio

Use this menu opon to switch between several aspect rao sengs.

•In 4:3 mode, images are scaled up or down to ﬁll the maximum 4:3 poron ohe screen.

•In 16:9 mode, images are scaled to ﬁll the enre 16:9 screen.

•In Full Screen, images are scaled to ﬁll the enre screen.

•In Custom mode, images scaling is adjusted to your selecon in the Adjust poron ohe menu:

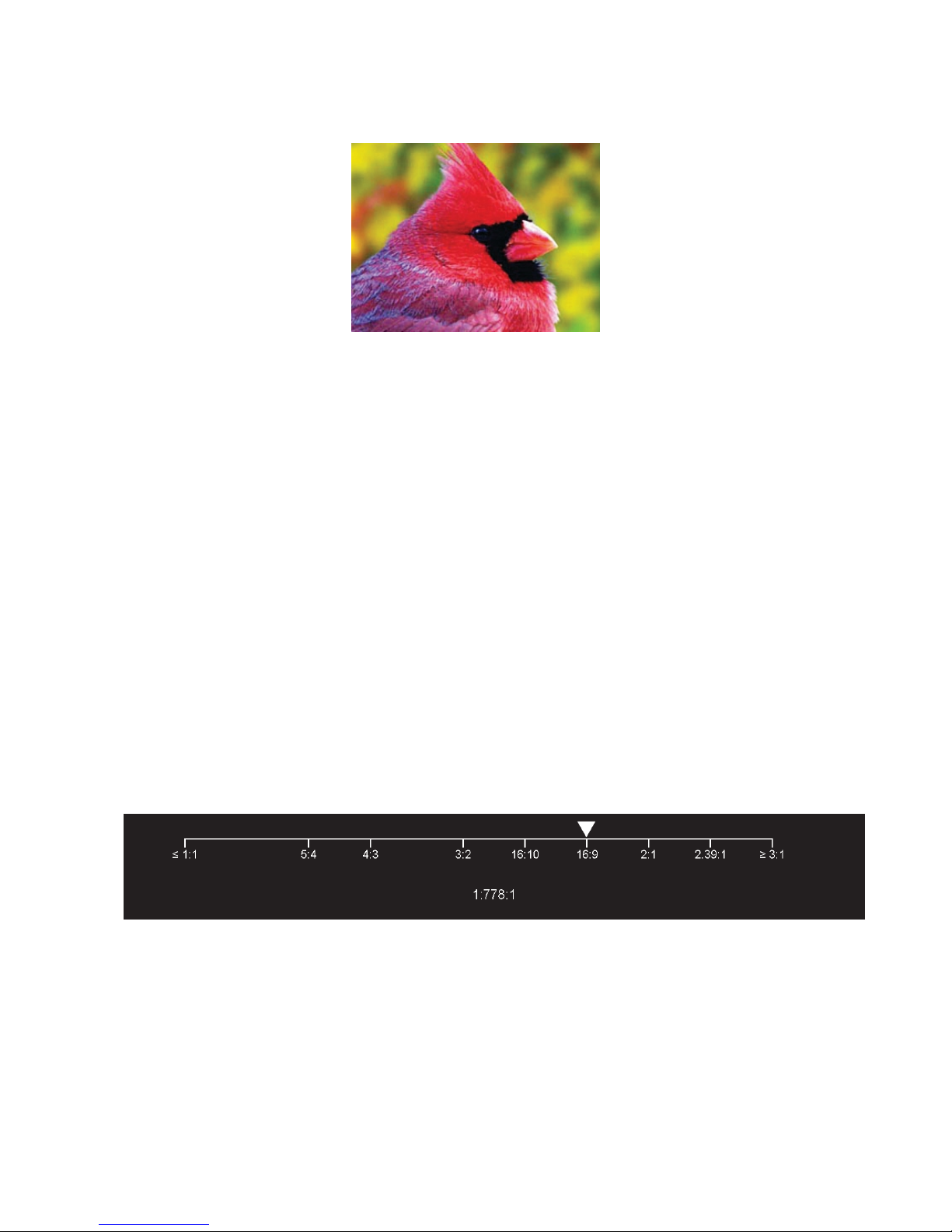

Adjust

Use any ohe rotary knobs to select your desired aspect rao. Some ohe more common aspect rao

sengs are shown on the Aspect Rao selecon widget. As you move along the scale, your current aspect rao will be

displayed below the widget.

Aspect Ratio sele

ction widget
