VDA-104-3GS

1 x 4 3G/HD/SD-SDI

Re-clocking Distribution Ampliﬁer

User Manual

Marshall Electronics

Marshall Electronics www.LCDracks.com

INTRODUCTION

The VDA-104-3GS provides reclocking distribution of an SDI video input signal to four SDI outputs.

The input type, whether SDI, HD SDI or 3G SDI is auto detected and displayed via LED indicators.

FEATURES

• Supports270Mb/s,1.485Gb/s,and2.97Gb/sdatarates

• Supportedvideoformats:

-SD:480i59.94“NTSC”,576i50“PAL”

-HD:720p24,25,30,50,59.94,and60

1080i50,59.94,and60

1080p24,25,and30

-3G:1080p50,59.94and60.SupportsLevelAandB.

-2K:2048x1080p24and30

• Supportedaudioformatupto8channels,24-bit,and48KHz

• Reclockingfunctionreshapesthesignaltoimprovetransmissiondistance

• VideoformatLEDindication

• Compactmetalhousingwithmountingears

HARDWARE INSTALLATION

PACKAGE CONTENTS

• VDA-104-3GSunit

• Poweradapter

• UserManual

1. Connect source device (such as a camera) to the SDI IN connector.

2. Connect the destination devices (such as displays, recorders, switchers) to the SDI OUT

connectors.

3. Connect the power adapter to the VDA-104-3GS.

4. Conrm that each destination device is receiving an input signal

www.LCDracks.com

VDA-104-3GS Manual

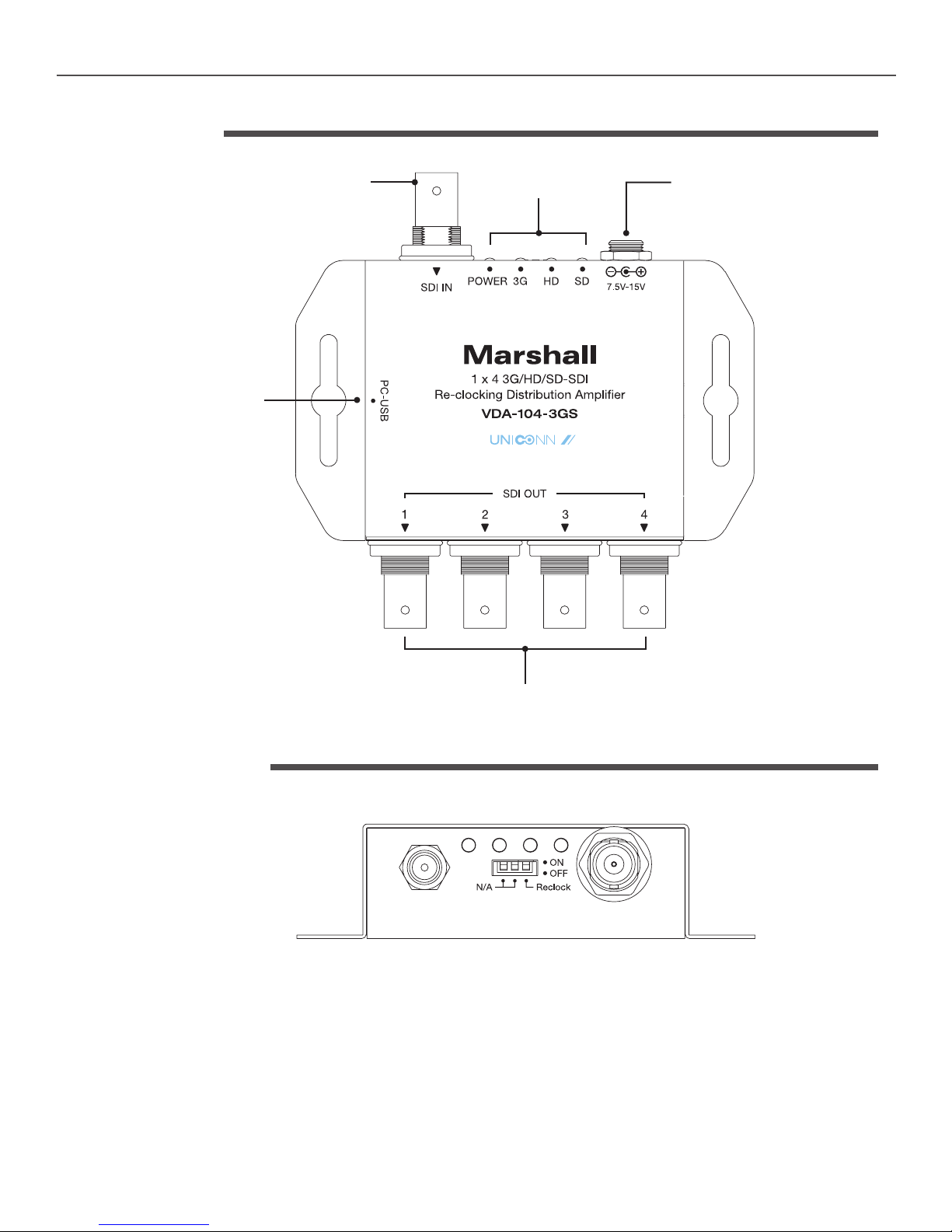

LAYOUT

DIP SWITCH

SDI IN LED indicators

SDI OUT

Power jack adapter

USB port

(for future rmware

upgrade)

• ReclockON: The VDA-104-3GS retransmits the incoming SDI signal after

reclocking/reshaping and level boosting.

• ReclockOFF: The VDA-104-3GS retransmits the incoming SDI signal without reclocking

or level boosting.

• N/A:These two switches have no function.

Marshall Electronics, Inc.

1910 East Maple Ave. El Segundo, CA 90245

Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688

www.LCDracks.com • [email protected]

Marshall Electronics warranties to the rst consumer that this VDA-104-3GS, 1x4 3G-SDI Splitter

will, under normal use, be free from defects in workmanship and materials, when received in its

original container, for a period of one year from the purchase date. This warranty is extended to

the rst consumer only, and proof of purchase is necessary to honor the warranty. If there is no

proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to

honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer.

This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling,

alterations or modications in design or construction void this warranty.

No sales personnel of the seller or any other person is authorized to make any warranties other

than those described above, or to extend the duration of any warranties on behalf of Marshall

Electronics, beyond the time period described above.

Due to constant effort to improve products and product features, specications may change

without notice.

WARRANTY

V.1.0
