Marshall Amplification V-702W Manual de usuario

Broadcast A/V Division

V-702W

Dual 7” Full HD 3RU Rack Mount Monitor

With Waveform, Vector and Analysis Features

Operating Instructions

Table of Contents

1. Product Description........................................................................................ 3

2. Menu Settings ................................................................................................. 6

3. Speciﬁcations................................................................................................ 14

4. Included Accessories ................................................................................... 15

5. Troubleshooting ............................................................................................ 15

6. PCSet Remote Terminal Application........................................................... 15

7. WARRANTY .................................................................................................... 16

IMPORTANT SAFETY INSTRUCTIONS:

• Please read Operating Instructions (this manual) before using the product.

• Keep the manual for future reference.

• Read the cautions below to prevent possible component failure or degradation.

CAUTIONS:

• The monitor should not be placed on its face to avoid scratching the LCD surface.

• Avoid heavy impact

•Do NOT use chemical solutions to clean this product. Simply wipe with a clean, soft cloth to

maintain the brightness of the surface.

•Do NOT block vent holes. Be aware of heat-producing equipment mounted below this product.

• Use the following instructions and trouble-shooting section in the manual to adjust the product.

Internal adjustments or repairs must be performed only by Marshall Electronics.

www.marshall-usa.com 3

V-702W / Product Description

Front Panel Features

1. Rackmount ears with tilt capability.

Tilt monitor for best visibility or to improve ventilation.

2. Headphone jack. Accepts standard 3.5mm stereo mini-phone plug.

3. POWER button (Lights red in standby mode; green when operating).

4. INPUT select button cycles through SDI, HDMI and Video.

5. F1~F4 user-deﬁned short-cut function buttons (lighted when selected).

Long press on any function button (3-5 seconds) pops up menu for selecting

functions. Pressing the Menu knob conﬁrms the selection.

6. Menu Knob. Turn without pressing to adjust headphone volume.

Press to open menu system.

Product Description

Back Panel Features

1. Push-on Power Connector

12V DC power input 5.5mm x 2.1mm push-on connector. Plug the

supplied DC power adapter here. (Center pin is +)

Important: Please connect only one type of power supply at a

time to this monitor.

2. 4-pin Power Connector

4-pin XLR DC power input compatible with typical broadcast television camera

12-volt power supplies. CAUTION: Some 4-pin power supplies provide 24 volts.

These are NOT compatible with this monitor. Please check the label on the power

supply before connecting.

Important: Please connect only one type of power supply at a time to this monitor.

Note: Power, TALLY and LAN apply to both screens.

V-702W / Product Description

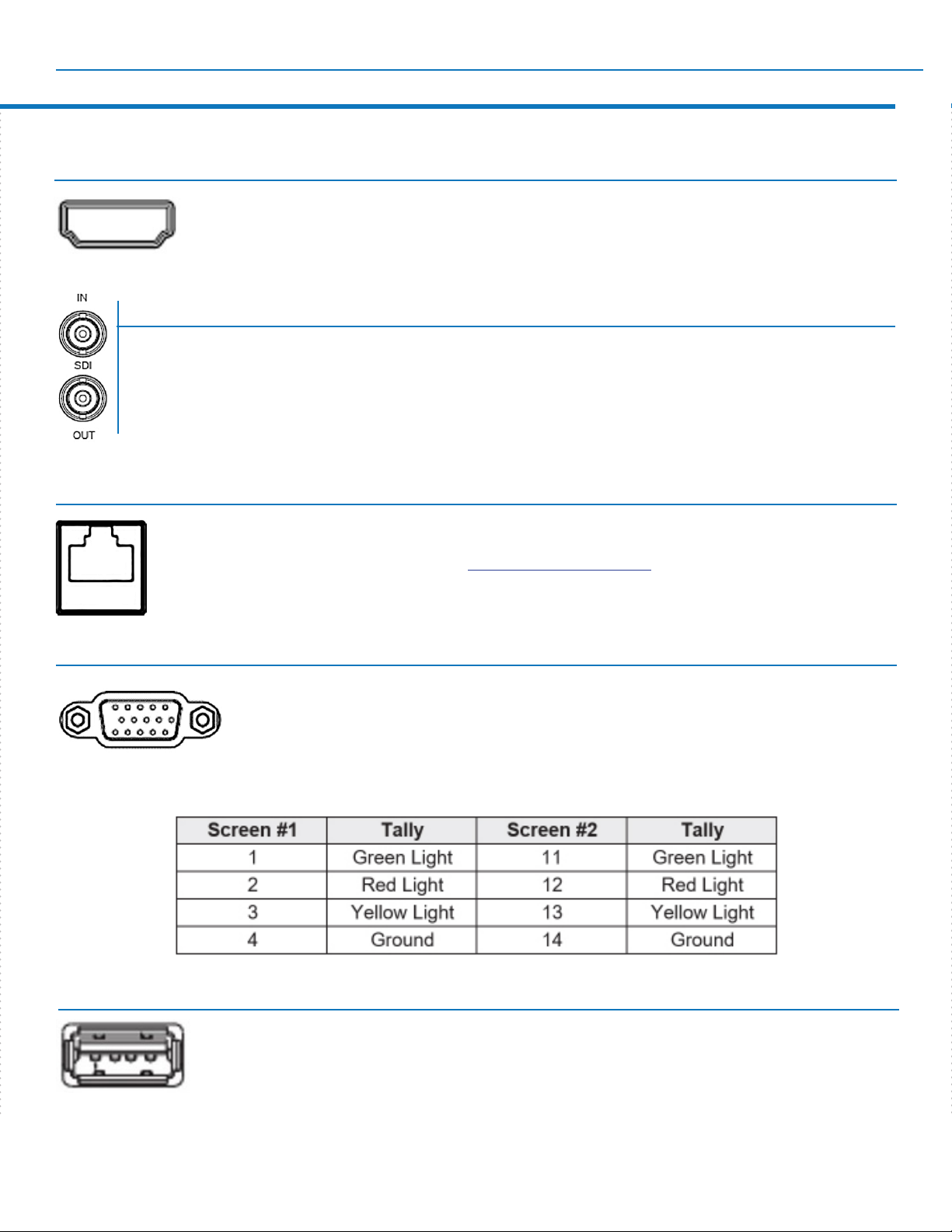

3, 4, 7, 8. HDMI Digital Video Connectors

HDMI input and loop out. Embedded audio may be monitored at the

Headphone jack and visually monitored on-screen.

5, 6, 9, 10. Serial Digital “BNC” Connectors

SDI input and loop out. Compatible with SDI, HD SDI and 3G SDI inputs.

Embedded audio may be monitored at the Headphone jack and visually

monitored on-screen.

7. USB Service Ports

USB input -

Used for ﬁrmware updates and Lookup Table “LUT” loading.

11. Ethernet LAN RJ-45 Connector

LAN port. The monitor can be operated from a Windows™ PC using the

PCSet application available on Marshall-usa.com.

13. TALLY Connector

A red, green, or yellow on-screen tally bar can be made to appear by

grounding the appropriate pin on the Tally connector as shown in the

table. It is compatible with “open collector” and “pull down” type GPI

controls. Caution: External power should never be applied to the Tally

Menu Settings

Press MENU knob on the monitor and function menus will pop-up on the screen. Ro-

tate left or right to select an option. Then press the knob again to open the sub-menu.

When an arrow pointer appears in the menu, turn the Menu knob again to access the

item or press the knob to conﬁrm a selection.

1. PICTURE

This page provides controls for typical picture adjustments.

www.marshall-usa.com 7

V-702W Menu Settings

Brightness – used to establish the correct black level in the picture. Default value is 50.

Contrast – establishes the range of dark to light areas in the picture. Default value is 50.

Saturation – sets the amount of color information in the picture. Default value is 50.

Sharpness – adds “detail” to the image. HD images should require very little added sharpness.

Default value is 0.

RGB Range – choose the RGB range of the HDMI input between Full or Limited. Only applies to

HDMI inputs. When viewing HD video based on television standards such as REC 709, Limited is the

correct choice. When working with computer graphics Full may provide

a wider range of color.

HDMI EDID – select the HDMI EDID from between 4K and 2K. This item enables PC, set top box, or

other device to conﬁgure itself for best video quality. This choice only applies to HDMI inputs.

Color Space – select the display gamut from among Native, SMPTE-C, Rec709, EBU. Rec709 is

the most common setting.

Camera Log – use this to choose one of the camera Log modes among Def log, User log.

Def. Log – Default (preset) Log modes. When viewing material from a camera that has a Log gam-

ma curve applied, the pictures will not appear normal unless the matching Log mode is selected.

User Log – use this item to install and apply a “User LUT” (Look Up Table) instead of one of the

Default Logs

To install a User Log “LUT”:

- Check that the User LUT name ends with “.cube”. (This is common).

- Two types are accepted: 17×17×17 or 33×33×33, Data order is BGR, Table order is BGR.

1. Rename the LUT ﬁle as User1.cube up to User6.cube. (6 ﬁles may be stored in the monitor)

2. Copy the user LUT onto a formatted USB drive.

3. Insert the USB drive into the USB port on the rear panel of the monitor. The User LUT will be

imported into the monitor automatically. If the User LUT does not load automatically, a message

will appear with “no user data” or offering a choice to manually load the User LUT. If “no user

data” appears please check that the ﬁle meets all the requirements noted above.

Gamma – Gamma correction applies a non-linear “curve” to the displayed range between dark and light.

Historically, 2.4 is chosen because it is the inverse of a standard camera Gamma of 0.45 producing a

roughly “linear” match. Today, different camera Gamma values are often applied for creative purposes so

a different monitor Gamma may be chosen for viewing. It is best practice that, once set, Gamma is not

changed during a production shoot or an editing or color correction session. Gamma OFF would be used

only during testing, calibration or when using an external video processor. Gamma range is 1.8 to 2.8

HDR – HDR “High Dynamic Range” is used to properly view video that has been enhanced through

one of the common HDR processes. Three SMPTE ST 2084 standard settings are available. These

are calibrated to 300, 1000 and 10,000 NIT displays. (The only 10,000 NIT displays are projectors). A

fourth setting is available, HLG, which is commonly used for broadcast. When HDR is activated, the

display can reproduce greater dynamic range of luminosity. The best results will be obtained when

1. PICTURE (continued)

2. Marker

This page offers controls for setting

various on-screen markers

Menu Settings

the monitor setting matches the HDR emphasis that was applied to the video material. Using HDR

mode with non-HDR material typically looks very unnatural.

Back Light – adjusts the brightness of the LCD backlight. This is different from the “Brightness”

control. Backlight is adjusted to compensate for room lighting without upsetting Contrast and Bright-

ness adjustments. It is generally best practice to set the Back Light level before changing other

picture settings.

Color Temp – this setting provides four different presets for white balance approximating different

common color “temperatures”. The most common is 6500K. USER allows for custom calibration by

adjusting Gains and Offsets. as desired:

R/G/B Gain – adjust the Red, Green, or Blue Gain of the current Color Temperature from 0 to 255.

Default value: 128.

R/G/B Offset – adjust the Red, Green, or Blue Offset of the current Color Temperature from 0 to

511. Default value: 256.

1. PICTURE (continued)

Center Marker – places a “+” mark in the exact center of the display. (Useful for checking camera or

graphics positioning.)

Aspect Marker – places borders on screen representing various typical video and

cinema aspect ratios. This does not change the displayed aspect ratio. That setting is in the Dis-

play menu.

Safety Marker – places a border around the edge of the screen to be used as a guide during

video production.

Marker Color – the Center, Aspect and Screen marker colors can be changed.

Marker Mat – darken the background just behind the markers.

Thickness – sets the width of the markers.

V-702W / Menu Settings

This page offers controls for setting

various on-screen markers

3. DISPLAY

Scan – Adjust the scan mode among Aspect, Pixel to Pixel, Zoom.

Aspect – allows changing the aspect ratio (shape) of the picture to match the incoming video.

Settings are available for various video and cinema styles. The most common is 16:9.

Pix to pix – displays the incoming video with a 1:1 pixel match. This provides the clearest resolu-

tion but usually changes the size of the image. This turns off up/down “scaling”. For example: a

video input that has fewer pixels than the LCD display will appear to shrink while a video input that

has more pixels will appear to expand. In either case, the image is shown in it’s “true” resolution.

Zoom – expands the picture digitally. It is normal for picture quality to become less sharp as the

picture is expanded.

Overscan – enlarge the image slightly to reduce image edge distortion.

H/V delay – shifts the picture vertically and horizontally to allow viewing the vertical and horizontal

“blanking areas” which contain the HANC and VANC ancillary data.

Check Field – displays the picture in monochrome (black & white) or in individual primary colors.

Useful for color analysis and trouble shooting.

Image Freeze – holds the current picture on screen.

4. WAVE

Menu Settings

Full Mode – The following analysis functions are full-sized and ﬁll the entire display. In this mode,

Video is not displayed

Waveform – Selecting Waveform instead of Full Mode places a compact version of the Waveform

Monitor function as an overlay at the bottom of the display. Overlays are limited to Y, YCbCr, RGB

presentations.

Y – This is the most common setting and represents a traditional waveform monitor. It graphically

represents the full Luma range of dark to light across a scene from left to right. Color information

is not represented.

YCbCr – This graphically displays Luminance plus the matrixed color components. It is useful for

equipment adjustment and conﬁrming proper operation.

RGB – This graphically displays the three primary color components. It is useful for making ad-

justments and analyzing color content.

Vector – This graphically representation of the colors in a picture in “color wheel” format. Lumi-

nance is not represented. The vector display is best used with color charts and test signals.

Audio – shows an on-screen bar graph of audio channels (typically Left and Right) from either an

HDMI or SDI digital source.

Transparency – change the visibility of the chart on the screen. Adjust as desired for best visibility.

Peaking – adds a colored edge to picture details making it easy to identify which areas are in

sharpest focus.

Peaking Color – Select one of the peaking colors: Red, Green Blue, White, Black.

Peaking Level – adjust the amount of peaking color. The range is 1 - 100.

The Wave page offers adjustments for the

on-screen Waveform monitor, Vector scope

displays, and video assist functions like focus

peaking, exposure “zebras”, false color lumi-

nance level check.

Tabla de contenidos

Otros manuales de Monitor de Marshall Amplification

Marshall Amplification

Marshall Amplification V-R191P-SDI Manual de usuario

Marshall Amplification

Marshall Amplification ML-503 Manual de usuario

Marshall Amplification

Marshall Amplification ML-454-V2 Manual de usuario

Marshall Amplification

Marshall Amplification ML-702 Manual de usuario

Marshall Amplification

Marshall Amplification Monitor V-LCD4-PRO-L Manual de usuario

Marshall Amplification

Marshall Amplification V-R241-4K Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM51-B Manual de usuario

Marshall Amplification

Marshall Amplification V-MD241 Manual de usuario

Marshall Amplification

Marshall Amplification V-R84P-SDI Manual de usuario

Marshall Amplification

Marshall Amplification V-R171P Manual de usuario

Marshall Amplification

Marshall Amplification V-RD151P Manual de usuario

Marshall Amplification

Marshall Amplification V-R171P-HDA Manual de usuario

Marshall Amplification

Marshall Amplification V-R171X-DLW Manual de usuario

Marshall Amplification

Marshall Amplification 7" TFT LCD Color Monitor V-ASL7070 Manual de usuario

Marshall Amplification

Marshall Amplification V-R70DP Manual de usuario

Marshall Amplification

Marshall Amplification V-R201-IMD-TE Manual de usuario

Marshall Amplification

Marshall Amplification V-R231P-AFHD Manual de usuario

Marshall Amplification

Marshall Amplification M-LYNX-702 Manual de usuario

Marshall Amplification

Marshall Amplification ML-702 W Manual de usuario

Marshall Amplification

Marshall Amplification V-R171P-AFHD Manual de usuario

Marshall Amplification

Marshall Amplification ML-454 Manual de usuario

Marshall Amplification

Marshall Amplification V-R154P Manual de usuario

Marshall Amplification

Marshall Amplification V-LCD51 Manual de usuario

Marshall Amplification

Marshall Amplification V-R201-IMD-TE Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
