OPERATING INSTRUCTIONS
MTC-40 radio-controlled room thermostat
2
3
CONTENTS
OPERATING INSTRUCTIONS MTC-40
Technical data .........................................................................................4-5
Description..................................................................................................6
Use in the home.........................................................................................7
Explanation .................................................................................................8
Installation............................................................................................ 9-12
Settings ................................................................................................ 13-14
Button features description .................................................................15
Menu selection................................................................................... 16-19
Holiday mode...................................................................................... 20-21
Miscellaneous..................................................................................... 22-23
4
» Display with background lighting
» Key lock / parental control
» Automatic daylight saving time /
standard time change
» Manual temperature adjustment
»Automatic temperature control,
2 programmes, each with 6 switching
times (P1/P2)
» Programme selection for individual
days or periods, Mon - Fri, Sat - Sun,
Mon - Sun
» Holiday programme
» Automatic frost protection (3 ˚C)
» Open window recognition
» Temperature setting + 5 ˚C to + 39 ˚C
» Every transmitter has a unique ID
» Power supply: 2 × 1.5 V AA alkaline
batteries (not included in the scope of
delivery)
» Frequency: 433.92 MHz
»Radio range approx. 20 m in an open
area
TECHNICAL DATA
TRANSMITTER / THERMOSTAT
TECHNICAL DATA
RECEIVER
5
TECHNICAL DATA
TRANSMITTER / THERMOSTAT
» Switching capacity: 6.3 A / 230 V AC / 1449 W Max.
» Switching capacity: 6.3 A / 230 V AC / 1449 W Max. (Switzerland)
» Status control with LED
» Automatic connection after power failure
» Frequency: 433.92 MHz
» Manual on / off switch on the receiver
TECHNICAL DATA
RECEIVER
6
DESCRIPTION
The MTC 40 is a radio-controlled thermostat set. The thermostat
monitors the room temperature and sends this information to the
receiver, which switches the connected heat sources on/o according
to the thermostat settings.
MTC-40 thermostat – transmitter
» measures the room temperature and
regulates this using the values which have
been set.
» 2 automatic weekly programmes (P1 / P2),
each with 6 switching times per day.
» Manual temperature regulation.
» Display with background lighting.
» Easy to use, with pre-set
parameters for infrared heaters.
» Integrated feet, wall mountable.
» Open window recognition to increase the
energy eciency.
» Can control multiple receivers at the same time.
MTC-40 receiver
» Receiver switching capacity 6.3 A / 230 V AC / 1449 W Max.
6.3 A / 230 V AC / 1449 W Max. (Switzerland).
» Easy to install / use.
» LED display of the operating status.
» Automatic reconnection after a power failure.
» Switch the heating on / o manually
with an on / o button without a thermostat.
Warnung!
The receiver is only suitable for use with a marmony
marble heating plate. Operation with devices over 1449
Watt / 6.3 A 230 V leads to the triggering of the internal
protection device and to a receiver fault!
7
USE IN THE HOME
8
ERKLÄRUNG
ISTSOLL
MO DI MI DO FR SA SO
AUTO MANU CONST
OFF TEST
EIN
AUS
T M J
SET/OK START SPERRE+ - EIN/AUS
ISTSOLL
MO DI MI DO FR SA SO
AUTO MANU CONST
OFF TEST
EIN
AUS
T M J
Heating
Target temperature (SOLL)
Actual temperature (IST)
Battery empty display
Transmission display
Parental controlHoliday
Frost protection
Day (T), Month (M), Year (J)
Day of the week
ON / OFF
Time
Daylight saving time /
standard time
Operating type / programme row
SET / OK
Settings
START
Programme start
PLUS
Change programme
MINUS
Change programme
ON / OFF
Exit programme
9
INSTALLATION
TRANSMITTER
1. Remove the cover of the battery
compartment by gently pressing the
recessed grip and removing the
battery cover.
See Fig. 1
2. Insert two alkaline batteries (Type AA
/ LR6) into the battery compartment.
Ensure that the polarity is correct!
See Fig. 2
Attention: do not use any rechargeable batteries!
Note: Replace the batteries when the battery
symbol is illuminated on the display. Dispose
of the old batteries in accordance with the local
regulations.
3. Replace the battery cover. In the case
of wall assembly, the thermostat can
be secured on the wall using a screw or
a hook. In order to do so, remove the
feet by pulling them o the thermostat.
Fig. 3
Note: Assembly tools are not included in the scope
of delivery..
4. The thermostat is now ready for the
date and time to be set. Before doing so,
you just need to insert the receiver into
the socket as described below in the
receiver installation details.
Fig. 1
Fig. 2
Fig. 3
10

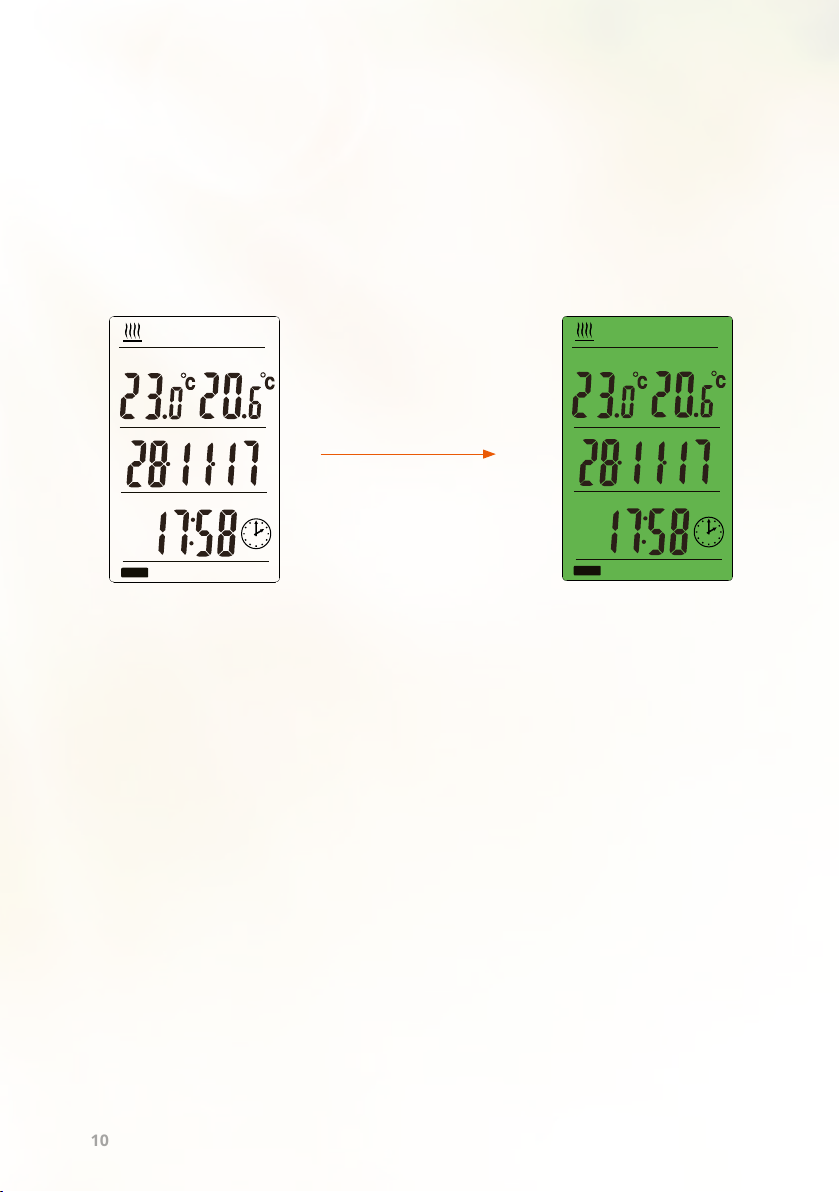

The display must be switched on to change a setting (1 x press any
button). The display switches itself back o again after 15 seconds.
When you are programming a setting, the thermostat switches back to
the main menu after 30 seconds if you do not enter anything! Anything
you have already entered will be saved automatically. Therefore, you
should carry out the programming rapidly!
INSTALLATION
DISPLAY HINTERGRUNDBELEUCHTUNG
IST
SOLL
AUTO
T M J
MO
IST
SOLL
AUTO
T M J
MO
Press any
button.
