ENGLISH

1. Phase clamp (230V)

2. Load clamp

3. Neutral clamps

4. Indicator light (LED)

5. Set up button

6. Wire connections to wall switches

MICROMODULE AWM2P

NEDERLANDS

1. Fase aansluiting (230V)

2. Aansluiting voor belasting

3. Nulklemmen

4. LED indicator

5. Programmeerknopje

6. Aansluitdraden voor schakelaars

3AWM2P™

ENGLISH

MARMITEK MICROMODULE AWM2P

Marmitek X-10 transmitter for 2 addresses with a built-in

appliance module.

SAFETY WARNINGS

• The wiring of your electrical installation is live (230 V) and

extremely dangerous. Never connect the module when plugged

into the mains. Always turn off the main switch before starting

the installation.

• This product is for professional use and should be installed by a

certified installer.

•

To prevent short circuits, this product should only be used inside and

only in dry spaces. Do not expose the components to rain or moisture.

Do not use the product close to a bath, swimming pool etc.

• Do not expose the components of your systems to extremely

high temperatures or bright light sources.

• In case of improper usage or if you have altered and repaired

the product yourself, all guarantees expire. Marmitek does

not accept responsibility in the case of improper usage of the

product or when the product is used for purposes other than

specified. Marmitek does not accept responsibility for additional

damage other than covered by the legal product responsibility.

• This product is not a toy. Keep out of reach of children.

• Do not open the product: the device may contain live parts.

The product should only be repaired or serviced by a qualified

repairman.

• Automatic switching devices provide comfort, but can also

be dangerous. They can surprise people or can ignite clothing

hanging over an electric heat source. Please be careful and take

appropriate measures to avoid accidents.

HOW DOES MARMITEK X-10 WORK?

Marmitek X-10 components use the existing mains wiring to

communicate (using Marmitek X-10 signals). You can build a

complete system using the three different kind of components of

the Marmitek X-10 System:

4 © MARMITEK

1. Modules

These components will receive Marmitek X-10 signals and will switch

or dim the attached lamp or appliance.

2. Controllers

These components will transmit Marmitek X-10 signals and thus will

control the Modules.

3. Transmitters

Wireless components like remotes. The signals of these components

will be received by a controller with transceiver functionality (IRRF

7243, TM13, CM15Pro or console of a Marmitek SecuritySystem).

The Transceiver will translate the signals into Marmitek X-10 signals

on the power line.

ADRESSES

Up to a maximum of 256 different addresses can be preset. These are

subdivided into a so-called HouseCode (A to P incl.) and a UnitCode

(1 to 16 incl.). The HouseCode can also be set on the controllers, so

that the controllers and modules become part of the same system.

The address can be set either using code dials or by pressing buttons,

depending on the type of module.

The Marmitek X-10 System uses standard commands, which control

all units with the same HouseCode at the same time (e.g. all lights

on, all off, etc.).

SIGNAL RANGE

Range of Marmitek X-10 signals over the Power Line and how

to increase the range.

The Marmitek X-10 System is based on power line communication. The

range of the Marmitek X-10 signals very much depends on the local

circumstances. On average the range is a cable length of 80 meters.

If you have difﬁculties with the range of your Marmitek X-10

signals, please pay attention to the following facts:

1. When several phases are used in the house, it can be necessary

to couple these phases for Marmitek X-10 signals. You can

5AWM2P™

ENGLISH

couple them with the use of a CAT 3000 active 3 phase coupler/

repeater (Art.No. 09304) and it is required if wall outlets and

lighting points are actually divided into several phases (several

groups is no problem for the Marmitek X-10 signal).

It is possible that Marmitek X-10 signals are attenuated by devices

and lights which are connected to the power line. In a normal home

situation this effect is negligible (the Marmitek X-10 system is using

active gain control to eliminate the effects). However, it is possible that

a particular device in your house is attenuating the signals so much

that the range of Marmitek X-10 signals is decreased significantly.

When you have range problems, it is wise to try to locate the device

which is attenuating the signals simply by unplugging devices from

the power line, and testing the differences in range for your Marmitek

system. When e.g. your conclusion is that e.g. your computer monitor

is attenuating the signal, you can use a FM10 Plug-in Filter between

the power line and the monitor to eliminate the effects.

Known devices which can cause attenuation are:

PC Monitors

PCs with heavy internal power supplies

Old Televisions

Copiers

Fluorescent Lights

Gas Discharge Lamps (Energy Saving Lamps)

3. Some (old) devices are able to disturb the signal by transmitting

noise on the power line. Because the Marmitek X-10 signals are

transmitted on 120 kHz, only noise on or near this frequency

will have influence on the range. When you use a FM10 Filter to

connect this device to the power line, the noise will be filtered.

4. The Marmitek X-10 protocol has several mechanism to avoid

modules to be switched on or off by other sources than your

Marmitek X-10 Controllers. However, it is possible that the

6 © MARMITEK

Marmitek X-10 signals are disturbed by e.g. baby phones which

are in TALK mode (continuous transmission). When these kind

of signals are present on the power line it is possible that the

Marmitek X-10 signals will not come through.

The mains do not stop at the front door of your home. Everything

that is attached to mains nearby your home can have influence on

Marmitek X-10 signals (e.g. heavy machinery). If you think that your

system is influenced by devices out of your house, it is advisable to

install FD10 Phase Coupler/Filter on each phase entering the house.

These filters will block signals coming into or going out of your

house, but will also match the impedance for the mains. Hereby

make your house Marmitek X-10 compatible for these units. To

couple the phases use a CAT 3000, see point 1 above.

INSTRUCTIONS FOR USE

APPLICATIONS/CHARACTERISTICS

• Because of its extremely small proportions the module can be

built in behind built in switches and wall outlets (minimal depth

flush switch with box 40mm, preferred: 50mm). The module is

also ideal for building in light armatures and for installing in small

spaces with for instance lowered ceilings.

• Multi-purpose: fully free choice, colour and model of switch

material.

• To this module two switches can be connected. One controls

the internal appliance module, but also controls the matching

X-10 command through the power line. With the second switch

ON/OFF commands can be sent for a second X-10 address.

• The address to be set up can be programmed through the power

line with every Marmitek X-10 remote control (e.g. Marmitek

EasyControl8™ remote control withTM13 transceiver).

• The AWM2P can react to one or more group commands (ALL

LIGHTS ON, ALL UNITS OFF). These functions are disabled by

default.

7AWM2P™

ENGLISH

• The AWM2P supports two way Marmitek X-10 communication.

• Both normal switches (on-off) and Momentary switches can be

connected to the module. These are automatically recognized by

the AWM2P.

• This module is suitable for installing two-way switches without

wiring between the switches (MicroModules pass on their status

to other MicroModules).

• The AWM2P can control Macro’s/Scenario’s by operating a

conventional switch (with for instance Marmitek ActiveHomePro).

• The internal appliance module remembers its status after a main

voltage cut-off.

Colour code wire connections

WARNING: THE WIRES OF THE MICROMODULE CARRY THE LIFE

DANGER 230V MAIN- VOLTAGE!! ALWAYS SWITCH OFF THE MAIN

MASTER SWITCH BEFORE INSTALLING THE MICROMODULE.

Description of the Marmitek MicroModule wires

Purple: Input 1, programmed base address + control of the

built-in appliance module

The built-in appliance module will switch from ON to OFF or vise

versa when the purple wire is connected with the phase wire. At

the same time the programmed address will transmit the new

status of the appliance module through the power line. Due to this

Marmitek X-10 transmission you are able to switch other Marmitek

X-10 modules (set to the same address). The new status will also

be recognized by other MicroModuls or e.g. the computer interface

(activating macro’s, status indication and more).

8 © MARMITEK

White: Input 2, second address

When the red wire is connected to the phase wire, the programmed

“address +1” will be transmitted (e.g. when A3 is programmed as the

base address then the Marmitek X-10 address A4 will be sent by using

input 2). If the status in the MicroModule was ON, an OFF command

will be transmitted. If the status in the MicroModule was OFF, an

ON command will be transmitted. Through this transmission, other

Marmitek X-10 modules can be switched remotely over the power

line or Macro’s setup in the computer interface can be activated.

Mounting Instructions

WARNING! ALWAYS SWITCH OFF THE MAIN MASTER SWITCH

BEFORE INSTALLING THE MICROMODULE.

To install the MicroModule AWM2P the following wiring is

required.

1. Neutral

2. Phase 230V

3. Load. This wire runs directly to the load.

Figure 1

• Take the present switch (if one is installed) out of the wall outlet

box.

• Disconnect all wires from the switch.

• Pull an additional Neutral-wire in case this one is missing.

Blue (N) Brown

(L)

Black

9AWM2P™

ENGLISH

Figure 2

• Connect the phase, neutralize and load wire to the terminals of

the MicroModule AWM2P.

• Connect the thin wires of the built-in module to the wall switch.

Connect the phase wire to clamp P of the wall switch.

Figure 3

• Position the MicroModule against the back wall of the wall outlet

behind all the wires.

• You are now able to program the MicroModule. For more

information see chapter “Programming”.

PROG.

AWM2P

white

PROG.

AWM2P

Brown

(L)

Blue (N)

Brown (L)

Black

Purple

10 © MARMITEK

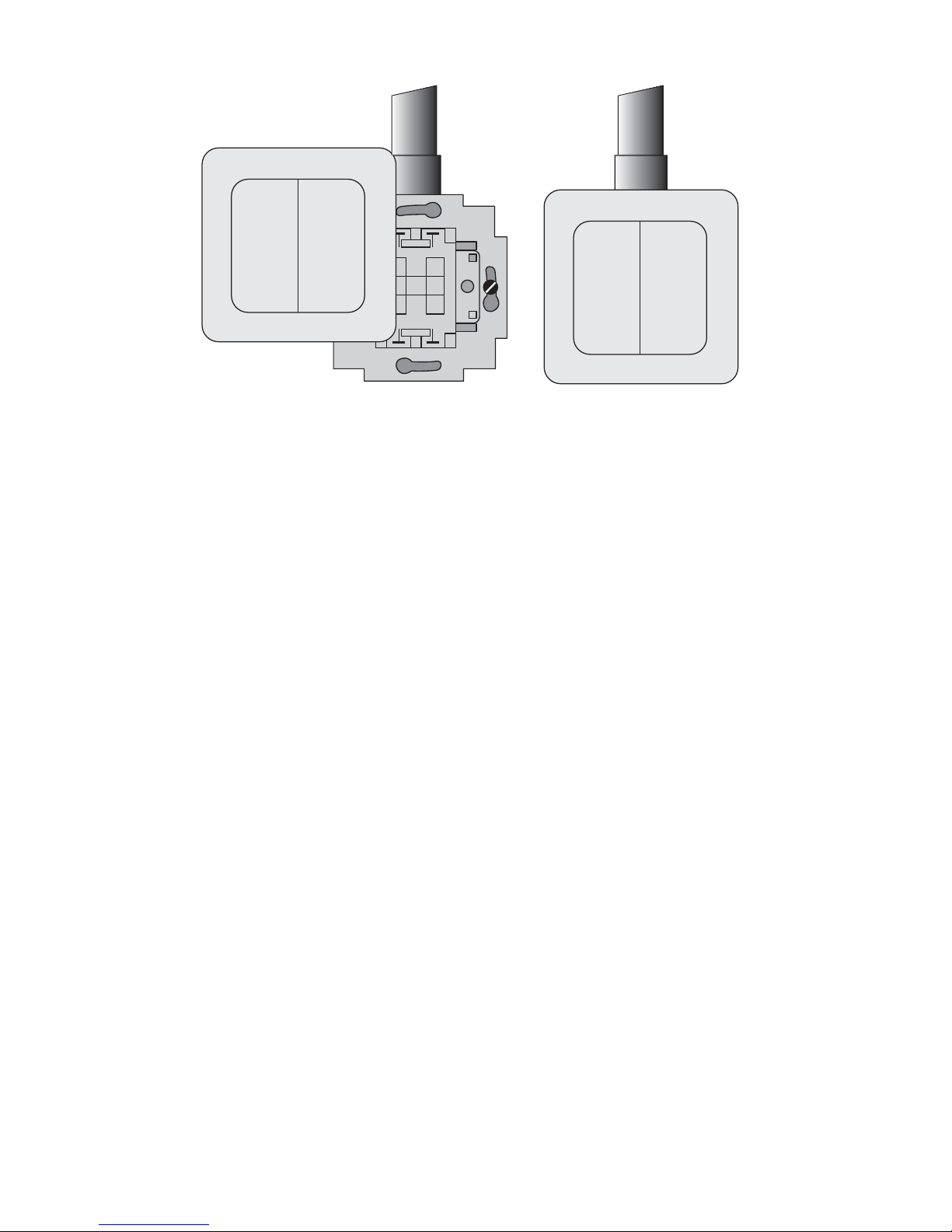

Figure 4

• Install the wall switch at its original place after the MicroModule

is programmed.

Please note: due to heat generation, apply no more than one module

per flush socket / central socket!

Programming

WARNING: DO NOT FORGET TO TURN ON THE MAIN MASTER

SWITCH PRIOR TO PROGRAMMING.

Activate the setup mode.

The following steps have to be taken to start the setup procedure for

programming the MicroModule:

• Press the setup (prog.) button for at least 3 seconds (see figure

5). The LED should stay on after releasing the setup button.

• Warning! The MicroModule will leave the setup mode if it

doesn’t receive any commands within 60 seconds.

Exit setup mode

• Press the setup button once shortly; The red LED will turn off

now. You can also wait for at least 60 seconds so that the

MicroModule will exit the setup mode automatically.

prog.

SAIX

prog.

SAIX

Tabla de contenidos

Otros manuales de Unidad de control de Marmitek

Marmitek

Marmitek Home Control TM13 Manual de usuario

Marmitek

Marmitek LM 15ES Manual de usuario

Marmitek

Marmitek Invisible Control Black4 Manual de usuario

Marmitek

Marmitek LW12 Manual de usuario

Marmitek

Marmitek Invisible Control 2 Manual de usuario

Marmitek

Marmitek LWM1 Manual de usuario

Marmitek

Marmitek W home TM13AU Manual de usuario

Marmitek

Marmitek AMM31 Manual de usuario

Marmitek

Marmitek LM12AU Manual de usuario

Marmitek

Marmitek PROGUARD800 Series Manual de usuario

Marmitek

Marmitek AMM32 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
