Marcy ME-706 Manual de usuario

REGENERATING

MAGNETIC RECUMBENT BIKE

ME-706

IMPORTANT: Please read the Important Safety Notice and Assembly Information in

the Owner’s manual before assembling this product.

Assembly Manual

190429

©IMPEX INC. www.marcypro.com

NO:1 NO:7 NO:32 NO:4 NO:34

NO:2

NO:5R

NO:8 NO:19L/R

NO:3 NO:5L

NO:33 NO:23L/R NO:6NO:37

NO:97L/R

Part No.

Description

Q'ty

Main frame

Rear support tube

Seat support bracket

Front post

Back cushion

Front stabilizer

Rear stabilizer

Front post cover

19L/R

Pedal (L&R)

97L/R

Rear support tube Cover (L&R)

5L/R

Handlebar L & R

Rear handlebar

Seat cushion

23L/R

Left /Right cover for sliding tube

Computer

©IMPEX INC. www.marcypro.com

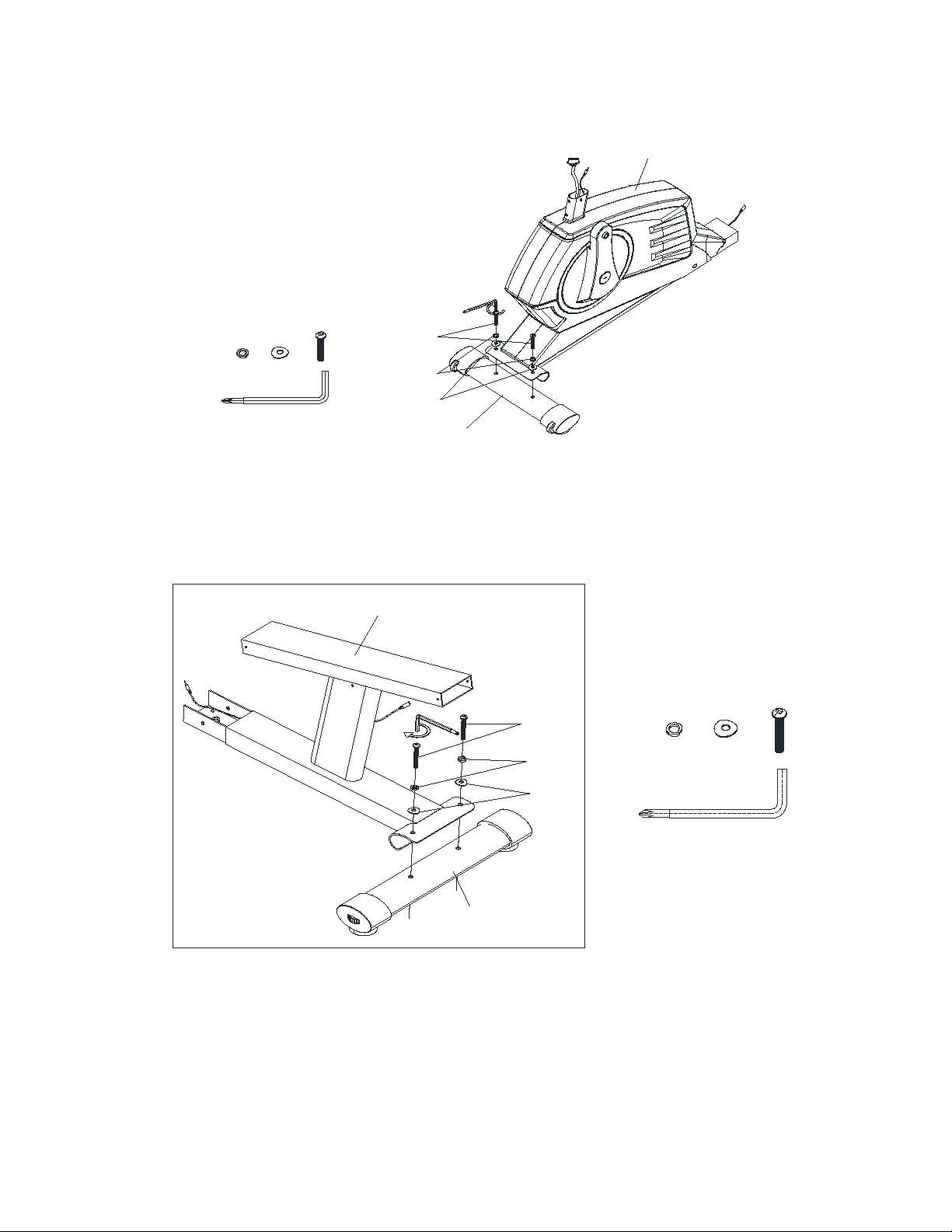

STEP 1

Attach Front Stabilizer (#2) with Allen Bolt (#21), Locking washer (#98), and Curved washer (#15) to the

Main Frame (#1).

98 15

STEP 2

Attach the Rear Stabilizer (#3) with Allen Bolt (#21), Curved washer (#15) and Locking washer (#98) to the

Rear Support tube (#7).

98 15

6mm

©IMPEX INC. www.marcypro.com

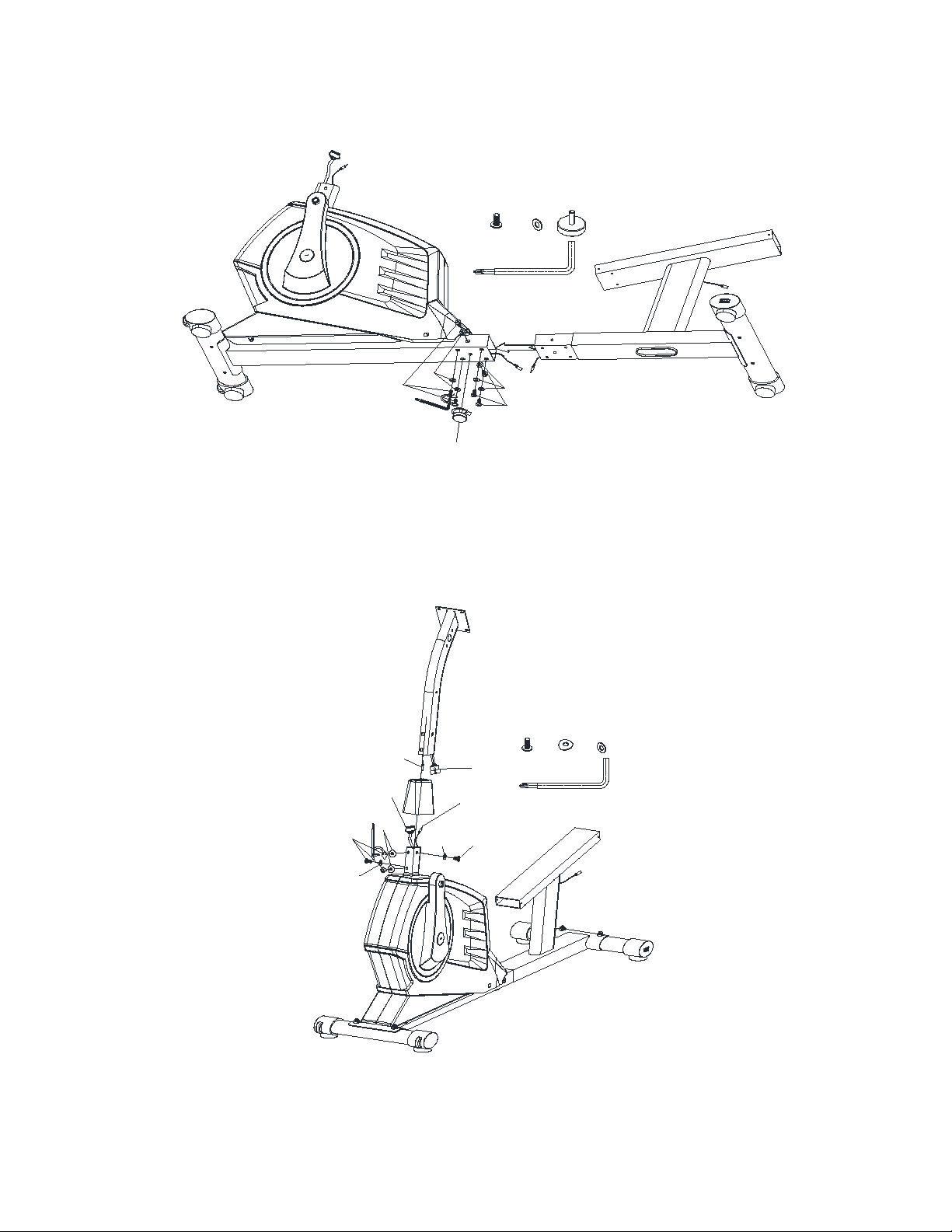

STEP3

1.Connect Main Frame (#1) and Rear Support tube (#7) with Allen Bolt (#14) and Flat washer (#16).

2.Attach the Level Adjustment (#25).

6mm

6X 6X

14 16 25

1414

STEP 4

1. Slide Front post cover (#8) onto Front post (#4).

2. Connect Middle computer wire (#9), Front extension hand pulse wire (#10) to Middle extension hand

pulse wire (#17) and Lower computer wire (#18).

3. Attach the Front Post (#4) to the main frame with Allen Bolt (#14), Curved washer (#15) and Flat washer

(#16).

14 14

15 16

10 9

18 17

©IMPEX INC. www.marcypro.com

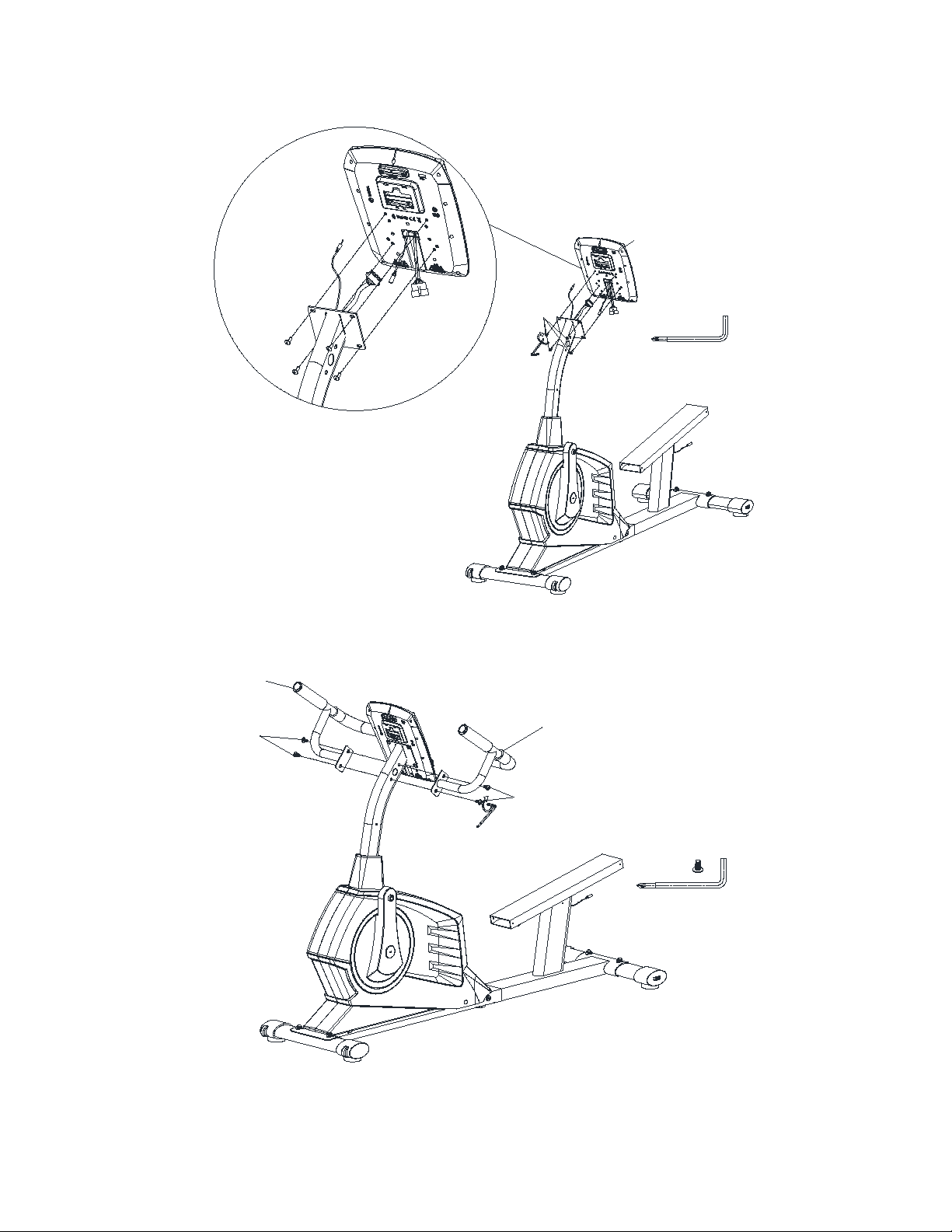

STEP 5

Connect the computer sensor wire and the computer wire to the Front post connectors, and attach the

computer (#6) to the Front Post with the pre-assembled Screws (#12).

STEP 6

Secure the Handlebar (#5L, #5R) to the Front Post with Allen Bolts (#14).

©IMPEX INC. www.marcypro.com

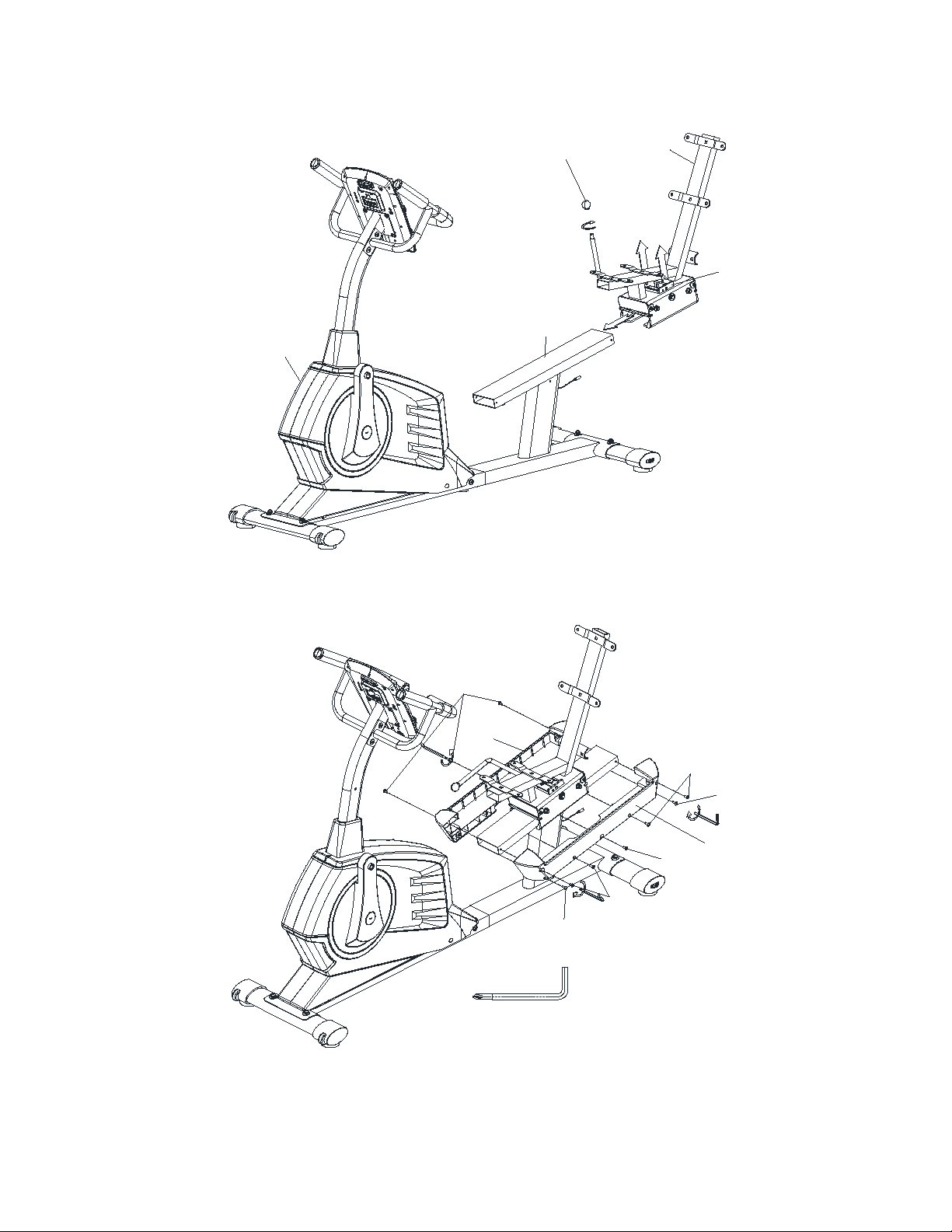

STEP 7

1. Slightly lift the Seat bracket (#94) as it slides into the Rear support tube (#7).

2. Thread in the Ball end cap (#35) into the Quick release handle (#29).

STEP 8

Attach the Cover for Sliding tube (#23L, #23R) with Self-tapping screws (#26) and Screws (#28).

23L

23R

©IMPEX INC. www.marcypro.com

STEP 9

1. Secure the Rear Handlebar (#37) to the Seat bracket (#94) with Curved washer (#15), Carriage bolt (#43)

and Acorn nut (#44).

2. Connect Hand pulse wire (#42) and Rear extension hand pulse wire (#22).

©IMPEX INC. www.marcypro.com

STEP 10

Attach the Seat cushion (#33) to the Seat bracket (#94) with Allen Bolts (#14).

133

STEP 11

Attach Back Cushion (#34) to the Seat bracket (#94) with Allen bolts (#14).

©IMPEX INC. www.marcypro.com

STEP 12

Attach the Rear support tube cover (#97L, #97R) with Self-Tapping screw STx5 ½ (#26) and Self-Tapping

Screw ST5x ¾ (#55).

97R

97L

STEP 13

Thread the Left Pedal (#19L) and Right Pedal (#19R) into the crank.

19L

19R

©IMPEX INC. www.marcypro.com

IMPEX®INC.

2801 S. Towne Ave, Pomona, CA 91766

Tel: (800) 999-8899 Fax: (626) 961-9966

www.marcypro.com
