AV Surround Receiver

SR5012

Lisez-moi en premier.... /

Lea esto primero....

Quick Start Guide

Read Me First....

Guide de démarrage rapide /

Guía de inicio rápido

1. SR5012U_QSG_ENG_00A.indd 1 2017/04/25 14:27:31

Thank you for choosing a Marantz AV

receiver.

This guide provides step-by-step

instructions for setting up your AV

receiver.

Welcome Before You Begin

Required for Setup

TV Speaker cables

HDMI cable Subwoofer cable Speakers

Optional

LAN cable Wi-Fi router

• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC

functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.

• These drawings are for illustrative purposes only and may not represent the actual product(s).

1. SR5012U_QSG_ENG_00A.indd 1 2017/04/25 14:27:32

What’s In the Box

Quick Start Guide FM indoor antenna

Safety Instructions AM loop antenna

Notes on radio Sound calibration

microphone

Warranty (for USA /

for CANADA)

Sound calibration

microphone stand

Cable labels Remote control unit

(RC034SR)

Receiver R03/AAA batteries

Power cord

• The included sound calibration microphone stand is convenient for use

when performing Speaker Calibration. Using your own tripod or the supplied

Sound calibration microphone stand enables settings to be automatically

conﬁgured to the optimum listening environment, providing exceptionally

high performance.

1. SR5012U_QSG_ENG_00A.indd 2 2017/04/25 14:27:34

1Installing batteries in the

remote control unit

Batteries

There are four steps to the setup

process.

1Installing batteries in the remote control unit

2Connecting the receiver

3Following the On-Screen Setup Assistant

4Downloading the Mobile Apps

Setup

1. SR5012U_QSG_ENG_00A.indd 3 2017/04/25 14:27:35

2Connecting the receiver

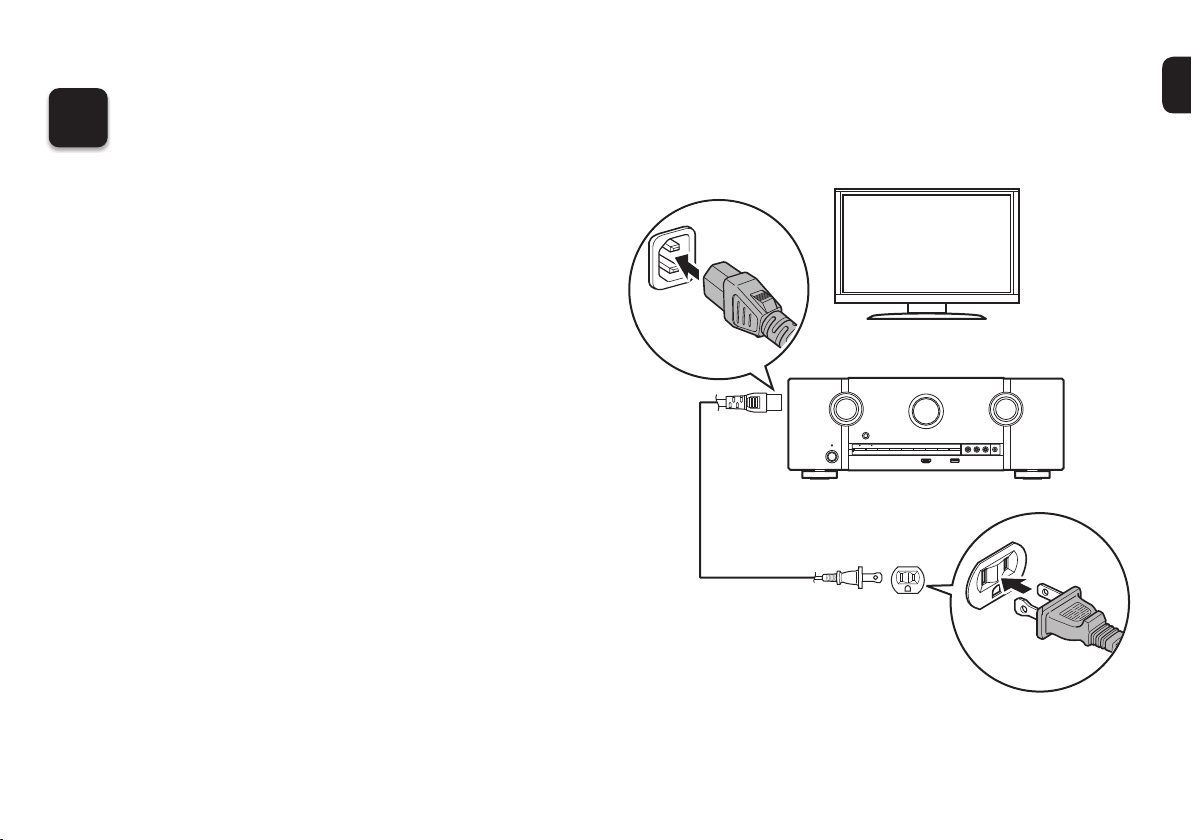

1) Place the receiver near your TV and

connect the power cord

Receiver

Power cord

(supplied)

Connect to household

power outlet

(AC 120 V, 60 Hz)

1. SR5012U_QSG_ENG_00A.indd 4 2017/04/25 14:27:35

2) Connect the receiver to your home network

Wired LAN

Connect an Ethernet cable (not included) between your

receiver and your network router.

Router

To LAN port

Wireless LAN

Rotate the two antennas located on the back of the receiver

upwards for maximum performance.

1. SR5012U_QSG_ENG_00A.indd 5 2017/04/25 14:27:36

3) Connect the receiver to your TV with

an HDMI cable

HDMI IN

(ARC)

HDMI OUT

MONITOR 1

(ARC)

HDMI cable

Receiver (Rear panel)

ARC (Audio Return Channel) :

If your TV supports ARC, your TV can send audio back to the AV receiver

when you are using your TV’s built-in video sources (TV tuner, Smart TV

streaming services, etc…) ARC requires that you enable HDMI CEC on

your TV. Please refer to your TV’s Owner’s Manual for instructions on how

to setup HDMI CEC. Note that some TV manufacturers use other names

for the HDMI CEC function.

4) Turn on the TV

TV remote control unit

5) Select the appropriate HDMI input on

your TV

HDMI

TV/

VIDEO

INPUT or

TV remote control unit

1. SR5012U_QSG_ENG_00A.indd 6 2017/04/25 14:27:36

6) Turn on the receiver

•Press Xto turn on the receiver.

7) Verify the connection

•Verify that you can see this screen on your TV.

AV Reciever Setup Assistant

Please select a language...

Français

Español

English

If this screen is not displayed, please go back and retry

the steps again in the recommended sequence.

1. SR5012U_QSG_ENG_00A.indd 7 2017/04/25 14:27:37

3Following the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and

conﬁguring your speakers and components to your Marantz

receiver. Please use the remote control and follow the

on-screen instructions.

AV Reciever Setup Assistant

Please select a language...

Français

Español

English

1. SR5012U_QSG_ENG_00A.indd 8 2017/04/25 14:27:37

4Downloading the Mobile Apps

Download both the “HEOS” App and the “Marantz 2016 AVR Remote” App for the full home entertainment experience.

The HEOS App is required to access online music through your AVR.

HEOS

The HEOS App allows you to explore,

browse, and play music from many online

streaming services or from your own music

library.

Marantz 2016 AVR Remote

Control your new AVR with the latest

Marantz 2016 AVR Remote App. Volume

control, sound mode selection and

advanced settings are always only a tap

away.

1. SR5012U_QSG_ENG_00A.indd 9 2017/04/25 14:27:37
