AV Surround Receiver

NR1605

Quick Start Guide

Guide de démarrage rapide

Guía de inicio rápido

Thank you for choosing a Marantz AV receiver. This guide

provides step-by-step instructions for setting up your AV

receiver.

Please do not return this unit to the store – call for

assistance.

If you need help… :

If you need additional help in solving problems, contact

Marantz customer service in your area.

1-855-ONE-Marantz

1-855-663-6272

Call for Assistance: 9:00AM to 8:00PM M-F E.S.T.

For frequency asked questions please visit

http://marantz.custhelp.com/app/answers/list

For US and Canada only

Welcome Before You Begin

Required for Setup

TV HDMI cable

Speaker systems Speaker cables

Optional

LAN cable Wi-Fi router

What’s In the Box

Quick Start Guide Power cord

Owner’s Manual FM indoor antenna

Safety Instructions AM loop antenna

Notes on radio Sound calibration

microphone

Warranty

(for North America

model only)

Sound calibration

microphone stand

Cable labels Remote control

unit

Receiver R03/AAA batteries

The supplied Sound calibration microphone stand is

convenient for use when performing Speaker Calibration.

Using your own tripod or the supplied Sound calibration

microphone stand enables settings to be automatically

conﬁgured to the optimum listening environment, providing

exceptionally high performance.

•When connecting this unit to a device that is compatible

with the Deep Color, 4K and ARC functions, use an “High

Speed HDMI cable with Ethernet” that comes with the

HDMI logo.

•These drawings are for illustrative purposes only and may

not represent the actual product(s).

1Installing batteries in the

remote control unit

R03/AAA batteries

There are three steps to the setup

process.

1Install batteries in the remote control unit

2Connecting the receiver

3Follow the On-Screen Setup Assistant

Setup

2Connecting the receiver

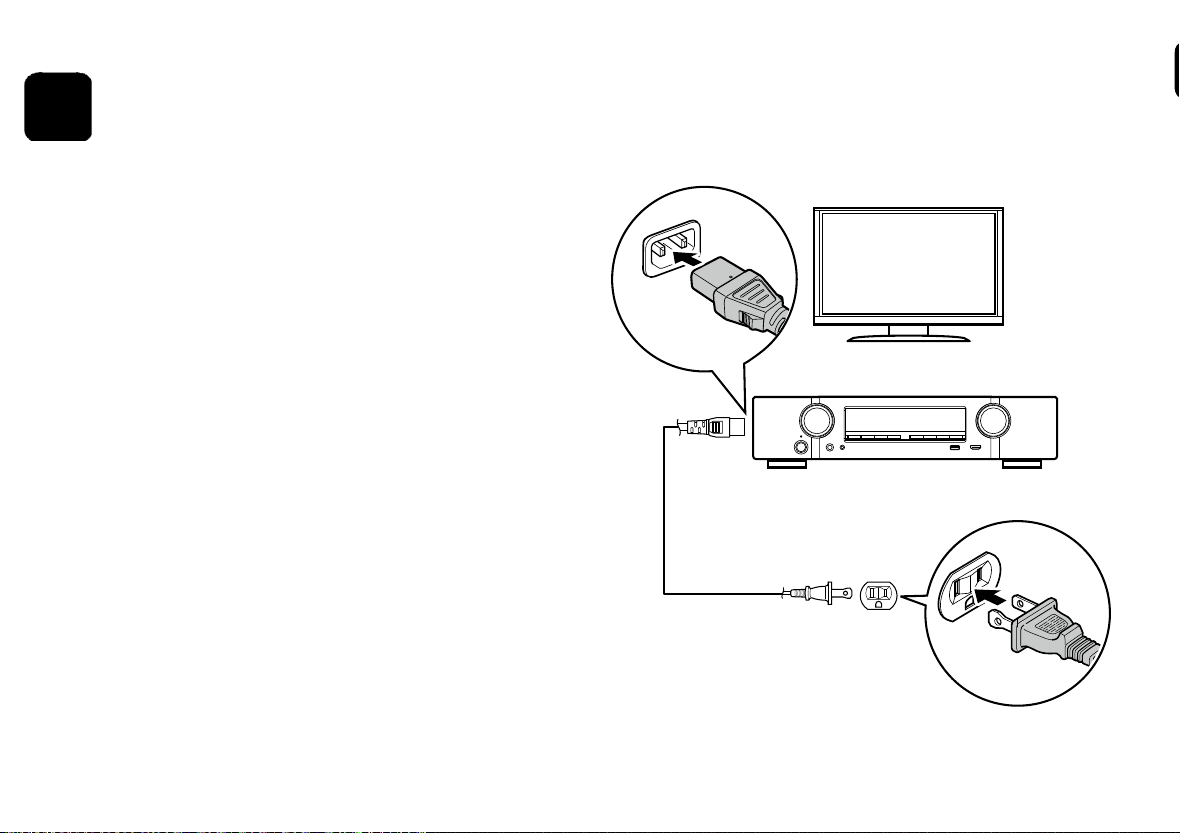

nPlace the receiver near your TV and

connect the power cable.

Receiver

Power cord

(supplied)

Connect to household

power outlet

(AC 120 V, 60 Hz)

nConnect to the network.

Wired LAN

When connecting cables (wired connection), connect a LAN

cable between your receiver and your network router.

ANTENNA

COAXIAL

CBL/

SAT

REMOTE

CONTROL

OUT

SPEAKERS

DIGITALAUDIO IN

(ASSIGNABLE)

CBL/SAT

CBL/

SAT

2 DVD

DVD

Blu-ray

MONITOR

(ASSIGNABLE)

COMPONENT VIDEO IN

COMPONENT

VIDEO OUT

(ASSIGNABLE)

VIDEO IN

(ASSIGNABLE)

AUDIO IN

1 CBL/SAT 2 DVD 3 Blu-ray 4 GAME 5

MEDIA PLAYER

6 AUX2 7 CD

OPTICAL

AUDIO

HDMI IN

(ASSIGNABLE)

1 

CBL/SAT

MONITOR

VIDEO OUT

AC IN

DC OUT

DC12V

150mA

MAX.

PRE OUT

FRONT ZONE2

SUBWOOFER

75Ȑ

MONITOR

ARC

HDMI OUT

NETWORK

IMPEDANCE : 4㹼16Ȑ

FLASHER

Internet Modem

Router

To WAN side

To LAN port

Wireless LAN

When using a wireless connection (Wi-Fi), rotate the

antennas upword.

ANTENNA

COAXIAL

CBL/

SAT

REMOTE

CONTROL

OUT

DIGITALAUDIO IN

(ASSIGNABLE)

CBL/SAT

CBL/

SAT

2 DVD

DVD

Blu-ray

MONITOR

(ASSIGNABLE)

COMPONENT VIDEO IN

COMPONENT

VIDEO OUT

(ASSIGNABLE)

VIDEO IN

(ASSIGNABLE)

AUDIO IN

1 CBL/SAT 2 DVD 3 Blu-ray 4 GAME 5

MEDIA PLAYER

6 AUX2 7 CD

OPTICAL

AUDIO

HDMI IN

(ASSIGNABLE)

1 

CBL/SAT

MONITOR

VIDEO OUT

AC IN

DC OUT

DC12V

150mA

MAX.

PRE OUT

FRONT ZONE2

SUBWOOFER

75Ȑ

MONITOR

ARC

HDMI OUTNETWORK

SPEAKERS

IMPEDANCE : 4㹼16Ȑ

FLASHER

Router with

access point To WAN side

Internet Modem

nTurn on the TV.

TV remote control unit

nSelect the appropriate HDMI input

on your TV.

HDMI TV/

VIDEO

INPUT or

TV remote control unit

nConnect the receiver to your TV with

an HDMI cable.

NETWORK

ANTENNA

COAXIAL

CBL/

SAT

REMOTE

CONTROL

OUT

DIGITALAUDIO IN

(ASSIGNABLE)

CBL/SAT

CBL/

SAT

2 DVD

DVD

Blu-ray

MONITOR

(ASSIGNABLE)

COMPONENTVIDEO IN

COMPONENT

VIDEO OUT

(ASSIGNABLE)

VIDEO IN

(ASSIGNABLE)

AUDIO IN

1 CBL/SAT 2 DVD 3 Blu-ray 4GAME 5

MEDIA PLAYER

6 AUX2 7 CD

OPTICAL

AUDIO

HDMI IN

(ASSIGNABLE)

CBL/SAT

MONITOR

VIDEO OUT

AC IN

DC OUT

DC12V

150mA

MAX.

PRE OUT

FRONT ZONE2

SUBWOOFER

FM 75Ω

MONITOR

ARC

HDMI OUT

(ARC)

HDMI IN

(ARC)

HDMI OUT

MONITOR

ARC

HDMI OUT

FLASHER

SPEAKERS IMPEDANCE : 4～16Ω

HDMI cable

Receiver (Rear panel)

nTurn on the receiver.

•Press Xto turn on the receiver.

nVerify the connection.

•Verify that you can see this screen on your TV.

AV Reciever Setup Assistant

Please select a language...

Español

Français

English

When this screen is not displayed, please read operation

from the beginning.

3Follow the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and

conﬁguring your speakers and components to your Marantz

receiver. Please use the remote control and follow the

on-screen instructions.

AV Reciever Setup Assistant

Please select a language...

Español

Français

English

nPDF Manual

To read the owner's manual on your computer or to print it

out, please open the included CD-ROM or select the “PDF

Download” link from the Web Manual.

Insert the disc into

your PC.

Follow the screen or double click on

the PDF le.

Owner’s Manual

nWeb Manual

To read it on your tablet or PC, please access to Web

Manual site.

manuals.marantz.com/NR1605/NA/EN/

Introductions

Connections

Playback

Settings

Tips

Appendix

PDF Download

AV SURROUND RECEIVER

PDF

Contents

AV SURROUND RECEIVER

WEB Manual

Web Manual

Please reference these manuals for more details about the setup and operation of the receiver and it’s features.

This Web Manual is optimized for

tablets and mobile devices.
