Marantz SR5012 Manual de usuario

AV Surround Receiver

SR5012

Owner’s Manual

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Accessories 8

Inserting the batteries 9

Operating range of the remote control unit 9

Features 10

High quality sound 10

High performance 11

Easy operation 15

Part names and functions 16

Front panel 16

Display 19

Rear panel 21

Remote control unit 25

Connections

Speaker installation 29

Connecting speakers 36

Before connecting speakers 36

Speaker configuration and “Amp Assign” settings 40

Connecting 5.1-channel speakers 41

Connecting 7.1-channel speakers 42

Connecting 5.1-channel speakers: Bi-amp connection of front

speaker 48

Connecting 5.1-channel speakers: Second pair of front speaker 49

Connecting multi-zone speakers 50

Connecting a TV 52

Connection 1 : TV equipped with an HDMI connector and

compatible with the ARC (Audio Return Channel) 53

Connection 2 : TV equipped with an HDMI connector and

incompatible with the ARC (Audio Return Channel) 54

Connection 3 : TV equipped without an HDMI connector 55

Connecting a playback device 56

Connecting a set-top box (Satellite tuner/cable TV) 57

Connecting a DVD player or Blu-ray Disc player 58

Connecting a video camcorder or game console 59

Connecting a device with a multi-channel output connector 60

Connecting a USB memory device to the USB port 61

Connecting an FM/AM antenna 62

Connecting to a home network (LAN) 64

Wired LAN 64

Wireless LAN 65

Connecting an external control device 66

REMOTE CONTROL jacks 66

DC OUT jack 67

Connecting the power cord 68

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Playback

Basic operation 70

Turning the power on 70

Selecting the input source 70

Adjusting the volume 71

Turning off the sound temporarily (Muting) 71

Playback a DVD player/Blu-ray Disc player 71

Playing a USB memory device 72

Playing files stored on USB memory devices 73

Listening to music on a Bluetooth device 76

Playing music from Bluetooth device 77

Pairing with other Bluetooth devices 78

Reconnecting to this unit from a Bluetooth device 79

Listening to FM/AM broadcasts 80

Listening to FM/AM broadcasts 81

Tuning in by entering the frequency (Direct Tune) 83

RDS Search 83

PTY Search 84

TP Search 85

Radio Text 85

Changing the tune mode (Tune Mode) 86

Tuning in to stations and presetting them automatically (Auto

Preset Memory) 86

Presetting the current broadcast station (Preset Memory) 87

Listening to preset stations 87

Specify a name for the preset broadcast station (Preset Name) 88

Skipping preset broadcast stations (Preset Skip) 89

Cancelling Preset Skip 90

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Listening to Internet Radio 91

Listening to Internet Radio 92

Playing back files stored on a PC or NAS 93

Playing back files stored on a PC or NAS 94

Getting the HEOS App 97

HEOS Account 98

Playing from streaming music services 99

Listening to the same music in multiple rooms 102

AirPlay function 106

Playing songs from your iPhone, iPod touch or iPad 107

Playing iTunes music with this unit 107

Selecting multiple speakers (devices) 108

Perform iTunes playback operations with the remote control unit

of this unit 108

Spotify Connect function 109

Playing Spotify music with this unit 109

Convenience functions 110

Adding to HEOS Favorites 111

Playing back HEOS Favorites 111

Deleting a HEOS Favorites 112

Adjusting the volume of each channel to match the input source

(Channel Level Adjust) 113

Adjusting the tone (Tone) 114

Displaying your desired video during audio playback (Video

Select) 115

Adjusting the picture quality for your viewing environment (Picture

Mode) 116

Playing the same music in all zones (All Zone Stereo) 117

Selecting a sound mode 118

Selecting a sound mode 119

Direct playback 120

Pure Direct playback 120

Auto surround playback 121

Description of sound mode types 122

Sound mode that can be selected for each input signal 126

HDMI Control function 130

Setting procedure 130

Smart Menu function 131

Sleep timer function 133

Using the sleep timer 134

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Smart select function 135

Calling up the settings 136

Changing the settings 137

Panel lock function 138

Disabling all key button operations 138

Disabling all button operations except VOLUME 138

Canceling the Panel lock function 139

Remote lock function 140

Disabling the sensor function of the remote control unit 140

Enabling the remote sensor function 140

Playback in ZONE2 (Separate room) 141

Connecting ZONE2 141

Playback in ZONE2 143

Settings

Menu map 145

Menu operations 149

Audio 150

Dialog Level Adjust 150

Subwoofer Level Adjust 150

Surround Parameter 151

M-DAX 154

Audio Delay 155

Volume 156

Audyssey®157

Graphic EQ 159

Video 161

Picture Adjust 161

HDMI Setup 163

Output Settings 168

On Screen Display 172

4K Signal Format 173

TV Format 174

Inputs 175

Input Assign 175

Source Rename 177

Hide Sources 178

Source Level 178

Input Select 178

Speakers 179

Audyssey® Setup 179

Procedure for speaker settings (Audyssey® Setup) 181

Error messages 187

Retrieving Audyssey® Setup settings 188

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Manual Setup 189

Amp Assign 189

Speaker Config. 190

Distances 195

Levels 196

Crossovers 197

Bass 198

Front Speaker 199

Network 200

Information 200

Connection 200

Wi-Fi Setup 201

Settings 203

Network Control 205

Friendly Name 205

Diagnostics 206

HEOS Account 207

You have not signed in 207

You have already signed in 207

General 208

Language 208

ECO 208

ZONE2 Setup 211

Zone Rename 212

Smart Select Names 212

Trigger Out 213

Front Display 213

Firmware 214

Information 217

Usage Data 218

Save & Load 219

Setup Lock 219

Limiting the operating zone with the remote control 220

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Tips

Tips 222

Troubleshooting 224

Power does not turn on / Power is turned off 225

Operations cannot be performed through the remote control unit 226

Display on this unit shows nothing 226

No sound comes out 227

Desired sound does not come out 228

Sound is interrupted or noise occurs 230

No video is shown on the TV 231

The menu screen is not displayed on the TV 233

AirPlay cannot be played back 234

USB memory devices cannot be played back 235

Bluetooth cannot be played back 236

The Internet radio cannot be played back 237

Music files on PC or NAS cannot be played back 238

Various online services cannot be played 239

The HDMI Control function does not work 239

Cannot connect to a wireless LAN network 240

Update/upgrade error messages 241

Resetting factory settings 242

Resetting network settings 243

Appendix

About HDMI 244

Video conversion function 247

Playing back a USB memory devices 249

Playing back a Bluetooth device 250

Playing back a file saved on a PC or NAS 251

Playing back Internet Radio 252

Personal memory plus function 252

Last function memory 252

Sound modes and channel output 253

Sound modes and surround parameters 255

Types of input signals, and corresponding sound modes 258

Explanation of terms 261

Trademark information 270

Specifications 272

Index 277

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.

To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Quick Start Guide Safety Instructions Cautions on Using Batteries Notes on radio Cable labels

Power cord FM indoor antenna AM loop antenna Sound calibration

microphone

Sound calibration

microphone stand

Remote control unit

(RC034SR)

R03/AAA batteries

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

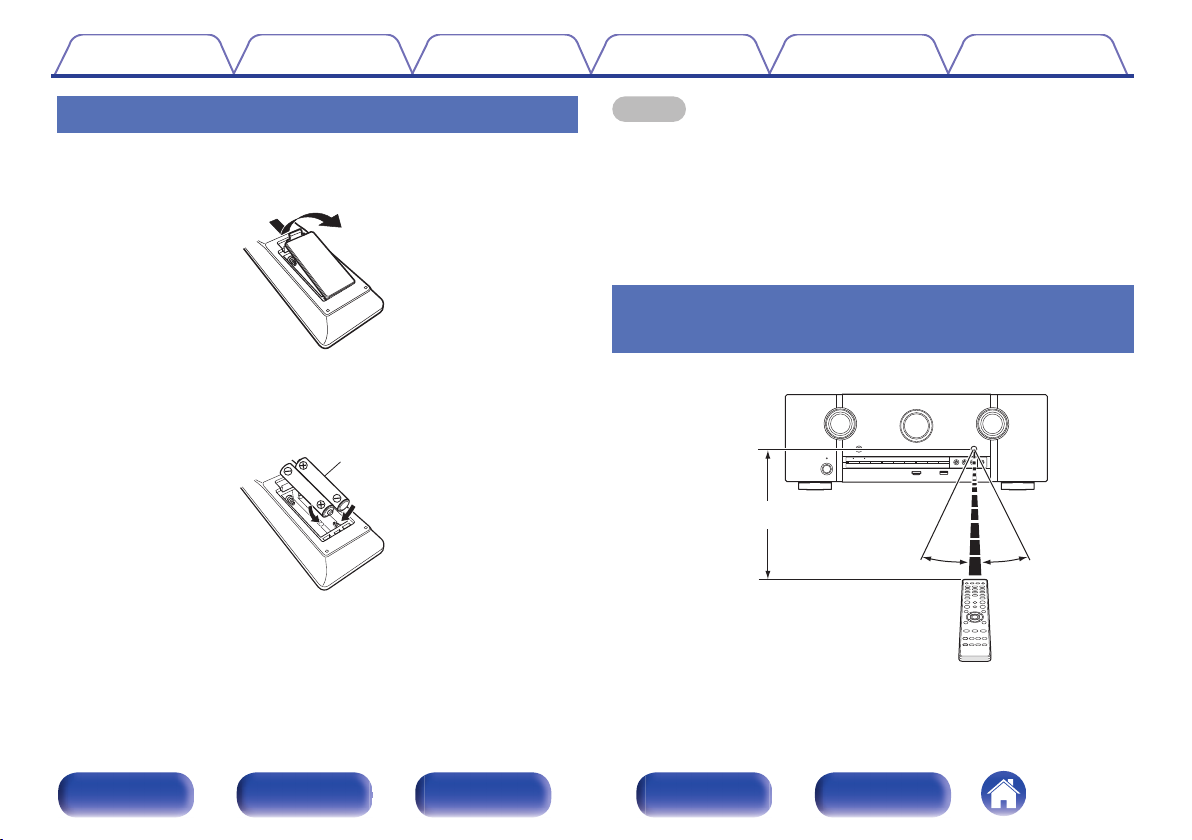

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

30°

Approx. 7 m

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Features

High quality sound

0With discrete circuit technology, the power amplifier provides

identical quality for all 7-channels (140 Watts x 7-channels)

For optimum realism and stunning dynamic range, the power amplifier

section features discrete power devices (not integrated circuitry).

By using high current, high power discrete power devices, the amplifier

is able to easily drive high quality speakers.

0Current feedback amplifier

This unit uses a high-speed current feedback amplifier circuit for its

preamplifier so that signals from a Blu-ray Disc player and other

equipment that support high-definition audio formats can be amplified

with high fidelity. The high-speed current feedback amplifier also

reproduces a natural sound space.

0Dolby Atmos (v p. 262)

This unit is equipped with a decoder that supports Dolby Atmos audio

format. The placement or movement of sound is accurately reproduced

by the addition of overhead speakers, enabling you to experience an

incredibly natural and realistic surround sound field.

0DTS:X (v p. 265)

This unit is equipped with the DTS:X decoder technology. DTS:X brings

the home theater experience to new heights with its immersive object

based audio technology which removes the bounds of channels. The

flexibility of objects allows for sound to be scaled large or small and

moved around the room with greater accuracy than ever before leading

to a richer immersive audio experience.

0DTS Virtual:X (v p. 265)

DTS Virtual:X technology features DTS’s proprietary virtual height and

virtual surround processing to deliver an immersive sound experience

from any type of input source (stereo to 7.1.4 channel) and speaker

configuration.

Contents Connections Playback Settings Tips Appendix

Front panel Display Rear panel Remote Index

Otros manuales para SR5012

Otros manuales de Receptor de Marantz

Marantz

Marantz NR1504 Manual de usuario

Marantz

Marantz SR-4320 Manual de usuario

Marantz

Marantz SR6008 Guía del usuario

Marantz

Marantz SR5500 Manual

Marantz

Marantz Slim-line NR1501 Manual de usuario

Marantz

Marantz SR7005 Manual de usuario

Marantz

Marantz SR4023 Instrucciones de montaje

Marantz

Marantz SR5003 Manual de usuario

Marantz

Marantz M-CR510 Manual de usuario

Marantz

Marantz SR7400 Manual de usuario

Marantz

Marantz SR7010 Manual de usuario

Marantz

Marantz NR1504 Manual de usuario

Marantz

Marantz SR6006 Manual de usuario

Marantz

Marantz NR1504 Guía de inicio rápido

Marantz

Marantz SR5008N Manual de usuario

Marantz

Marantz SR480 Manual de usuario

Marantz

Marantz M-CR610 MELODY Media Manual de usuario

Marantz

Marantz SR7005 Manual de usuario

Marantz

Marantz SR5200 Manual de usuario

Marantz

Marantz SR5001/F Manual de usuario

Marantz

Marantz SR5400 Manual de usuario

Marantz

Marantz SR8000 Manual de usuario

Marantz

Marantz SR110/F1S Manual de usuario

Marantz

Marantz SR4120 Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
