Manta MM270 Manual de usuario

Instrukcja obsługi

User’s Manual

Snow Boombox BT

MM270

User’s Manual

IMPORTANT NOTES.....................................................................................................................................................................................................................3

SCHEMAT..........................................................................................................................................................................................................................................5

POWER SOURCE.............................................................................................................................................................................................................................6

BASIC FUNCTION..............................................................................................................................................................................................................................6

SPECIFICATIONS..............................................................................................................................................................................................................................14

Instrukcja obsługi

WAŻNE INFORMACJE....................................................................................................................................................................................................................16

ZASILANIE..........................................................................................................................................................................................................................................20

FUNKCJE PODSTAWOWE............................................................................................................................................................................................................21

MM270

IMPORTANT: Please read before using and retain for future reference.

FAVOR DE LEER EL MANUAL COMPLETAMENTE ANTES DE OPERAR

ESTE PRODUCTO. CONSERVAR EL MANUAL PARA FUTURAS REFERENCIAS

IMPORTANT NOTES

INTRODUCTION

• Thank you for buying this product.

• Please read through these operating instructions, so you will know

how to operate your equipment properly. After you nished reading

the instructions manual, put it in a safe place for future reference

CAUTION

•

Use of controls or adjustment or performance of procedures other than

those specied herein may result in hazardous radiation exposure

DANGER

•

Use of controls or adjustment or performance of procedures other than

those specied herein may result in hazardous radiation exposure

Use of controls or adjustment

or performance of procedures

other than those specied herein

may result in hazardous radia-

tion exposure

NOTE

•

The manufacturer is not responsible for any radio or TV interference

caused by unauthorized modications.

MM270

• Avoid installing the unit in locations described below:

1. Places exposed to direct sunlight or close to heat radiating applian-

ces such as electric heaters, or other equipments that radiate too

much heat.

2. Places subjected to constant vibration.

3. Unventilated or dusty places.

4. Humid or moist places.

• Operate buttons and switches as instructed in the manual.

•

Before turning on the power for the rst time, make sure that the power

cord is properly installed and the voltage switch is correctly set.

•

Store your CD or other devices in a cool area to avoid damage from heat.

CAUTION

• Remove batteries if exhausted or if they will not be used for a long

period.

• The incorrect use of batteries can cause electrolyte leakage and will

corrode the compartment or cause the batteries to burst. Therefore:

• Do not mix battery types, e.g. alkaline with zinc carbonate.

• When inserting new batteries, replace all batteries at the same time.

MM270

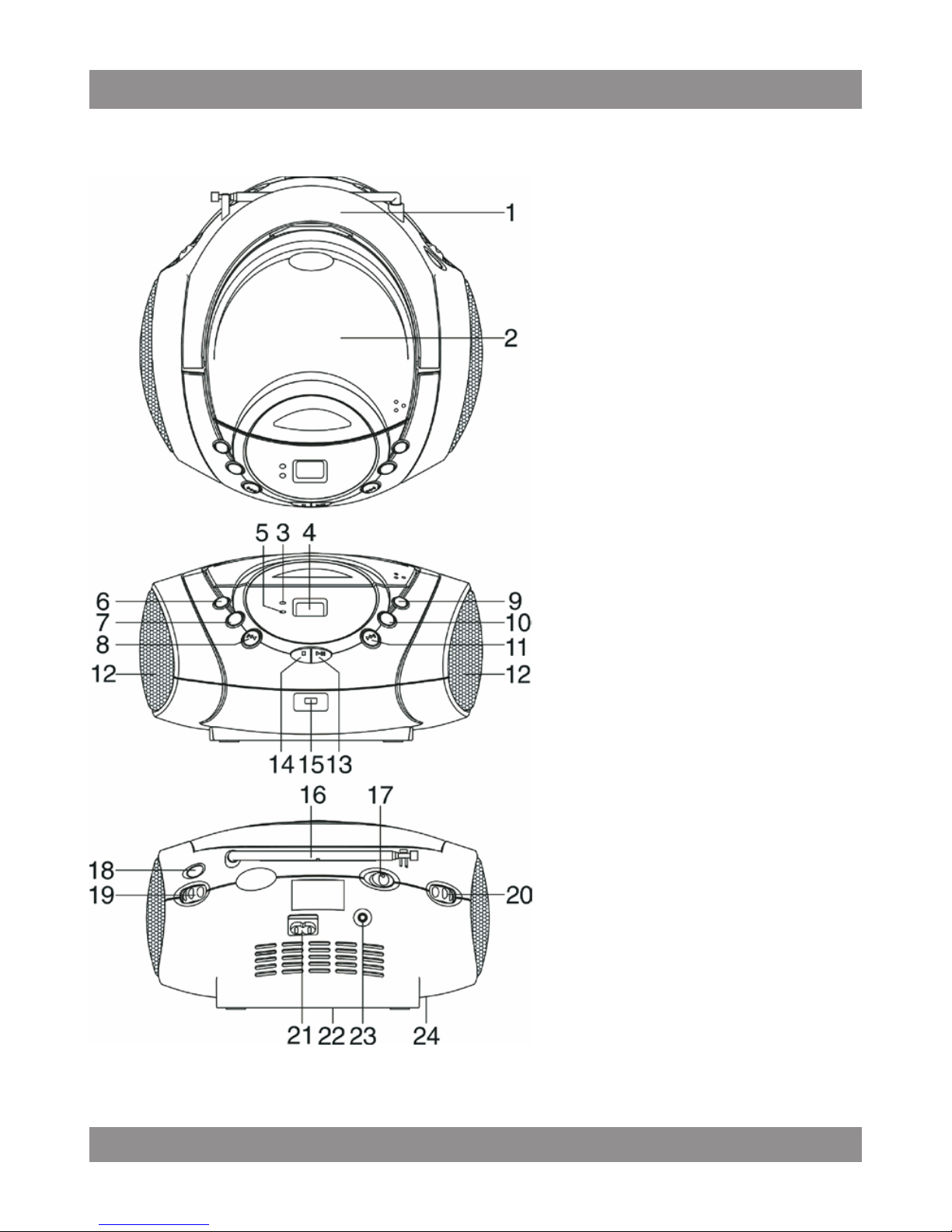

Schemat

1. FOLDING HANDLE

2. CD COMPARTMENT

3. POWER INDICATOR

4. LCD DISPLAY

5. FM STEREO INDICATOR

6. BASS BOOST BUTTON

7. FOLD-/-10 BUTTON

8. CD SKIP/SEARCH

BACKWARD BUTTON

9. CD PROG./P-MODE

10.FOLD+/+10

11.CD SKIP/SEARCH

FORWARD

12.SPEAKERS

13.CD PLAY/PAUSE/

STANDBY

14.CD /USB STOP

15.USB PORT

16.FM TELESCOPIC

ANTENNA

17.FUNCTION SWITCH

18.DIAL SCALE

19.TUNING CONTROL

20.VOLUME CONTROL

21.AC SOCKET

22.

BATTERY COMPARTMENT

23.AUX IN JACK

24.AC VOLTAGE SELECTOR

(For dual voltage ver-

sion only)

MM270

POWER SOURCE

This unit is designed to be operated on AC/DC

AC OPERATION

•

PlugthesmallerendofACpowercordintoACjackonunitandtheotherbig-

ger end into AC wall outlet. The batteries will be automatically disconnec-

ted. For dual voltage version, make sure that the AC voltage selector (loca-

ted on the bottom of the unit) is switched to your local voltage.(optional)

DC OPERATION

•

Open the BATTERY COMPARTMENT DOOR. Install 6 pcs UM-2/C size

batteries (not included) into compartment. Please follow correct pola-

rities as indicated

CAUTION

• Remove batteries if they are at or not being used for a long period of

time.

•

Batteries contain chemical substances, so they should be disposed

of properly

BASIC FUNCTION

SWITCHING ON THE UNIT

Set the FUNCTION switch to CD/MP3/USB/AUX or RADIO

• NOTE: In CD/MP3/USB/AUX mode when the unit is not providing the

main function for 15 minutes, the unit will automatically switch into

standby mode. To turn on the unit again, press „STANDBY” button or

replug the unit.

•

ESD hints – The product maybe reset or not reset to operation of control

due to electrostatic discharge, just switch o and reconnect again.

MM270

TO ADJUST VOLUME

Rotate the VOLUME CONTROL back and forth to increase and decrease

volume

BASS BOOST SYSTEM

• The BASS BOOST BUTTON controls the bass of the unit. Bass sound is

the lower frequency ranges of sound. The knob can be pushed to OFF

or ON position, When the BASS BOOST is on, the unit boosts (increases)

the sound output of the bass frequencies

USING THE RADIO

TUNING IN RADIO STATIONS

• Move the FUNCTION switch to RADIO position, the POWER indicator

will illuminate.

• Tune to required station by rotating the TUNING KNOB.

• Rotate the VOLUME CONTROL to comfortable volume level.

• Extend the TELESCOPIC ANTENNA to its full length if you are listening

to FM broadcasting.

•

Note: The FM STEREO indicator will be on if you are receiving FM stereo

program.

• Turn o the radio by switching the FUNCTION switch to „OFF” position

USING THE CD/MP3

Discs for Playback

•

This system can playback all digital audio CD, MP3, WMA nalized digital

audio CD-Recordable (CD-R) discs, nalized digital audio CD-Rewritable

(CD-RW) discs and CD-DA format digital audio CD/CD-R/CD-RW discs.

MM270

Loading a disc

Set the FUNCTION switch to CD/MP3/USB/AUX position.

• Open the CD door.

• Place an audio CD into the tray with the label side facing up.

•

Close the CD door. The total number of tracks will appear on the display

after several seconds.

• To remove the CD, press to open CD compartment lid, grasp the CD

by its edges, and carefully take it out.

Note

•

To ensure good system performance; wait until the disc tray completely

reads the disc before proceeding.

• If no disc is loaded into the compartment, or the disc is placed upside

down, the display will show N0D.

PLAYING A DISC

• Press the PLAY/PAUSE/USB button to start playback. The playback

starts from track

1, the “ ” indicator is shown on the display. To interrupt playback,

press the PLAY/PAUSE/USB button.

The “ ” indicator and the current track will ash on the display. To

resume playback, press the PLAY/PAUSE/USB button again.

• To stop playback, press the STOP button, the total number of tracks

appears on the display

MM270

SELECTING A DESIRED TRACK/PASSAGE

To select a song/track which number exceeds 10, Press the

FOLD+/+10 or FOLD-/-10 button each time to skip forward/backward

10 tracks, then press the CD SKIP FORWARD/BACKWARD button

to select desired track. For example: to select the 17th track, press

FOLD+/+10 button, and then the CD SKIP FORWARD button six times

immediately..

To Select A Desired Folder (for MP3 disc only)

To select a song/track which number exceeds 10, Press the

FOLD+/+10 or FOLD-/-10 button each time to skip forward/backward

10 tracks, then press the CD SKIP FORWARD/BACKWARD button

to select desired track. For example: to select the 17th track, press

FOLD+/+10 button, and then the CD SKIP FORWARD button six times

immediately.

To Select A Desired Folder (for MP3 disc only)

(if the MP3 disc contains more than one folder) To skip to the desired

folder during playback, press and hold the FOLD+/+10 or FOLD-/-10

button for about 2 seconds to skip to next/previous folder.

MM270

PROGRAM TRACKS

Programming tracks of disc are possible when playback is stopped.

Up to CD 20 tracks /MP3 99 tracks can be stored in the memory in any

order.

•

In stop mode, press the PROG./P-MODE button, the PROG will ash and

the P01 indicator will be on.

• Press the CD SKIP/SEARCH FORWARD button to select the rst desired

track to be programmed.

•

Press the PROG./P-MODE button to enter. The display changes to show

P02.

•

Repeat steps 2 & 3 to store other desired tracks until all tracks are

programmed.

• Press the PLAY/PAUSE/USB button to start playback from the rst pro-

grammed track.

• Press the STOP button to stop program playback

TO ERASE THE MEMORY PROGRAM

To clear the program, you have two options:

• Press the STOP button when the disc is stopped, or

•

Open the CD compartment lid, program will be erased
