Manitowoc F-STYLE OR NON MANITOWOC BIN 7601193 Manual de usuario

7601193 (F-STYLE OR NON-MANITOWOC BIN)

7601223 (S-STYLE MANITOWOC BIN)

Q-DUAL WATER TROUGH/CURTAIN REPLACEMENT

Installation Instructions

Kit Contents:

Water Trough

.625 Hole Plug, White

10-32 x 3/4 Phil Fat Type F Screw (2)

10-24 x 1/2 Trim HWH TY23 (2)

Trough Protector (2)

Water Curtain (2)

Ice Deflector Weldment

Water Fitting Bracket

Control Board

Installation Instructions

Bushing

Remove:

1. Splash shield (reuse)

2. Water inlet fitting and bracket (reuse fitting - discard bracket)

3. Water pump (reuse)

4. Water curtains (discard)

5. Trough protectors (discard)

6. Water level probe (reuse)

7. Water trough (discard)

8. Ice deflector (discard)

9. Control board (discard)

Before you install:

1. Remove four screws from the water pump mounting bracket. Remove three screws connecting the water pump

housing to the pump motor. Rotate the pump housing clockwise (from the shaft end) one position and then

reinstall the screws and mounting bracket (see Figure 3).

2. Remove the water inlet fitting from the water inlet bracket. Save two of the three plastic wing nuts and water inlet

fitting. These will be reused. Discard the bracket.

Install in the following order:

1. New ice deflector

2. New water trough

3. Water pump and reroute water pump supply hose and dump to right side of pump (see Figures 1 and 3)

4. Plug for water level probe and old mounting screw to cover holes - Note! Do not install probe at this time

5. New water curtains

6. New water inlet/water level probe mounting bracket, using screws provided (see Figure 2)

7. Water inlet fitting and water level probe using existing plastic wing nuts - route water inlet probe through

grommet in bulkhead with ice thickness probe wire

8. 1-1/2" bushing in water inlet bracket

9. Water inlet hose through bushing on back of bracket to water inlet fitting

10. New control board

11. Trough protectors

Manitowoc Ice, Inc.

2110 South 26 Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA 8006823

Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 Sheet 1 of 3

Web Site - www.manitowocice.com 03/25/02

Q-DUAL INSTALL DATA

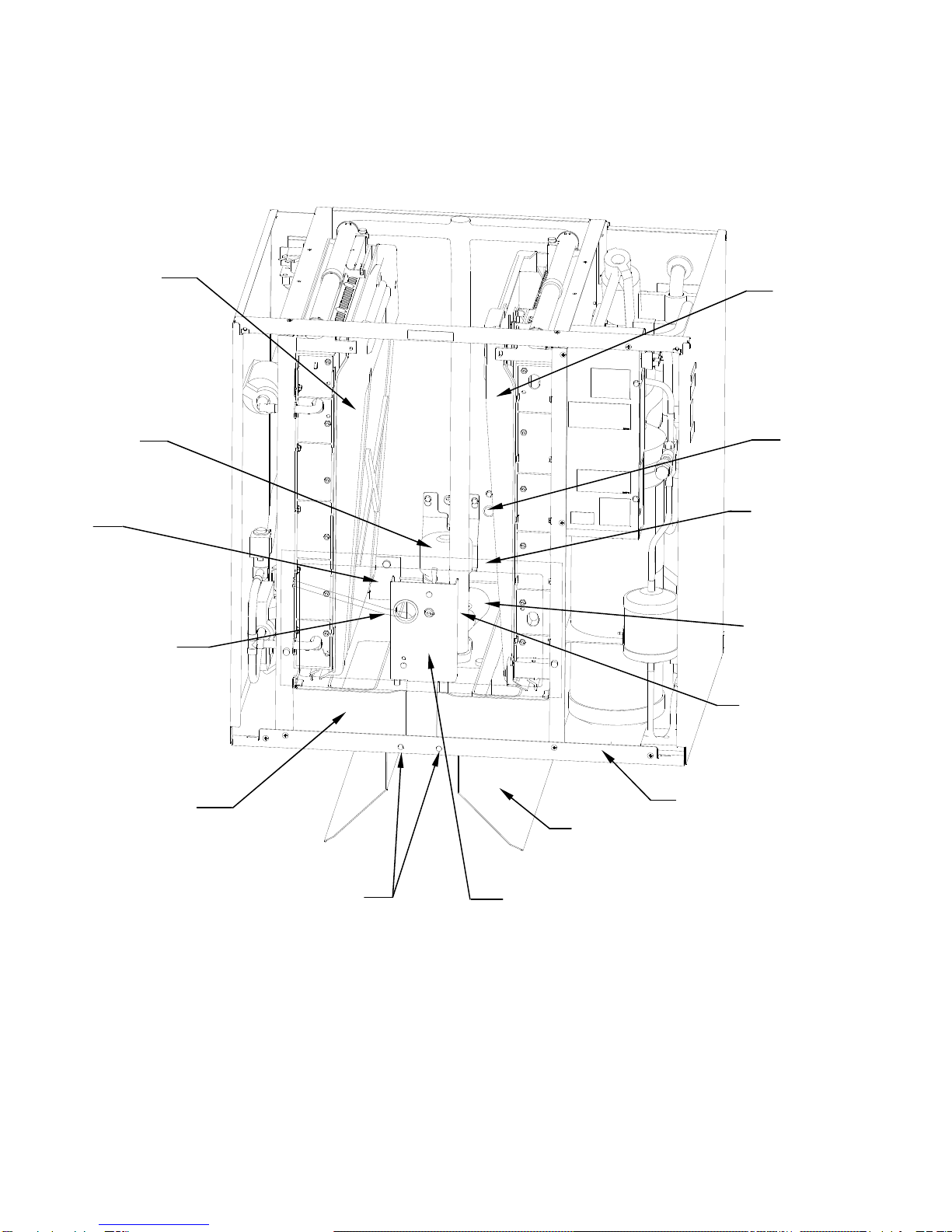

Figure 1

8006823

Sheet 2 of 3

03/25/02

Water Inlet Hose

1 1/2" Bushing

Water

Water Pump

#10-32 Mounting Screws

Water Trough

Water Inlet/Water Level Bracket Assembly

Deflector

Frame Angle

Water Pump

Supply Hose

Dump Hose

Splash Shield

Water Level

Hole Plug

Water Curtain

Trough

Protector

WATER INLET BRACKET

Figure 2

WATER PUMP SUPPLY POSITION AFTER ROTATING PUMP HOUSING

Figure 3 (Top View) 8006823

Sheet 3 of 3

03/25/02

Wing Nut

Water Level Probe

Water Inlet Bracket

Water Inlet Fitting

Wing Nut

Bushing
