Manitowoc GROVE GMK 4100 Manual de usuario

Serial number

3 112 441 en

11.01.2008

Lattice extension

operating instructions

The passing on or duplication of this document as well as the utilisation and disclosure of its contents are prohibited unless

expressly permitted. Infringement will incur liability for compensation. All rights pertaining to registration of patent or utility

model are reserved.

3 112 441 en Lattice extension operating instructions

GMK 4100/4100-L/5095

11.01.2008

Important note

Any type of duplication or excerpt from this doc-

ument, also in electronic form, is not subject to

the revision service of Manitowoc Crane Group

Germany GmbH.

Additional pages 3 112 620 en 1

GMK 4100, GMK 4100-L, GMK 5095

09.09.2009

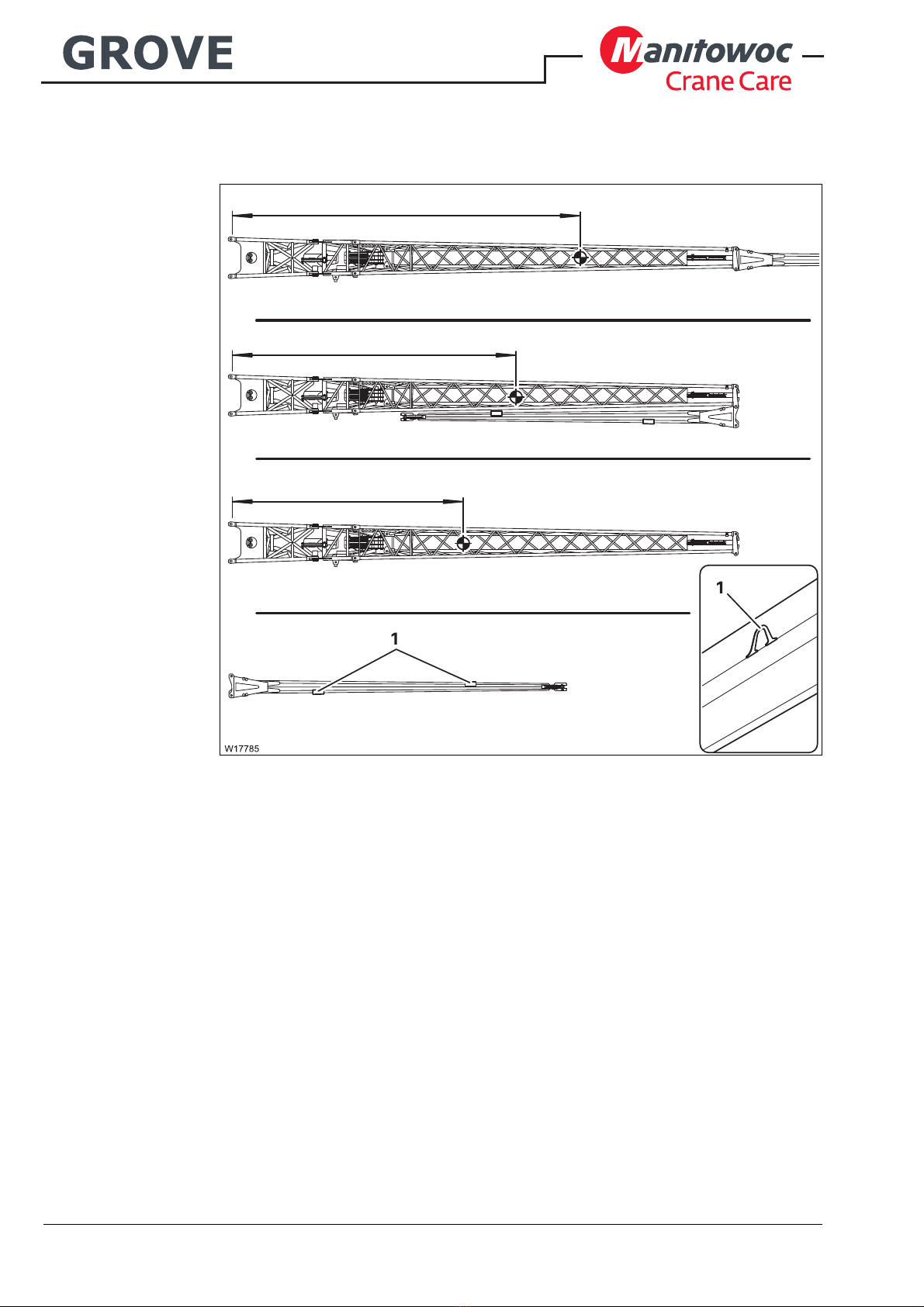

Validity

These additional pages apply to the GMK 4100, GMK 4100-L and GMK 5095

mobile cranes without connection eyes (1) on the swing-away lattice.

Slinging •Sling the swing-away lattice for the current rigging mode at the centre of

gravity displayed.

– Swing-away lattice in lattice construction; àp. 2

– Swing-away lattice in box construction, àp. 3

– S wing-away lattice with integrated heavy load lattice extension (ISS);

àp. 4

The dimensions can differ slightly because of deviations due to manufacturing.

•Raise the swing-away lattice a little first and check that the centre of gravity

is correct.

•Correct the centre of gravity if necessary.

Additional pages

Centre of gravity of the swing-away lattice

09.09.2009

2 3 112 620 en Additional pages

GMK 4100, GMK 4100-L, GMK 5095

Swing-away

lattice in lattice

construction

The distances are always measured from the centre of the fork elements.

1) The dimensions apply to the derricking swing-away lattice.

For the inclinable swing-away lattice, the centres of gravity are about

100 mm (4.0 in) further in front.

5960 mm (234.6 in) 1)

4670 mm (183.8 in) 1)

3940 mm (155.1 in) 1)

2950 mm (116.1 in)

Additional pages 3 112 620 en 3

GMK 4100, GMK 4100-L, GMK 5095

09.09.2009

Swing-away

lattice in box

construction

The distances are always measured from the centre of the fork elements.

•Use the connection eyes (1) on part 2.

1) The dimensions apply to the derricking swing-away lattice.

For the inclinable swing-away lattice, the centres of gravity are about

100 mm (4.0 in) further in front.

6095 mm (240.0 in) 1)

4860 mm (191.3 in) 1)

3940 mm (155.1 in) 1)

09.09.2009

4 3 112 620 en Additional pages

GMK 4100, GMK 4100-L, GMK 5095

Swing-away

lattice with ISS

The distances are always measured from the centre of the fork elements.

The swing-away lattice with ISS is only supplied as a derricking swing-away

lattice.

•Use the connection eyes (1) on part 2.

5820 mm (229.1 in)

4710 mm (185.4 in)

3860 mm (152.0 in)

Additional page 3 112 451 en 1

GMK 4100/GMK 4100-L/GMK 5095

17.12.2007

Swing-away lattice in lattice construction,

modified specifications

Validity Once section 2 of the supplied swing-away lattice has been created in lattice

construction, the following changes apply to the Lattice extension operating

instructions:

– Changed weight of section 2 and the complete swing-away lattice

– Changed slinging points

– Changed electrical connections on section 2

Transport dimen-

sions and weights

For the sake of completeness, the transport dimensions are given in the fol-

lowing table.

Slinging points For versions with connection eyes, use the individually attached connection

eyes (1).

Designation Length x width x height

in m (ft)

Weight in kg

(lbs)

17 m (56 ft) swing-away

lattice, complete, folded

10.50 x 0.90 x 1.20

(34.5 x 3.0 x 4.0)

1300

(2 870)

Section 2 7.00 x 0.50 x 0.60

(23.0 x 1.7 x 2.0)

300

(665)

5,960 mm (234.6 in)

4,670 mm (183.8 in)

3,000 mm (118.1 in)

17.12.2007

2 3 112 451 en Additional page

GMK 4100/GMK 4100-L/GMK 5095

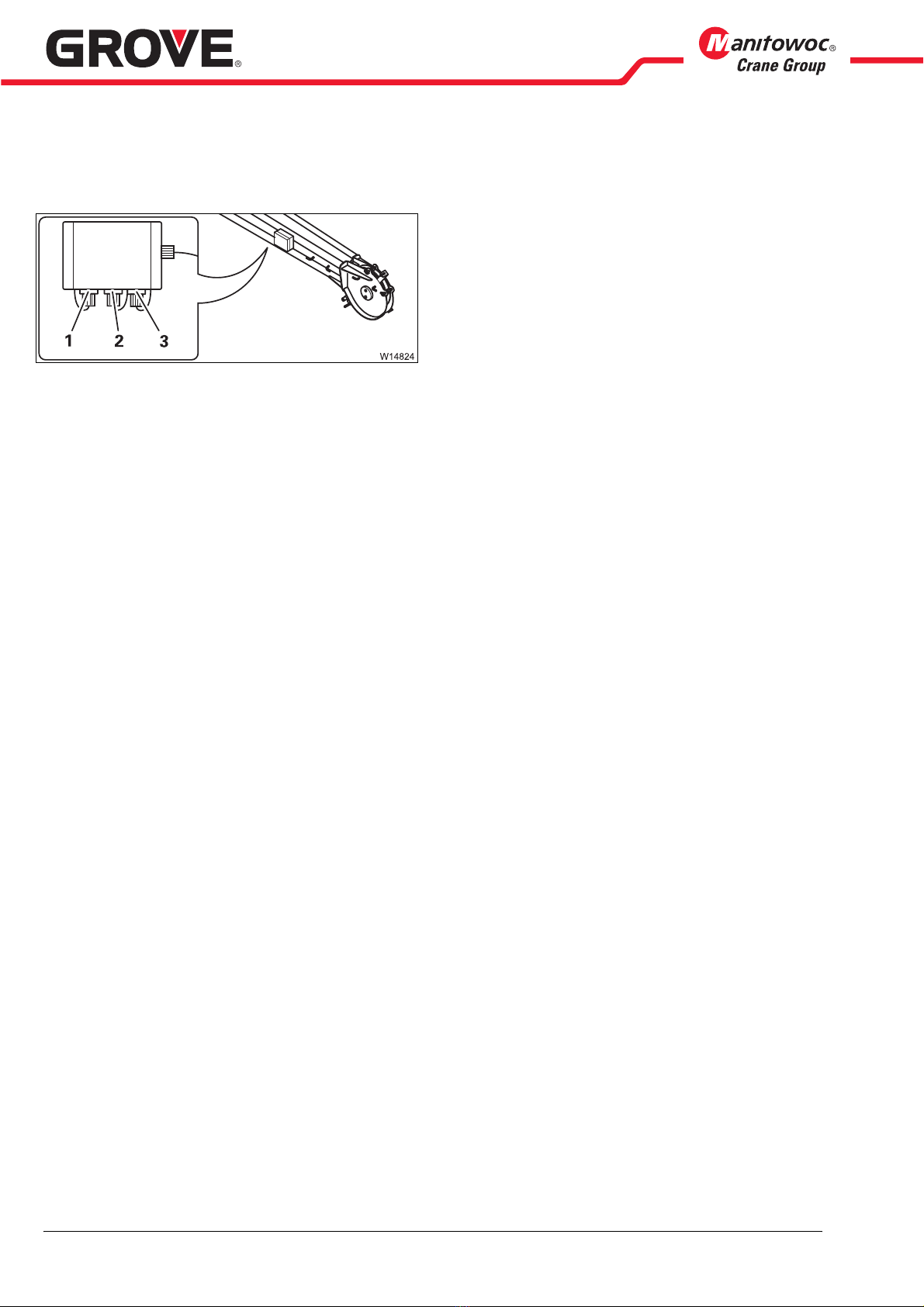

Electrical

connections

•Attach the following to the terminal box on

section 2:

– Anemometer to socket (1)

– Lifting limit switch to socket (2)

– Air traffic control light to socket (3)

Additional pages GMK 4100 3 112 331 en 1

12.12.2008

Validity These additional pages are valid for all truck cranes GMK 4100 with the Lat-

tice extension operating manual with one of the following identification num-

bers:

Reasons for the

additional infor-

mation

Swing-away lattice and boom extension

The values for the tables Driving with rigged crane are available.

Integrated heavy load lattice extension: altered procedure

The specifications in the supplied Lattice extension operating instructions in

the chapter Driving with rigged crane in the section Integrated heavy load lattice

extension (ISS) are not applicable. Proceed as follows:

– The rigging modes and axle loads specified in these additional pages are

valid; àIntegrated heavy load lattice extension: ISS-A or ISS-B, p. 9.

•To move the crane on site, enter the SLI code for the current working

position with ISS in accordance with the lifting capacity table.

•Move the main boom and the lattice extension into the prescribed

position.

Auxiliary single-sheave boom top and heavy load lattice extension

The specifications in the delivered Lattice extension operating instructions

in the chapter Driving with rigged crane for auxiliary single-sheave boom top

remain or heavy load lattice extension remain valid.

– 3 112 298 – 3 112 327 – 3 112 351 – 3 112 371 – 3 112 373

– 3 112 374 – 3 112 436 – 3 112 438 – 3 112 441 – 3 112 443

– 3 112 465 – 3 112 466 – 3 112 467

Driving with a rigged crane

12.12.2008

2 3 112 331 en Additional pages GMK 4100

Additional

information

Table footnotes

GRisk of accidents

When reading the chapter entitled Driving with rigged crane in the operating

instructions mentioned above, pay close attention to:

– the safety instructions,

– the notes on driving distance,

– the inspections and notes before driving with a rigged crane,

– the inspections and notes for driving with a rigged crane, and

– the notes concerning the tables with boom positions and axle loads.

1) Boom position to the rear: 0° position, boom over rear edge of truck

crane

Boom position to the front: 180° position, boom over driver's cab

2) Front axle load: on the first and second axle line

Rear axle load: on the third and forth axle line
