Manhattan 700344 Manual de usuario

MAN-700344/701419-UM-0107-05

Multi-Card

reader/Writer

uSer MaNual

MODEL 700344/701419

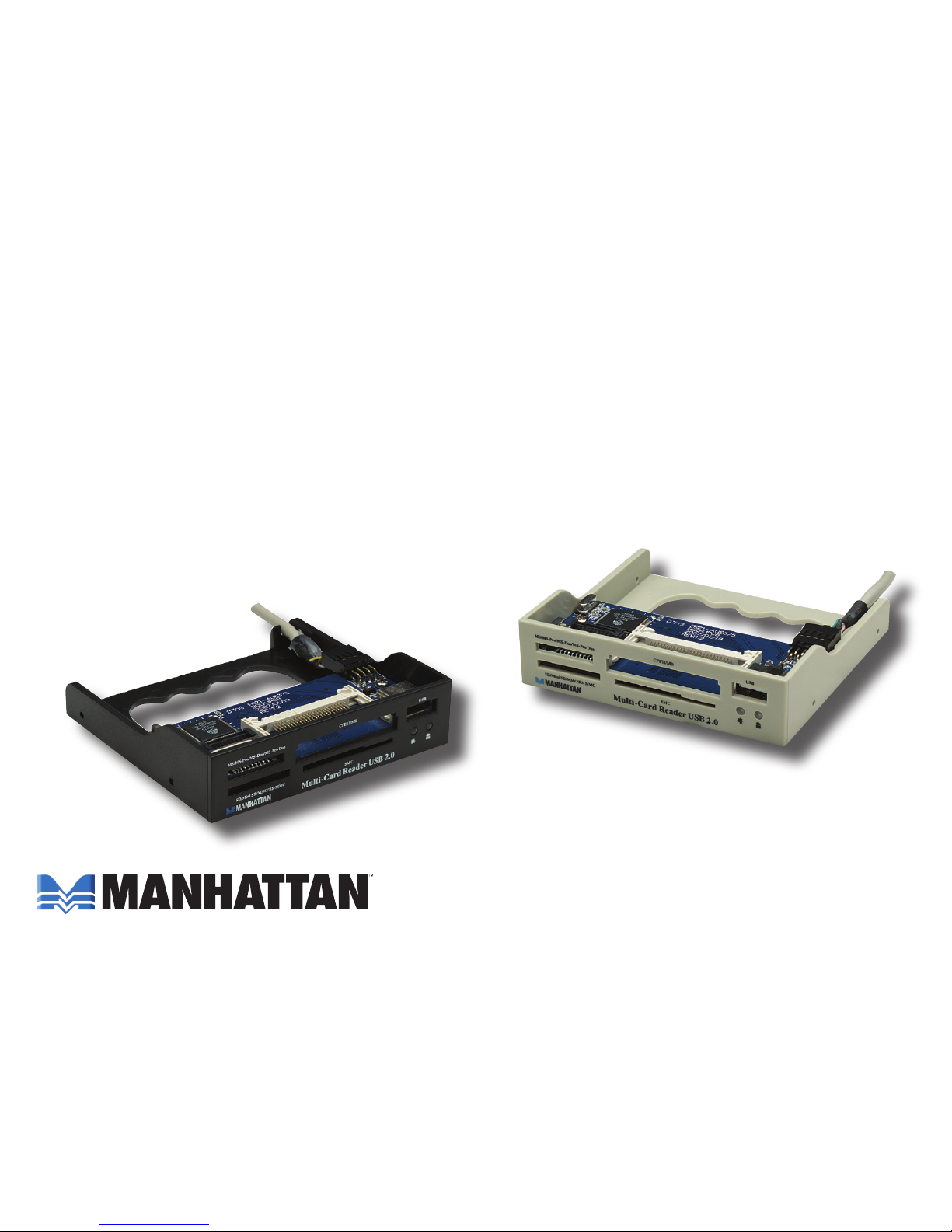

Thank you for purchasing the MANHATTAN®Multi-Card Reader/Writer, Model 700344 (black)

or Model 701419 (beige).

Convert any unused PC bay into a digital content management center that lets you access

picture ﬁles from memory cards without directly connecting a camera or other media device to

the computer. Follow the simple instructions in this user manual and enjoy the beneﬁts of these

convenient features:

• Easily access cards and manage content with slot-to-slot read/write/copy capability

• Compatible with CompactFlash, Microdrive, Memory Stick, MagicGate, SecureDigital and

Multimedia

• Supports automatic card detection, hot swapping and Plug and Play

• Convenient front-mount USB port

• Data transfer rates up to 480 Mbps

• Lifetime Warranty

hardWare iNStallatioN

1. Turn off the power

to your PC and

remove the two

side panels as

shown at right.

2. Using the split ("Y") end of

the internal cable, make the

connections as shown to

the Card Reader’s circuit

board (near right) and the

USB pins (far right).

3. Insert the Multi-Card Reader/Writer

into the front panel of the PC.

4. Secure the Multi-Card Reader/Writer

in place on both sides using the

enclosed mounting screws.

Side view

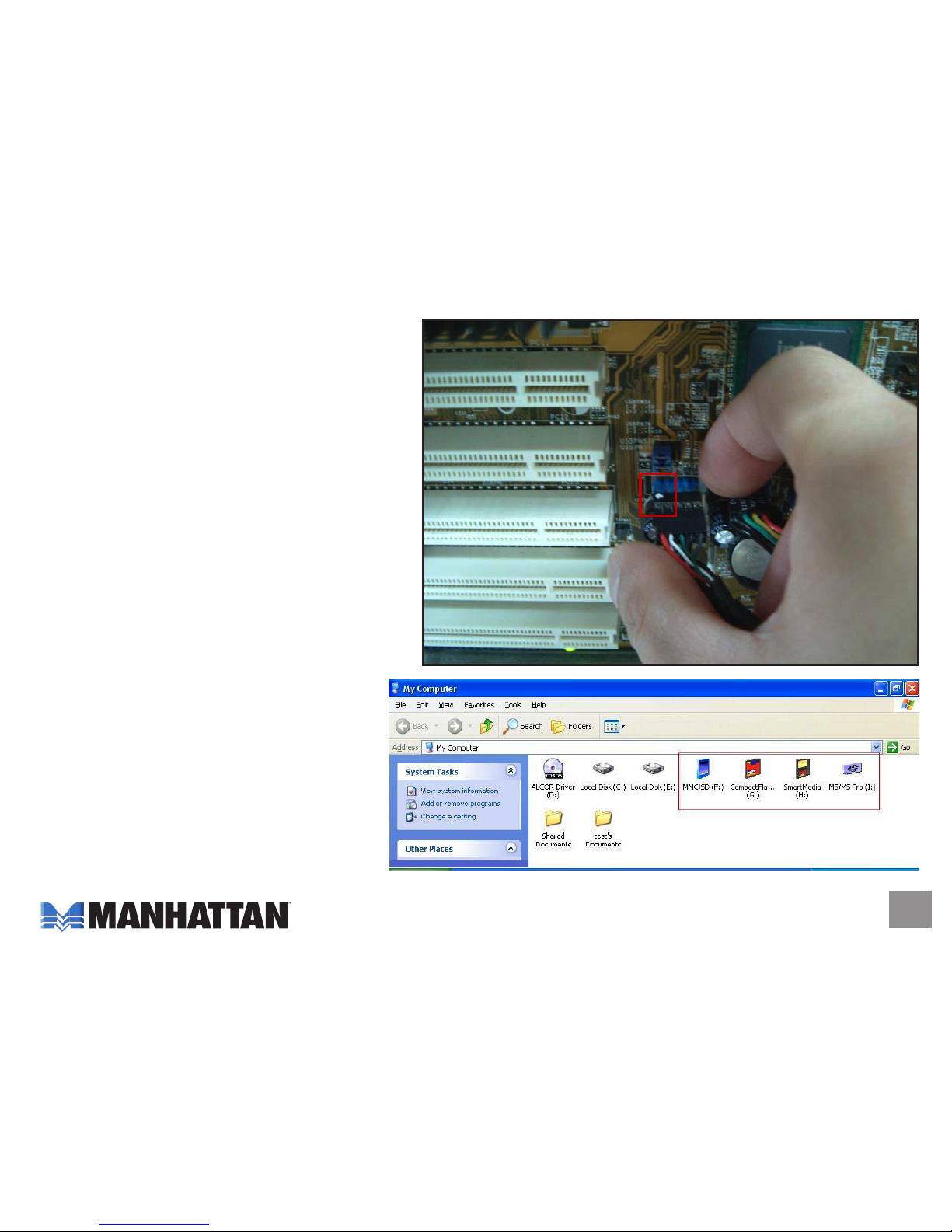

5. Connect the other end of the internal

cable to the USB pins on the PC’s

motherboard. NOTE: The white dot

inside the red highlight box at right

indicates the postion of Pin 1.

6. Replace the side panels on the PC.

SoftWare iNStallatioN

Windows XP:

1. With the Card Reader connected

properly, turn on the PC. NOTE: It

isn’t necessary to install a driver

with Windows XP. The system will

automatically ﬁnd the driver.

2. Four removable disk icons will

appear on the My Computer

screen, indicating that the device

is ready for use.

Memory Card Formatting:

SM (SMC) and XD users may need to format their memory card(s) prior to use, indicated by a

"write protection" or "read/write error" message. If this is the case, follow the steps below to use

the attached program for formatting the memory card.

1. Go to "Start"

‡

"Programs"

‡

"Multimedia Card Reader"

‡

"Memory Card Low Level

Format."

2. Select the SMC/XD icon, then click "Low Level Format."

3. When prompted with "Low level format is completed. Please remove the card," click "OK"

and remove the memory card.

4. Re-insert the memory card and continue using the Multi-Card Reader/Writer.

SpeCifiCatioNS

Standards and Certiﬁcations

• Hi-Speed USB 2.0; USB 1.1

• CE, FCC, WEEE

Connections

• External USB USB 2.0 A-type female

• Internal 4-pin USB connection (Molex)

• Internal 5-pin connection for card reader (Molex)

• CompactFlash Type I / II, CF Elite Pro, CF High Speed,

CF Picture, CF PRO I/II, Ultra-X CF*, CF Wa, Extreme CF,

Extreme III CF, Ultra II CF, XS-XS CF, IBM & Hitachi Microdrive,

MagicStor, Memory Stick, Memory Stick Duo*, Memory

Stick Extreme III PRO, Memory Stick Extreme PRO, Memory

Stick PRO, Memory Stick PRO Duo*, Memory Stick ROM,

Memory Stick Select, Memory Stick Ultra II PRO, High

Speed Memory Stick PRO, High Speed Memory Stick PRO

Duo*, MagicGate, MagicGate Duo*, MagicGate PRO,

MagicGate PRO Duo*, High Speed MagicGate PRO,

High Speed MagicGate PRO Duo*, SecureDigital (SD),

Elite Pro SD, Extreme III SD, Extreme SD*, High Speed

miniSD*, High Speed SD, microSD / TransFlash*, miniSD*,

miniSDHC*, Pro SD, SDHC, Ultra II SD, Ultra Speed SD,

Ultra-X SD, MMC / MMC II, RS-MMC*, DV-RS MMC*,

High Speed MMC, MMCmobile*, MMCplus/100x/

200x, Ultra RS-MMC*, SmartMedia, SmartMedia ROM

& XD/Type M/Type H

* Adapter required

• Compatible with Windows 2000/XP/Vista

General

• LEDs: Power LED, Activity LED

• Transfer rates: 480 Mbps / 12 Mbps / 1.5 Mbps

• Material: plastic

Environmental

• Operating temperature: 0 – 70˚C (32 – 158˚F)

• Storage temperature: -40 – 70˚C (-40 – 158˚F)

• Operating humidity: 50% non-condensing

• Storage humidity: 95% non-condensing

• Dimensions: 90 x 102 x 25.8 mm (3.5 x 4 x .7 in.) L x W x H

• Weight: 99.25 g (3.5 oz.)

System Requirements

• Internal USB connection

• Windows 2000/XP/Vista

Package Contents

• Multi-Card Reader/Writer

• Internal cable, 46 cm (18 in.)

• Mounting screws

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com

MANHATTAN®offers a complete line of PC Components, Peripherals, Cables

and Accessories. Ask your local computer dealer for more information

or visit us online at
