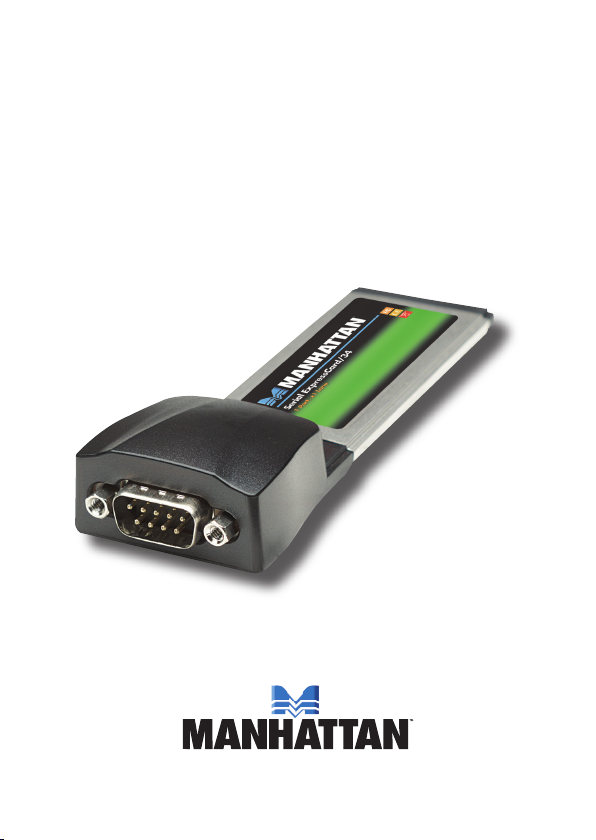

Manhattan Serial ExpressCard/34 Manual de usuario

SERIAL

EXPRESSCARD/34

QUICK

INSTALL

GUIDE

Model 158008

MAN-158008-QIG-0807-01

2

SECTION NAME

Thank you for purchasing the MANHATTAN

®

Serial ExpressCard/34,

Model 158008. The easy-to-follow instructions in this guide help make

installation of the card quick and simple, so you’ll also soon be enjoying

the benets of these features:

• Easily adds one DB9 (RS-232) serial port to notebook computers

• Supports data transfer rates of up to 230 kbps

• Fits ExpressCard/34 and ExpressCard/54 slots

• Plug and Play installation; hot-swappable — Windows compatible

• Lifetime Warranty

System Requirements

• Windows 2000/XP/Vista

• PCI Express-enabled system with an available ExpressCard slot

Package Contents

• Serial ExpressCard/34

• Quick install guide and driver CD

NOTE: Some screen images have been modied to t the guide format.

SOFTWARE INSTALLATION

Windows 2000

1. Insert the ExpressCard into an available ExpressCard/34 or

ExpressCard/54 slot.

2. Insert the driver CD into your CD-ROM/DVD.

3. Click “Cancel” when Windows displays the Found New Hardware

Wizard screen.

3

3

4. Double-click the Setup icon on the driver CD

(E:\RS232\RS232_USB\32bit_Windows) to display the InstallShield

Wizard screen.

5. Click “Next” to continue to the Digital Signature Not Found screen

(shown below).

6. Click “Yes,” then click “Finish” on the subsequent screen.

44

Windows XP

1. Insert the ExpressCard into an available ExpressCard/34 or

ExpressCard/54 slot.

2. Insert the driver CD into your CD-ROM/DVD.

3. Click “Cancel” when Windows displays the Found New Hardware

Wizard screen.

4. Double-click the Setup icon on the driver CD

(E:\RS232\RS232_USB\32bit_Windows) to display the InstallShield

Wizard screen.

5. Click “Next” to continue.

5

5

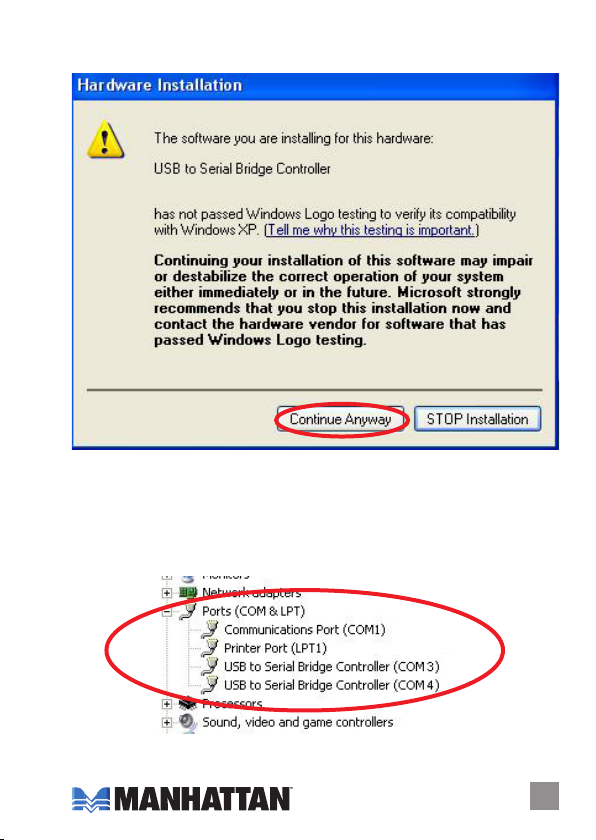

6. When the “...has not passed Windows Logo testing...” prompt displays

(below), click “Continue Anyway”; click “Finish” on the subsequent screen.

Verify Driver Installation

1. Right-click “My Computer”; click “Manage”; click “Device Manager.”

2. Click on “+” (plus sign) in front of “Ports (COM & LPT)”; if no yellow

exclamation point (!) or question mark (?) displays to the left of “USB to

Serial Bridge Controller (COMx),” the driver has been installed correctly.

66

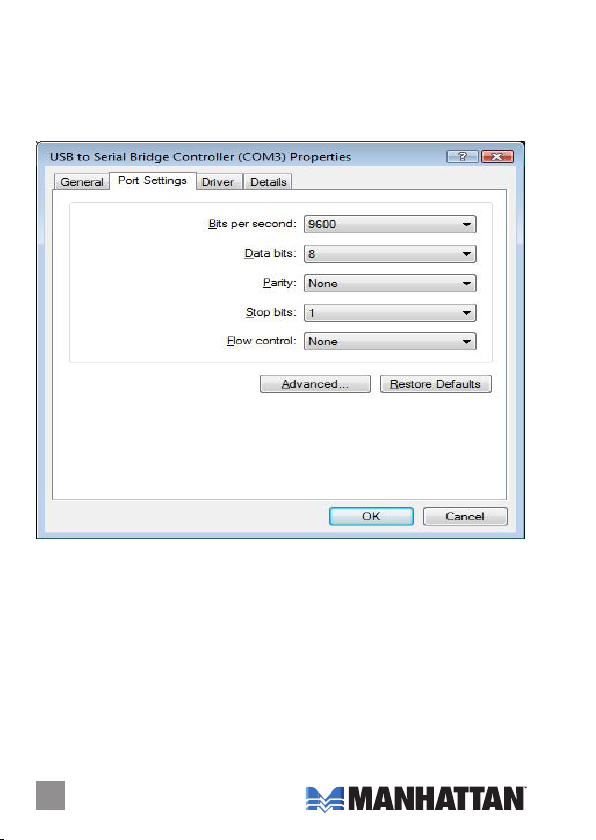

Setting the Baud Rate

1. Right-click “USB to Serial Bridge Controller (COMx),” then select

“Properties” and click on the Port Settings tab.

2. Enter/select the desired setting in the “Bits per second” eld, then

click “OK.”

7

SPECIFICATIONS

Port specications

• One DB9 (RS-232) port, male

• Supports data transfer rates of up to 230 kbps

• Compliant with PCI Express 1.0a specications

• Built-in, 128-byte FIFO for transmission and receive

Bus specications

• PCI ExpressCard 34/54

• Alcor AU9720 chipset

• Bus speed 2.5 Gbp

Are you completely satised with this product?

Please contact your MANHATTAN®dealer

with comments or questions.

Copyright © MANHATTAN

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com
