Makita 4114 Manual

Model No.

Description

PRODUCT

CONCEPT AND MAIN APPLICATIONS

P 1 / 6

Specification

Standard equipment

Optional accessories

Continuous Rating (W)

Voltage (V) Cycle (Hz) Input Output Max. Output (W)

120

No load speed: min.-1= rpm

Wheel size: mm (")

Clutch

Soft start

Socket wrench 17 ................................... 1 pc.

Model 4114

Diameter

Hole diameter

15 AC/ DC 1,650 800 3,000

Current (A)

Continuous Rating (W)

Voltage (V) Cycle (Hz) Input Output Max. Output (W)

110

Model 4114S

23 50 / 60 2,400 1,500 2,750

230 11 50 / 60 2,400*11,600 3,700

Current (A)

Dimensions: mm (")

Width (W)

Height (H)

Length (L) 673 (26-1/2)

240 (9-1/2)

329 (13)

Note: The standard equipment for the tool shown above may differ by country.

3,500

355 (14)

Yes

(SJS - Super Joint System)

25.4 (1)

Thickness 2.6 (1/8)

Specifications Model 4114

Protection against electric shock Double insulation

Cord length: m (ft) 2.5 (8.2)

Net weight*2: kg (lbs) 10.8 (23.8)

Yes

4114S

10.9 (24.0)

*2: Without wheel and cord

*1: Switzerland =2,300W, Brazil (127V)=1,900W

Assorted diamond wheels

Assorted abrasive cut off wheels

Base set

Elbow joint 32 (for connecting to vacuum cleaner)

Ring 20

4114, 4114S

Angle Cutter 355mm (14")

Model 4114S is the 355mm (14") version of the current

4112S 305mm (12") Angle cutter, having the following

same benefits as 4112S;

High torque delivered at low motor speed of 3,500rpm

"SJS - Super Joint System" that provides smooth

approach and long service life of gear section

Soft start to minimize startup shock

Model 4114 features the same benefits as 4112S except for

soft start function.

Model 4114 for North American countries feature AC/DC switch.

TECHNICAL INFORMATION

P 2 / 6

Repair

[2] LUBRICATION

Apply Makita grease N. No.1 to the following portions designated by black triangle to protect parts and product from

unusual abrasion.

Bearing extractor (Makita Part No.1R269), Retaining ring S and R pliers (Makita Part No.No.1R291),

Water pump pliers

[3] DISASSEMBLY/ASSEMBLY

[3] -1. Removing Base and Wheel Cover

Fig. 2 Fig. 3

[1] NECESSARY REPAIRING TOOLS

CAUTION: Remove the wheel from the machine for safety before repair/ maintenance !

1) Remove Base by unscrewing an M8x20 Wing bolt and two M6 Shoulder hex bolts. (Fig. 2)

2) Remove Pressure plate by unscrewing three M5x14 Hex bolts. (Fig. 3)

Pressure plate

Hex bolt M5x14

(3pcs)

Fig. 4

3) Remove two M8x20 Hex bolts. The Wheel cover section can now be removed. (Fig. 4)

Note: Be careful not to lose Plate B.

Shoulder hex bolt M6 (2pcs) Base

Spring washer 8

Flat washer 8

Wing bolt M8x20

Hex bolt M8x20 (2pcs)

Plate B

Fig.1

Gear room in Gear housing (Item No. 32): 40g

The grease protects the gear teeth of Spiral bevel gear 57.

The outer periphery of

Lock spring 24 (Item No. 26): 1g

The installed part of

Spindle complete (Item No. 17)

into Spiral gear 57: 1g

(Spiral bevel gear 57)

P 3 / 6

Repair

Fig. 5 Fig. 6

[3] -2. Disassembling/ Assembling Gear Section and SJS (Clutch) Mechanism

1) Apply Makita grease SG. No.0 to the spring when assembling Lock spring 24 to Spiral bevel gear 57.

2) Tilt and place Lock spring 24 on Spiral bevel gear 57. Press down the portion A (the highest portion) of the spring

using arbor press. While turning the gear counterclockwise, press down the portions B, C, D sequentially.

After one turn of of the gear, the top surface of the spring will be almost flat. Lock spring 24 can now be fit on

Spiral bevel gear 57 by pressing down the entire top surface of the spring. (Fig. 5)

3) Assemble Lock sleeve to Spiral bevel gear 57 by doing the same way as you did to install Lock spring 24. (Fig. 6)

4) Do the reverse of the disassembling steps.

ASSEMBLING

Lock spring 24

Spiral bevel

gear 57

Arbor press

Lock sleeve

[3] -3. Replacing Armature

1) Separate Base and Wheel cover. (Refer to [3] -1. of page 2.)

2) Remove Brush holder cap and Carbon brush. Separate the Gear housing section from Motor housing by unscrewing

four M5x40 Hex bolts.

3) Armature can now be removed from Gear housing by tapping the end surface of Gear housing with plastic hammer.

Ball bearing 6202DDW still remains in Gear housing in this step.

4) In order to remove Ball bearing 6202DDW;

Remove Retaining ring R-40 and Flat washer 30. Insert the removed Armature lightly into the ball bearing again.

While swaying the commutator end of the armature, pull out the ball bearing with the inserted armature. (Fig. 7)

5) Tighten four M5x40 Hex bolts to the recommended torque of 7.4 - 15Nm when fastening the Gear housing section to

Motor housing.

Fig. 7

Flat washer 30

Retaining ring R-40

Ball bearing 6202DDW

Ball bearing

6202DDW

P 4 / 6

Repair

Fig. 8 Fig. 9 Fig. 10

[3] -2. Disassembling/ Assembling Gear Section and SJS (Clutch) Mechanism

Retaining ring S-15

Flat washer 15

1) Remove the Gear section by unscrewing four M5x14 Hex bolts. (Fig. 8)

2) Remove Ball bearing 6000LLB using Ball bearing extractor (Makita Part No.1R269). (Fig. 9)

3) Remove Retaining ring S-15 using Retaining ring S and R pliers (Makita Part No.1R291). Flat washer 15 can now be

removed. (Fig. 10)

4) See Fig. 11. Remove Spindle by pressing down from the Spiral bevel gear installation side using arbor press and Round

bar for arbor: Use a Round bar of 14mm or smaller.

Important: Be careful not to damage the Labyrinth ring 25 (The component of Spindle complete) in this step.

5) Remove the assembly of Spiral bevel gear 57 and Lock sleeve from Bearing box. (Fig. 12)

Fig. 11 Fig. 12

6) While turning Lock sleeve clockwise with water pump pliers, Lock sleeve can be separated from Spiral bevel gear 57

by pulling the gear. (Fig. 13)

7) While turning Lock spring 24 clockwise with water pump pliers, Lock spring 24 can be separated from Spiral bevel

gear 57 by pulling the gear . (Fig. 14)

Important: Wrap Lock spring 24 with soft cloth or the like in order not to damage with the pliers.

Water pump pliers Water pump pliersLock sleeve

Fig. 13

Lock spring 24

Fig. 14

Soft cloth

Hex bolt M5x14 (4pcs)

Gear section

No.1R269

Ball bearing 6000LLB

No.1R291

Round bar for arbor

Spindle complete

Spiral bevel gear 57

Lock sleeve

Labyrinth ring 25

(The component of Spindle complete) Bearing box

Spiral bevel gear 57Spiral bevel gear 57

DISASSEMBLING

P 5 / 6

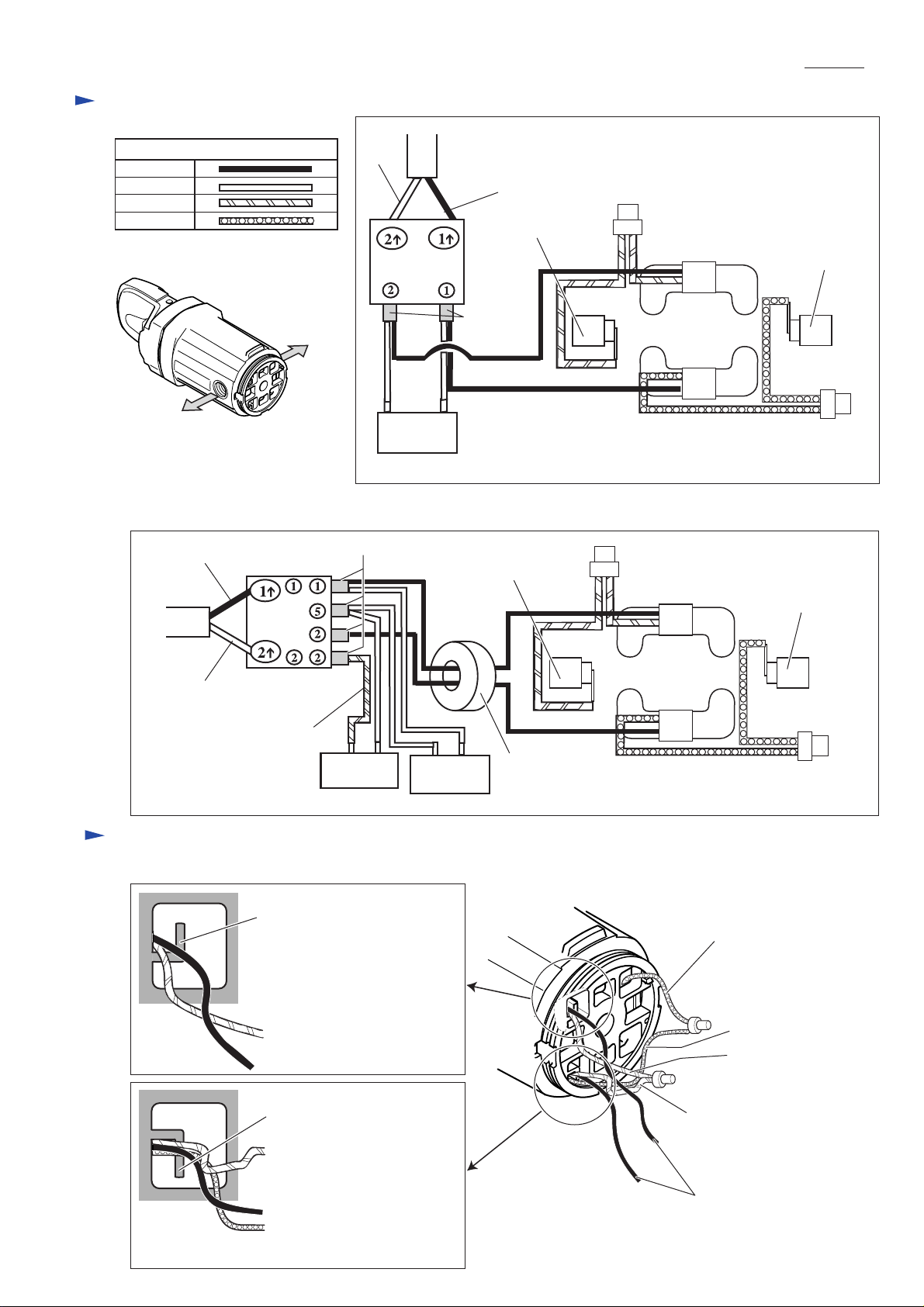

Circuit diagram

Wiring diagram

Color index of lead wires

Black

White

Orange

Purple

Route the following lead

wires through the hook:

* Field lead wire (black)

* Field lead wire (orange)

Route the following lead

wires through the hook:

* Field lead wire (black)

* Field lead wire (purple)

* Connecting lead wire

(orange) from Brush holder

[1] Wiring in Motor Housing for 4114 and 4114S

Insulated

receptacle

Noise

suppressor Insulated

connector

Insulated

connector

Switch

Field

Brush holder

(left) Brush holder

(right)

Brush holder

(left)

Brush holder

(right)

Power supply cord

Field lead wire (purple)

Field lead wire (orange)

Field lead wire (black)

Connecting lead wire (purple)

from Brush holder

Connecting lead wire (orange)

from Brush holder

Hook

4114

4114S

Insulated receptacle

Soft start

circuit Noise

suppressor

(If used.)

Insulated

connector

Insulated

connector

Switch

Field

Brush holder

(left) Brush holder

(right)

Line filter

(If used.)

Power supply cord

red or orange

white or blue

black or brown

white

or blue

P 6 / 6

[3] Wiring in Handle for 4114S

Be sure to connect so that all slits

of the four Insulated receptacles

face the same direction as illustrated

below.

Insulated receptacle

(viewed from the wheel installation side)

Terminal of Switch

Terminal

Slit in Terminal

Insulator

Switch

Insulated receptacle

Connecting Insulated Receptacles

with Terminals of Switch

Fix the following lead wires

with this lead wire holder:

*2 Field lead wires (black)

*Lead wire of Soft start circuit (white)

*Lead wire of Soft start circuit (orange or red)

Rib

If Line filter is used,

guide two Field lead

wires (black) through it,

and put in this space.

Fix the following lead wires with this lead

wire holder, and put in this space:

*2 Field lead wires (purple, orange)

*2 Connecting lead wires (purple, orange)

from Brush holder

Put Soft start circuit

in this space.

Put Noise suppressor

in this space if used.

Switch

[Correct] [Wrong]

[2] Wiring in Handle for 4114

Switch

Fix the following lead wires

with this lead wire holder:

*2 Field lead wires (black)

*Lead wire of Soft start circuit (white)

*Lead wire of Soft start circuit (orange or red)

Do not put the lead wires

of Power supply cord on

this rib.

Avoid this pin to route

the lead wires of Power

supply cord.

Fix the following lead wires with this lead

wire holder, and put in this space:

*2 Field lead wires (purple, orange)

*2 Connecting lead wires (purple, orange)

from Brush holder

Put Noise suppressor

in this space if used.

Wiring diagram
