Maiwe MIEN2205 Manual de usuario

Industrial Ethernet switch

Model: MIEN2205

User Manual

March, 2011(Second Publish)

Edition2.0.1

Industrial Ethernet switch

MIEN2205 User manual

Before using this manual, please read the following license

agreement.

Important declaration:

TheCompany provided in thismanual for anyinformation, does notmean

these information can provide to third parties.

Notice:

AS technical developing maybe some part of the

datasheet get different with actual product. Pretty

sorry for this, if want more news about products.

Please check our website or connect with our sales

directly

iii

SAFETY PROVISION FOR THE USING NOTICE

This product is designed as a good and reliable quality,

however it still need to avoid human hurt or destroy.

Please read carefully and keep this manual for

search.

Do not place the equipment near water or

moisture.

Do not put anything on the power line, it should

be in the not touch place.

To avoid fire, do not put power lines together or

firmly connected to each other.

Please always check power control whether fix

up with other equipments.

Please keep optical fiber ports and slots clean.

When it work, not lock fiber cross section.

Please keep equipment clean, please use a soft

cotton wipe it.

Please follw use manual, please do not repair by

youself.

When appear following cases, please shutdown power and

directly connect with our company.

Water split

Equipment break or crust broken.

Equipment working abnormity or need update.

Equipment gets some smell or smoke or noise.

Catalogue

Chapt 1 Introduction 5

1.1MIEN2205 industrial Ethernet Switch 5

1.2 MIEN2205 system features 5

1.3 Product packing list 6

Chapt 2 General 7

2.1 System parameters 7

Chapt 3 Hardware 8

3.1 Din-Rail Casing 8

3.2 MIEN2205 front panel 8

3.3 MIEN2205-S front panel 9

3.4 LED indicator lights 10

3.5 Power supply 10

Chapt 4 Hardware installation 11

4.1 DIN-Rail installation 11

4.2 Cable connection 12

4.3 Fiber connection 12

Chapt5 Testing Guide 14

5.1 Self-Verification 14

5.2 Electronic port testing 14

5.3 Fiber optic port testing 15

Chapt6 Network construction 16

6.1 Network construnction introduction 16

6.2 Network collocate 16

6.3 Order information 17

Chapter 1 Introduction

1.1 MIEN2205 industrial Ethernet Switch

The MIEN2205 is 5x10M/100M industrial Ethernet switch. It is

high performance Industrial Ethernet switch.

The MIEN2205-S is 5x10M/100M and 1x100Base-FX

industrial Ethernet Switch. It is high performance Industrial

Ethernet switch.

The MIEN2205 provide din rail installation.

Each RJ45 port has adaptive function, can automatically

configure the 10Base-T or 100Base-TX full-duplex or half

duplex status, and can automatically MDI/MDI-X connection.

1.2 MIEN2205 system features

High performance industrial Ethernet switch interfaces

10Base-T/100Base-TX adaptive portfull/half duplex

automatic MDI/MDI-X connection.

MIEN2205 with full duplex 100Base-FX single mode or

Multimode fiber interface.

Broadcast Storm suppression

Industrial power supply

Provide industrial grade DC24V power supply and

redundant power input.(DC12V,DC48V,AC/DC220V and

others can choose)

Reliable EMC protection and over-current / over-voltage

protection.

Rugged Design

Single-ribbed aluminum chassis cooling surface design,

efficient cooling without fan, the system can work reliably

at -40  ~ +70  environment.

Closed high-strength aluminum casing, enabling the

system to work reliably in harsh and hazardous industrial

environments.

DIN-Rail mounted installation

1.3 Product packing list

MIEN2205 includes following items:

Item QTY

MIEN2205 Industrial Ethernet switch 1pcs

User manual 1pcs

Chapter 2 General

2.1 System Parameters

Content MIEN2205/MIEN2205

RJ45 ports MIEN2205: 5x10Base-T/100Base-TX

MIEN2205-S: 4x10Base-T/100Base-TX

Optic port MIEN2205-S: 1x100Base-FX

System

parameter

Standard: IEEE802.3, IEEE802.3u, IEEE 802.3x

store-and-forward mode rate148810pps

MAC address table size1K

Converter methodstore-and-forward mode

Electric port

parameter

Physics socketRJ45 Socket(shielded)

RJ-45 socket10Base-T/100Base-TX,auto-negotiation

Socket standardIEEE802.3 standard

Communication distance<100m

Optic port

parameter

Link Budget: >-12dBm(Single mode); >-17dBm(Multimode)

RX Sensitivity: <-38dBm(Single mode); <-35dBm(Multimode)

Wavelength: 1310nm/1550nm(Single mode); 1310 nm(Multimode)

Typical Distance: 2080Km(Single mode); <5Km(Multi mode fiber)

Converter type: SC/FC/ST

Transport rate: 125Mbps

Power

parameter

Voltage input: DC24V

Input expend: <10W

Voltage passing: Inside

Technical

parameter

Dimensions(HWD): 135 53 90mm(not include DIN rail

equipments dimensions)

Installation method: DIN rail

Heat dissipation: protection class with aluminum casing, not flow fan.

Weight: 0.6

Working

environment

Operation: -20+70

Store: -45+85

Ambient Relative Humidity: 095%(non-condensing)

Chapter 3 Hardware

3.1 DIN-rail casing

MIEN2205 use Din rail mount installation. Machine with six sides

fully enclosed structure.

Dimensions WHD114 80 33mmnot including DIN rail

dimension

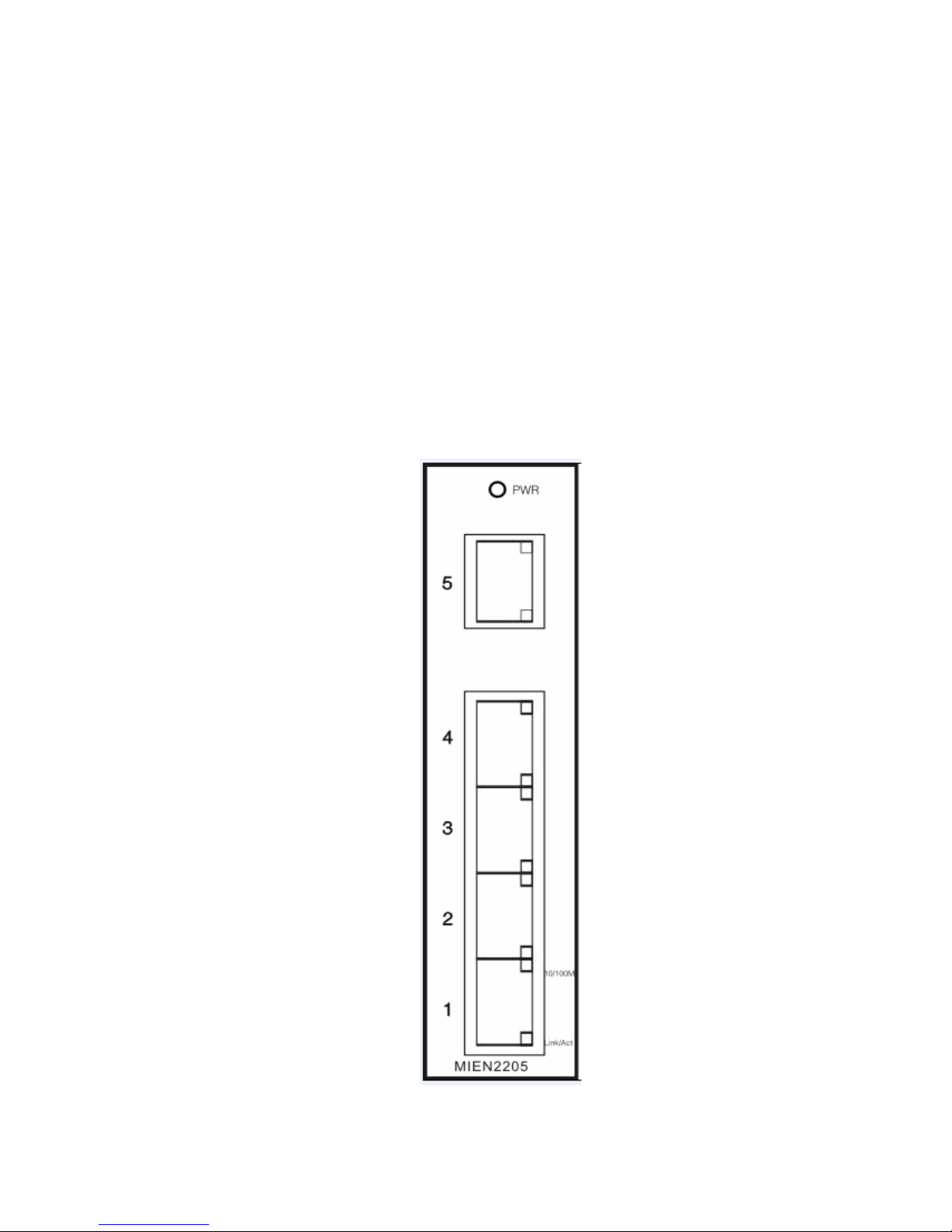

3.2 MIEN2205 front panel

MIEN2205 industrial Ethernet switch offers

5x10Base-T/100Base-TX RJ45 Ethernet ports.

3.3 MIEN2205-S front panel

MIEN2205-S industrial Ethernet switch offers 1 100Base-FX

and 4x10Base-T/100Base-TX RJ45 Ethernet ports

TX for the optical transmitter, RX for the optical receiver.

3.4 LED indicator lights

The front panel of MIEN2205 industrial Ethernet switch LED

indicatorto show the state of the system and port operation,

easy to find and solve problems. Schematics.3-1 shows

interface LED indicator lights functions:

Schematics 3-1 LED indicator lights

LED Lights Status

Interface LED Status

On Power is being supplied to the power input.

POW Off Power is not being supplied to the power

input.

Optic socket LED

On FX port’s 100 Mbps link is active

Blinking Data is being transmitted at 100Mbps.

LINK Off 100BaseFX port’s link is inactive.

RJ45 socket LED state

Each RJ45 port has two LED indicator lightsthe yellow LED light for

the Link Budget indicator lightsthe green LED light for the port

connection status indicator lights.

On 100M working state (100Base-TX10M/

100M

YellowOff 10M TP10Base-T

On Link is active

Blinking Data is being transmitted at 10 Mbps

LNK/ACT

GreenOff Link is inactive.

3.5 Power spply

MIEN2205 is DC24V and 5.08mm 3 wire terminal block line

power input. The Power cable diameter is <1.5mm. If you use

AC220V power supply, V+ connected Fire Wire L, V- connected

zero line N, and pay attention to safety, to prevent electric shock.
