Magicshine EVO 1700 Manual de usuario

EVO 1700

USER MANUAL

APP PAIRING NAME: M2-B0

IN THE BOX

WARNING

1. To prevent inadvertent switching on, please keep the

light unit in lockout mode before transport or storage.

2. DO NOT disassemble, modify, remanufacture,

puncture, or damage the device or batteries.

2mm/3mm

hex key

USB-C

charging cable

Nylon shim

(28mm/

32mm/35mm)

MJ-6508 remote

control (incl. strap)

EVO 1700 Handlebar

out-front mount

Screw

HEADLIGHT BUTTON OPERATION:

ON/OFF: Press and hold the button for 1 second

ADJUST BRIGHTNESS: When the light is on, click the

button to change brightness level. The output

brightness will cycle through LOW→MEDIUM→HIGH.

CHANGE MODE: Double click the button to change

between low beam and high beam. (Note: The Day

flash and Night flash can only be accessed through

the remote control.)

CHECK BATTERY LEVEL: Click the button

LOCK/UNLOCK: When the light is off, press and hold

the button for 3 seconds to enter lockout mode. To

unlock the light, you can press and hold the button

again for 3 seconds or charge the light.

OPERATING INSTRUCTIONS

HEADLIGHT BUTTON OPERATION:

ON/OFF: Press and hold the button for 1 second

ADJUST BRIGHTNESS: When the light is on, click the

button to change brightness level. The output

brightness will cycle through LOW→MEDIUM→HIGH.

CHANGE MODE: Double click the button to change

between low beam and high beam. (Note: The Day

flash and Night flash can only be accessed through

the remote control.)

CHECK BATTERY LEVEL: Click the button

LOCK/UNLOCK: When the light is off, press and hold

the button for 3 seconds to enter lockout mode. To

unlock the light, you can press and hold the button

again for 3 seconds or charge the light.

REMOTE CONTROL INSTRUCTIONS

Note:

1. Before first use, please open the remote's battery

compartment, remove the insulating spacer, reinsert

the battery, then cover the battery compartment,

and the indicator on the remote will flash blue.

2. The remote control will enter sleep mode if the

light is turned off for more than 48 hours without

any operation. Click the light's button to activate it

or long-press the light's button to turn it on, and

the remote control can work normally.

REMOTE CONTROL PAIRING:

Turn on the light, press and hold the "○""□" buttons

on the remote for about 10 seconds until the

indicator alternately flashes blue to enter pairing

mode. Then, put the remote close to the light

button until the indicators on the remote and light

unit are constantly blue for 2 seconds, confirming a

successful pairing.

REMOTE CONTROL OPERATION:

ON/OFF: Press and hold the "○"/"□" button for 1 second

ADJUST BRIGHTNESS: Click the "○" button

CHANGE MODE: Double click the "○" button

FLASH MODE: Double click the "□" button

FULL OUTPUT MODE (1700LM): Click the "□" button to

go into full output mode and click the "○"/"□" button to

return to the previous mode.

CHARGING / BATTERY INDICATOR

Standard charging time approx.

5 hrs (5V 1A)

Charging: Flashing red

Fully charged: Constant green

BATTERY INDICATOR

When the light is off, click the button to display the

remaining battery level for 3 seconds.

100%-21%: Constant green

20%-11%: Constant red

10%-1%: Flashing red

OUTPUT / RUNTIME

*All data are measured in accordance with

ANSI/NEMA FL 1-2009. The test was conducted at a

temperature of 25°C and a wind speed of 25 km/h.

The runtime may vary depending on external

temperature and ventilation conditions, and these

deviations may affect the result of testing.

FLASH MODE

200LM

400LM

800LM

400LM

800LM

1700LM

0~1700LM

400~1700LM

HIGH BEAM

LOW BEAM

LOW

MEDIUM

HIGH

LOW

MEDIUM

HIGH

DAY FLASH

NIGHT FLASH

11H

5.5H

3.5H

HOW TO INSTALL / REMOVE

1. INSTALL THE OUT-FRONT MOUNT

2. REMOVE THE OUT-FRONT MOUNT

2. 3.

1. 2.

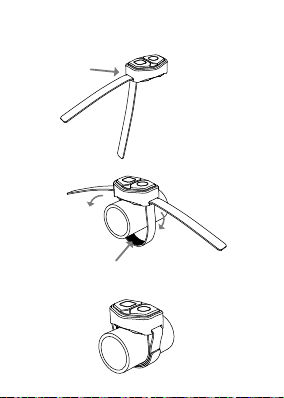

3. REMOTE CONTROL MOUNTING

Adhesive velcro hook side up
