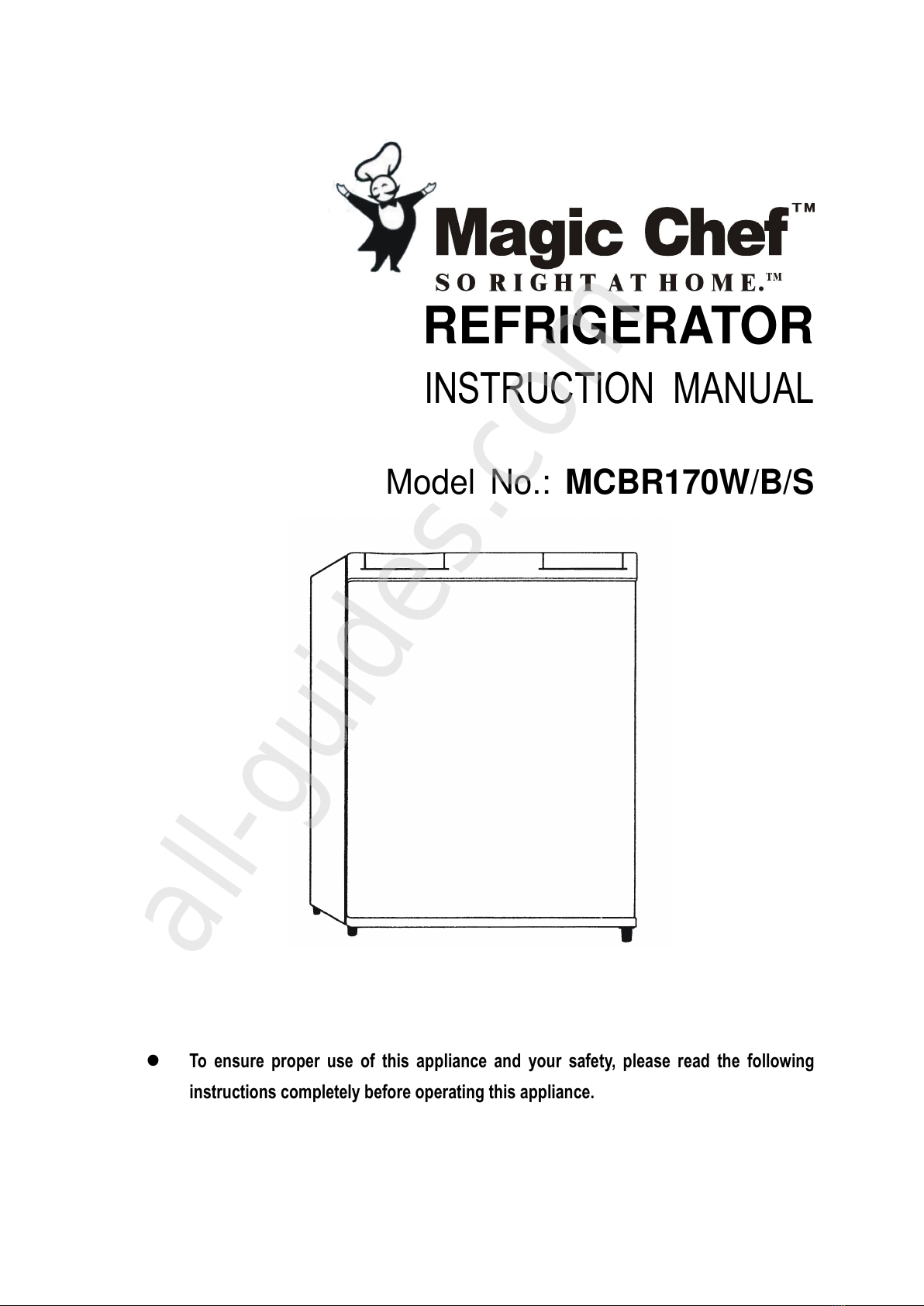

Magic Chef MCBR170S Manual de usuario

REFRIGERATOR

INSTRUCTION MANUAL

Model No.: MCBR170W/B/S

To ensure proper use of this appliance and your safety, please read the following

instructions completely before operating this appliance.

All manuals and user guides at all-guides.com

all-guides.com

TABLE OF CO TE TS

Before Putting Into Use………………………………………………………….……….. 2

Tips For Energ Saving…………………………………………………………….…….. 2

Important Safet Instructions………………………………………………….…………. 3

Name Of The Parts ……………...……………..…………………………….….……….. 4

Specifications…………………………………………………………………….………… 5

How To Operate:

Starting Your New Refrigerator…………………………………….…………….. 6

Temperature Control…………………………………………………….………… 6

How To Defrost……………………………………………………………….……. 7

Making Ice Cubes…………………………………………………………….…… 7

Door Reversal Instruction……………………………………………….……..… 8

How To Clean……………………………………………………………………….….…. 9

How To Install………………………………………………………………………….….. 9

Care And Maintenance…………………………………………………………………... 10

Troubleshooting Guide

What To Do………………………………………………………………………... 11 - 12

Refrigerator Warrant ……………………………………………………………………. 13

All manuals and user guides at all-guides.com

BEFORE PUTTI G I TO USE

Before connecting the appliance to the power suppl , let the unit stand upright for 4 hours,

which will reduce the possibilit of the cooling s stem malfunctioning due to improper

handling.

Clean our unit thoroughl before putting into use. (See “How to Clean”)

Use the parts diagram on page 4 to insure proper positioning of internal components.

TIPS FOR E ERGY SAVI GS

Keep the refrigerator and freezer doors closed as much as possible, particularl in warm /

humid conditions.

Maintain adequate ventilation around the back and sides of the unit.

Maintain a thermostat setting of “4” under normal use.

Allow warm food to cool to room temperature before placing in the refrigerator or freezer.

Excessive ice build up will increase energ consumption. Defrost the unit when ice / frost is

¼” thick.

All manuals and user guides at all-guides.com

IMPORTA T SAFETY I STRUCTIO S

DA GER: Risk of child entrapment. Before ou throw awa our old refrigerator or freezer:

Take off the doors.

Leave the shelves in place so that children ma not easil climb inside.

The appliance must be correctl connected to the power suppl . (See: “HOW TO INSTALL”).

Do not use an extension cord as this can negativel affect the performance of the unit.

When transporting the refrigerator, keep the unit in the upright position. Do not tilt the

appliance be ond 45° or place the unit in upside down position.

Do not touch the cooled surfaces while the appliance operates, especiall not with wet hands,

because the skin ma stick to the cold surfaces.

It is recommended that the refrigerator is positioned awa from an combustible sources

such as gas, petrol, alcohol, lacquer and banana oil, etc. The aforementioned objects

should not be stored in the refrigerator under an circumstances.

Do not freeze bottled liquids such as carbonated soft drink, beer, wine, etc. Doing so can

cause glass bottles and aluminum cans to rupture.

If the unit fails to cool properl , dispose of spoiled food as needed.

All repairs should be made b a qualified service technician. Repairs made b non-qualified

personnel will void the warrant .

Do not defrost the appliance with other electric devices (hair dr er etc.) and never scrape the

ice or frost la er with sharp tools.

The rating plate is inside the appliance or outside on the rear wall.

All manuals and user guides at all-guides.com

AME OF THE PARTS

Model No.: MCBR170W/B/S

Ice Cube Tra

Temperature Control Knob (Rear)

Drip Tra

Removable Shelf

Freezer Compartment

Dair Rack

Bottle Rack

Adjustable Legs

All manuals and user guides at all-guides.com

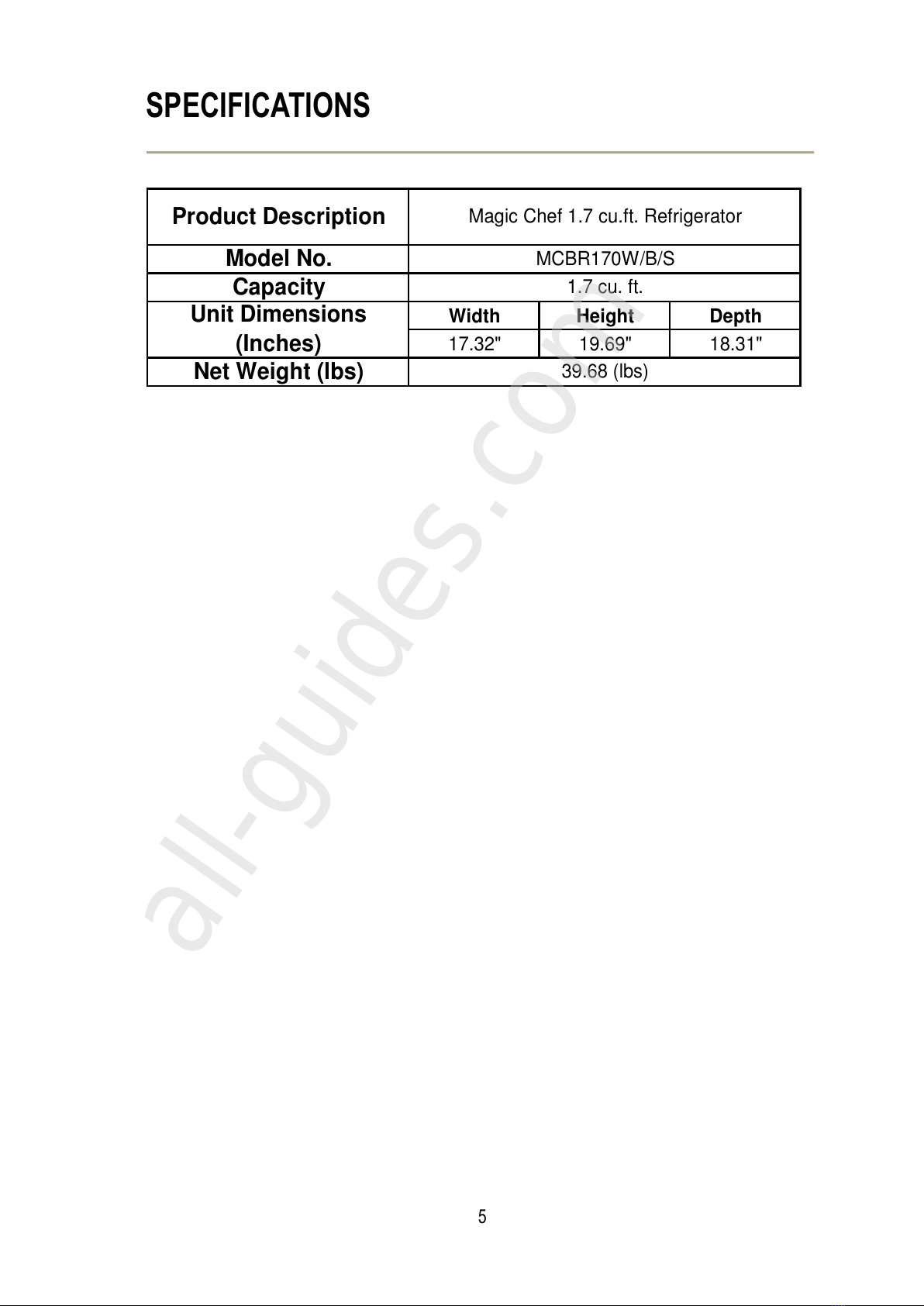

SPECIFICATIO S

Width Height Depth

17.32" 19.69" 18.31"

1.7 cu. ft.

39.68 (lbs)

MCBR170W/B/S

Magic Chef 1.7 cu.ft. Refrigerator

Net Weight (lbs)

Capacity

Model No.

Product Description

Unit Dimensions

(Inches)

All manuals and user guides at all-guides.com

all-guides.com

HOW TO OPERATE

Starting Your ew Refrigerator

1. Clean the refrigerator thoroughl . Wipe the outside with a soft dr cloth, the interior with a

clean moist cloth.

2. Insert the power suppl cord into the socket.

3. Turn the thermostat dial to “7”. Close the door and let the refrigerator operate for 20 minutes.

4. Reduce the thermostat to a mid-range setting “4” on the thermostat control.

Temperature Control

To control the internal temperature, adjust the

thermostat dial. “1” is the warmest setting. “7”

is the coldest. To turn the refrigerator off,

turn the temperature control knob to “0”. *

*Note:

Turning the temperature control to

“0” position stops the cooling c cle

but it does not shut off the power

suppl to the refrigerator.

The Dial ma be set an place on the scale. It does not have to be set exactl on a number. To

make ice cubes in the freezer compartment, adjust the thermostat to the coldest setting. (“7”)

ote: Wait 3-5 minutes before restarting if ou unplug the refrigerator. The unit ma fail to

operate properl if restarted too quickl .

HOW TO DEFROST

Defrost the freezer compartment when the ice / frost is approximatel ¼” thick. Set the thermostat

The refrigerator is not designed to be installed in an outside area such

as a garage or a porch. Ambient temperatures of below 50°F or above

100.4°F will hinder the performance of the appliance.

All manuals and user guides at all-guides.com

dial to “0” to defrost. Remove all contents from the freezer compartment. Leave the freezer door

open to allow accumulated ice / frost to melt. Remove large pieces of ice as needed. Do not use

hot water or other electric heating devices to melt the accumulated ice. After defrosting, remove

accumulated ice / water and wipe the freezer compartment dr with a soft cloth. Restart the unit

per starting instructions.

ever use a knife or other sharp metal instrument to scrape ice/frost from the evaporator.

Making Ice Cubes

Take out the ice cube tra and fill the tra to 80% capacit with drinkable water. Put the ice cube

tra back into the freezer compartment and close the door.

Turn the temperature control knob to “7”.

Wait for approximatel two hours.

Twist the ice cube tra and release the ice cubes.

Reset the temperature control knob to the normal recommended setting. (“4”)

Door Reversal Instruction

All manuals and user guides at all-guides.com

Your refrigerator is built with a reversible door. You have the choice of either opening it from the

left or the right side. In order to reserve the opening direction of our door, please follow these

simple instructions:

Remove all goods in our refrigerator. Tilt the refrigerator backwards. Secure the rear from

sliding. Tape the door to the cabinet to prevent from falling.

1. Remove the upper bracket cover and then the upper bracket.

2. Separate the door from the cabinet and remove the 2 or 3 hexagonal screws from base

bracket.

3. Remove the shorter adjustable leg, pivot and washer from base bracket, and remove the

longer adjustable lag from another cabinet side.

4. Install the pivot, washer and shorter adjustable leg to opposite base bracket side.

5. Attach the base bracket to the opposite side. Then attach the longer adjustable leg to the

other side.

6. Remove the two hole inserts from cabinet top and axle door insert from door top.

7. Re-attach door to the cabinet and the upper bracket, then fix the upper bracket cover.

8. Install the axle door insert and the hole inserts.

9. As the unit was tilted, wait half an hour before plugging it in.

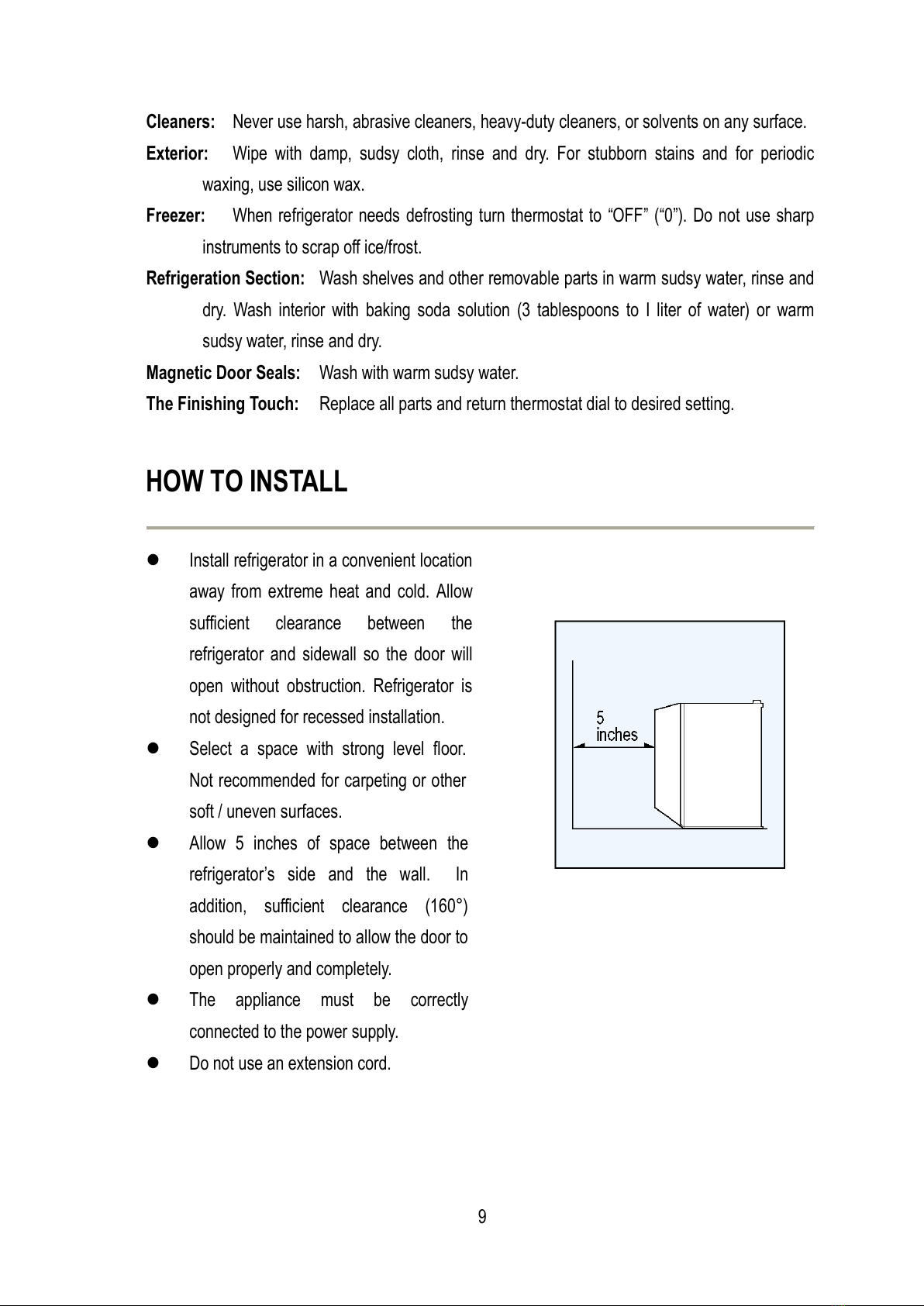

HOW TO CLEA

All manuals and user guides at all-guides.com

Cleaners: Never use harsh, abrasive cleaners, heav -dut cleaners, or solvents on an surface.

Exterior: Wipe with damp, suds cloth, rinse and dr . For stubborn stains and for periodic

waxing, use silicon wax.

Freezer: When refrigerator needs defrosting turn thermostat to “OFF” (“0”). Do not use sharp

instruments to scrap off ice/frost.

Refrigeration Section: Wash shelves and other removable parts in warm suds water, rinse and

dr . Wash interior with baking soda solution (3 tablespoons to I liter of water) or warm

suds water, rinse and dr .

Magnetic Door Seals: Wash with warm suds water.

The Finishing Touch: Replace all parts and return thermostat dial to desired setting.

HOW TO I STALL

Install refrigerator in a convenient location

awa from extreme heat and cold. Allow

sufficient clearance between the

refrigerator and sidewall so the door will

open without obstruction. Refrigerator is

not designed for recessed installation.

Select a space with strong level floor.

Not recommended for carpeting or other

soft / uneven surfaces.

Allow 5 inches of space between the

refrigerator’s side and the wall. In

addition, sufficient clearance (160°)

should be maintained to allow the door to

open properl and completel .

The appliance must be correctl

connected to the power suppl .

Do not use an extension cord.

All manuals and user guides at all-guides.com
