REFRIGERATOR

INSTRUCTION MANUAL

Model No.: MCBR445W1

MCBR445B1

MCBR445S1

zTo ensure proper use of this appliance and your safety, please read the following

instructions completely before operating this appliance.

TABLEOFCONTENTS

Before Putting Into Use………………………………………………………………….. 2

Tips For Energy Savings………………………………………………………………….. 2

Important Safety Instructions……………………………………………………………. 3

Name Of The Parts……………………………………………………………………….. 4

Specifications……………………………………………………………………………… 4

How To Operate:

Starting Your New Refrigerator………………………………………………….. 5

Temperature Control………………………………………………………………. 5

How To Defrost…………………………………………………………………….. 5

How To Clean……………………………………………………………………….……… 6

How To Install………………………………………………………………………….…… 6

Care And Maintenance

What To Do……………………………………………………………………….… 7

Changing The Reversible Doors………………………………………………….……… 8-9

Refrigerator Warranty……………………………………………………………………… 10

Before Putting Into Use

zBefore connecting the appliance to the power supply, let the unit stand upright for 4 hours,

which will reduce the possibility of the cooling system malfunctioning due to improper

handling.

zClean your unit thoroughly before putting into use. (See How to Clean)

zUse the parts diagram on page 4 to insure proper positioning of internal components.

Tips for Energy Savings

zKeep the refrigerator and freezer doors closed as much as possible, particularly in warm /

humid conditions.

zMaintain adequate ventilation around the back and sides of the unit.

zMaintain a thermostat setting of between “3” and “5” under normal use.

zAllow warm food to cool to room temperature before placing in the refrigerator or freezer.

zExcessive ice build up will increase energy consumption. Defrost the unit when ice / frost

is1/4” thick.

Important Safety Instructions

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

zTake off the doors.

zLeave the shelves in place so that children may not easily climb inside the unit.

zThe appliance must be correctly connected to the power supply. (See: “HOW TO INSTALL”).

zDo not use an extension cord as this can negatively affect the performance of the unit.

zDo not touch the cooled surfaces while the appliance operates, especially not with wet hands,

because the skin may stick to the cold surfaces.

zDo not freeze bottled liquids such as carbonated soft drink, beer, wine, etc. Doing so can

cause glass bottles and aluminum cans to rupture.

zIf the unit fails to cool properly, dispose of spoiled food as needed.

zAll repairs should be made by a qualified service technician. Repairs made by non-qualified

personnel will void the warranty.

zDo not defrost the appliance with other electric devices (hair dryer, etc.) and never scrape the

ice or frost layer with sharp tools.

zThe rating plate is inside the appliance or outside on the rear wall.

NAMEOFTHEPARTS

Model No.: MCBR445W1 / MCBR445B1 / MCBR445S1

Evaporator

Drain Pan

Temperature Control Box

Shelves

Door Liner

Ice Cube Tray

Rack

Bottle Rack

Crisper

Can Dispenser

Temperature Control Dial

Defrost Button

SPECIFICATIONS

Product Description Magic Chef Refrigerator with Glass Shelves

Model No. MCBR445W1 / MCBR445B1 / MCBR445S1

Capacity 4.4 Cu. Ft.

Width Height DepthUnit Dimensions

( inches ) 19.09” 32.91” 21.38”

Net Weight ( lbs ) 66.14 ( lbs )

HOW TO OPERATE

Starting Your New Refrigerator

1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the interior with a

clean moist cloth.

2. Insert the power supply cord into the socket.

3. Turn the thermostat dial to “7”. Close the doors and let the refrigerator operate for 15-20

minutes.

4. Reduce the thermostat to a mid-range setting between “3” and “5” on the thermostat control.

Temperature Control

To control the internal temperature, adjust the

thermostat dial. “1” is the warmest setting. “7”

is the coldest.

The Dial may be set any place on the scale. It

does not have to be set exactly on a number.

To make ice cubes in the freezer

compartment, adjust the thermostat to the

coldest setting.

Note: Wait 3-5 minutes before restarting if you unplug the refrigerator. The unit may fail to

operate properly if restarted too quickly.

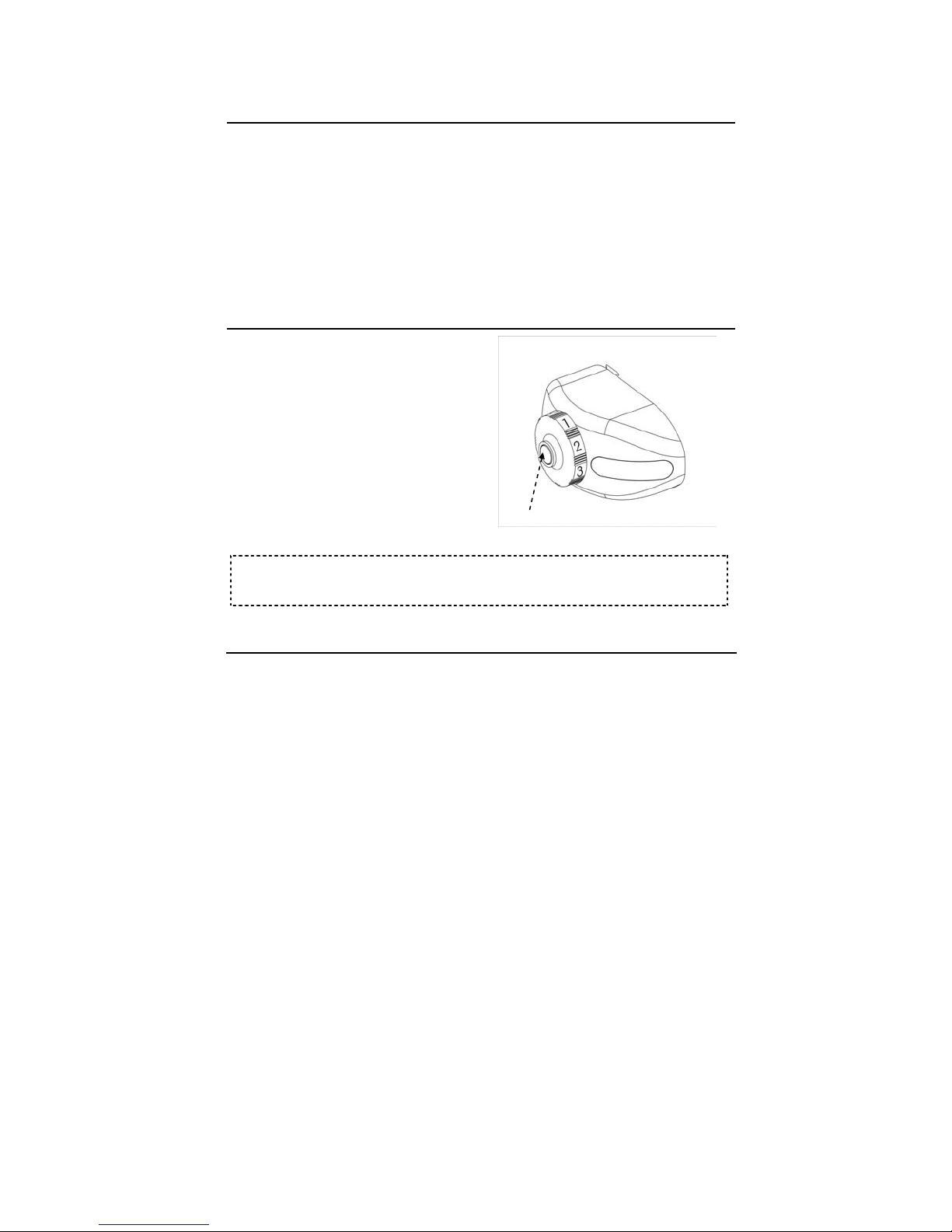

How To Defrost

Defrost the refrigerator when the frost accumulated on the evaporator is about 1/4” thick.

To defrost, simply push the defrost button. Be sure to keep the drain pan in place. Defrosting

usually takes a few hours. The refrigerator will restart automatically when defrosting ends. Empty

water from the drain pan after defrosting.

Never use a knife or other sharp metal instrument to scrape ice / frost from the inside of the

unit.

Defrost Button

HOWTOCLEAN

Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any surface.

Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic

waxing, use silicon wax.

Freezer: When refrigerator needs defrosting press defrost button. Do not use sharp

instruments to scrape off ice/frost.

Refrigeration Section: Wash shelves and other removable parts in warm sudsy water, rinse and

dry. Wash interior with baking soda solution (3 tablespoons to I liter of water) or warm

sudsy water, rinse and dry.

Magnetic Door Seals: Wash with warm sudsy water.

The Finishing Touch: Replace all parts and return thermostat dial to desired setting.

HOWTOINSTALL

zInstall the refrigerator in a convenient

location away from extreme heat and cold.

Allow sufficient clearance between the

refrigerator and side wall so the door(s)

will open without obstruction. Refrigerator

is not designed for recessed installation.

zSelect a space with strong level floor.

zAllow 5 inches of space between the

refrigerator’s side and the wall.

zThe appliance must be correctly

connected to the power supply.

POWER CORD REPLACEMENT

If the refrigerator’s power cord is damaged, have it replaced by a qualified repair agent.

CARE AND MAINTENANCE

WHAT TO DO …

When the fridge is not in use for a prolonged period:

zRemove the plug from the outlet.

zRemove all contents from the fridge.

zDry the interior and leave the door open for a few days.

When you wish to move the fridge:

zSecure all movable parts and contents. (Package them separately if necessary.)

zTransport the fridge only in an upright position. In any other position you may damage the

compressor.

Before calling service, please follow the checklist below.

This may save you an expensive service call.

If the refrigerator is not cooling properly:

zCheck to see that the door is closing properly and the door seal is not damaged.

zCheck that the interior circulation is not obstructed by having too many goods stored. (The

fridge is overloaded)

zDid you store anything hot, without first cooling it to room temperature?

zIs there sufficient clearance around all sides and above the fridge?

If the fridge starts making any unusual noises:

zIs it wobbling? Re-level the unit and check if it now operates normally.

zHave any objects fallen behind the fridge? If so, remove them and check if operation is now

normal.

zAre any containers inside the fridge vibrating or resonating? If so, rearrange them then check

to see if operation has returned to normal.

WARNING – Improper use of the grounding plug can result in a risk of electric shock. If it is

necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade

grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked

rating of the extension cord should be AC 115-120V, 10A, or more. If a grounding adapter is

used, make sure the receptacle box is fully grounded.

CHANGINGTHEREVERSIBLEDOORS

CAUTION: To avoid personal injury to yourself and/or property, we recommend

someone assist you during the door reversal process.

This refrigerator has been built with the door hinges on the right. If you wish to change the opening direction, follow

the instruction below:

zUnplug the refrigerator from its electrical outlet.

zEmpty everything in the refrigerator, including shelves, food, etc.

1. Remove the hinge cover on the right top of the cabinet.

2. Remove the two screws (using a ratchet tool with a

7/16” socket) that hold the top hinge to the cabinet.

Keep these screws for later use.

3. Lift the top hinge straight up to free the pin from the

socket on the top of the door.

4. Lift the door and place it on a padded surface to prevent

scratching it.

5. Remove the plug buttons from the upper left holes as

illustrated and transfer them to the uncovered holes at

the right side. Be sure to press the plug buttons firmly

into the holes.

6. Lay the cabinet on its side down on the floor. Remove

the three screws that hold the bottom hinge to the

cabinet using a 7/16” socket. Keep these screws and

washer for later use.

7. Insert the bottom hinge at the left side using the two

screws previously removed in step 6.

NOTE: Do not tighten screws.

8. Stand the cabinet.

9. Replace the door making sure the bottom socket

enters the bottom hinge pin. Be sure washer is in

place.

10. While holding the door in the closed position, secure

the top hinge at the left side using the two screws

previously removed at the beginning in step 2. Do not

tighten the screws until the top of the door is leveled

with the top cabinet.

11. Replace the hinge cover.

12. Replace plugs.

13. Tools Required:

- 7/16” socket-ratchet.

- Putty knife or thin-blade screwdriver.
